In-situ Polymerization Integrating 3D Ceramic Framework in All Solid-state Lithium Battery

doi:10.15541/jim20200152

Abstract

Abstract:

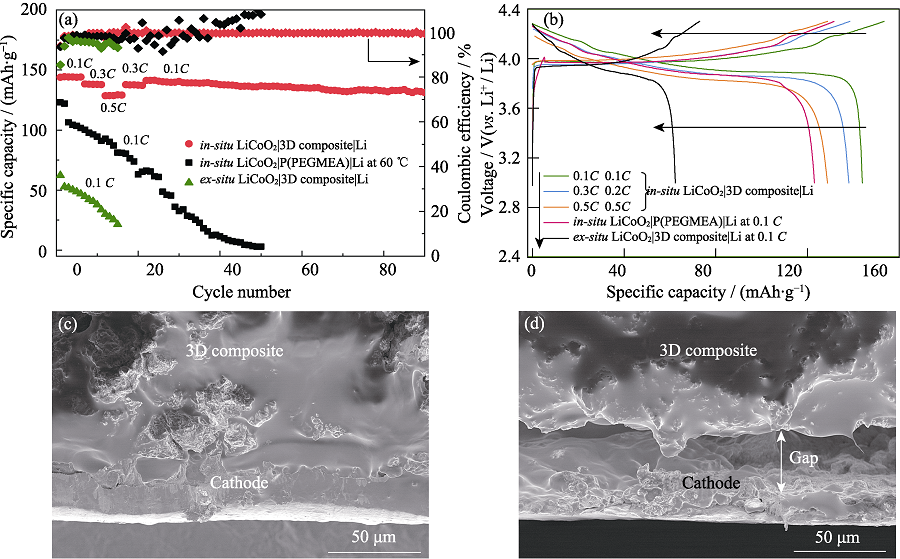

Organic/inorganic composites have been considered as promising electrolyte candidates in all solid-state lithium batteries. Aiming at improving the conductivity significantly by increasing the frequently-used 0D or 1D ceramic nano-fillers to high content is unsuccessful due to the particle tendency to agglomeration. What's worse, the loose contact between the solid electrolyte and solid electrodes is much of a serious barrier to the performance and thus to the application of all solid-state lithium batteries. Herein, self-supported 3D porous Li_6.4Al_0.1La₃Zr_1.7Ta_0.3O₁₂ frameworks are employed to provide percolated fast Li⁺ conductive pathway while in-situ polymerization of poly(ethylene glycol) methyl ether acrylate can integrate the loose solid-solid interface and reduce the interfacial resistance efficiently. Inspiringly, the Li⁺ conductivity of the composite exhibits 1.9×10^-4 S·cm^-1 at room temperature. The interfacial resistance in Li-Li batteries decreases significantly from 1540 to 449 Ω·cm ², rendering good capacity and cyclability of the 4.3 V (vs. Li⁺/Li) LiCoO₂|Li all solid-state lithium battery.

Key words: solid composite electrolyte, in-situ polymerization, porous framework, all solid-state battery

CLC Number:

TQ174

YAN Yiyuan, JU Jiangwei, YU Meiyan, CHEN Shougang, CUI Guanglei. In-situ Polymerization Integrating 3D Ceramic Framework in All Solid-state Lithium Battery[J]. Journal of Inorganic Materials, 2020, 35(12): 1357-1364.

Figures/Tables 8

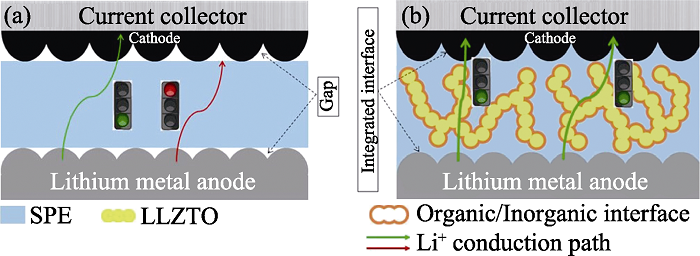

Fig. 1 Schematic illustration of ASLB structure prepared via (a) ex-situ and (b) in-situ methods with p-LLZTO as ceramic fillers

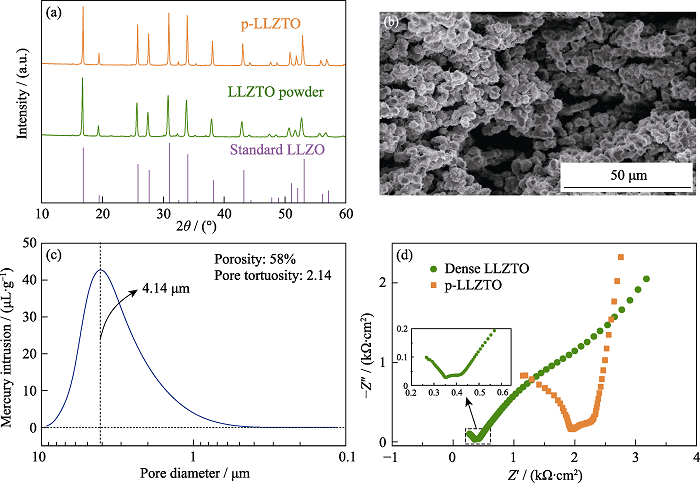

Fig. 2 (a) XRD patterns of standard LLZO, the as-prepared LLZTO powders and p-LLZTO; (b) Cross sectional SEM image of p-LLZTO; (c) Pore size distribution of p-LLZTO; (d) EIS plots of dense LLZTO and p-LLZTO at room temperature with inset showing the partial magnified spectrum of the dense LLZTO

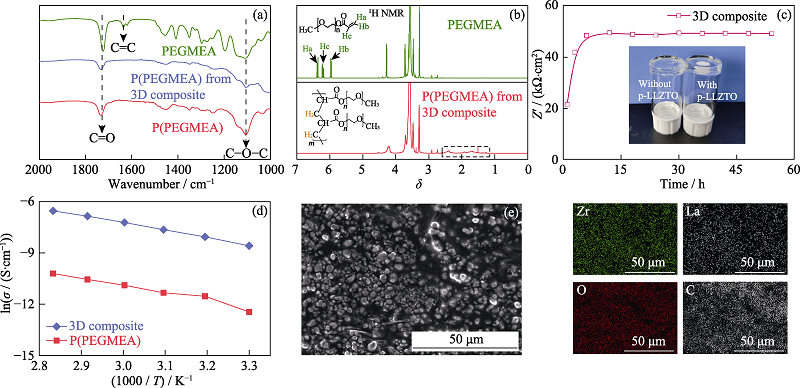

Fig. 3 (a) FT-IR spectra of PEGMEA, P(PEGMEA), and P(PEGMEA) from the 3D composite; (b) 1H NMR spectra of PEGMEA and P(PEGMEA) from the 3D composite(the solvents are deuterated N,N-dimethylformamide) with insets showing the corresponding structural formula of PEGMEA and P(PEGMEA); (c) Thermal evolution of ohmic resistance at 60 ℃ for steel|3D composite|steel symmetrical cell with inset showing the digital image of PEGMEA with/without p-LLZTO after heat-treatment at 60 ℃ for 24 h; (d) Relation between ionic conductivity of electrolyte and temperature for P(PEGMEA) and 3D composite; (e) Cross sectional SEM image and element mapping analysis of the 3D composite

Table 1 Conductivities $(\sigma_{Li^+})$ of different solid electrolytes at room temperature

Electrolyte	Lithium salt	EO^a : Li⁺	Conductivity of polymer/(S·cm^-1)	Conductivity of composite/(S·cm^-1)	Promotion factor	Ref.
PEO/LATP particles	LiClO₄	15 : 1	1.3×10^-6	9.5×10^-6	7.5	[25]
PEO/LLZO fibers	LiTFSI^b	-	2.5×10^-6	2.7×10^-5	11	[26]
PEO/LATP^c fibers	LiTFSI	8 : 1	3.2×10^-6	4.9×10^-5	15	[27]
PEO/3D LLZO	LiTFSI	10 : 1	1.8×10^-6	8.5×10^-5	47	[19]
PEO/3D LLTO^d	LiTFSI	10 : 1	2.2×10^-6	8.8×10^-5	40	[18]

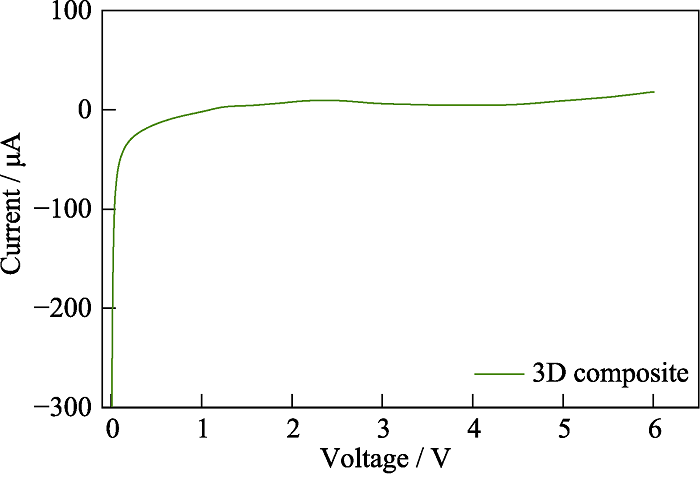

Fig. S1 Linear sweep voltammetry measurement for 3D composite at room temperature

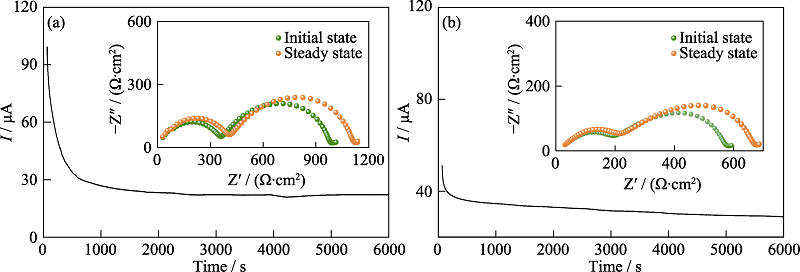

Fig. S2 Current variation with time during polarization of (a) Li|P(PEGMEA)|Li and (b) Li|3D composite|Li symmetrical cell at room temperature

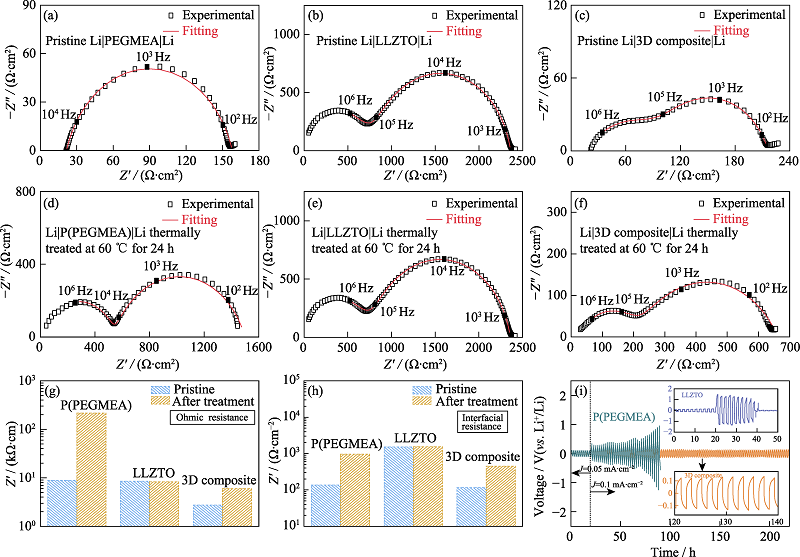

Fig. 4 EIS plots of (a-c) pre- and (d-f) post-treated Li-Li symmetrical batteries based on (a, d) PEGMEA, (b, e) LLZTO, (c, f) 3D composites; (g) Ohmic and (h) interfacial resistance comparison of pre- and post-treated Li-Li symmetrical cells; (i) DC galvanostatic cycle of Li-Li symmetrical batteries based on P(PEGMEA) and the 3D composite under room temperature at 0.1 mA·cm-2 with insets showing D.C. galvanostatic cycle of Li-Li symmetrical battery based on LLZTO(up) and the magnified profile of Li|3D composite|Li(down)
