Three-dimensional Reconstruction and Porosity Calculation of Ceramic Coating: Nondestructive X-ray Computed Tomography

doi:10.15541/jim20190534

Abstract

Abstract:

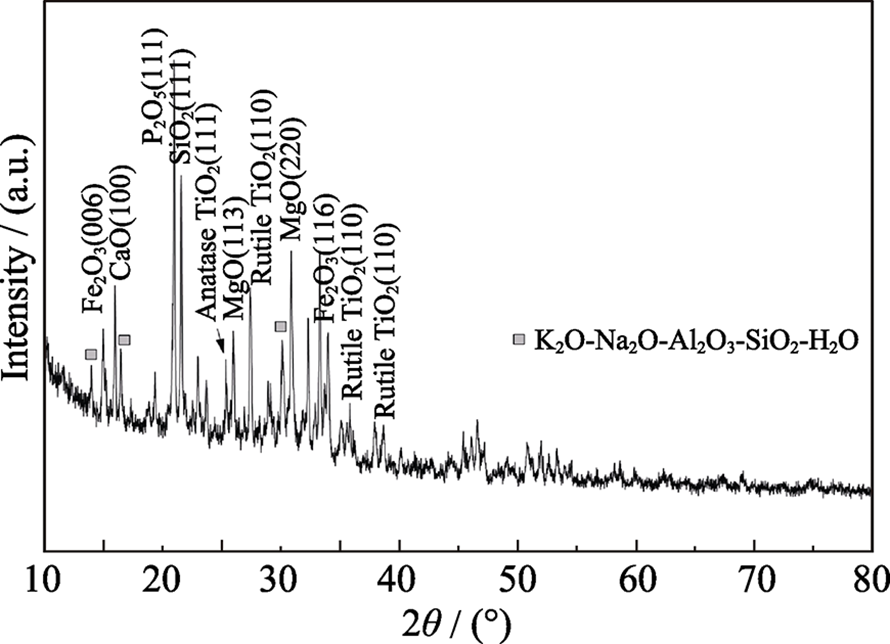

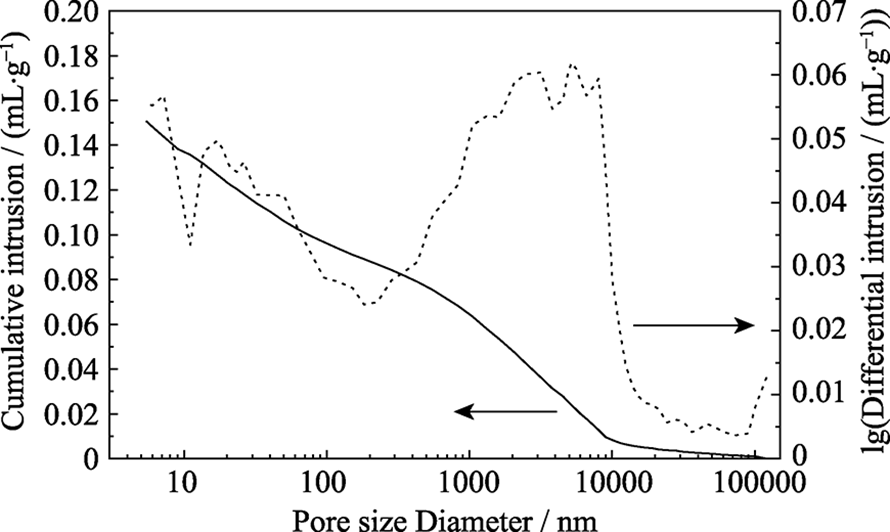

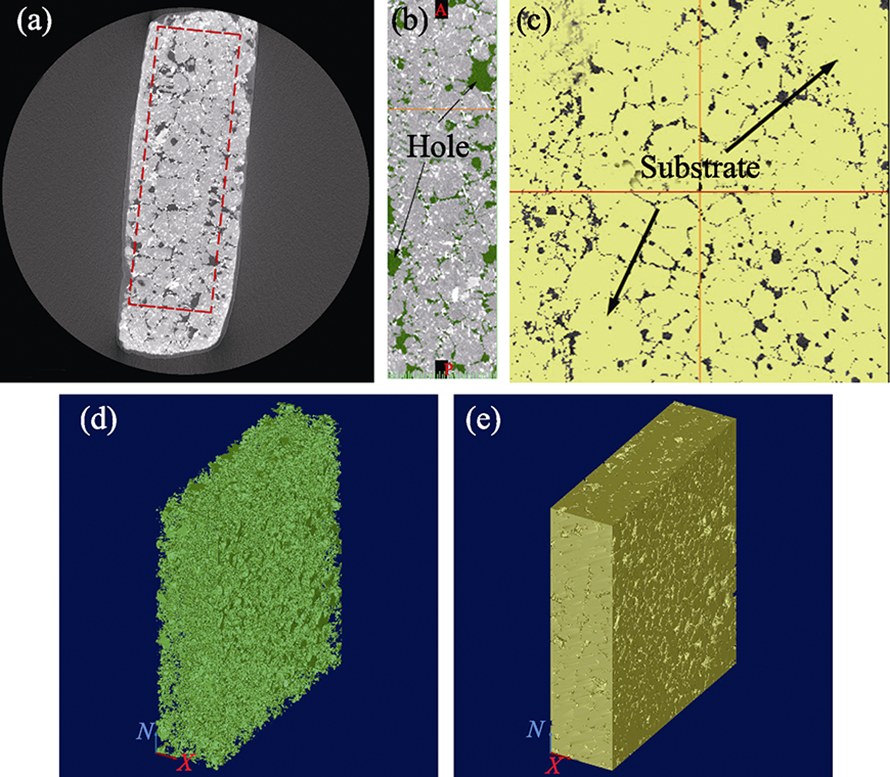

Ceramic coatings can effectively prevent the corrosion of steel bars in marine environments. In this study, we prepared phosphate ceramic coatings on the surface of carbon steel. X-ray diffraction and X-ray fluorescence were used to analyze the phase structure and composition of the ceramic and the results show that the main crystal composition of ceramic is P₂O₅ and SiO₂. Scanning electron microscopy was used to characterize the morphology of the surface and the section and results showed that the surface was cracked, and the thickness of ceramic was 349 μm. Meanwhile, a number of high-resolution images of internal structure of solids were obtained by non-destructive X-ray computed tomography (X-CT). Matlab and Mimics software were used to conduct the three-dimensional reconstruction of the CT images. Matrix and holes are distinguished by threshold segmentation in grayscale images, and the porosity of the ceramic coatings was calculated to be 14.0%. In addition, mercury intrusion porosimetry was used to verify the calculation results. Therefore, X-CT can be a useful and reliable tool for the visualization of the internal structure of ceramic coatings.

Key words: ceramics, porosity, X-CT technology, 3D reconstruction

CLC Number:

TQ174

ZHANG Zhifeng,WANG Fengjuan,WU Shengping,JIANG Jinyang. Three-dimensional Reconstruction and Porosity Calculation of Ceramic Coating: Nondestructive X-ray Computed Tomography[J]. Journal of Inorganic Materials, 2020, 35(9): 1059-1063.

Figures/Tables 7

References 20

[1]	YANG J J, HAI R, WU K R. Effect of ettringite structural transformation on expansive behavior of expansion cement. Journal of Inorganic Materials, 2003,18(1):136-142.
[2]	LÜ J L, JIN H J, LIANG T X. The effect of electrochemical nitridationon the corrosion resistance of the passive films formed on the 2205 duplex stainless steel. Materials Letters, 2019,256:1-4.
[3]	ZHAO Y P, LIU Y, LIU Q,et al. Icephobicity studies of superhydrophobic coatings on concrete via spray method. Materials Letters, 2018,233:263-266.
[4]	WANG P S. Study on Preparation and Critical Properties of a New Type of Steel Bars Coated with Micro/Nano Ceramics. Nanjing: Master Thesis of Southeast University, 2016.
[5]	ZHANG Z F, WANG F J, LIU Y,et al. Molecule adsorption and corrosion mechanism of steel under protection of inhibitor in a simulated concrete solution with 3.5% NaCl. RSC Advances, 2018,8:20648. DOI URL
[6]	JIANG J Y, CHU H Y, LIU YAO,et al. Galvanic corrosion of duplex corrosion-resistant steel rebars under carbonated concrete conditions. RSC Advances, 2018,8:16626.
[7]	WEI Q Y, WANG X T, NING X B,et al. Characteristics and anticorrosion performance of WSe₂/TiO₂ nanocomposite materials for 304 stainless steel. Surface and Coatings Technology, 2018,352:26-32.
[8]	TANG F J, CHEN G D, BROWN R K,et al. Corrosion resistance and mechanism of steel rebar coated with three types of enamel Corrosion Science, 2012,59:157-168.
[9]	CUI D, BANTHIA N, WANG Q N,et al. Investigation on porosity of partly carbonated paste specimens blended with fly ash through dual CT scans. Construction and Building Materials, 2019,196:692-702.
[10]	LUBELLI B, WINTER D A M, POST J A, et al. Cryo-FIB-SEM and MIP study of porosity and pore size distribution of bentonite and kaolin at different moisture contents. Applied Clay Science, 2013, 80-81:358-365.
[11]	COLLINGWOOD J F, ADAMS F. Chemical imaging analysis of the brain with X-ray methods. Spectrochimica Acta Part B: Atomic Spectroscopy, 2017,130:101-118. DOI URL
[12]	HERMANEK P, CARMIGNATO S. Porosity measurements by X-ray computed tomography: accuracy evaluation using a calibrated object. Precision Engineering, 2017,49:377-387.
[13]	YANG L, ZHANG Y S, LIU Z Y, et al. In-situ tracking of water transport in cement paste using X-ray computed tomography combined with CsCl enhancing. Materials Letters, 2015,160:381-383. DOI URL
[14]	ZHU W, CAI X N, YANG L,et al. The evolution of pores in thermal barrier coatings under volcanic ash corrosion using X-ray computed tomography. Surface and Coatings Technology, 2019,357:372-378.
[15]	ZHENG Y F, ZHANG L L, WANG K,et al. Microstructure characterization and luminescent property of mixed spinel Zn₆Ga₈TiO₂₀:Cr³+ phosphors. Journal of Inorganic Materials, 2018,33(1):9-13.
[16]	LI Y T, CHEN L, GUO Y L, et al. Preparation and characterization of WO₃/TiO₂ hollow microsphere composites with catalytic activity in dark. Chemical Engineering Journal, 2012, 181-182:734-739.
[17]	ZHANG X F, ZHANG G H, MENG Y,et al. Photocatalytic degradation of methylene blue by schiff-base cobalt modified CoCr layered double hydroxides. Journal of Inorganic Materials, 2019,34(9):974-982.
[18]	WAN K S, LI G, WANG S H,et al. 3D full field study of drying shrinkage of foam concrete. Cement and Concrete Composite, 2017,82:217-226.
[19]	ZHANG Z Y, SANG L X, LU L P, et al. Preparation of TiO₂ nanotube arrays and their photoelectrochemical properties. Journal of Inorganic Materials, 2010,25(11):1145-1149.
[20]	KANG S H, HONG S G, MOON J. The effect of superabsorbent polymer on various scale of pore structure in ultra-high performance concrete. Construction and Building Materials, 2018,172:29-40. DOI URL

Oxide compound	Proportion/wt%
MgO	10.38
Al₂O₃	6.64
SiO₂	22.56
P₂O₅	29.75
K₂O	18.86
CaO	8.06
TiO₂	2.44
Balance (Na₂O/SO₃/Fe₂O₃/ZnO)	1.31

Oxide compound	Proportion/wt%
MgO	10.38
Al₂O₃	6.64
SiO₂	22.56
P₂O₅	29.75
K₂O	18.86
CaO	8.06
TiO₂	2.44
Balance (Na₂O/SO₃/Fe₂O₃/ZnO)	1.31
