Electrospun Silicon Oxycarbide Ultrafine Fibers Derived from Polycarbosilane

doi:10.15541/jim20170153

Abstract

Abstract:

Silicon oxycarbide (SiOC) ultrafine fibers with uniform distribution were prepared via electrospinning of polycarbosilane (PCS)/polystyrene followed by oxidation and pyrolysis at 1100℃. The diameter of SiOC fibers ranged from 500 to 900 nm through adjusting PCS concentration. The average tensile strength of SiOC fiber mat was 8.88 MPa. The obtained SiOC fibers also displayed outstanding thermal stability and chemical resistance, making them promising materials as smart filters and catalyst supports in harsh environment.

Key words: electrospinning, polycarbosilane, silicon oxycarbide, ceramic fibers

CLC Number:

TQ174

WU Nan, WAN Lynn Yuqin, WANG Ying-De, FRANK KO. Electrospun Silicon Oxycarbide Ultrafine Fibers Derived from Polycarbosilane[J]. Journal of Inorganic Materials, 2018, 33(3): 357-362.

Figures/Tables 5

Fig. 1 SEM images of (a) as-spun PS/PCS fibers without SDS, (b) as-spun PS/PCS fibers with SDS, (c) pre-oxidized PS/PCS fibers, and (d) SiOC-15 fibers after pyrolysisInsets are the corresponding digital pictures

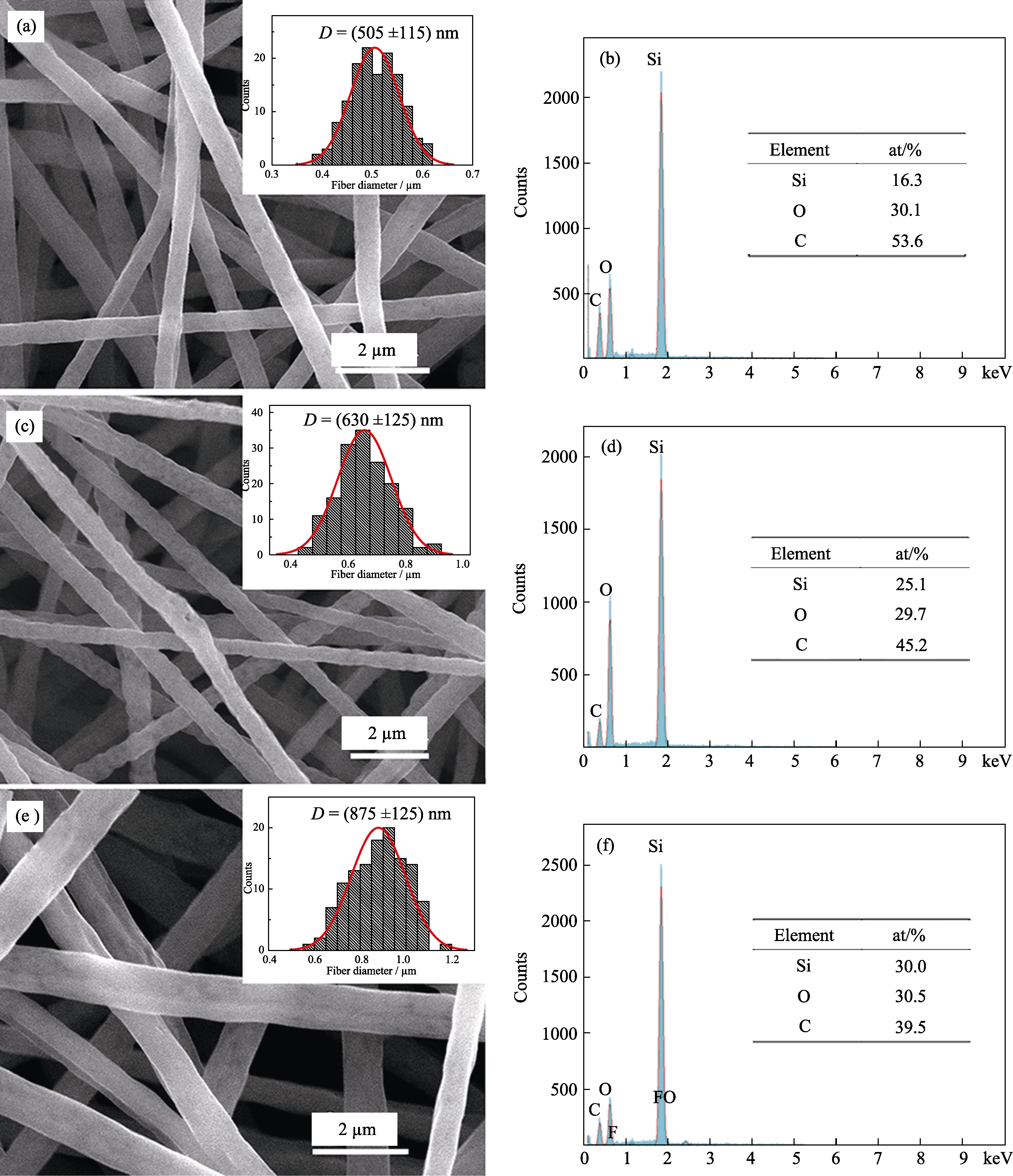

Fig. 2 SEM images, diameter distribution and corresponding EDS spectra of (a, b) SiOC-9, (c, d) SiOC-15 and (e, f) SiOC-21

Fig. 3 (a) XPS survey, (b) C1s, (c) Si2p and (d) O1s spectra of SiOC-15

Fig. 4 Tensile strength of SiOC-9, SiOC-15 and SiOC-21. The right of pictures are the corresponding SEM images of breaking section

Fig. 5 Stability test results(a) TGA curve of SiOC-15 in air, with inset showing SEM image after heating at 500℃ in air for 1 h; (b) SEM image of SiOC-15 after immersing in 1 mol/L H2SO4 solution at 90℃ for 36 h; (c) SEM image of SiOC-15 after immersing in 6 mol/L KOH at 90℃ for 36 h; (d) XRD patterns of SiOC-15 after different treatments

References 19

[1]	YUAN Q, SONG Y.Research and development of continous SiC fiber and SiCf/SiC composites. Journal of Inorganic Materials, 2016, 31(11): 1157-1165.
[2]	HOJAMBERDIEV M, PRASAD R M, MORITA K, et al.Polymer-derived mesoporous SiOC/ZnO nanocomposite for the purification of water contaminated with organic dyes. Microporous and Mesoporous Materials, 2012, 151: 330-338.
[3]	VANHAECKE E, IVANOVA S, DENEUVE A, et al.1D SiC decoration of SiC macroscopic shapes for filtration devices. Journal of Materials Chemistry, 2008, 18: 4654-4662.
[4]	KIM T E, JUON S M, PARK J H, et al.Silicon carbide fiber-reinforced composite membrane for high-temperature and low-humidity polymer exchange membrane fuel cells. International Journal of Hydrogen Energy, 2014, 39(29): 16474-16485.
[5]	WU N, WANG Y, LEI Y, et al.Electrospun interconnected Fe-N/C nanofiber networks as efficient electrocatalysts for oxygen reduction reaction in acidic media. Scientific Reports, 2015, 5: 17396.
[6]	WANG B, WANG Y, LEI Y, et al.Hierarchically porous SiC ultrathin fibers mat with enhanced mass transport, amphipathic property and high-temperature erosion resistance. Journal of Materials Chemistry A, 2014, 2(48): 20873-20881.
[7]	WANG Y, HAN C, ZHENG D, et al.Large-scale, flexible and high-temperature resistant ZrO2/SiC ultrafine fibers with a radial gradient composition. Journal of Materials Chemistry A, 2014, 2(25): 9607-9612.
[8]	COLOMBO P, MERA G, RIEDEL R, et al.Polymer-derived ceramics: 40 years of research and innovation in advanced ceramics. Journal of the American Ceramic Society, 2010, 93: 1805-1837.
[9]	CHENG X, XIE Z, SONG Y, et al.Structure and properties of polycarbosilane synthesized from polydimethylsilane under high pressure. Journal of Applied Polymer Science, 2006, 99(3): 1188-1194.
[10]	LIU H, BALKUS K J.Electrospinning of beta silicon carbide nanofibers. Materials Letters, 2009, 63(27): 2361-2364.
[11]	EICK B M, YOUNGBLOOD J P.SiC nanofibers by pyrolysis of electrospun preceramic polymers. Journal of Materials Science, 2009, 44(1): 160-165.
[12]	AYUTSEDE J, GANDHI M, SUKIGARA S, et al.Regeneration of bombyx mori silk by electrospinning. part 3: characterization of electrospun nonwoven mat. Polymer, 2005, 46(5): 1625-1634.
[13]	HU J, PRABHAKARAN M P, DING X.Emulsion electrospinning of polycaprolactone: influence of surfactant type towards the scaffold properties. Journal of Biomaterials Science, Polymer, 2015, 26(1): 57-75.
[14]	LI Y, KO F K, HAMAD W Y.Effects of emulsion droplet size on the structure of electrospun ultrafine biocomposite fibers with cellulose nanocrystals. Biomacromolecules, 2013, 14: 3801-3807.
[15]	KOOBHONGSE S, LIU W, RENEKER D.Flat polymer ribbons and other shapes by electrospinning. Journal of Polymer Science Part B: Polymer Physics, 2001, 39(1): 2363-2377.
[16]	JIANG H, FANG D, HSIAO B S, et al.Optimization and characterization of dextran membranes prepared by electrospinning. Biomacromolecules, 2004, 5(2): 326-333.
[17]	KLEEBE H J, BLUM Y D.SiOC ceramic with high excess free carbon. Journal of the European Ceramic Society, 2008, 28(5): 1037-1042.
[18]	KIM M, KIM J.Redox deposition of birnessite-type manganese oxide on silicon carbide microspheres for use as supercapacitor electrodes. ACS Applied Materials and Interfaces, 2014, 6(12): 9036-9045.
[19]	WAN L Y, WANG H, GAO W, et al.An analysis of the tensile properties of nanofiber mats. Polymer, 2015, 73: 62-67.
