Luminescence Properties of Si3N4 Doped Nitride Sr3SiO5: Eu2+ Phosphor

doi:10.15541/jim20160327

Abstract

Abstract:

Si₃N₄ doped Sr_2.99SiO_5-6_xN₄_x:0.01Eu²⁺ phosphorssampless were prepared by high temperature solid-state reaction method. Testing results of XRD, EDS and CHNS of the phosphor samples demonstrated that the nitrogen atoms could be incorporated into the host lattice of Sr₃SiO₅ through partial occupation of the oxygen atoms sites to form Sr_2.99SiO_5-6_xN₄_x:0.01Eu²⁺solid solution. Under the excitation of 344 nm ultraviolet, the Sr_2.99SiO_5-6_xN₄_x: 0.01Eu²⁺ phosphor samples emit orange lights peaked at 580 nm, which originates from 4f⁶5d¹→4f⁷ transitions of Eu²⁺ ions. With the increase of N³⁺-ions concentration, the intensities of emission and excitation spectra of Sr_2.99SiO_5-6_xN₄_x: 0.01Eu²⁺ phosphor samples are obviously enhanced. The thermal stability testing results of the phosphor samples show that the incorporation of N^3-ions significantly improve the thermal stability better than that of undoped samples. The curves analyzed and fitted by the Arrhennius formula model indicate that the quenching temperature is caused by crossover process.

Key words: Sr3SiO5, phosphors, Si3N4

CLC Number:

O482

ZHANG Shuang-Shuang, TIAN Wen-Yu, ZHANG Jian-Xin, SONG Kai-Xin, QIN Hui-Bin. Luminescence Properties of Si₃N₄ Doped Nitride Sr₃SiO₅: Eu²⁺ Phosphor[J]. Journal of Inorganic Materials, 2017, 32(3): 252-256.

Figures/Tables 8

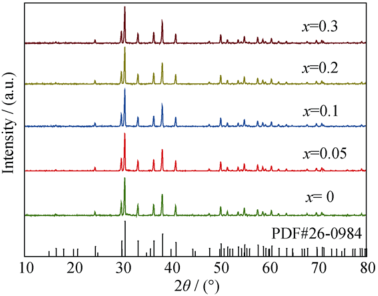

Fig. 1 XRD patterns of Sr2.99SiO5-6xN4x:0.01Eu2+ phosphors

Fig. 2 SEM images of Sr2.99SiO5-6xN4x:0.01Eu2+(x= 0 , 0.1, 0.2 and 0.3)

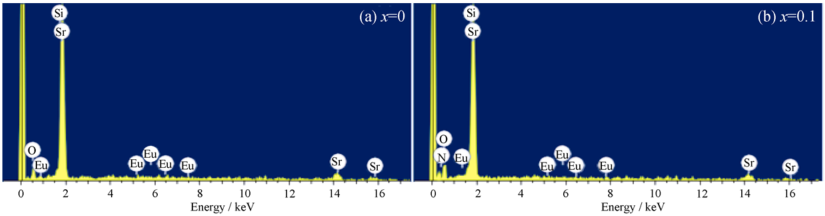

Fig. 3 The EDS of Sr2.99SiO5-6xN4x:0.01Eu2+ (a) x=0; (b) x=0.1

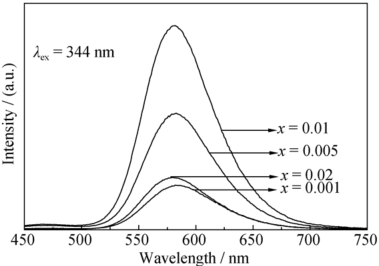

Fig. 4 Emission spectra of Sr3SiO5:xEu2+ phosphors

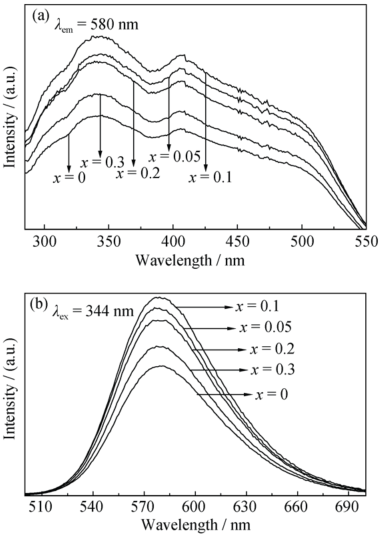

Fig. 5 Excitation (a) and emission (b) spectra of Sr2.99SiO5-6xN4x:0.01 Eu2+ (x = 0, 0.05, 0,1, 0,2, 0.3)

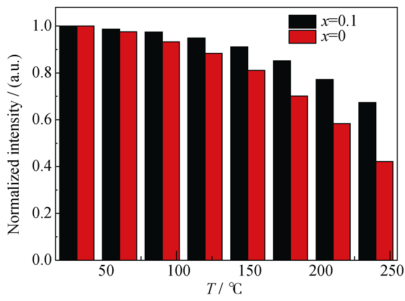

Fig. 6 Thermostability pattern of Sr2.99SiO5-6xN4x:0.01Eu2+ phosphors as function of x

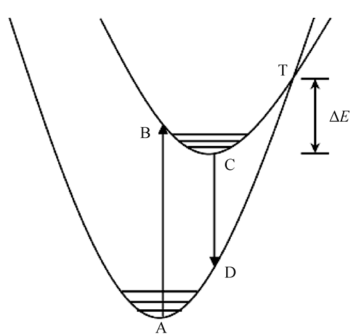

Fig. 7 Coordinate figure of thermal quenching

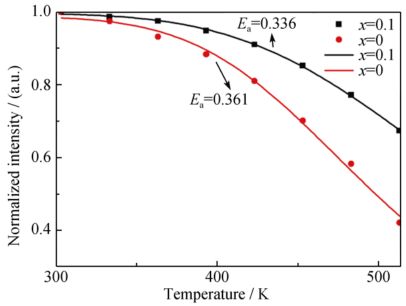

Fig. 8 Thermostability fitting curve of Sr2.99SiO5-6xN4x: 0.01Eu2+ phosphors by using Arrhennius equation

References 11

[1]	洪广言. 稀土发光材料—基础与应用. 科学出版社, 2011: 224-225.
[2]	NAKAMURA S, MUKAI T, SENOH M.Candela class high brightness InGaN/AlGaN double heterostructure blue light emitting diodes.Applied Physics Letters, 1994, 64(13): 1687-1689.
[3]	EUN-HEE KANG, SUNG-WOO CHOI, SU EUN CHUNG, et al.Photoluminescence characteristics of Sr3SiO5:Eu2+ yellow phosphors synthesized by solid-state method and pechini process.Journal of the Electrochemical Society, 2011, 158(11): J330-J333.
[4]	LAKSHMINARASIMHAN N, VARADARAJU U V.White-light generation in Sr2SiO4: Eu2+, Ce3+ under near-UV excitation a novel phosphor for solid-state lighting.Journal of the Electrochemical Society, 2005, 152(9): H152-H156.
[5]	SONG KAIXIN, ZHANG FANGFANG, CHEN DAQIN, et al.Enhancement of photoluminescence properties and modification of crystal structures of Si3N4 doping Li2Sr0.995SiO4:0.005Eu2+ phosphors.Materials Research Bulletin, 2015, 70: 309-314.
[6]	CHEN LEI, LIN CHUN-CHE, LIN CHIAO-WEN, et al.Light converting inorganicphosphors for white light-emitting diodes.Materials, 2010, 3(3): 2172-2195.
[7]	PHILIPPE F, SMET KOEN, VAN DEN EECKHOUT, et al.Temperature and wavelength dependent trap filling in M2Si5N8:Eu (M = Ca, Sr, Ba) persistent phosphors.Journal of Luminescence, 2012, 132: 682-689.
[8]	SEIBALD M, ROSENTHAL T, OECKLER O, et al.Unexpected luminescence properties of Sr0.25Ba0.75Si2O2N2:Eu2+-a narrow blue emitting oxonitridosilicate with cation ordering. Chemistry-A European Journal, 2012, 18(42): 13446-13452.
[9]	LI Y Q, FANG Y, HIROSAKI N, et al.Crystal and electronic structures, photoluminescence properties of Eu2+-doped novel oxynitride Ba4Si6O16-3x/2Nx.Materials, 2010, 3(3): 1692-1708.
[10]	WANG MEIYUAN, ZHANG XIA, HAO ZHENDONG, et al.Enhanced phosphorescence in N contained Ba2SiO4:Eu2+for X-ray and cathode ray tubes.Optical Materials, 2010, 32(9): 1042-1045.
[11]	TIAN Y, CHEN B J, HUA R, et al.Self-assembled 3D flowersh aped NaY(WO4)2:Eu3+microarchitectures: microwaveassisted hydrothermal synthesis, growth mechanism and luminescent properties.Cryst. Eng. Comm., 2012, 14(5): 1760-1769.
