PPP Addition to Improve Thermoelectric Properties of ZnO-based Thermoelectric Composites

doi:10.15541/jim20160118

Abstract

Abstract:

PPP@Zn_1-_xCo_xO (x=0, 0.025) nanocomposites were prepared by Sol-Gel method, then bulk samples were prepared by spark plasma sintering. And thermoelectric properties of the samples were studied. Transmission electron microscopy (TEM) observations indicate that PPP nanoparticles are smaller than 200 nm. With the increase of PPP content, Seebeck coefficient gradually increases at first and then decreases, while electric conductivity increases quickly. Compared with ZnO bulk samples, the thermal conductivity of PPP@Zn_1-_xCo_xO nanocomposite is decreased. The thermal conductivity of 9wt% PPP@Zn_0.975Co_0.025O is decreased to 5.4 W/(m·K) at 640 K. The increase of electrical conductivity and the decrease of thermal conductivity resulted in a great increase in the value of thermoelectric properties. 9wt% PPP@Zn_0.975Co_0.025O has a maximal ZT value of 0.16 at 870 K, which is 8 times of that of Zn_0.975Co_0.025O bulk material.

Key words: ZnO, thermoelectric property, Sol-Gel, molecular junction

CLC Number:

TB34

WU Zi-Hua, XIE Hua-Qing, WANG Yuan-Yuan, MAO Jian-Hui, XING Jiao-Jiao, LI Yi-Huai. PPP Addition to Improve Thermoelectric Properties of ZnO-based Thermoelectric Composites[J]. Journal of Inorganic Materials, 2016, 31(11): 1249-1254.

Figures/Tables 5

Fig. 1 XRD patterns of Zn1-xCoxO sample

Fig. 2 TEM images of PPP@Zn1-xCoxO samples(a) Zn0.975Co0.025O; (b) 5wt% PPP@Zn0.975Co0.025O; (c) 9wt% PPP@Zn0.975 Co0.025O; (d) HRTEM image of 9wt% PPP@Zn0.975Co0.025O

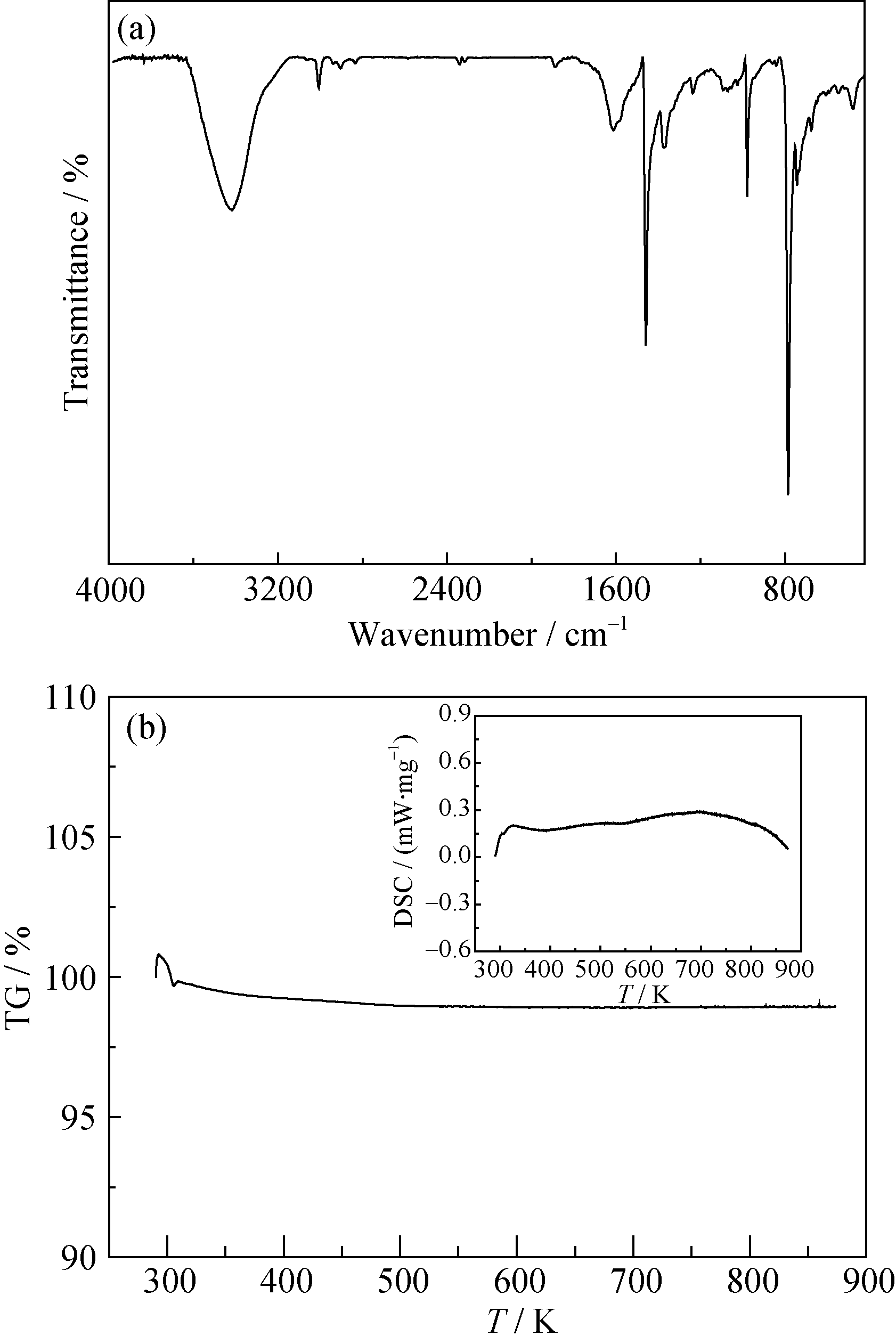

Fig. 3 FTIR spectrum and TG-DSC curve of polyparaphenylene

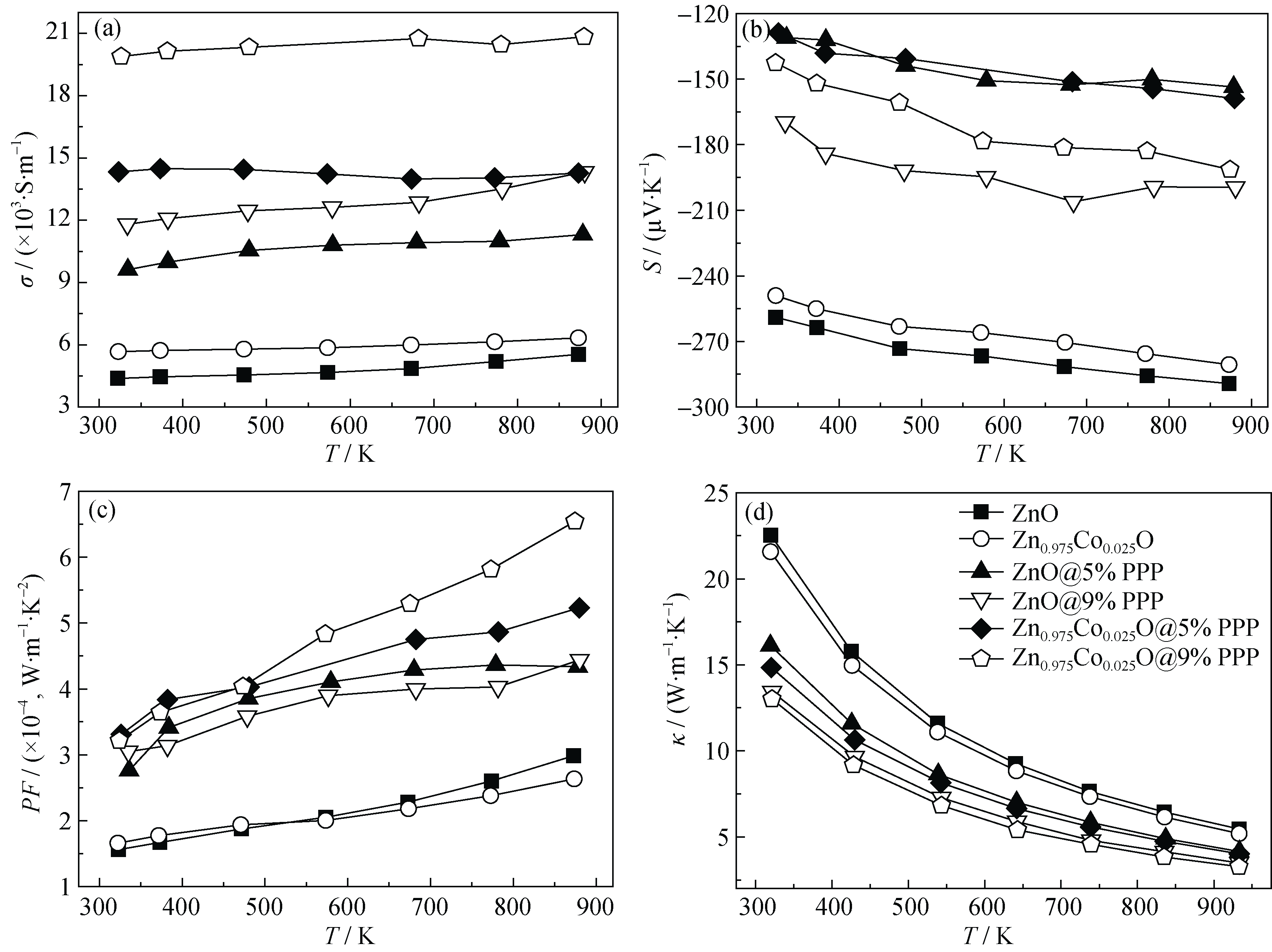

Fig. 4 Temperature dependence of electronic properties and thermal conductivity of PPP@Zn1-xCoxO sample

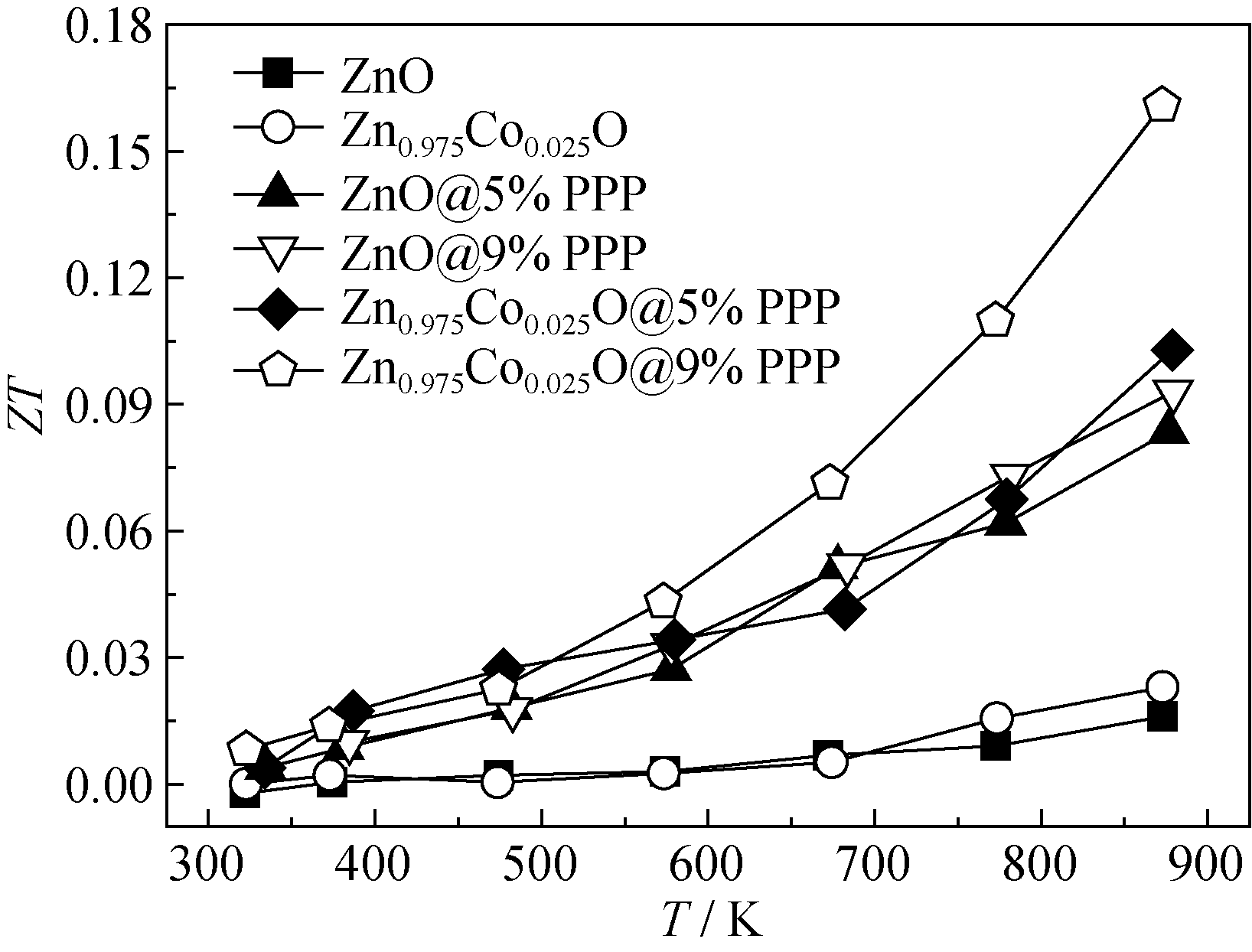

Fig. 5 ZT of PPP@Zn1-xCoxO sample

References 22

[1]	ZHANG Q H, AI X, WANG W J, et al.Preparation of 1-D/3-D structured AgNWs/Bi2Te3 nanocomposites with enhanced thermoelectric properties.Acta Materialia, 2014, 73(4): 37-47.
[2]	CHEN LI-DONG, XIONG ZHEN, BAI SHENG-QIANG.Recent progress of thermoelectric nano-composites.Journal of Inorganic Materials, 2010, 25(6): 561-568.
[3]	JOSEPH R S, DUCK Y C, MERCOURI G K.New and old concepts in thermoelectric materials.Angew. Chem. Int. Ed., 2009, 48(46): 8616-8639.
[4]	ZHANG Q L, JANG W J, LI J L, et al.Preparation and thermoelectric properties of multi-walled carbon nanotube/polyaniline hybrid nanocomposites.J. Mater. Chem. A, 2013, 1(39): 12109-12114.
[5]	HICKS L D, DRESSELHAUS M S.Effect of quantum-well structures on the thermoelectric figure of merit.Phys. Rev. B, 1993, 47: 12727.
[6]	VENKATASUBRAMANIAN R, SIIVOLA E, COLPITTS T, et al.Thin-film thermoelectric devices with high room-temperature figures of merit.Nature, 2001, 413: 597-602.
[7]	HARMAN T C, TAYLOR P J, WALSH M P, et al.Quantum dot superlattice thermoelectric materials and devices.Science, 2002, 297(5590): 2229-2232.
[8]	HU F, CAI Q, LIAO F, et al.Recent advancements in nanogenerators for energy harvesting.Small, 2015, 11(42): 5611-5628.
[9]	ALVARADO A, ATTAPATTU J, ZHANG Y, et al.Thermoelectric properties of rocksalt ZnO from first-principles calculations.J. Appl. Phys., 2015, 118: 165101.
[10]	OHTAKI M, TSSUBOTA T, EGUCHI K, et al.High-temperature thermoelectric properties of (Zn1-x Al x)O.J. Appl. Phys., 1996, 79: 1816.
[11]	ZHANG D B, ZHANG B P, YE D S, et al.Enhanced Al/Ni co-doping and power factor in textured ZnO thermoelectric ceramics prepared by hydrothermal synthesis and spark plasma sintering.Journal of Alloys and Compounds, 2016, 656: 784-792.
[12]	ONG K P, SINGH D J, WU P.Analysis of the thermoelectric properties of n-type ZnO.Phys. Rev. B, 2011, 83: 115110.
[13]	LIANG X.Thermoelectric transport properties of Fe-enriched ZnO with high-temperature nanostructure refinement. ACS Appl. Mater. Interfaces, 2015, 7(15): 7927-7937.
[14]	JOOD P, PELECKIS G, WANG X, et al.Effect of gallium doping and ball milling process on the thermoelectric performance of n-type ZnO.Journal of Materials Research, 2012, 27(17): 2278-2285.
[15]	MALEN J A, YEE S K, MAJUMDAR A, et al.Fundamentals of energy transport, energy conversion, and thermal properties in organic-inorganic heterojunctions.Chemical Physics Letters, 2010, 491(4/5/6): 109-122.
[16]	SEE K C, FESER J P, CHEN C E, et al.Water-processable polymer-nanocrystal hybrids for thermoelectrics.Nano Letters, 2010, 10(11): 4664-4667.
[17]	HE M, GE J, LIN Z, et al.Thermopower enhancement in conducting polymer nanocomposites via carrier energy scattering at the organic-inorganic semiconductor interface.Energy & Environmental Science, 2012, 5(8): 8351-8358.
[18]	DRAXL C A, MAJEWSKI J A, VOGL P, et al.First-principles studies of the structural and optical properties of crystalline poly(para-phenylene).Physical Review B, 1995, 51: 9668-9676.
[19]	SHACKLETTE L W, ECKHARDT H, CHANCE R R, et al.Solid‐state synthesis of highly conducting polyphenylene from crystalline oligomers.The Journal of Chemical Physics, 1980, 73: 4098.
[20]	LEE Y S, KERTESZ M.The effect of heteroatomic substitutions on the band gap of polyacetylene and polyparaphenylene derivatives.The Journal of Chemical Physics, 1988, 88: 2609.
[21]	FANG Y J, SHA J, WANG Z L, et al.Behind the change of the photoluminescence property of metal-coated ZnO nanowire arrays.Applied Physics Letters, 2011, 98: 033103.
[22]	BAXTER J B, SCHMUTTENMAER C A.Conductivity of ZnO nanowires, nanoparticles, and thin films using time-resolved terahertz spectroscopy.The Journal of Physical Chemistry B, 2006, 110(50): 25229-25239.
