Influence of Calcination Temperature on Performance of NiO/γ-Al2O3 Catalyst for CO2-CH4 Reforming to Produce Syngas

doi:10.15541/jim20150382

Abstract

Abstract:

A series of NiO/γ-Al₂O₃ catalysts for CH₄/CO₂ reforming were prepared by altering calcination temperature using hydrolysis-deposition method, and recorded as cat-500, cat-600, cat-700, and cat-800 according to the calcination temperature. XRD and H₂-TPR results showed that there was a strong metal-support interaction (SMSI) in the form of NiAl₂O₄ spinel in the prepared catalyst when the calcination temperature was as high as 700 ℃. Results of XRD, TG-DTG and TPH for the spent catalysts showed that the Ni grain size of cat-700 and cat-800 catalysts was 9.8 nm and 8.7 nm, respectively, lower than that of cat-500 and cat-600 catalysts (15.7 nm and 13.6 nm, respectively), indicating well dispersion of Ni grain. The deposited carbon during reaction was assigned to filamentous one, massive accumulation of which would increase bed pressure drop and decrease catalyst performance. Long term stability test demonstrated that the conversion of CO₂ over cat-800 catalyst was up to 95% and kept stable in 110 h.

Key words: CH₄/CO₂ reforming, NiO/γ-Al₂O₃ catalyst, calcination temperature, NiAl₂O₄ spinel

CLC Number:

O643

MO Wen-Long, MA Feng-Yun, LIU Yue-E, LIU Jing-Mei, ZHONG Mei, Aisha· Nulahong. Influence of Calcination Temperature on Performance of NiO/γ-Al₂O₃ Catalyst for CO₂-CH₄ Reforming to Produce Syngas[J]. Journal of Inorganic Materials, 2016, 31(3): 234-240.

Figures/Tables 10

Table 1 Textural properties of the catalysts

Catalysts	A/(m²·g^-1)	V/(m³·g^-1)	d/nm
γ-Al₂O₃	197	0.42	3.24
cat-500	154	0.22	3.90
cat-600	150	0.21	3.91
cat-700	133	0.20	4.05
cat-800	107	0.17	4.08

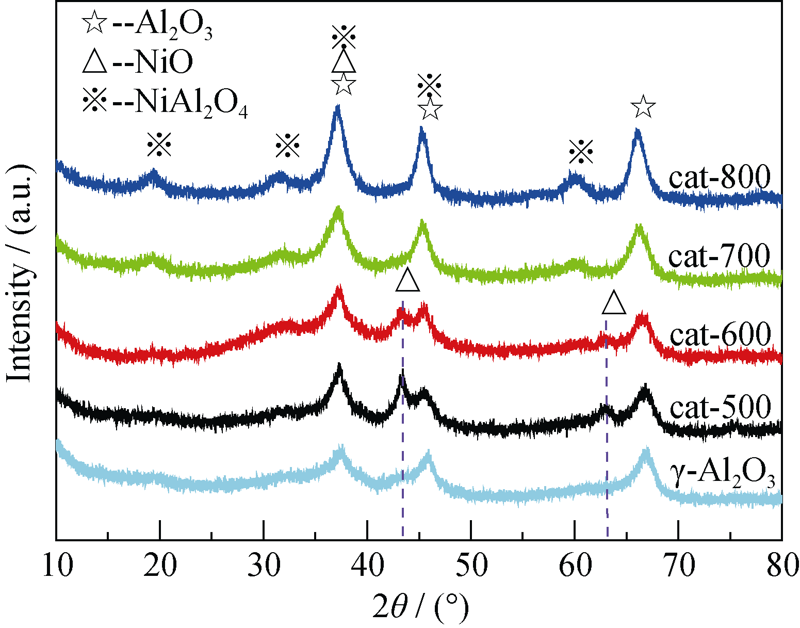

Fig. 1 XRD patterns of the catalysts

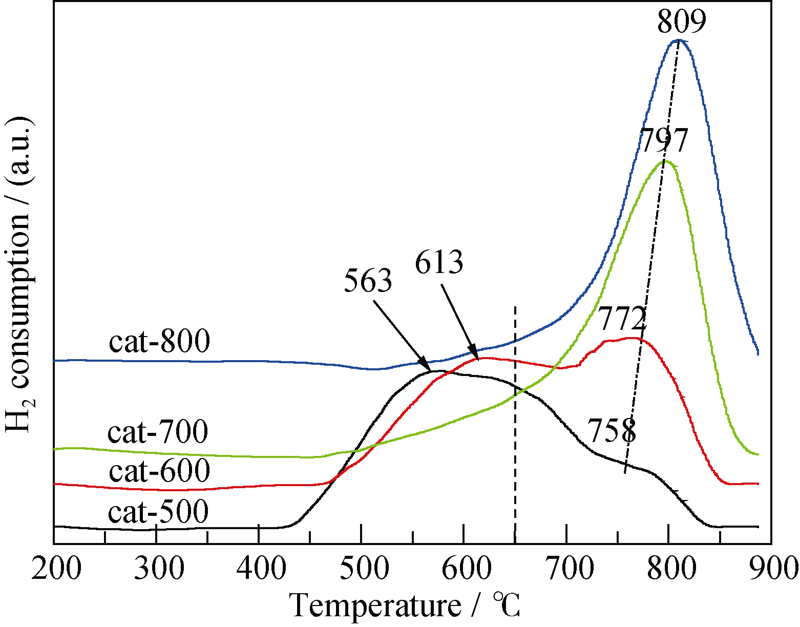

Fig. 2 H2-TPR spectra of the catalysts

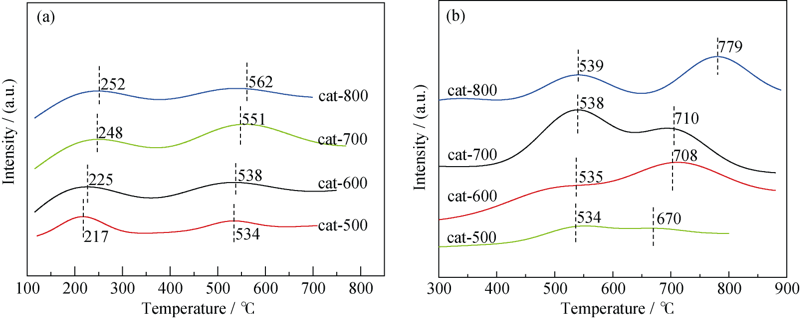

Fig. 3 (a) CO2-TPD and (b) CH4-TPD profiles of the catalysts

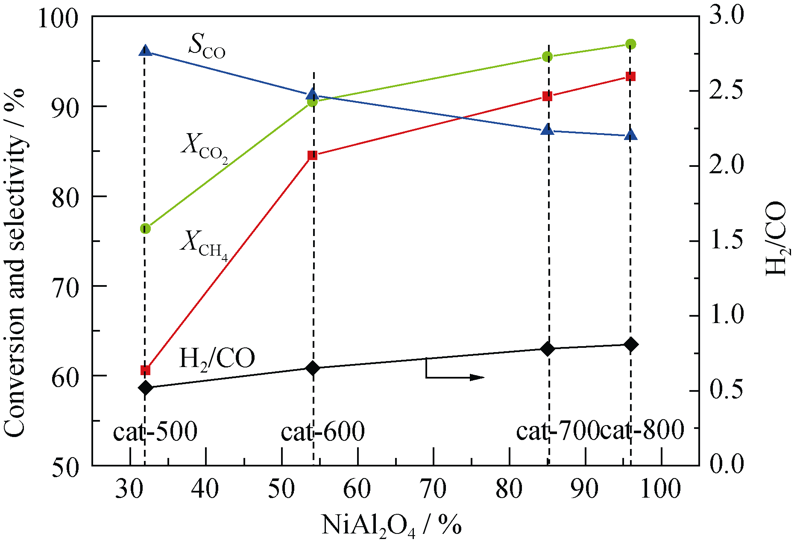

Fig. 4 Conversion and selectivity of the catalysts

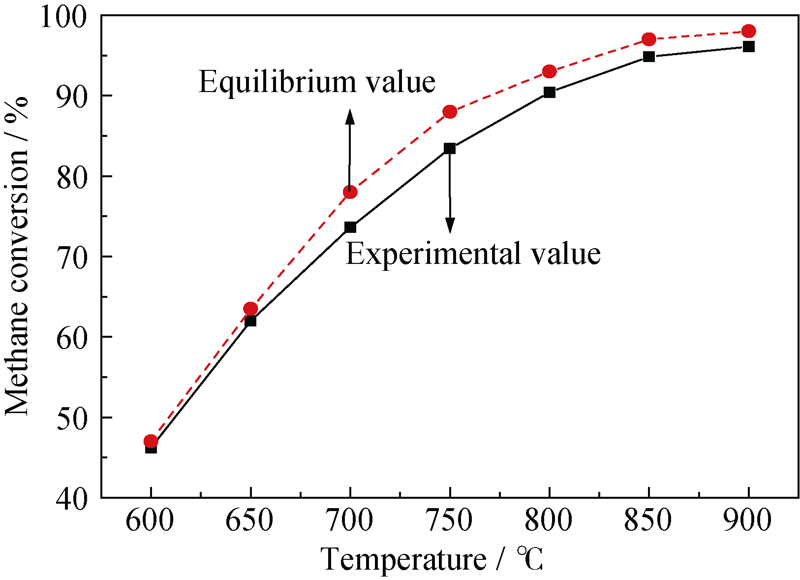

Fig. 5 Conversion of CH4 over cat-800 catalyst

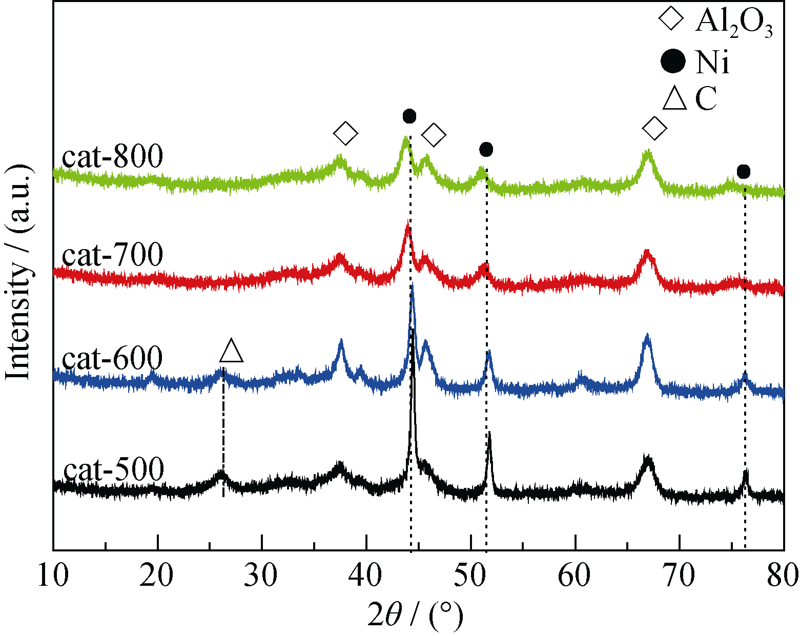

Fig. 6 XRD patterns of spent catalysts

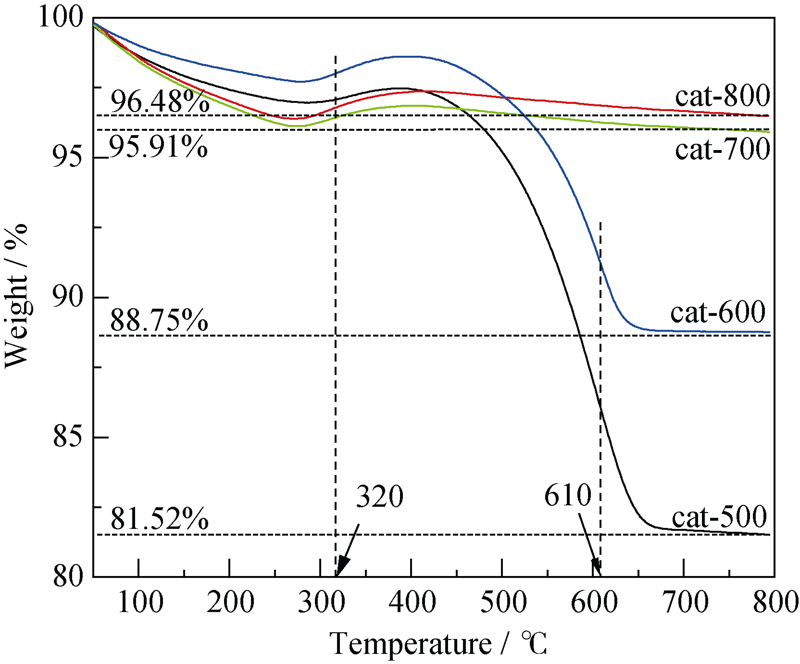

Fig. 7 TG-DTG curves of spent catalysts

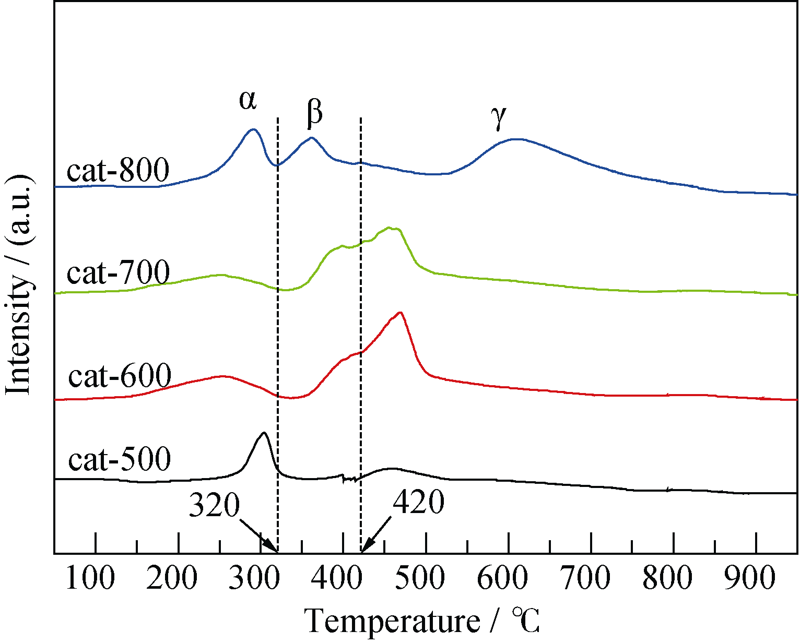

Fig. 8 TPH results of spent catalysts

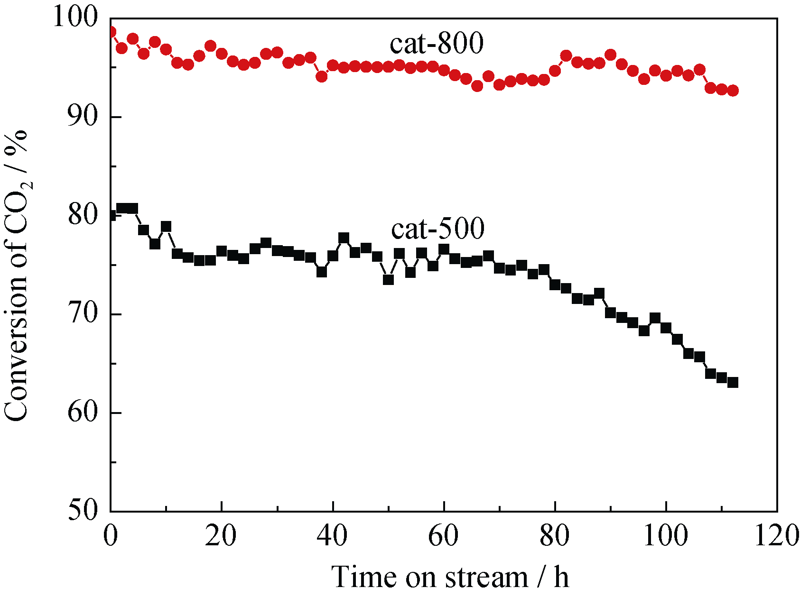

Fig. 9 Stability test over cat-500 and cat-800 catalysts

References 17

[1]	ROH HYUN-SEOG, JUN KI-WON.Carbon dioxide reforming of methane over Ni catalyst supported on Al2O3 modified with La2O3, MgO and CaO.Catalyst Surveys from Asia, 2008, 12(4): 239-252.
[2]	YANG Y Y, DING S, JIN Y, et al. Milliseconds steam reforming of methane using Rh/MgO/γ-A12O3 catalyst. Journal of Chemical Industry and Engineering (China), 2009, 60(8): 1981-1987.
[3]	MO W L, MA F Y, LIU H X, et al. Influence of γ-Al2O3 prepared by template method on performance of Ni-based catalysts for CH4/CO2 reforming. Chemical Industry and Engineering Progress, 2014, 33(1): 187-193.
[4]	ZHANG J G, WANG H, DALAI A K.Development of stable bimetallic catalysts for carbon dioxide reforming of methane.Journal of Catalysis, 2007, 249(2): 300-310.
[5]	MESHKANI F, REZAEI M.Nanocrystalline MgO supported nickel-based bimetallic catalysts for carbon dioxide reforming of methane.International Journal of Hydrogen Energy, 2010, 35(19): 10295-10301.
[6]	MO W L, MA F Y, LIU H X, et al. Influence of precipitants on performance of NiO/γ-Al2O3 catalysts for CH4/CO2 reforming. Natural Gas Chemical Industry, 2014, 39(3): 42-47.
[7]	LI M F, MO W L, MA F Y, et al. Colloidmill circulating impregnation method for preparation of NiO/γ-Al2O3 catalyst for CO2-CH4 reforming. Natural Gas Chemical Industry, 2014, 39(3): 1-4.
[8]	BRADFORD M C J, VANNICE M A. CO2 reforming of CH4 over supported Ru catalysts.Journal of Catalysis, 1999, 183(1): 69-75.
[9]	HOU Z Y, CHEN P, FANG H L, et al. Product ion of synthesis gas via methane reforming with CO2 on noble metals and small amount of noble-(Rh) promoted Ni catalysts. International Journal of Hydrogen Energy, 2006, 31(5): 555-561.
[10]	ZHENG Y F, ZHONG S B, LV D Y, et al. Effect of calcination temperature of Cu-Mn/-Al2O3 catalysts on performance for catalytic oxidation of toluene. Journal of Inorganic Materials, 2015, 30(7): 694-698.
[11]	OZKARA-AYDINOGLU S, AKSOYLU A E.Carbon dioxide reforming of methane over Co-X/ZrO2 catalysts (X ¼ La, Ce, Mn, Mg, K).Catalysis Communicatioins, 2010, 11(15): 1165-1170.
[12]	ZHANG S B, WANG J K, LIU H T, et al. One-pot synthesis of Ni-nanoparticle-embedded mesoporous titania/silica catalyst and its application for CO2 reforming of methane. Catalysis Communicatioins, 2008, 9(6): 995-1000.
[13]	HU X, LU G X.Comparative study of alumina-supported transition metal catalysts for hydrogen generation by steam reforming of acetic acid.Applied Catalysis B: Environmental, 2010, 99(1/2): 289-297.
[14]	BARROSO-QUIROGA M M, CASTRO-LUNA A E. Catalytic activity and effect of modifiers on Ni-based catalysts for the dry reforming of methane. International Journal of Hydrogen Energy, 35(11): 6052-6056.
[15]	DAZA C E, MORENO S, MOLINA R.Co-precipitated Ni-Mg-Al catalysts containing Ce for CO2 reforming of methane.International Journal of Hydrogen Energy, 2011, 36(6): 3886-3894.
[16]	GUO J J, LOU H, ZHENG X M.The deposition of coke from methane on a Ni/MgAl2O4 catalyst.Carbon, 2007, 45(6): 1314-1321.
[17]	XU J K, ZHOU W, WANG J H, et al. Characterization and analysis of carbon deposited during the dry reforming of methane over Ni/La2O3/Al2O3catalysts. Chinese of Journal Catalysis, 2009, 30(11): 1076-1084.
