Effect of Silicon Source on Biomorphic SiC Fibers Converted from Natural Fibers

doi:10.15541/jim20140376

Abstract

Abstract:

Converting the natural fibers into biomorphic ceramics has been a novel and promising method to produce porous ceramics. This research explored a novel preparation method of biomorphic SiC fibers (SiC_f), and its silicon source’s effects on the production. The results suggest that the silicon in vapor, compared to melting silicon, can provide much slower reaction velocity which can enable the reaction more controllable, leading to stronger mechanical properties of the final product, the SiC fiber. Besides, different kinds of silicon sources have great difference in influence on the reaction rate, temperature, grain size and purity. Among the silicon sources, SiO is an ideal source of the porous SiC fiber.

Key words: natural fibers, SiC fiber, porous ceramics, silicon source

CLC Number:

TB321

YUAN Wen-Yu, CHENG Lai-Fei,WU Heng, LIU Yong-Sheng. Effect of Silicon Source on Biomorphic SiC Fibers Converted from Natural Fibers[J]. Journal of Inorganic Materials, 2015, 30(2): 159-164.

Figures/Tables 8

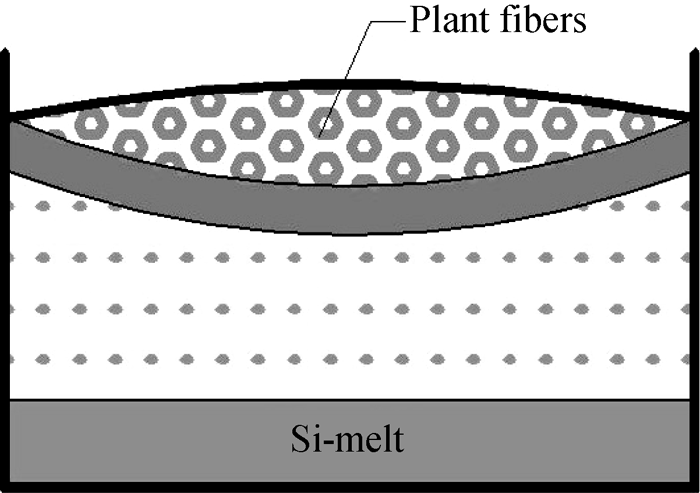

Fig. 1 The device of the reaction between plant fibers and Si-vapor

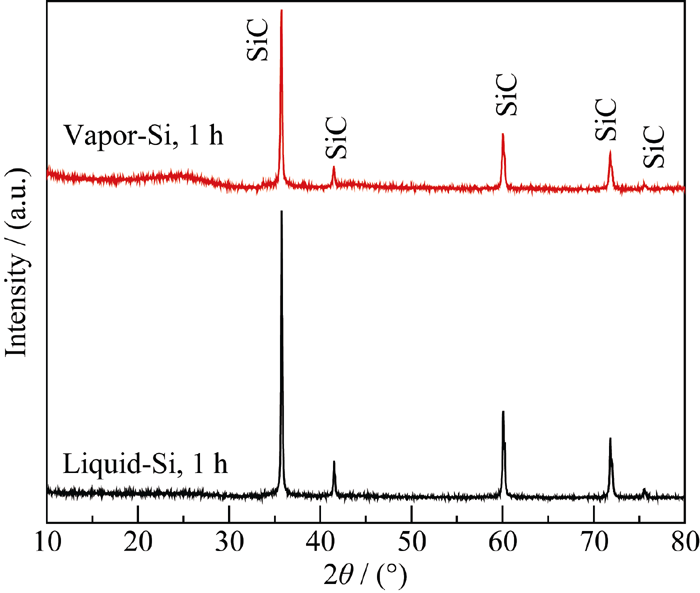

Fig. 2 XRD patterns of the products that different states of silicon react with sisal fibers (carbide phases)

Fig. 3 SEM images of the products produced by different states of silicon reaction with sisal fibers (carbide phases)

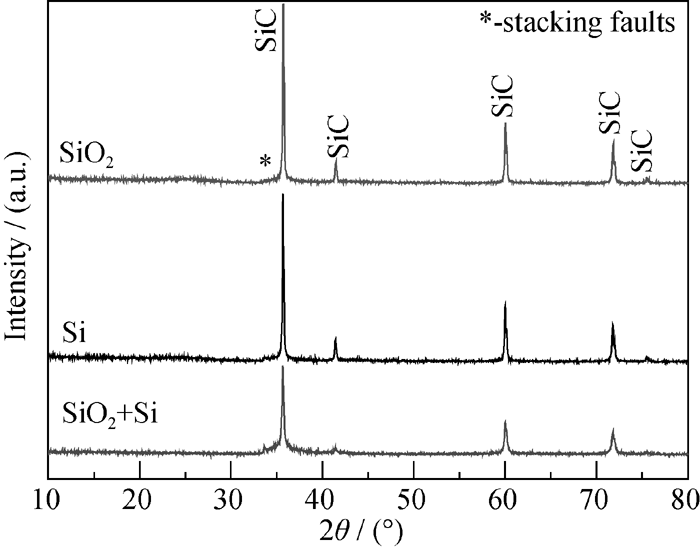

Fig. 4 XRD patterns of products that jute fibers vitrified with different silicon sources * Indicates stacking falts ([24, 32])

Fig. 5 SiC fibers’ cross-section and surface SEM images of the products prepared by Si (a, b), SiO2 (c, d) and Si+SiO2 (e, f) reaction with jute fibers (carbide phases)

Fig. 6 SEM images of jute (a, b) and sisal fibers (c, d) infiltrated with silicon vapor at 1800 ℃

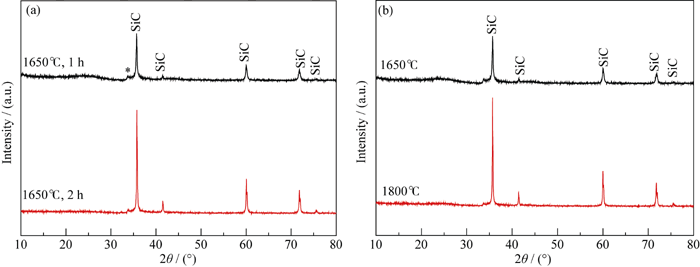

Fig. 7 XRD patterns of products prepared under different time (a) and different temperature (b)

Fig. 8 SEM images of SiC fibers prepared by using jute fibers under 1650℃ (a, b) and 1800℃ (c, d)

References 32

[1]	LI KAI, WANG LI-NA, GUAN LI, et al.Study on preparation and characterization of SiC composites reinforced with Nicanlon SiC fibers.Bulletin of the Chinese Ceramic Society, 2009, 28(z1): 164-167.
[2]	LIU HAITAO, CHENG HAIFENG, WANG JUN, et al.Study on the interphase of the continuous SiC fiber reinforced SiC composites.Materials Review, 2010, 24(01): 10-14, 30.
[3]	ZHU DAN, LI YUFENG, GAO MINGXIA, et al.Research development of fabrication techniques and proper ties of SiCf/SiC ceramic matrix composite. Materials Review, 2008, 22(3): 55-59.
[4]	赵爽. SiCf/SiC复合材料的制备及其与LiPb熔液化学相容性初步研究. 湖南: 国防科学技术大学硕士学位论文, 2008.
[5]	KIM W J, KANG S M, PARK J Y, et al.Effect of a SiC whisker formation on the densification of Tyranno SA/SiC composites fabricated by the CVI process. Fusion Engineering and Design, 2006, 81(8-14): 931-936.
[6]	LIU QINGHUA.The industrial preparation of SiC fibers.The Light & Textile Industries of Fujian, 2006, 206(7): 7-12.
[7]	XUE JINGEN, LONG JIANFENG, SONG YONGCAI, et al.Research process in SiC fiber production technology.China Synthetic Fiber Industry, 2001, 24(3): 41-44.
[8]	LIU CUIXIA, YANG YANQING, XU TING, et al.Progress and prospect of CVD continuous SiC fibers. Materials Review, 2006, 20(8): 35-37, 40.
[9]	杨大祥. PCS和PMCS的新合成方法及高耐温性SiC纤维的制备研究. 湖南: 国防科学技术大学博士学位论文, 2008.
[10]	CHEN JIANG-XI, HE GUO-MEI, HE XU-MIN, et al.Development of polymer precursors to SiC ceramic fiber.Journal of Functional Materials, 2004, 35(6): 679-682.
[11]	DONG ZHAN-NENG, LI CHUN-HUA, GUO YU-ZHONG.Mechanism of Wurtz-synthesis of polysilanes and preparation of β-SiC fiber. Journal of Kunming Uniersity of Science and Technology (Science and Technology), 2003, 28(2): 123-137.
[12]	曹峰. 耐超高温碳化硅纤维新型先驱体研究及纤维制备. 湖南: 国防科学技术大学博士学位论文, 2002.
[13]	ZHAO DAFANG, LI XIAODONG, WANG HAIZHE, et al.ALuminm-containing silicon carbide fibers prepared from polyalumninocarbosilane and polycarbosilane blends.Acta Polymerica Sinica, 2008, 9(9): 831-839.
[14]	赫荣安. 先驱体法制备SiC陶瓷多孔吸附纤维的研究. 湖南: 国防科学技术大学博士学位论文, 2008.
[15]	ZHAO DA-FANG, WANG HAI-ZHE, LI XIAO-DONG.Development of polymer-derived SiC fiber.Journal of Inorganic Materials, 2009, 24(6): 1097-1104.
[16]	YU XIAN-CHUN, SUN DE-LIN, SUN DE-BIN, et al.Basic properties of woodceramics made from bamboo powder and epoxy resin.Wood Science and Technology, 2012, 46(1/2/3): 23-31.
[17]	YAO CHUN-HUA, WU YI-QIANG, QING YAN, et al.Study on moulding process of eco-ceramics body with residual bamboo fiber.Bioinformatics and Biomedical Engineering, 3rd International Conference, 2009: 1-4.
[18]	KIYOTAKA SHIBATA, TOSHIHIRO OKABE, KOUJI SAITO, et al.Electromagnetic shielding properties of wood ceramics made from wastepaper.Journal of Porous Materials, 1997, 4(4): 269-275.
[19]	IIZUKA H, FUSHITANI M, OHTSUKA M, et al.Mechanical properties of porous carbon materials ie woodceramics.Journal of Materials Science Letters, 1996, 15(20): 1770-1772.
[20]	WU WENTAO, CHEN TIANHU, XU XIAOCHUN.Preparation and properties of palygorskite clay modified woodceramics from bagasse/wheat straw.Transactions of the CSAE, 2010, 26(1): 305-308.
[21]	SUN HAO-RAN.Study on preparation of woodceramics from corn stalk. Journal of Anhui Agri.Sci., 2012, 40(6): 3555-3556.
[22]	VOGLI E., SIEBER H., GREIL P., Biomorphic SiC-ceramic prepared by Si-vapor phase infiltration of wood.Journal of the European Ceramic Society, 2002, 22(14/15): 2663-2668.
[23]	DANIELA ALMEIDA STREITWIESER, NADJA POPOVSKA, HELMUT GERHARD, et al.Application of the chemical vapor infiltration and reaction (CVI-R) technique for the preparation of highly porous biomorphic SiC ceramics derived from paper.Journal of the European Ceramic Society, 2005, 25(6): 817-828.
[24]	WANG Q, ZHANG Y H.Biomorphic SiC prepared from carbonized millet by Sol-Gel and carbothermal reduction processing. Advanced Materials Research, 2010, 1683(152/153): 1683-1686.
[25]	陈志林. 陶瓷化复合木材复合方法与性能的基础性研究. 北京: 北京工业大学博士学位论文, 2003.
[26]	HONGTAO ZHANG, JINSONG ZHANG, HONGYAN ZHANG.Electromagnetic properties of silicon carbide foams and their composites with silicon dioxide as matrix in X-band.Composites Part A: Applied Science and Manufacturing, 2007, 38(2): 602-608.
[27]	LIU QINGLEI, ZHANG DI, FAN TONGXIANGet al. Electromagnetic wave absorption properties of porous carbon/Co nanocomposites. Applied Physics Letters, 2008, 93(1): 013110-1-3.
[28]	JIN YANQIAO, ZHANG YIZHUAN, ZHAO XIAOXIAO, et al.Microstructure and properties of woodceramics prepared from lignin-modified phenol- formaldehyde resin.Journal of Wuhan University of Technology-Mater. Sci. Ed., 2012, 27(6): 1077-1080.
[29]	PETER GREIL.Biomorphous ceramics from lignocellulosics. Journal of the European Ceramic Society, 2001(21) : 105-118.
[30]	KINGERY W D, BOWEN H K, UHLMANN D R. 陶瓷导论, 2版. 北京: 高等教育出版社, 2010: 170-172.
[31]	VOGLI E, MUKERJI J, HOFFMANN C, et al.Conversion of oak to cellular silicon carbide by gas-phase reaction with silicon monoxide.J. Am. Ceram. Soc., 2001, 86(6): 1236-1240.
[32]	KUNIHITO KOUMOTO, SHUNJI TAKEDA, CHUL HOON PAI, et al.High-resolution electron microscopy observations of stacking faults in β-SiC.Journal of the American Ceramic Society, 1989, 72(10): 1985-1987.
