Effect of Solvents on the Structure and Properties of Mesoporous SiO2 Supported Phosphotungstic Acid

doi:10.3724/SP.J.1077.2013.12413

Abstract

Abstract:

HPW/BMMs catalyst was prepared by supported phosphotungstic acid on mesoporous SiO₂ with two different mesoporous structures via impregnation method, and characterized by means of XRD, FTIR, nitrogen adsorption- desorption, TG and SEM. The effects of solvents, such as water, ethanol, acetone and acetonitrile, on the structure and properties of supported phosphotungstic acid were systematically investigated. The results showed that the mesoporous structures of BMMs were maintained in the catalysts synthesis process, however, the mesopores order degree, surface area and pore volume of the catalysts (HPW/BMMs) decreased as the increase of HPW loading. A new HPW species in HPW/BMMs appeared at lower loadings and disappeared as the increasing of HPW amount. In addition, the influence of aqueous solution on the Keggin structure of HPW in HPW/BMMs was remarkable, although the HPW crystal remained intact with the uniform dispersion. The acid density of the catalyst synthesis in water with 40% HPW loading (40HPW/BMMs-WA) was up to 1.381 μmol/m². In contrast, when acetonitrile was used as solvent, the Keggin structure of HPW was more likely to be maintained, but the HPW crystal phase was severely destroyed with a low dispersing inside the mesoporous channels. In comparison, the effects of ethanol and acetone as solvent were not obvious. Furthermore, the acid reduced performances of the HPW/BMMs catalysts in etherification reaction between waste oils and methanol were preliminarily investigated.

Key words: phosphotungstic acid, bimodal mesoporous SiO₂, waste oils, esterification

CLC Number:

O643

DAI Qun-He, SUN Ji-Hong, REN Bo, CHEN Dong, WU Xia. Effect of Solvents on the Structure and Properties of Mesoporous SiO₂ Supported Phosphotungstic Acid[J]. Journal of Inorganic Materials, 2013, 28(5): 537-544.

Figures/Tables 13

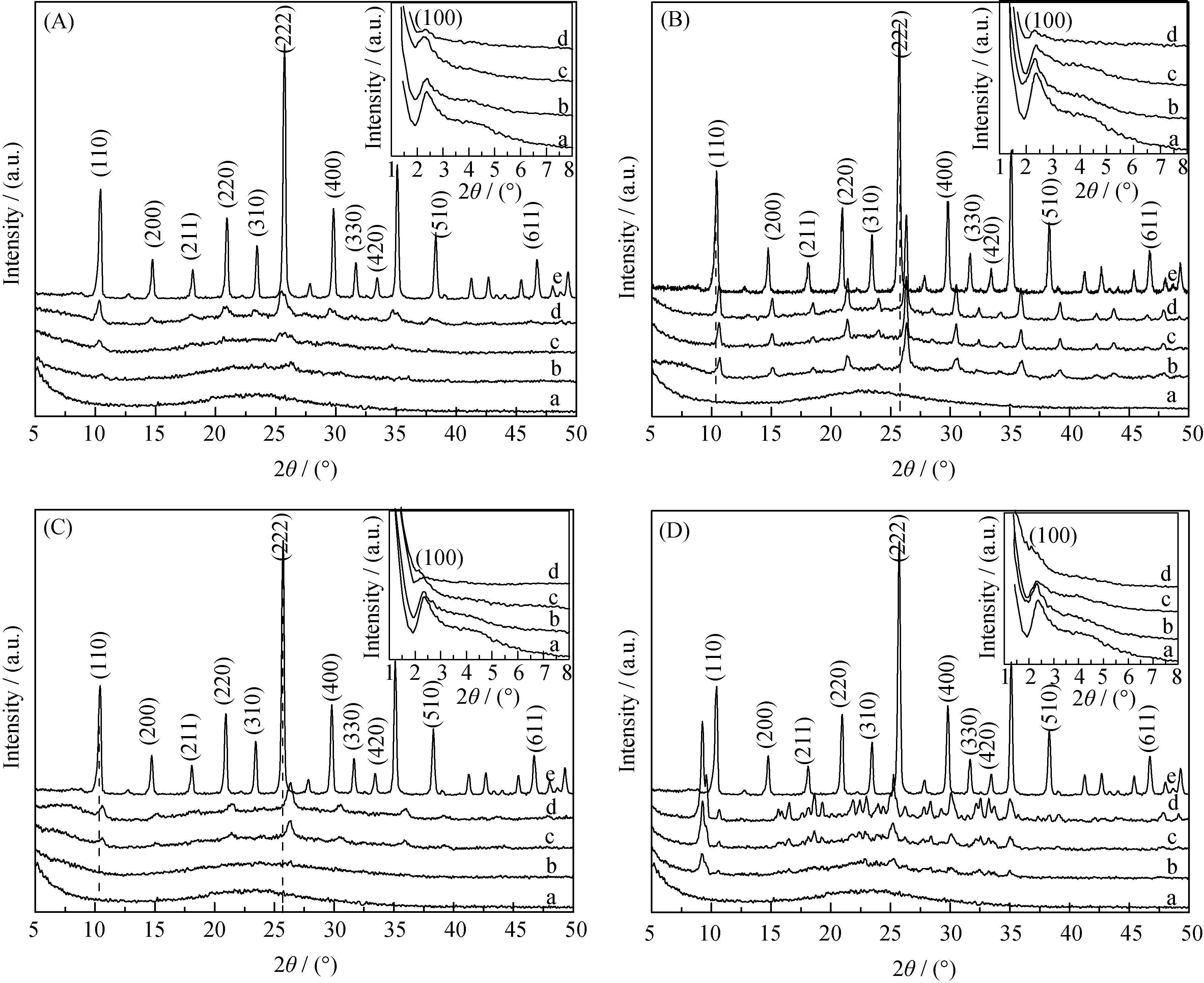

Fig. 1 XRD patterns of HPW/BMMs samples prepared in different solvents

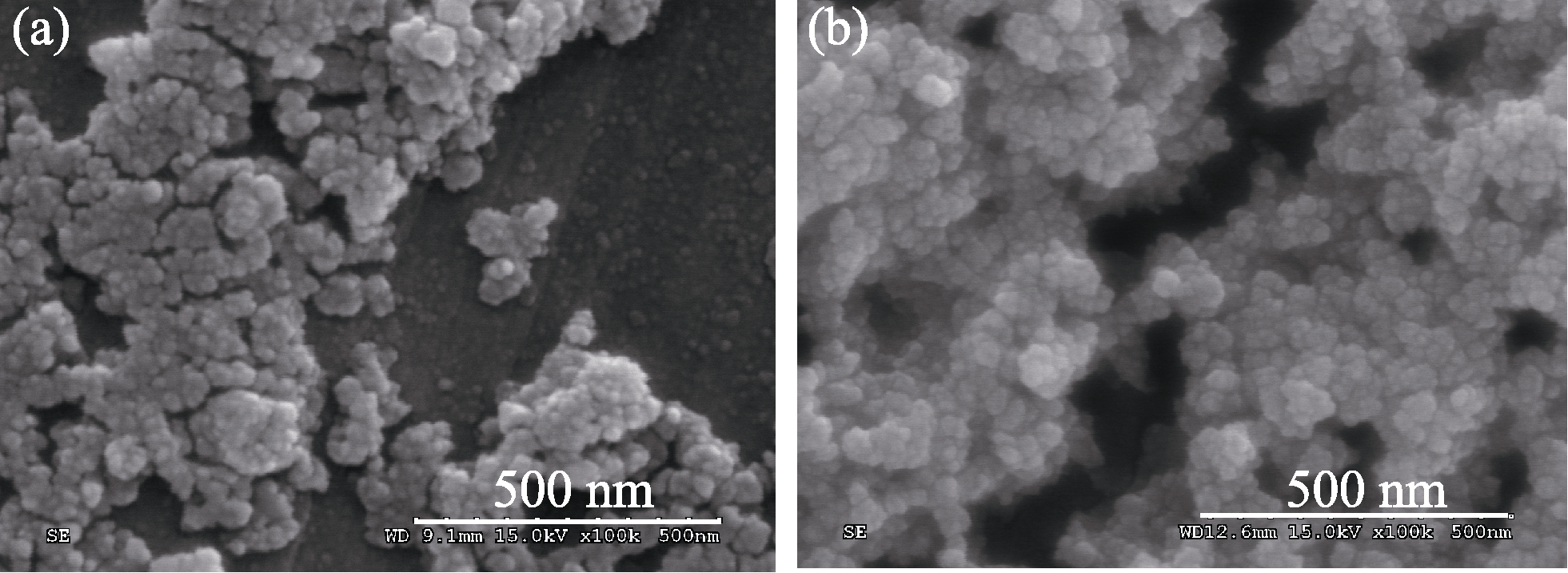

Fig. 2 SEM images of the samples before and after loaded HPW

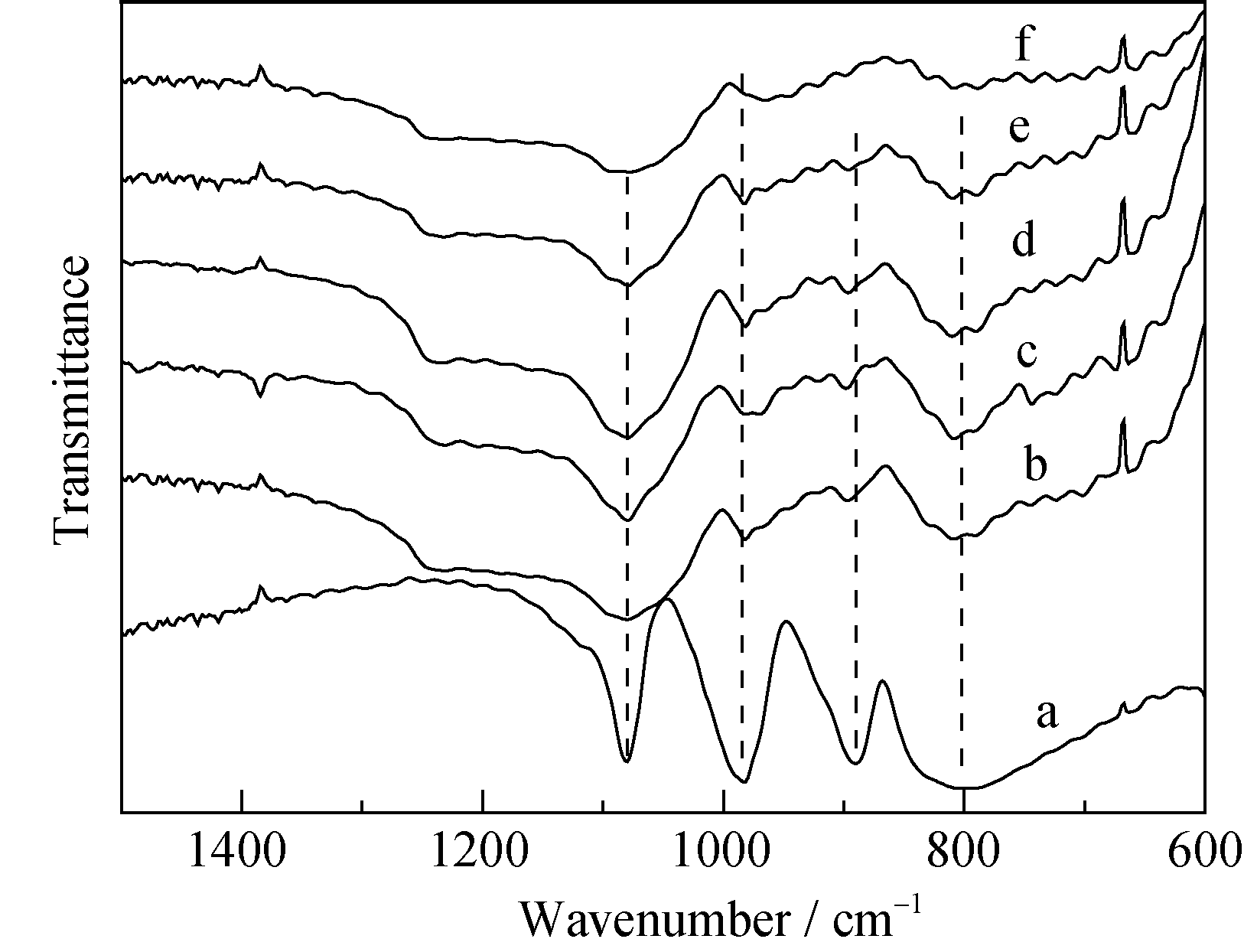

Fig. 3 FT-IR spectra of 40HPW/BMMs in different solvents

Table 1 FT-IR absorption peaks of 40HPW/BMMs samples in different solvents

Sample	Wavenumber/cm^-1
Sample	P-O_a	W=O_d	W-O_b-W	W-O_c-W
HPW	1079.9	983.5	891.0	796.5
40HPW-WA	1081.0	981.6	896.7	808.0
40HPW-AT	1080.0	981.6	896.7	809.9
40HPW-AC	1080.9	981.6	898.7	808.0
40HPW-ET	1079.9	983.5	896.7	810.0

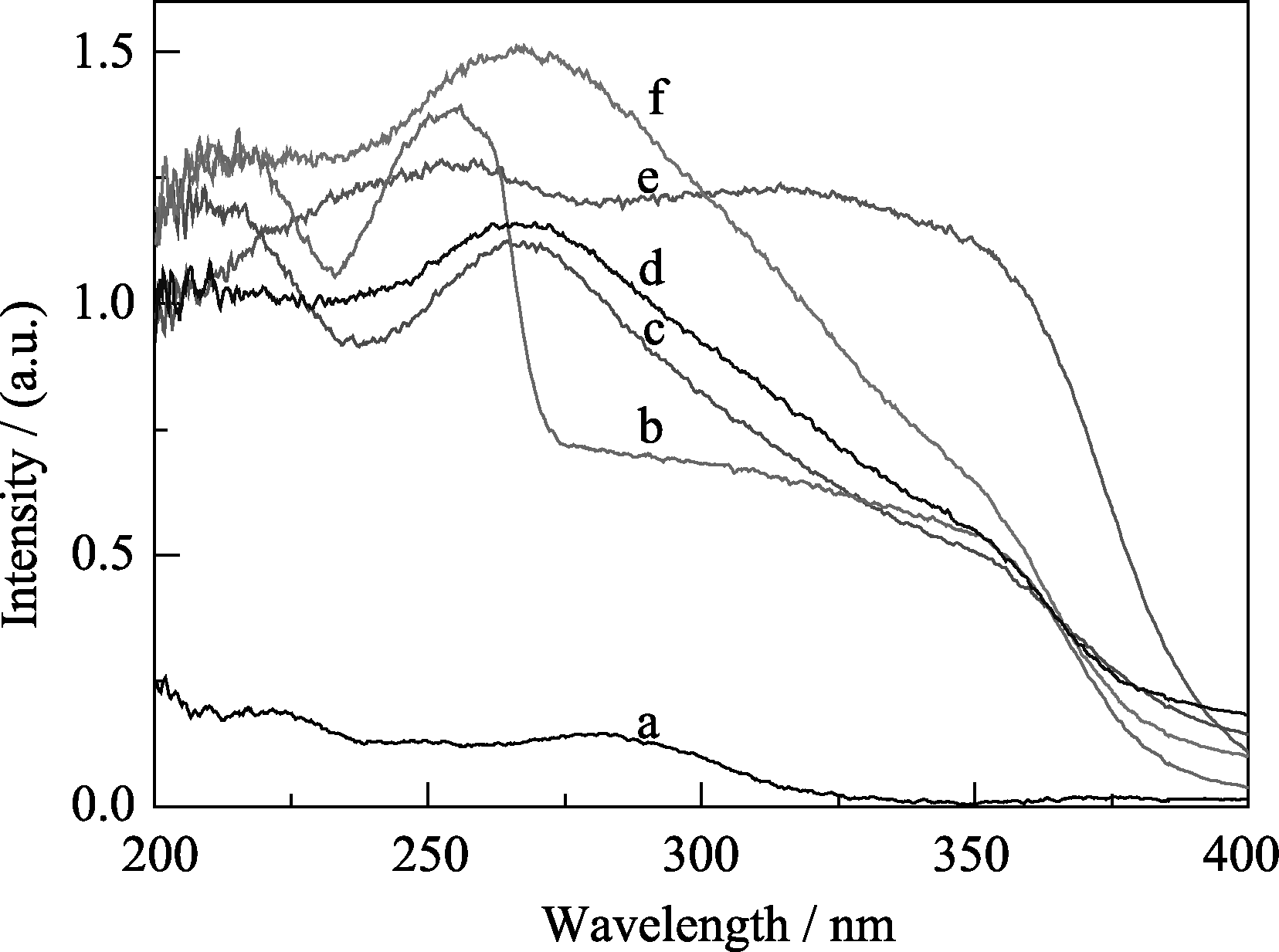

Fig. 4 UV-Vis spectra of 40HPW/BMMs in different solvents

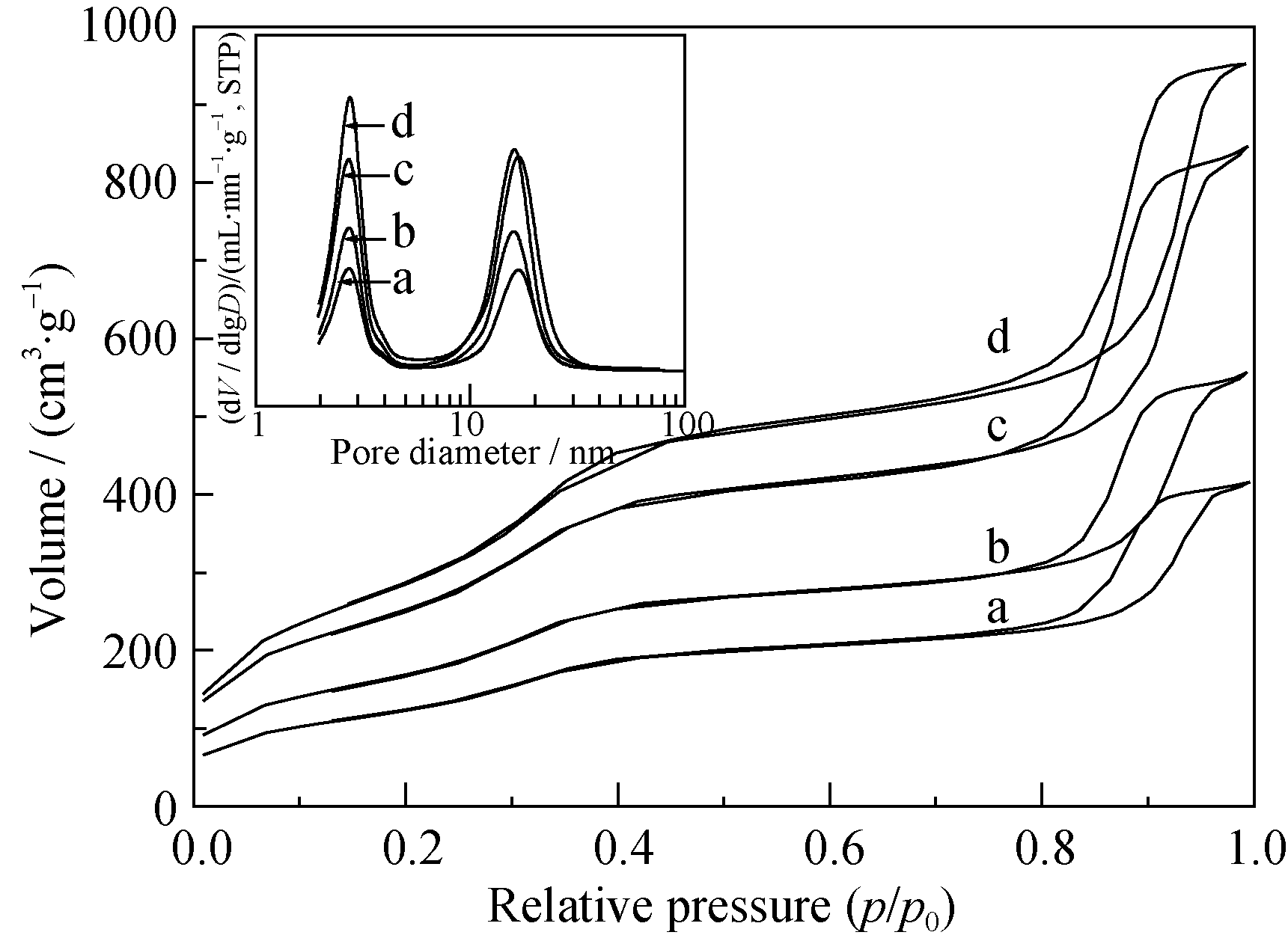

Fig. 5 Nitrogen adsorption/desorption isotherms and corresponding pore size distribution (insert) of HPW/BMMs-WA samples

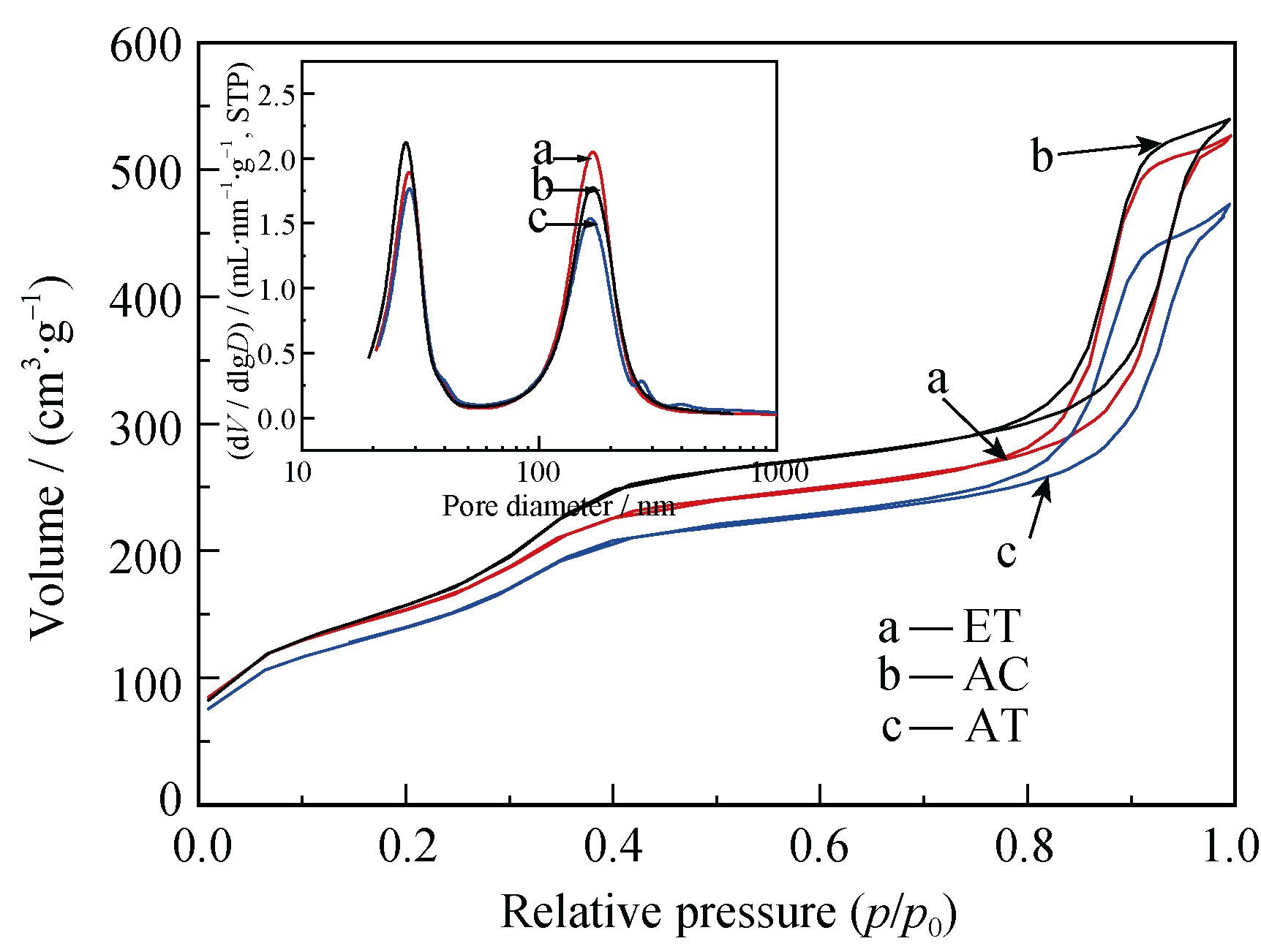

Fig. 6 Nitrogen adsorption/desorption isotherms and pore size distribution (insert) of 40HPW/BMMs samples obtained in different solvents

Table 2 Textural properties of HPW/BMMs samples

Sample	S_BET /(m²·g^-1)	PV /(cm³·g^-1)	MSPS^a /nm	MLPS^b /nm
BMMs	1109	1.46	2.79	16.2
10HPW/BMMs-WA	983	1.29	2.81	16.2
20HPW/BMMs-WA	656	0.85	2.84	16.0
40HPW/BMMs-WA	480	0.64	2.82	16.2
40HPW/BMMs-AC	613	0.82	2.76	15.8
40HPW/BMMs-ET	583	0.80	2.90	16.0
40HPW/BMMs-AT	525	0.72	2.88	16.0

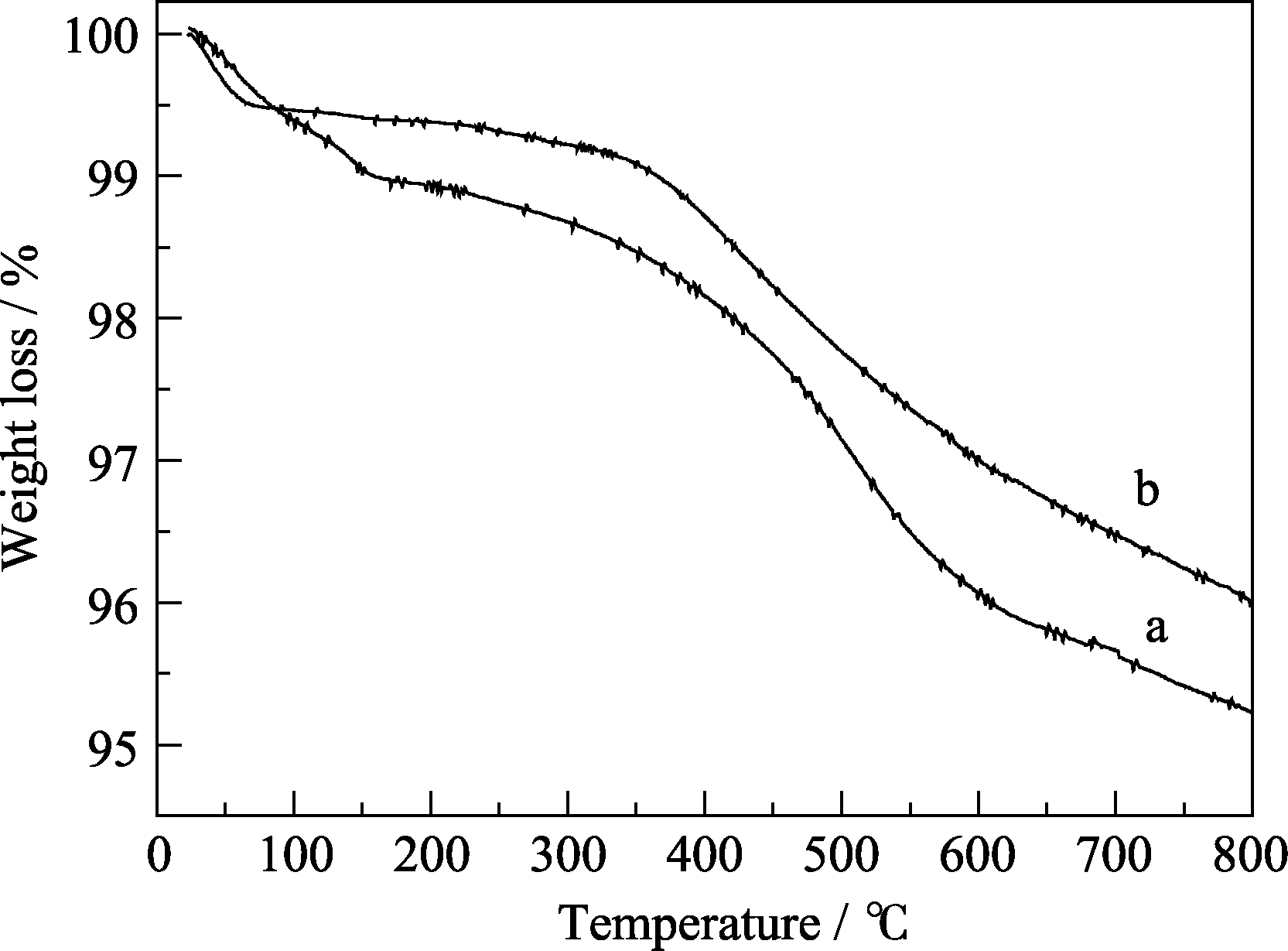

Fig. 7 TG curves of (a) 40HPW/BMMs-WA and (b) BMMs

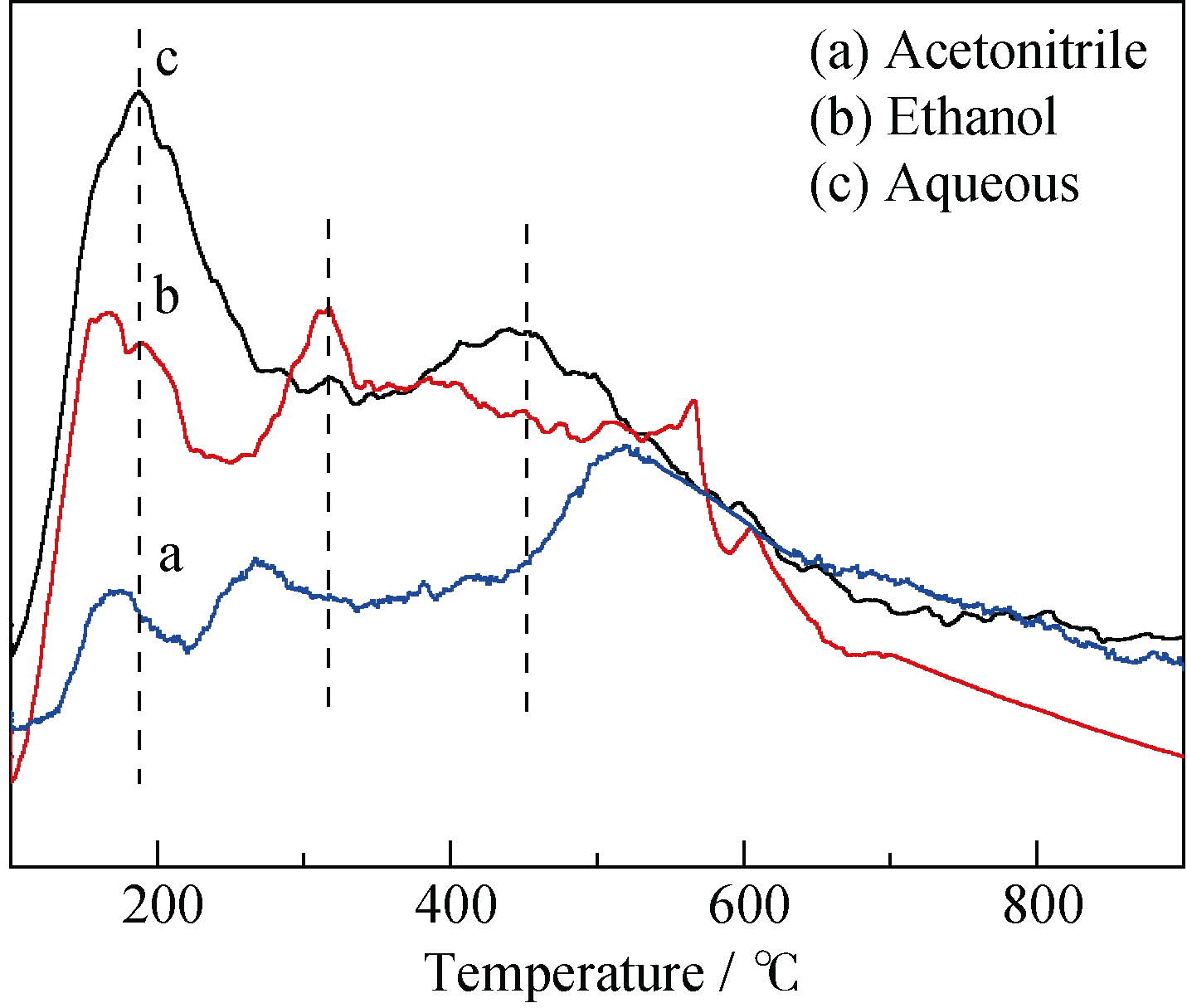

Fig. 8 NH3-TPD profiles of 40HPW/BMMs in different solvents

Table 3 Acid density distribution of the 40HPW/BMMs samples obtained in different solvents on the basis of the NH3-TPD datas

Catalysts	Total acid density/ (μmol·m^-2)	Weak acid density^T1 /(μmol·m^-2)	Strong acid density^T2 /(μmol·m^-2)
40HPW/BMMs-WA	1.381	0.808	0.573
40HPW/BMMs-AC	0.687	0.087	0.600
40HPW/BMMs-ET	1.022	0.564	0.458

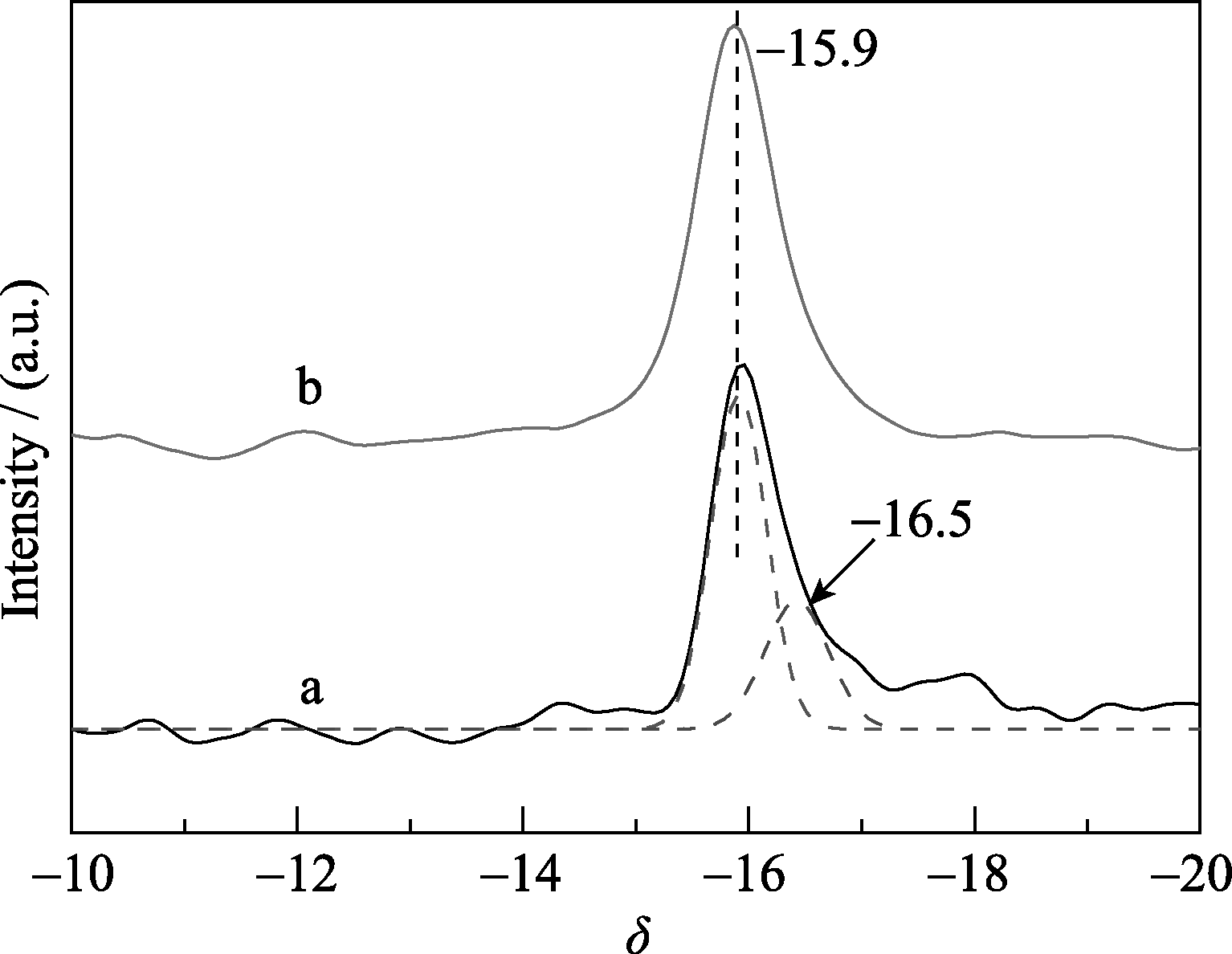

Fig. 9 31P MAS NMR spectra of (a) 10HPW/BMMs-WA and (b) 40HPW/BMMs-WA

Table 4 Catalytic performance of the loaded HPW/BMMs catalysts obtained in aqueous solution

Catalyst*	Calcination temperature/ ℃	Conversion / %
10HPW/BMMs-WA	200	19.4
20HPW/BMMs-WA	200	35.1
40HPW/BMMs-WA	110	17.1
	200	42.7
	300	36.8
HPW	200	43.0

References 37

[1]	Mizuno N, Misono M. Heterogeneous catalysis. Chem. Rev., 1998, 98(1): 199-217.
[2]	Kozhevnikov I V. Fine organic synthesis with the acid of heteropolycompounds. Russ Chem. Rev., 1993, 62(5): 473-491.
[3]	Jin Dingfeng, Hou Zhaoyin, Luo Yongming, et al. Synthesis of dimethyldiphenylmethane over supported 12-tungstophosphoric acid (H3PW12O40). J. Mol. Catal. A: Chem., 2006, 243(2): 233-238.
[4]	Kozhevnikov I V. Catalysis by heteropoly acids and multicom ponent polyoxometalates in liquid-phase recations. Chem. Rev., 1998, 98(1): 171-198.
[5]	欧国勇, 杨辉荣, 方岩雄. 负载型杂多酸催化剂研究进展. 化工进展, 2001, 20(8): 18-21.
[6]	Blasco T, Corma A, Martinez A, et al. Supported heteropolyacid(HPW) catalysts for the continuous alkylation of isobutane with 2-butene:the benefit of using MCM-41 with larger pore diameters. J. Catal., 1998, 177(2): 306-313.
[7]	Kozhevnikov I V. Heteropoly acids and related compounds as catalysts for fine chemical synthesis. Catal. Rev. Sci. Eng., 1995, 37(2): 311-352.
[8]	Kapustin G I, Brueva T R, Klyachko A L, et al. Study of the acidity of heteropolyacids. Kinet. Katal., 1990, 31(2): 896-898.
[9]	Kozhevnikov I V, Sinnema A, Jansen R J J, et al. New acid catalyst comprising heteropoly acid on a mesoporous molecular sieve MCM-41. Catal. Lett., 1995, 30(1-4): 241.
[10]	Chu Wenlin, Yang Xiangguang, Wu Yue, et al. Immobilization of the heteropoly acid (HPA) H4SiW12O40(SiW12) on mesoporous molecular sieves (HMS and MCM-41) and their catalytic behavior. Catal. Lett., 1996, 42(3/4): 201.
[11]	孙渝, 乐英红, 李惠云, 等(SUN Yu, et al). 负载钨磷杂多酸催化剂的性能研究. 化学学报(Acta Chim. Sinica), 1999, 57(7): 746-753.
[12]	张雪峥, 乐英红, 高滋(ZHANG Xue-Zheng, et al). PW/ SBA-15 负载型催化剂的性能研究. 高等学校化学学报(Chem. J. Chinese U.), 2001, 22(7): 1169-1172.
[13]	楚文玲, 杨向光, 叶兴凯, 等(CHU Wen-Ling, et al). 硅钨杂多酸在中孔全硅分子筛HMS 上的固载及其催化性能. 催化学报(Chinese J.Catal), 1997, 18(3): 225-229.
[14]	杨丽娜, 亓玉台, 袁兴东, 等. 磷钨酸改性介孔分子筛SBA-15催化剂的酸性及水热稳定性的研究. 石油化工, 2005, 34(3): 222-225.
[15]	Wang Jun, Zhu Hai-Ou. Alkylation of 1-dodecene with benzene over H3PW12O40 supported on mesoporous silica SBA-15. Catal. Lett., 2004, 93(3/4): 209-212.
[16]	史春风, 辛明红, 王润伟, 等(SHI Chun-Feng, et al). 新型HPW/SiO2复合介孔材料的合成与表征. 高等学校化学学报(Chem. J. Chinese U.), 2005, 26(7): 1198-1201.
[17]	Sun Ji-Hong, Shan Zhi-Ping, Maschmeyer T, et al. Synthesis of bimodal nanostructured silicas with independently controlled small and large mesopore sizes. Langmuir, 2003, 19(20): 8395-8402.
[18]	Gao Lin, Sun Jihong, Li Yuzhen, et al,.Bimodal mesoporous silicas functionalized with different level and species of the amine groups for adsorption and controlled release of aspirin. J. Nanosci. Nanotechnol., 2011, 11(8): 6690-6697.
[19]	Gao Lin, Sun Jihong, Li Yuzhen. Functionalized bimodal mesoporous silicas as novel carriers for controlled aspirin delivery. J. Solid State Chem., 2011, 184(8): 1909-1914.
[20]	Ling Tzongrong, Wan Benzu, Lin Hongping, et al. Desulfurization of vacuum gasoil by MCM-41 supported molybdenum nickel catalysts. Ind. Eng. Chem. Res., 2009, 48(4): 1797-1803.
[21]	Ternan M, Rahimi P M, Clugston D M, et al. The +525℃ residue before and after hydrocracking with bimodal catalysts of varying macropore volume. Energy &Fuels, 1994, 8(3): 518-530.
[22]	GB/T5530-1998 动植物油脂酸价和酸度测定.
[23]	徐如人,庞文琴. 分子筛与多孔材料化学. 北京: 科学出版社, 2004.
[24]	Gagea B C, Lorgouilloux Y, Altintas Y, et al. Bifunctional conversion of n-decane over HPW heteropoly acid incorporated into SBA-15 during synthesis. J. Catal., 2009, 265(1): 99-108.
[25]	Sawant Dhanashri P, Vinu A, Jacob Nalini E, et al. Formation of nanosized zirconia-supported 12-tungstophosphoric acid in mesoporous silica SBA-15: a stable and versatile solid acid catalyst for benzylation of phenol. J. Catal., 2005, 235(2): 341-352.
[26]	Yang Lina, Qi Yutai, Yuan Xingdong, et al. Direct synthesis, characterization and catalytic applicationof SBA-15 containing heteropolyacid H3PW12O40. J. Mol. Catal. A: Chem., 2005, 229(1/2): 199-205.
[27]	Edneia C, Jose A D, Silvia C L D, et al. Preparation and characterization of H3PW12O40 supported on niobia. Micropor. Mesopor. Mater., 2010, 132(1/2): 103-111.
[28]	Kozhevnikov I V, Kloetstra K R, Sinnema A, et al. Study of catalysts comprising heteropoly acid H3PW12O40 supported on MCM-41 molecular sieve and amorphous silica. J. Mol. Catal. A: Chem., 1996, 114(1/2/3): 287-298.
[29]	Misono M. Heterogeneous catalysis by heteropoly compounds of molybdenum and tungsten. Catal. Rev-Sci. Eng., 1987, 29(2/3): 269-272.
[30]	Dias J A, Osegovic J P, Drago R S. The solid acidity of 12-tungstophosphoric acid. J. Catal., 1998, 183(1): 83-90.
[31]	Siahkali A G S, Philippou A, Dwyerm J, et al. The acidity and catalytic activity of heteropoly acid on MCM-41 investigated by MAS NMR, FTIR and catalytic tests. Appl. Catal. A: Gen., 2000, 192(1): 57-69.
[32]	Manzano M, Aina V, Arean C O, et al. Studies on MCM-41 mesoporous silica for drug delivery: effect of particle morphology and amine functionalization. Chem. Eng. J., 2008, 137(1): 30-37.
[33]	谢文华, 杨向光, 叶兴凯, 等. 12-磷钨杂多酸受热相变的研究. 分子催化, 1998, 12(1): 31-35.
[34]	曲淑华, 周贵林, 胥勃, 等. 12-钼和12-钨杂多酸热稳定性的研究. 科学通报, 1985, 30(16): 1228-1232.
[35]	杜泽学, 何奕工, 闵恩泽. 结晶水的性质及其对含钨杂多酸酸性的影响. 石油学报(石油加工), 1999, 15(1): 61-65.
[36]	Jin Dingfeng, Gao Jing, Hou Zhaoyin, et al. Microwave assisted in situ synthesis of USY-encapsulated heteropoly acid (HPW-USY) catalysts. Appl. Catal. A, 2009, 352(1/2): 259-264.
[37]	吴越, 叶兴凯, 杨向光, 等. 杂多酸的固载化-关于制备负载型酸催化剂的一般原理. 分子催化, 1996, 10(4): 299-318.
