Ti Doped Diamond Like Carbon Films: Piezoresistive Properties and Carrier Transport Behavior

ZHAO Zhihan¹^,²(), GUO Peng², WEI Jing², CUI Li², LIU Shanze¹^,², ZHANG Wenlong², CHEN Rende², WANG Aiying²^,³()

1. School of Materials Science and Chemical Engineering, Ningbo University, Ningbo 315211, China
2. Key Laboratory of Advanced Marine Materials, Ningbo Institute of Materials Technology and Engineering, Chinese Academy of Sciences, Ningbo 315201, China
3. Center of Materials Science and Optoelectronics Engineering, University of Chinese Academy of Sciences, Beijing 100049, China

Received:2024-01-03 Revised:2024-04-07 Published:2024-08-20 Online:2024-04-19
Contact: WANG Aiying, professor. E-mail: aywang@nimte.ac.cn
About author:ZHAO Zhihan (1998-), male, Master candidate. E-mail: zhaozhihan@nimte.ac.cn
Supported by:
Science and Technology 2025 Innovation Project of Ningbo(2020Z023);National Natural Science Foundation of China(U20A20296);National Natural Science Foundation of China(52205237);Ningbo Hi-Tech Industrial Development Zone Technological Innovation Project(2021CCX050003)

摘要/Abstract

摘要：

围绕压阻传感器领域对高性能类金刚石(Diamond Like Carbon, DLC)薄膜压阻敏感材料的需求, 针对金属掺杂DLC存在的载流子输运行为和实际多工况(如温度、湿度等)下压阻性能不明的问题, 本工作以Ti-石墨复合拼接靶为靶材, 采用高功率脉冲磁控溅射技术, 高通量制备出4种Ti含量(原子分数为0.43%~4.11%)的Ti掺杂类金刚石(Ti-DLC)薄膜, 研究了Ti含量对薄膜组分结构、电学性能、变湿度环境下压阻性能的影响规律。结果表明: Ti含量(原子分数)在0.43%~4.11%范围内, 掺杂Ti原子均以固溶形式均匀镶嵌于非晶碳网络中, Ti-DLC薄膜电学行为表现为典型半导体特性, 在200~350 K温度范围内, 薄膜电阻率均随温度升高而降低。载流子传导机制在200~ 270 K内为Mott型三维变程跳跃传导, 在270~350 K范围内则为热激活传导。Ti-DLC薄膜压阻系数(Gauge Factor, GF)最大值为95.1, 在20%~80%相对湿度范围内, 所有样品GF均随湿度增加而增大, 这可能是引入的固溶Ti原子缩短了导电相之间的平均距离, 同时吸附表面水分子导致电阻变化。

关键词: Ti掺杂, 类金刚石薄膜, 电学性能, 可变湿度, 压阻行为

Abstract:

Diamond like carbon (DLC) film was a promising candidate for microelectromechanical system (MEMS) piezoresistive sensors owing to its excellent mechanical properties and sensitivity. The effects of carrier transport behavior and the role of operating conditions (such as temperature, humidity, etc.) on piezoresistive performance of metal-doped DLC were still unclear. In this work, Ti doped diamond like carbon (Ti-DLC) films with Ti atom fraction ranging from 0.43% to 4.11% were prepared using high-power pulse magnetron sputtering, where the high-throughput conception was introduced for film deposition. Effects of the doped Ti content on microstructure, electrical behavior and piezoresistive properties of the films were studied under various humidity environments. The results indicated that the doped Ti atoms were uniformly dissolved in the diamond like carbon matrix, accompanying typical amorphous characteristics for the Ti-DLC films regardless of Ti atom fraction changing from 0.43% to 4.11%. Furthermore, all the Ti-DLC films demonstrated distinct semiconductor feature, where the electrical resistivity was reduced with the increase of temperature in the range of 200-350 K. Particularly, the carrier transport was dominated by Mott type conduction with three-dimensional range hopping conduction from 200 to 270 K, while the thermal activation transport served as the conductive mechanism in the temperature range of 270-350 K. For the Ti-DLC films, the highest gauge factor (GF) was 95.1, and GF value increased with increasing relative humidity from 20% to 80%. This can be explained from reduction of the average distance between conductive cluster by introducing Ti atoms and a change in electrical resistance caused by adsorption of water molecules.

Key words: Ti doping, diamond like carbon (DLC) film, electrical property, variable humidity, piezoresistive behavior

中图分类号:

TQ174

赵志翰, 郭鹏, 魏菁, 崔丽, 刘山泽, 张文龙, 陈仁德, 汪爱英. Ti-DLC薄膜压阻性能及载流子输运行为研究[J]. 无机材料学报, 2024, 39(8): 879-886.

ZHAO Zhihan, GUO Peng, WEI Jing, CUI Li, LIU Shanze, ZHANG Wenlong, CHEN Rende, WANG Aiying. Ti Doped Diamond Like Carbon Films: Piezoresistive Properties and Carrier Transport Behavior[J]. Journal of Inorganic Materials, 2024, 39(8): 879-886.

图/表 11

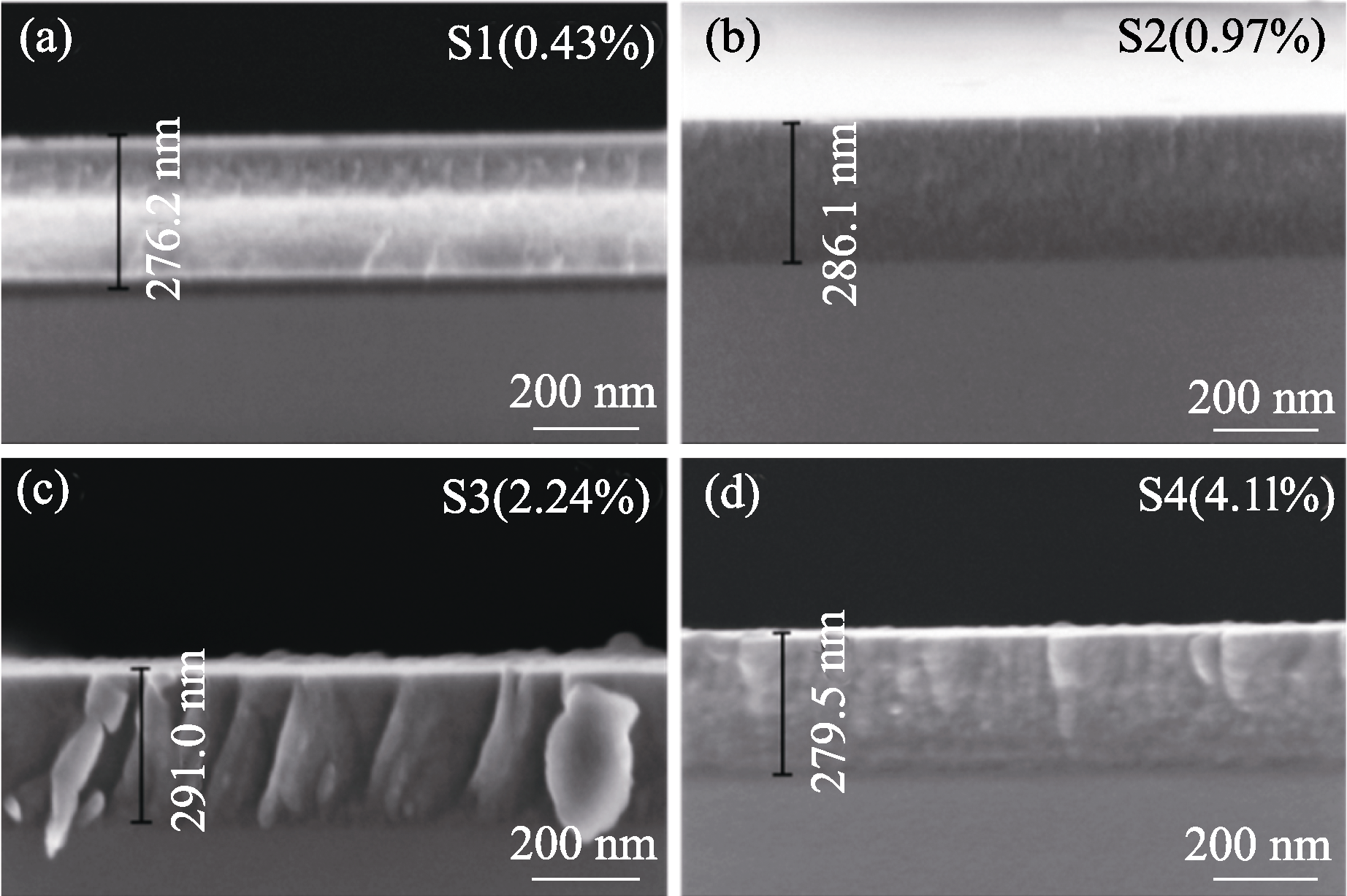

图1 不同Ti-DLC薄膜的截面SEM照片

Fig. 1 Cross-sectional SEM images for Ti-DLC films Ti atom fractions are (a) 0.43%, (b) 0.97%, (c) 2.24%, and (d) 4.11%

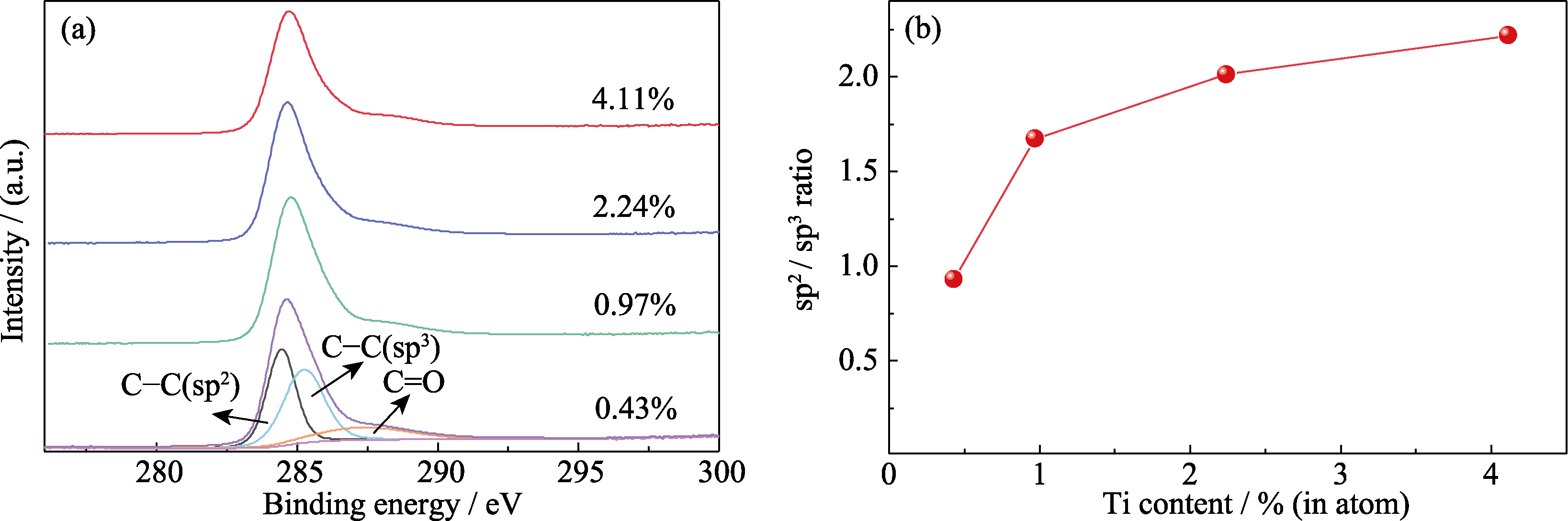

图2 Ti-DLC薄膜的XPS测试结果

Fig. 2 XPS spectra of Ti-DLC films (a) Cls spectra; (b) sp2/sp3 ratio

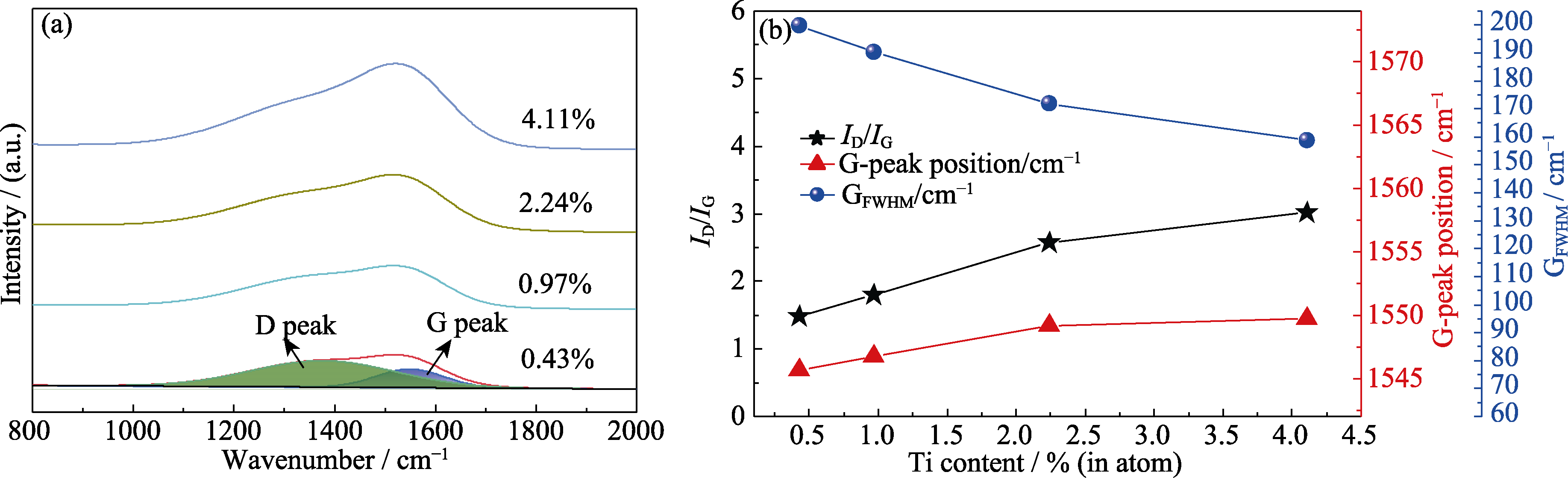

图3 Ti-DLC薄膜拉曼光谱图测试结果

Fig. 3 Raman detection for Ti-DLC films (a) Raman spectra; (b) Fitting results of ID/IG, G-peak position and GFWHM; Ti content in atom fraction

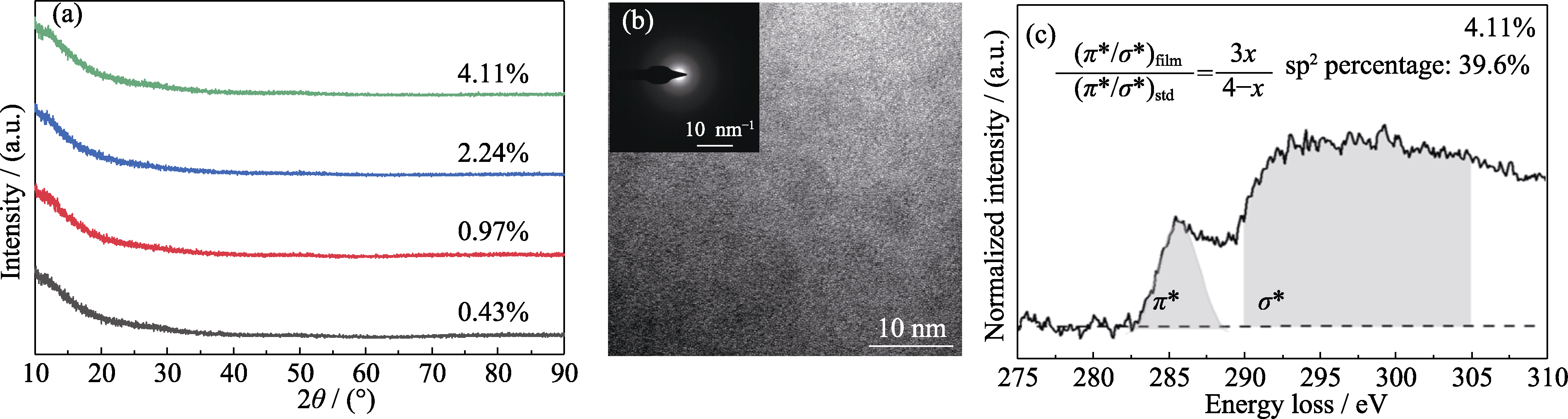

图4 Ti-DLC薄膜的相结构、微观形貌及EELS分析

Fig. 4 Phase structure, microstructure and EELS analyses for Ti-DLC films (a) XRD patterns of Ti-DLC films; (b) HRTEM image and corresponding SAED of Ti-DLC film with 4.11% Ti; (c) EELS spectrum of Ti-DLC film with 4.11% Ti; Ti content in atom fraction

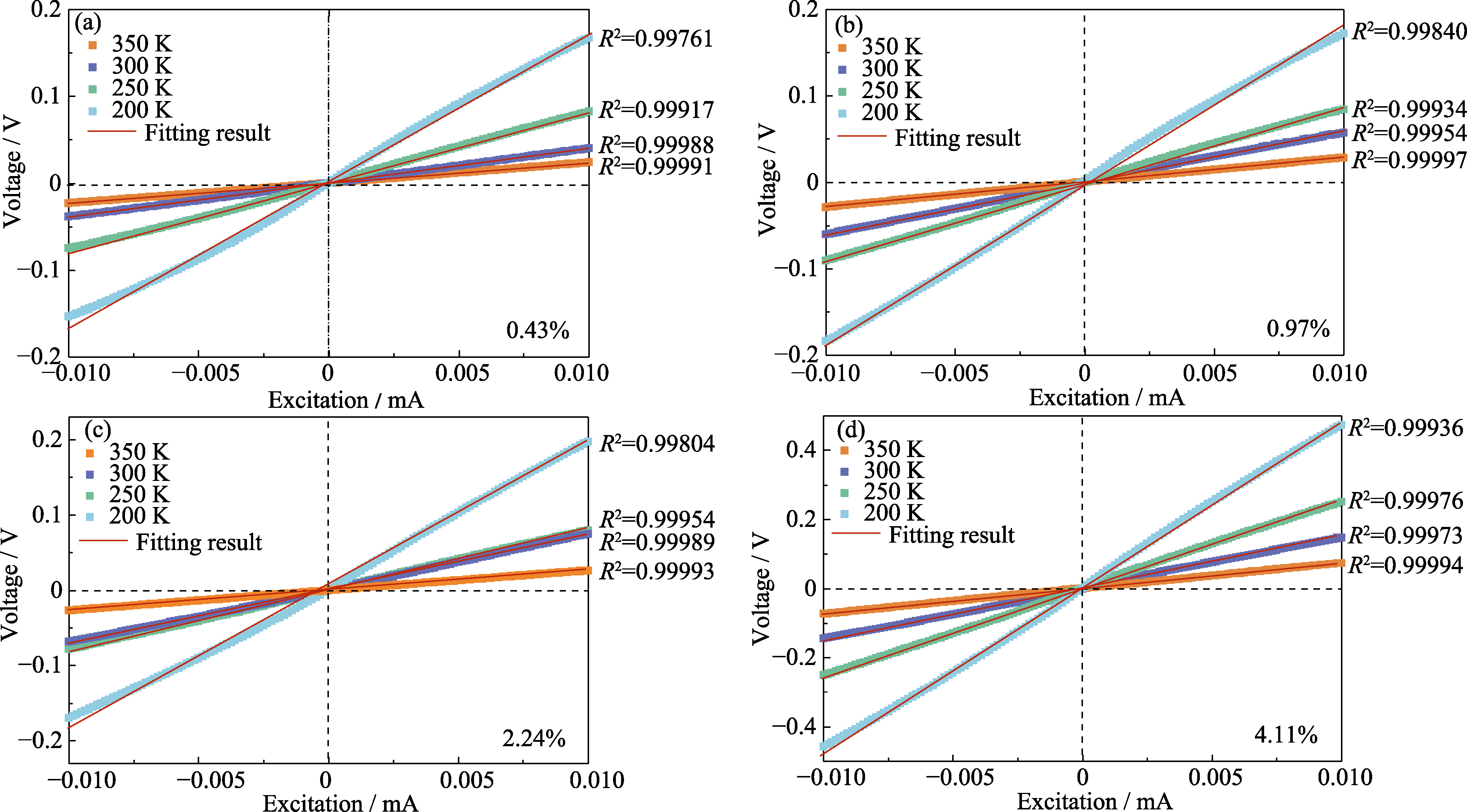

图5 Ti-DLC薄膜在不同温度下的I-V曲线

Fig. 5 I-V plots for Ti-DLC films at different temperatures Ti atom fractions are (a) 0.43%, (b) 0.97%, (c) 2.24%, and (d) 4.11%; Colorful figures are available on website

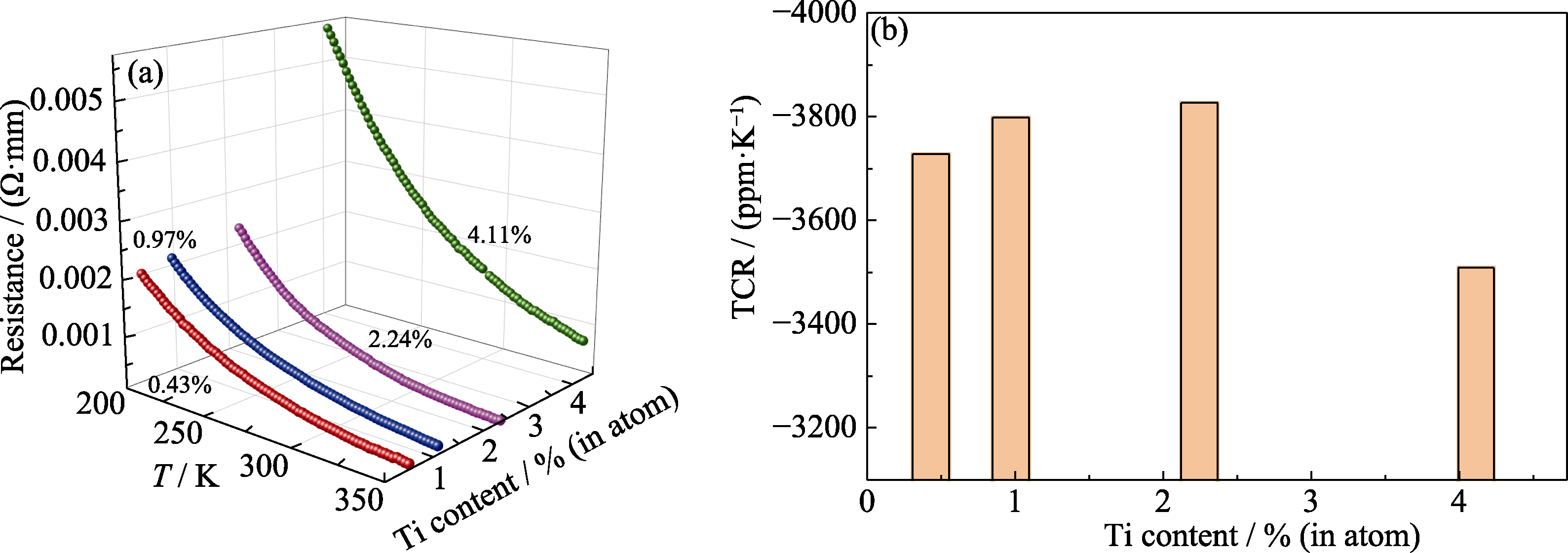

图6 Ti-DLC薄膜在不同温度下的电学特性

Fig. 6 Electrical properties of Ti-DLC films at different temperatures (a) R-T behaviors; (b) TCR

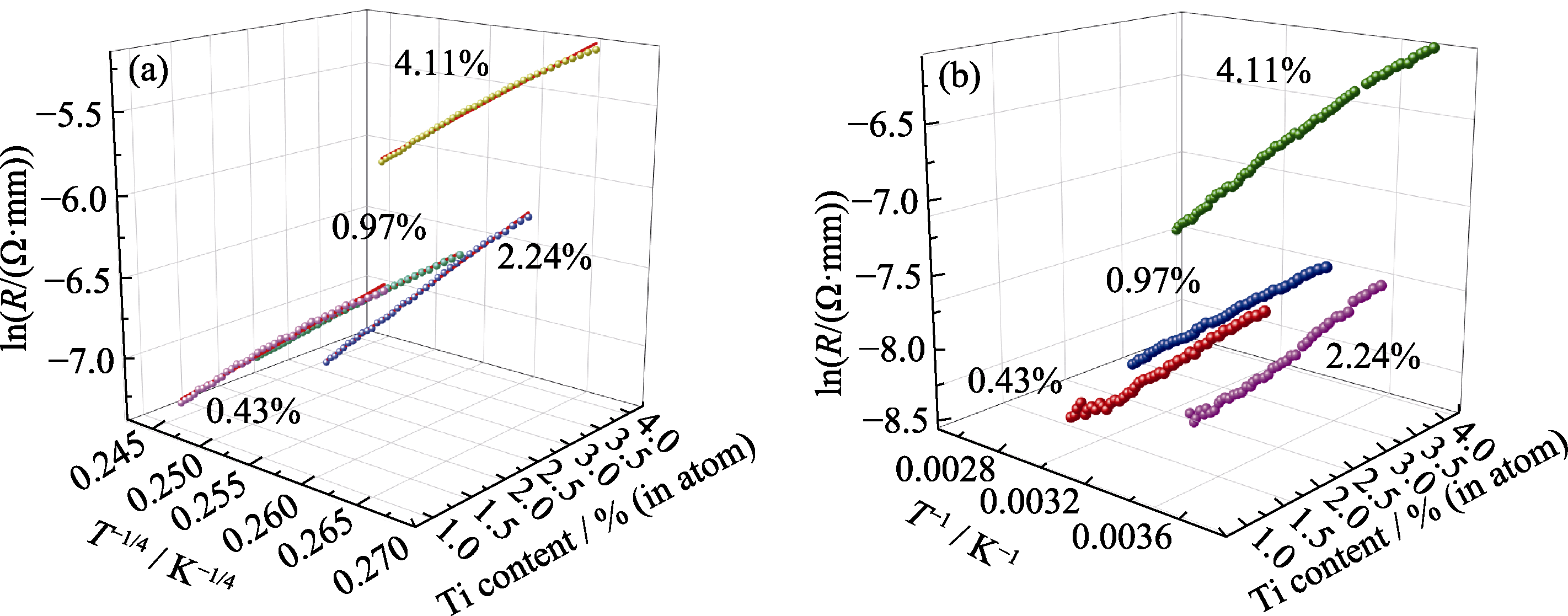

图7 Ti-DLC薄膜在不同温度范围内R-T拟合结果

Fig. 7 R-T fitting results of Ti-DLC films within different temperature ranges (a) lnR and T-1/4; (b) lnR and T-1

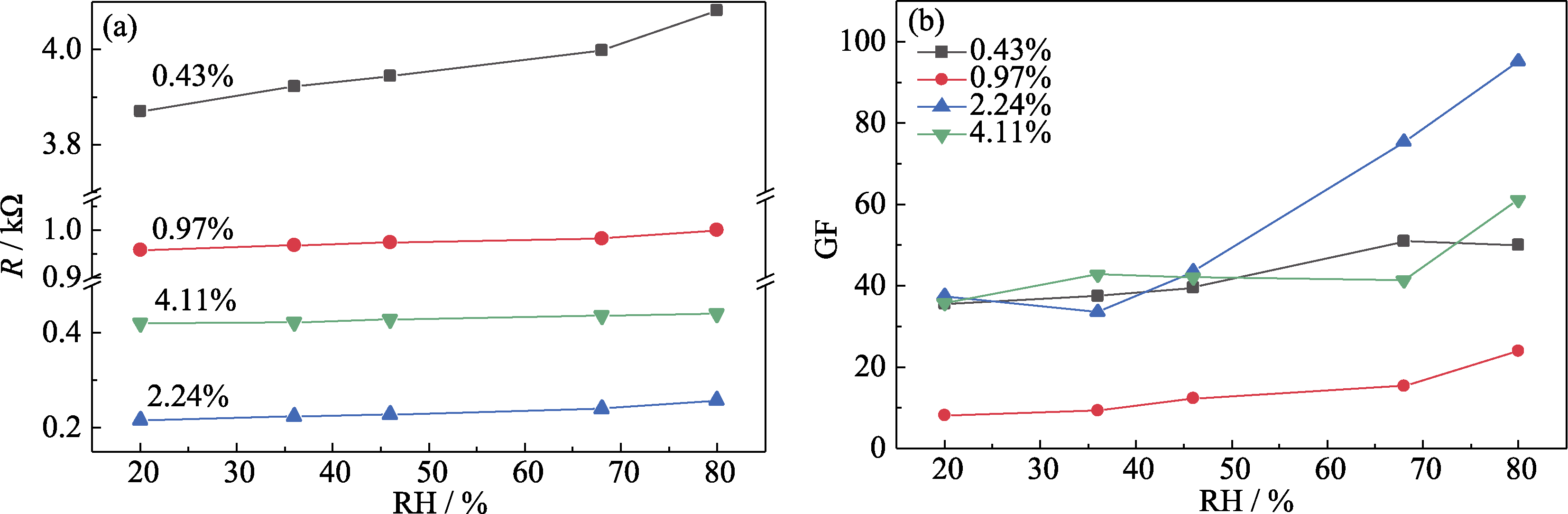

图8 Ti-DLC薄膜电学性能随湿度变化曲线

Fig. 8 Electrical properties of Ti-DLC films under various relative humidities (a) Resistance; (b) GF; Ti content in atom fraction

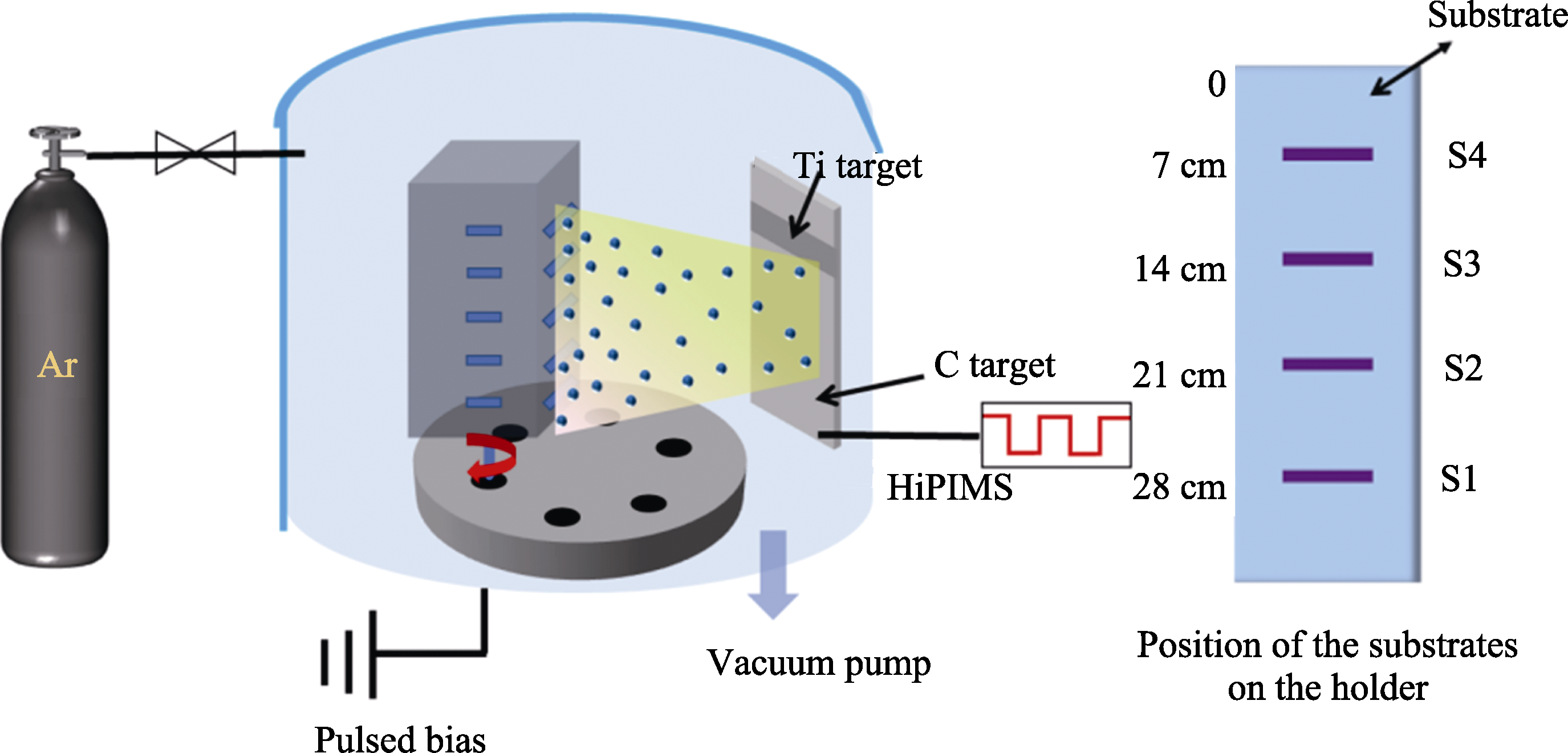

图S1 Ti-DLC薄膜的沉积设备示意图及沉积样品具体摆放位置

Fig. S1 Schematic diagram of the deposition equipment for Ti-DLC film and specific sample positions

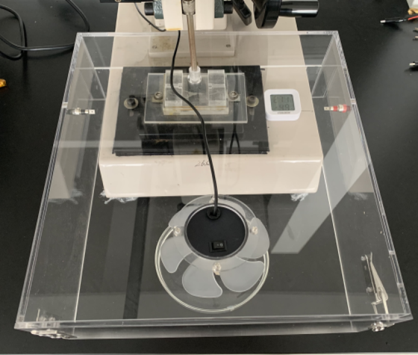

图S2 压阻测试装置

Fig. S2 Piezoresistive testing device

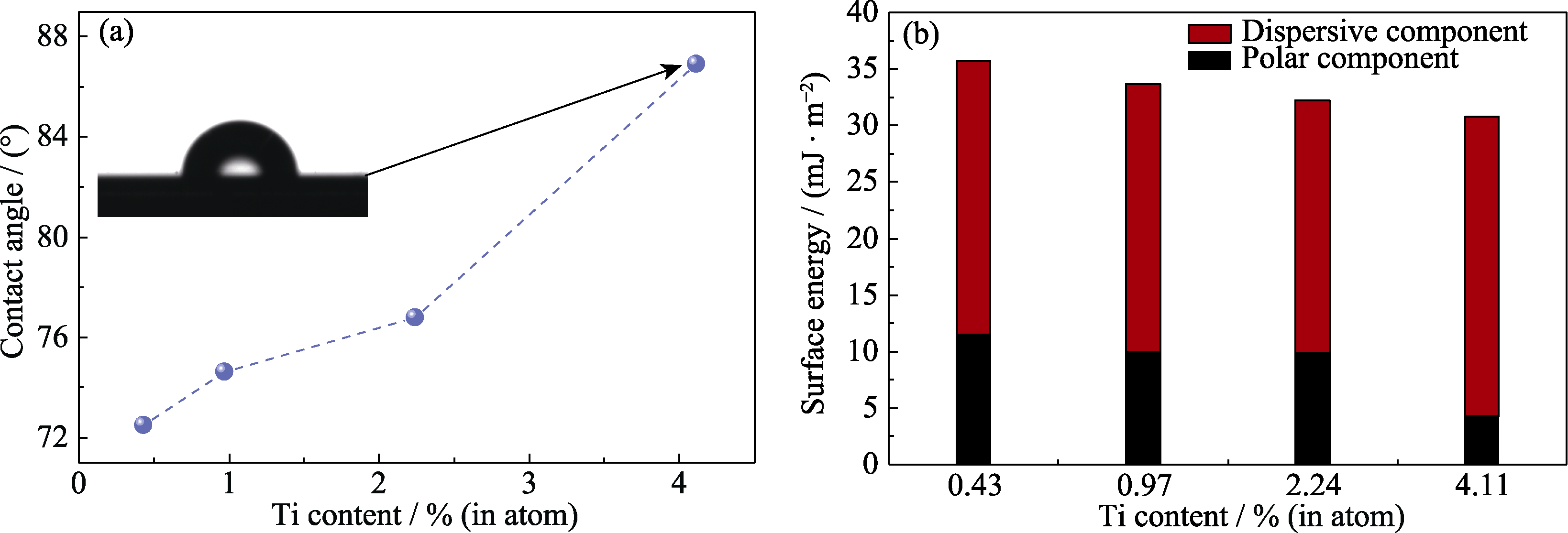

图S3 不同Ti含量Ti-DLC薄膜的润湿行为
