悬浮液等离子喷涂制备Y2O3涂层及耐等离子刻蚀性

doi:10.15541/jim20230548

无机材料学报 ›› 2024, Vol. 39 ›› Issue (8): 929-936.DOI: 10.15541/jim20230548

悬浮液等离子喷涂制备Y₂O₃涂层及耐等离子刻蚀性

马文¹^,²(), 申喆¹^,², 刘琪¹^,², 高元明¹^,², 白玉¹^,², 李荣星¹^,²

1.内蒙古工业大学材料科学与工程学院, 内蒙古自治区薄膜与涂层重点实验室, 呼和浩特 010051
2.内蒙古自治区稀土新材料及功能涂层工程研究中心, 呼和浩特 010051

收稿日期:2023-11-29 修回日期:2024-02-04 出版日期:2024-08-20 网络出版日期:2024-02-22
作者简介:马文(1973-), 男, 博士, 教授. E-mail: w.ma@imut.edu.cn
基金资助:
内蒙古自然科学基金(2022MS05003);内蒙古自然科学基金(2021PT0008);内蒙古自然科学基金(JY20220041);内蒙古自治区高校创新科研团队项目(NMGIRT2319)

Preparation of Y₂O₃ Coating by Suspension Plasma Spraying and Its Resistance to Plasma Etching

MA Wen¹^,²(), SHEN Zhe¹^,², LIU Qi¹^,², GAO Yuanming¹^,², BAI Yu¹^,², LI Rongxing¹^,²

1. Inner Mongolia Key Laboratory of Thin Film and Coatings, School of Materials Science and Engineering, Inner Mongolia University of Technology, Hohhot 010051, China
2. Inner Mongolia Engineering Research Center of Rare-earth New Materials and Functional Coatings, Hohhot 010051, China

Received:2023-11-29 Revised:2024-02-04 Published:2024-08-20 Online:2024-02-22
About author:MA Wen (1973-), male, PhD, professor. E-mail: w.ma@imut.edu.cn
Supported by:
Inner Mongolia Natural Science Foundation(2022MS05003);Inner Mongolia Natural Science Foundation(2021PT0008);Inner Mongolia Natural Science Foundation(JY20220041);Inner Mongolia University Innovative Research Team Project(NMGIRT2319)

摘要/Abstract

摘要：

随着高端芯片竞争的白热化, Y₂O₃涂层作为等离子体刻蚀工艺腔的重要组成部分, 对其研究逐渐成为科研热点。利用悬浮液等离子喷涂(Suspension Plasma Spraying, SPS)在铝合金表面制备Y₂O₃涂层, 研究了不同工艺参数对涂层的物相组成、力学性能、显微形貌和介电强度等的影响; 在CF₄/Ar/O₂氟等离子体环境中对Y₂O₃涂层分别刻蚀30、60、120 min后, 分析了Y₂O₃涂层微观孔隙率对刻蚀速率的影响。最优工艺1(喷涂距离80 mm、送液速率35 mL/min、雾化气流速15 L/min、横向移枪速率700 mm/s、纵向移动步进1 mm/step)制备的Y₂O₃涂层的显微硬度为(3.78±0.36) GPa, 孔隙率为(2.35±0.24)%, 结合强度为(36.0±3.6) MPa, 介电强度为(29.74±2.01) kV/mm。在CF₄/Ar/O₂组成的混合等离子气体中, Y₂O₃涂层发生物理和化学反应, Ar⁺对涂层强烈冲击、轰击诱导, 使表面化学键断裂; CF₂*和F*使Y₂O₃不断被刻蚀, 生成的YF₃附着在涂层表面; 同时Ar⁺不断对涂层表面进行物理冲击, 去除YF₃层, 少量残余在涂层表面的YF₃被氧化形成了YOF, 最终导致涂层刻蚀率低至(11.48±5.21) nm/min。高致密性、低孔隙率、高均匀性的Y₂O₃涂层可以有效提高零件的耐等离子刻蚀性能, 对半导体工业具有重要意义。

关键词: 悬浮液等离子喷涂, Y₂O₃涂层, 孔隙率, 耐等离子刻蚀性

Abstract:

With the fierce competition of high-end chips, Y₂O₃coating is an important component of plasma etching cavity, corresponding research gradually becomes a research hotspot. Y₂O₃ coating was prepared on aluminum alloy surface by suspension plasma spraying (SPS). The effects of different process parameters on the phase composition, mechanical properties, microstructure, and dielectric strength of the coating were studied. The effect of microscopic porosity of Y₂O₃ coating on etching rate was analyzed after etching in CF₄/Ar/O₂ mixture for 30, 60 and 120 min, respectively. The microhardness, the porosity, the bonding strength, and the dielectric strength of Y₂O₃ coating prepared by the optimal process 1 (spraying distance 80 mm, liquid feed rate 35 mL/min, atomizing gas flow rate 15 L/min, horizontal gun moving speed 700 mm/s, vertical moving step 1 mm/step) is (3.78±0.36) GPa, (2.35±0.24)%, (36.0±3.6) MPa, and (29.74±2.01) kV/mm, respectively. In the mixed plasma gas composed of CF₄/Ar/O₂, the Y₂O₃ coating undergoes physical and chemical reactions, while Ar⁺ strongly shocks and bombards the coating to break the chemical bond on the surface. CF₂* and F* make Y₂O₃ continuously etched to form YF₃ attaching to the coating surface. At the same time, the physical impact of Ar⁺ constantly acts on the surface of the coating, removing the YF₃ layer, and a small amount of residual YF₃ on the surface of the coating is oxidized and finally forms YOF, resulting in a coating etching rate as low as (11.48±5.21) nm/min. Y₂O₃ coating with high density, low porosity and high uniformity can effectively improve the resistance of parts to plasma etching, which is of great significance in semiconductor industry.

Key words: suspension plasma spraying, Y₂O₃ coating, porosity, plasma etching resistance

中图分类号:

TQ174

马文, 申喆, 刘琪, 高元明, 白玉, 李荣星. 悬浮液等离子喷涂制备Y₂O₃涂层及耐等离子刻蚀性[J]. 无机材料学报, 2024, 39(8): 929-936.

MA Wen, SHEN Zhe, LIU Qi, GAO Yuanming, BAI Yu, LI Rongxing. Preparation of Y₂O₃ Coating by Suspension Plasma Spraying and Its Resistance to Plasma Etching[J]. Journal of Inorganic Materials, 2024, 39(8): 929-936.

图/表 10

表1 制备Y2O3涂层的固定工艺参数

Table 1 Fixed process parameters for preparing Y2O3 coating

Process parameter	Value
Gas volume ratio (Ar : N₂ : H₂)	6 : 3 : 1
Total gas flow/slpm	180
Arc current/A	220
Atomization gas flow rate/(L·min^-1)	15
Horizontal moving speed of spray gun/(mm·s^-1)	700

表2 Y2O3涂层的制备工艺参数

Table 2 Preparation process parameters of Y2O3 coating

Process	Spray distance/mm	Suspention injection rate/(mL·min^-1)	Vertical moving step/(mm·step^-1)
1	80	35	1.0
2	80	45	1.5
3	90	35	1.5
4	90	45	1.0

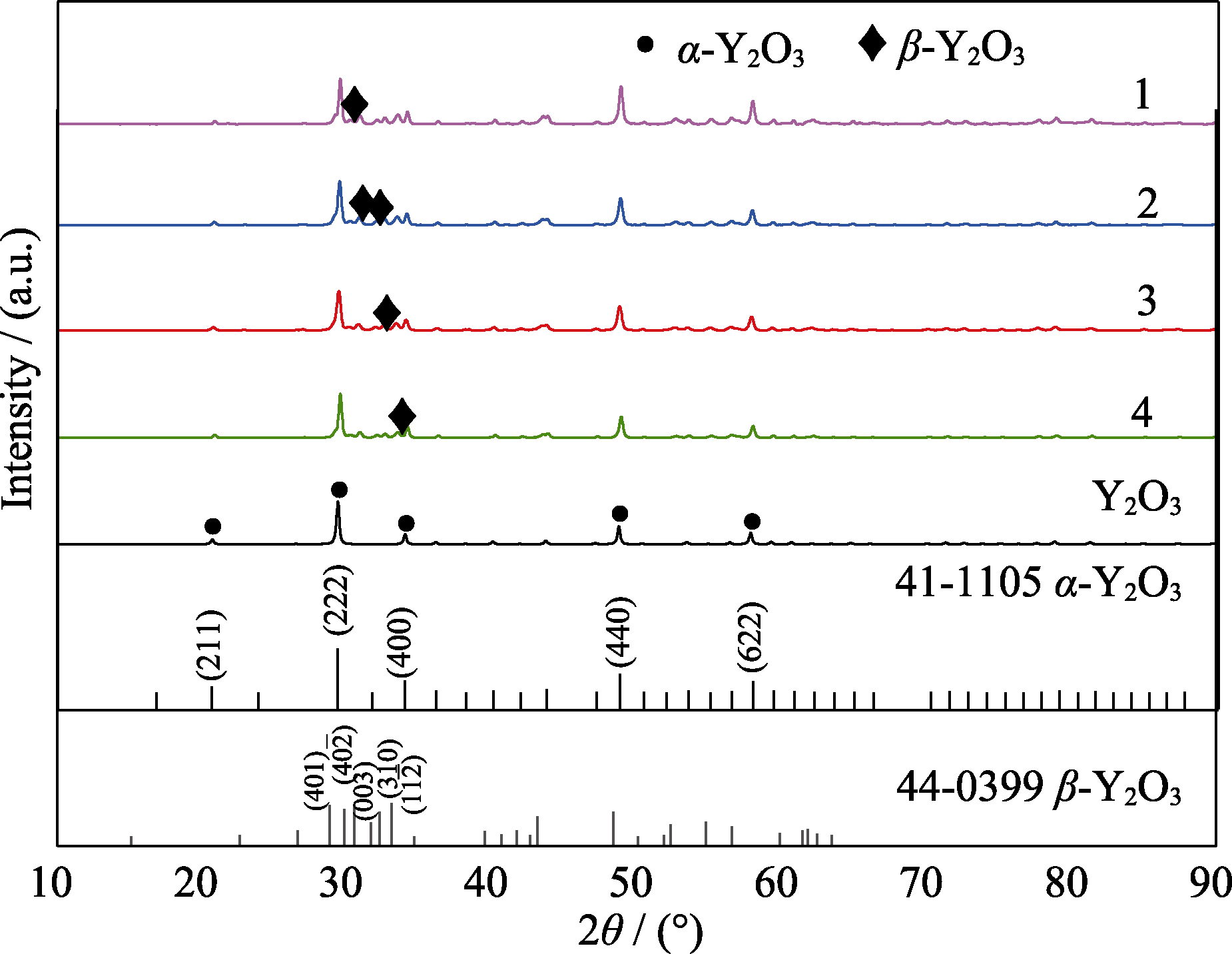

图1 原料粉末及四组工艺制备Y2O3涂层的XRD图谱

Fig. 1 XRD patterns of Y2O3 raw power and its coatings prepared by four processes

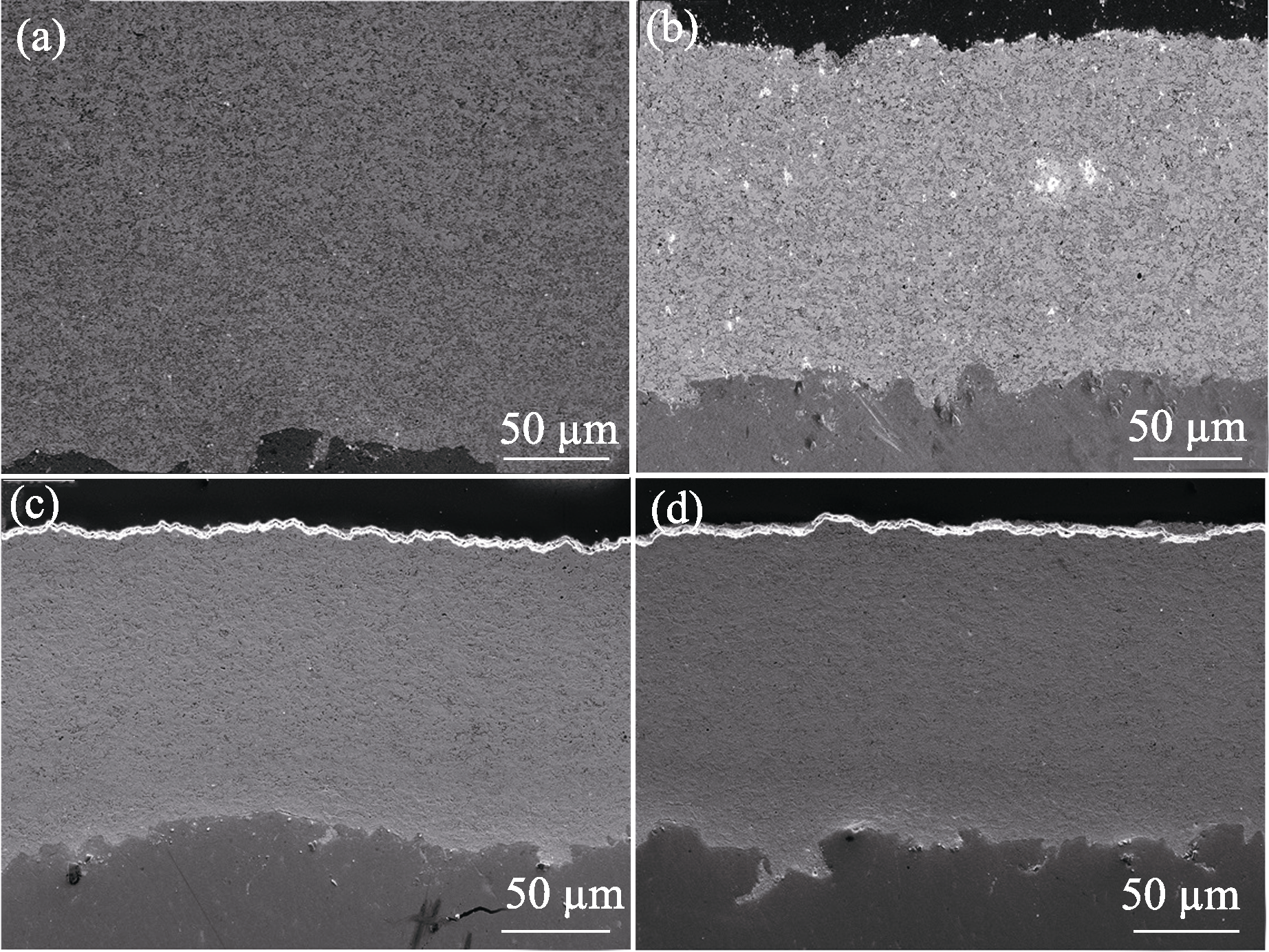

图2 四组工艺制备Y2O3涂层的截面形貌

Fig. 2 Cross-sectional microstructures of the Y2O3 coatings prepared by four processes (a) Process 1; (b) Process 2; (c) Process 3; (d) Process 4

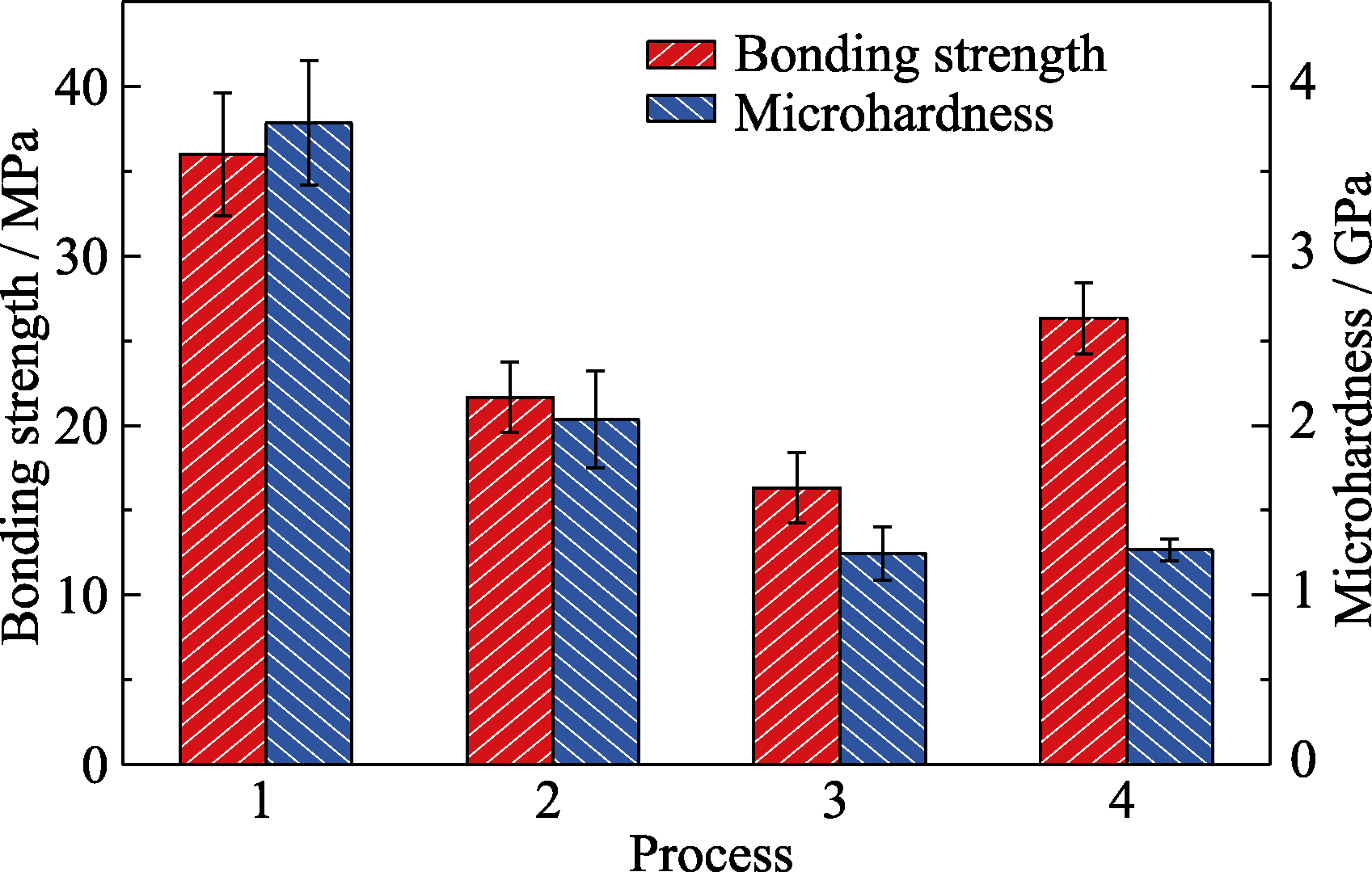

图3 四组工艺制备的Y2O3涂层的结合强度和显微硬度

Fig. 3 Bonding strength and microhardness of the Y2O3 coatings prepared by four processes

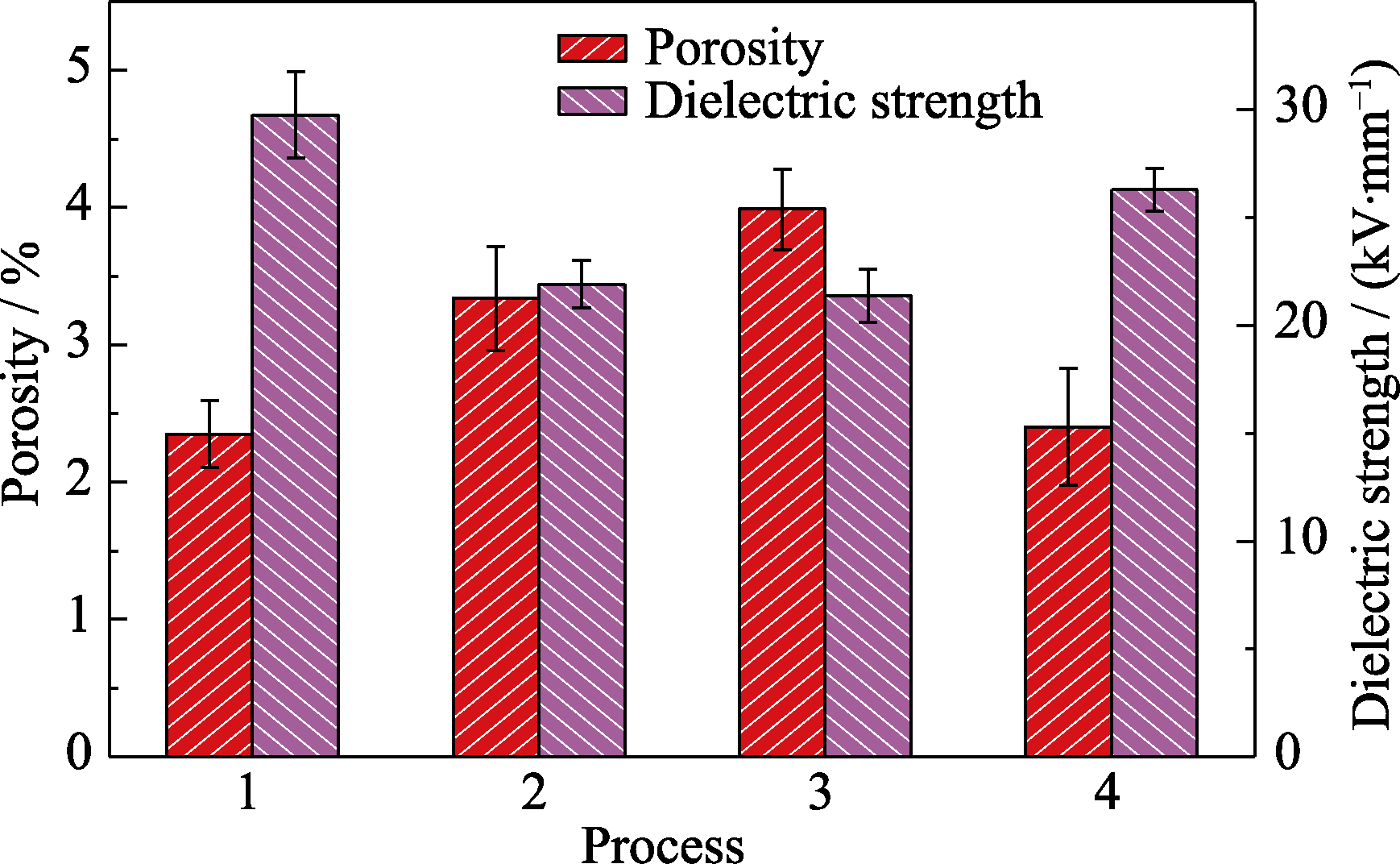

图4 四组工艺制备的Y2O3涂层的孔隙率和介电强度

Fig. 4 Porosities and dielectric strengths of the Y2O3 coatings prepared by four processes

图5 刻蚀0、30、60和120 min后四组工艺制备的Y2O3涂层的表面形貌

Fig. 5 Surface microstructures of the Y2O3 coatings prepared by four processes after etching for 0, 30, 60 and 120 min

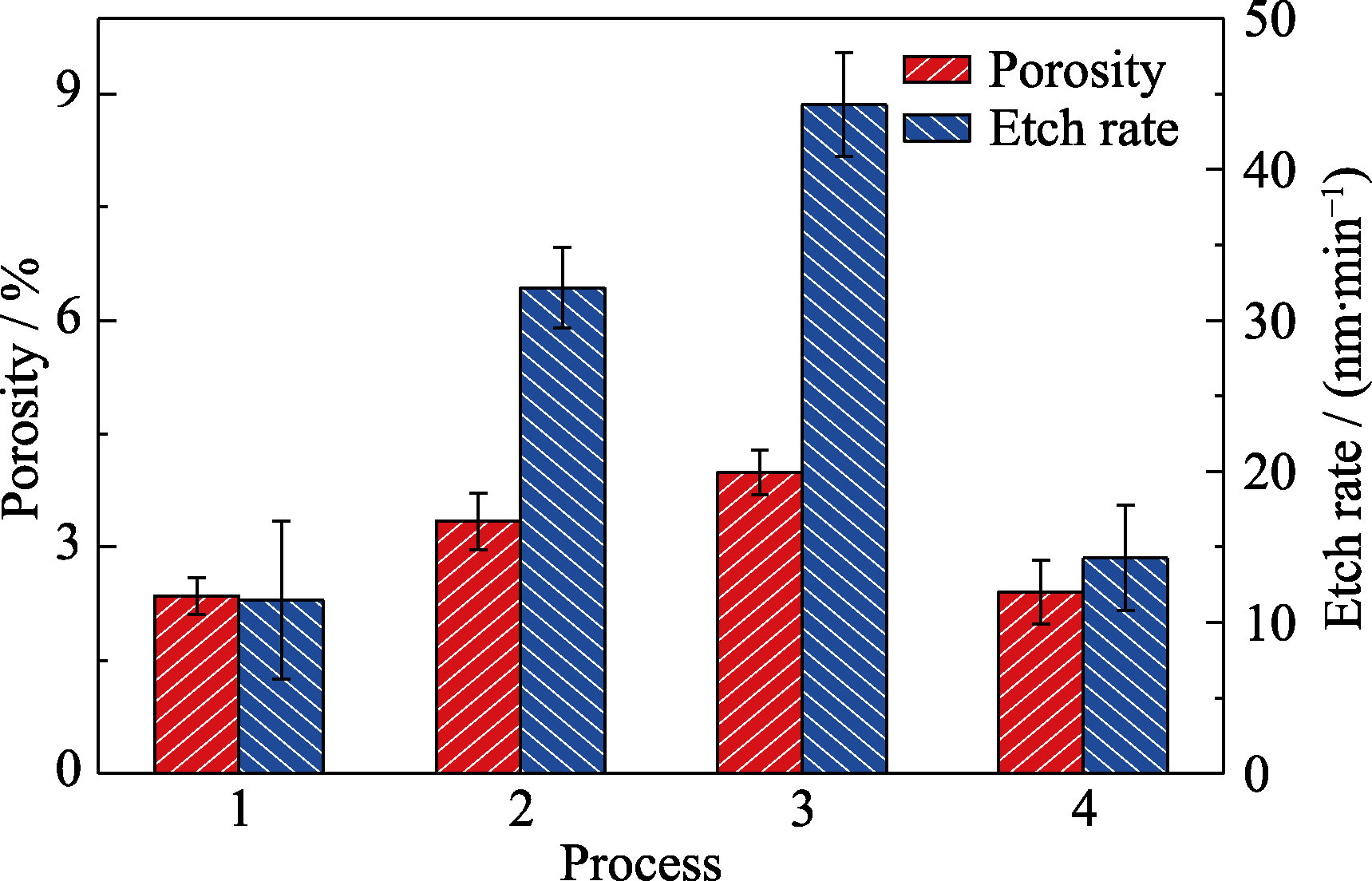

图6 四组工艺制的备Y2O3涂层的孔隙率和刻蚀率

Fig. 6 Porosities and etching rates of the Y2O3 coatings prepared by four processes

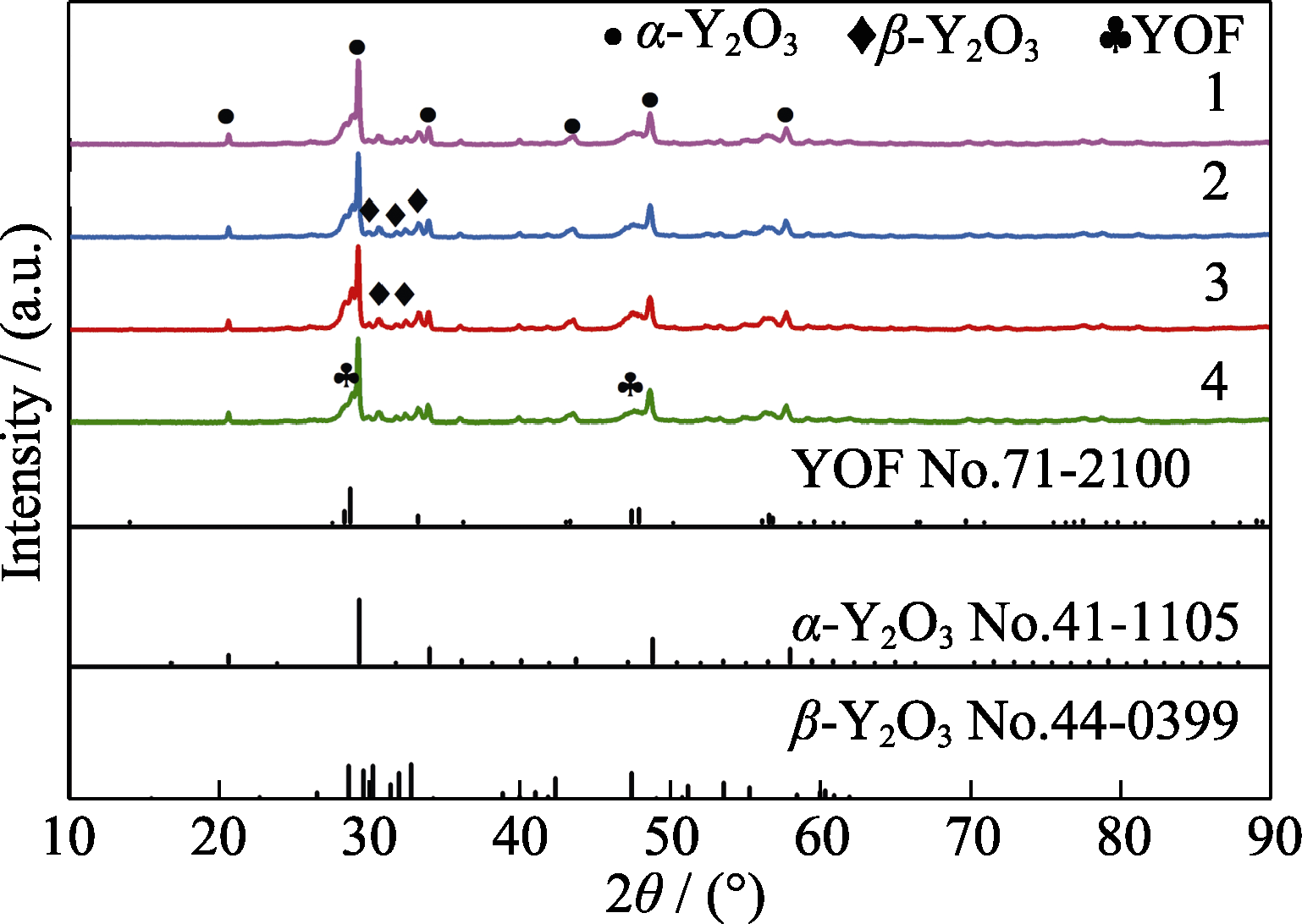

图7 四组工艺制备的Y2O3涂层刻蚀120 min后的XRD图谱

Fig. 7 XRD patterns of the Y2O3 coatings prepared by four processes after etching for 120 min

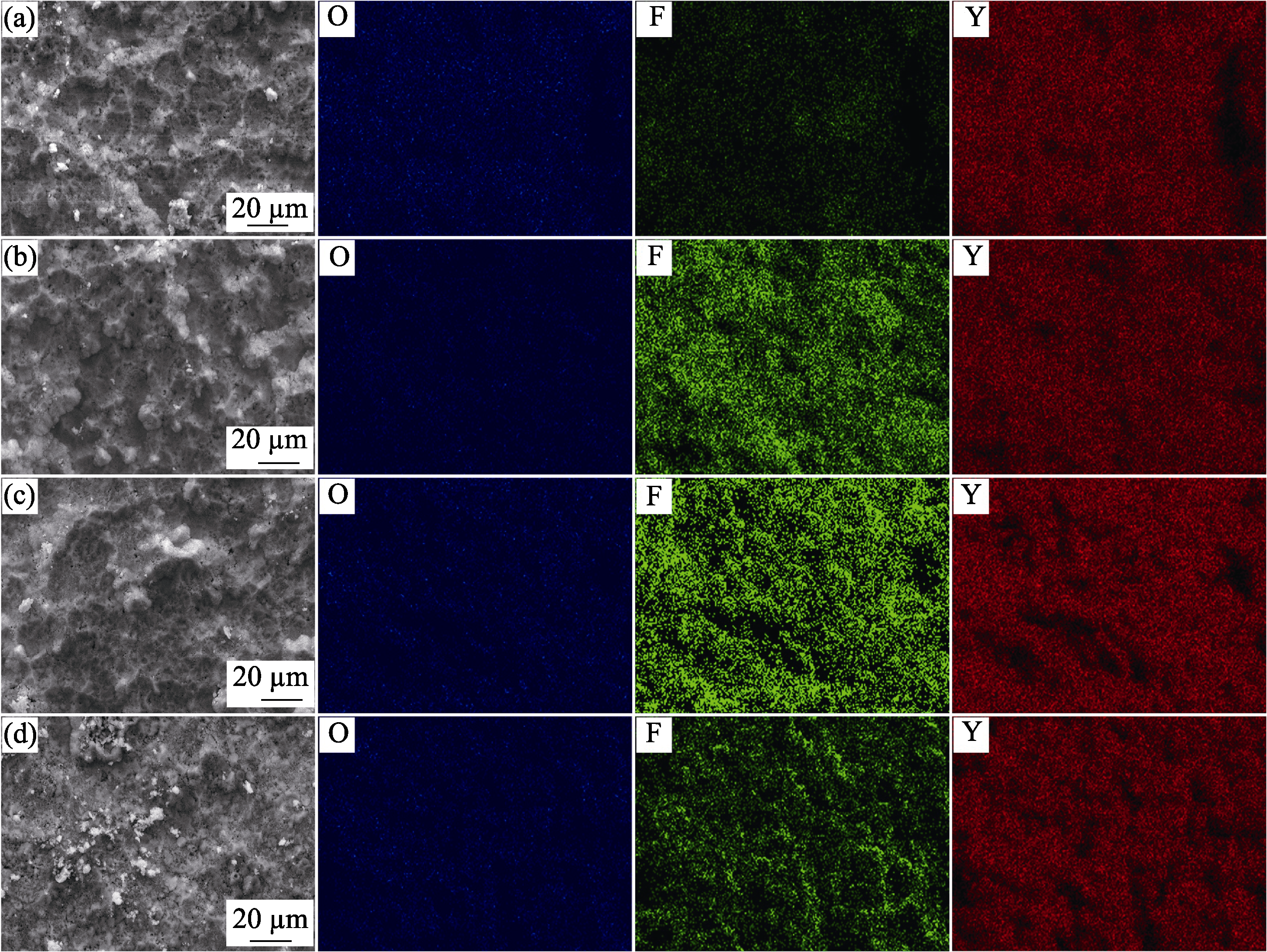

图8 四组工艺制备的Y2O3涂层刻蚀120 min后的EDS分析

Fig. 8 EDS analyses of the Y2O3 coatings prepared by four processes and etched for 120 min (a) Process 1; (b) Process 2; (c) Process 3; (d) Process 4

参考文献 40

[1]	TSUTSUMI K, MATSUO R, NAGANO M. Composite ceramic body, and component member for semiconductor manufacturing apparatus: US13864967. 2013-11-14.
[2]	AKINOGLU E M, MORFA A J, GIERSIG M. Understanding anisotropic plasma etching of two-dimensional polystyrene opals for advanced materials fabrication. Langmuir, 2014, 30(41): 12354.
[3]	XIAO H. Introduction to semiconductor manufacturing technology. Second edition. Beijing: Electronic Industry Press, 2012.
[4]	EKIELSKI M, WZOREK M, GOLASZEWSKA K, et al. Implementation of the inductively coupled plasma etching processes for forming gallium nitride nanorods used in ultraviolet light-emitting diode technology. Journal of Vacuum Science & Technology B, 2020, 38(4): 042802.
[5]	ITO N, MORIYA T, UESUGI F, et al. Reduction of particle contamination in plasma-etching equipment by dehydration of chamber wall. Japanese Journal of Applied Physics, 2008, 47(5): 3630.
[6]	CUNGR G, PELISSIER B, JOUBERT O, et al. New chamber walls conditioning and cleaning strategies to improve the stability of plasma processes. Plasma Sources Science & Technology, 2005, 14(3): 599.
[7]	MIN J H, LEE J, AYMAN M T, et al. Plasma etching properties of various transparent ceramics. Ceramics International, 2020, 46(3): 2895.
[8]	DING R H. Anisotropic fluorocarbon plasma etching of silicon/silicon germanide heterostructures and plasma etching-induced sidewall damage. Wisconsin: PhD Dissertation of the University of Wisconsin-Madison, 2008.
[9]	KIM K, EFREMOV A, LEE J, et al. Etching mechanisms of (In, Ga, Zn)O thin films in CF₄/Ar/O₂ inductively coupled plasma. Journal of Vacuum Science & Technology, 2015, 33(3): 031601.
[10]	FUKUMOTO H, FUJIKAKE I, TAKAO Y, et al. Plasma chemical behaviour of reactants and reaction products during inductively coupled CF₄ plasma etching of SiO₂. Plasma Sources Science & Technology, 2009, 18(4): 045027.
[11]	TING Y H, LIU C C, PARK S M, et al. Surface roughening of polystyrene and poly(methyl methacrylate) in Ar/O₂ plasma etching. Polymers, 2010, 2(4): 649.
[12]	STEGLICH M, KAESEBIER T, ZILK M, et al. The structural and optical properties of black silicon by inductively coupled plasma reactive ion etching. Journal of Applied Physics, 2014, 116(17): 173503.
[13]	TAN Y C, CHEN P, ZHU Z X, et al. Plasma etching behavior of yttrium-aluminum oxide composite ceramics. International Journal of Applied Ceramic Technology, 2021, 18(5): 1710.
[14]	KIM C S, KIM M J, CHO H, et al. Fabrication and plasma resistance of Y₂O₃ ceramics. Ceramics International, 2015, 41(10): 12757.
[15]	CHITTOCK N J, VOS M F J, FARAZ T, et al. Isotropic plasma atomic layer etching of Al₂O₃ using a fluorine containing plasma and Al(CH₃)₃. Applied Physics Letters, 2020, 117(16): 1621071.
[16]	YONEOKA T, TEERAI T, TAKAHASHI Y. High temperature liquid metal corrosion and high temperature electrical conductivity of Y₂O₃. Journal of Nuclear Materials, 1997, 248: 343.
[17]	IWASAWA J, NISHIMIZU R, TOKITA M, et al. Plasma-resistant dense yttrium oxide film prepared by aerosol deposition process. Journal of the American Ceramic Society, 2007, 90(8): 2327.
[18]	TAN Y C, WANG Y, WU S, et al. Sputtering resistance and damage mechanism of Y₂O₃-based ceramics etching by Xe plasma. Materials Today Communications, 2021, 26: 101775.
[19]	KIM D M, LEE S H, ALEXANDER W B, et al. X-ray photoelectron spectroscopy study on the interaction of yttrium-aluminum oxide with fluorine-based plasma. Journal of the American Ceramic Society, 2011, 94(10): 3455.
[20]	KITAMURA J, IBE H, YUASA F, et al. Plasma sprayed coatings of high-purity ceramics for semiconductor and flat-panel-display production equipment. Journal of Thermal Spray Technology, 2008, 17(5/6): 878.
[21]	KIM D M, JANG M R, OH Y S, et al. Relative sputtering rates of oxides and fluorides of aluminum and yttrium. Surface & Coatings Technology, 2017, 309: 694.
[22]	CAO Y C, ZHAO L, LUO J, et al. Plasma etching behavior of Y₂O₃ ceramics: comparative study with Al₂O₃. Applied Surface Science, 2016, 366: 304.
[23]	SONG J B, CHOI E, OH S G, et al. Improved reliability of breakdown voltage measurement of yttrium oxide coatings by plasma spray. Ceramics International, 2019, 45(17): 22169.
[24]	KOTLAN J, SESHADRI R C, SAMPATH S, et al. On the dielectric strengths of atmospheric plasma sprayed Al₂O₃, Y₂O₃, ZrO₂-7% Y₂O₃ and (Ba,Sr)TiO₃ coatings. Ceramics International, 2015, 41(9): 11169.
[25]	LEE J, LEE S, HAN H N, et al. Yttrium oxyfluoride coatings deposited by suspension plasma spraying using coaxial feeding. Coatings, 2020, 10(5): 481.
[26]	KITAMURA J, TANG Z L, MIZUNO H, et al. Structural, mechanical and erosion properties of yttrium oxide coatings by axial suspension plasma spraying for electronics applications. Journal of Thermal Spray Technology, 2011, 20(1/2): 170.
[27]	SHIVARAMU N J, LAKSHMINARASAPPA B N, NAGABHU-SHANA K R, et al. Ion beam induced cubic to monoclinic phase transformation of nanocrystalline yttria. Nuclear Instruments & Methods in Physics Research Section B, 2016, 379: 73.
[28]	BOULOS M I. Thermal plasma processing. IEEE Transactions on Plasma Science, 1991, 19(6): 1078.
[29]	LI G R, LV B W, YANG G J, et al. Relationship between lamellar structure and elastic modulus of thermally sprayed thermal barrier coatings with intra-splat cracks. Journal of Thermal Spray Technology, 2015, 24(8): 1355.
[30]	ZHANG H, ZENG J, YUAN J, et al. Spray power-governed microstructure and composition, and their effects on properties of lanthanum-cerium-tantalum-oxide thermal barrier coating. Ceramics International, 2020, 46(11): 18114.
[31]	PAKSERESHT A H, GHASALI E, NEJATI M, et al. Development empirical-intelligent relationship between plasma spray parameters and coating performance of yttria-stabilized zirconia. International Journal of Advanced Manufacturing Technology, 2015, 76(5-8): 1031.
[32]	SHAFIQ M, HUSSAIN G A, KÜTT L, et al. Electromagnetic sensing for predictive diagnostics of electrical insulation defects in MV power lines. Measurement, 2015, 73: 480.
[33]	PAWLOWSKI L. The relationship between structure and dielectric properties in plasma-sprayed alumina coatings. Surface & Coatings Technology, 1988, 35(3/4): 285.
[34]	TOMA F L, SCHEITZ S, BERGER L M, et al. Comparative study of the electrical properties and characteristics of thermally sprayed alumina and spinel coatings. Journal of Thermal Spray Technology, 2011, 20(1/2): 195.
[35]	WANG J, HOU J Z. Study on microstructure and interface properties of high dielectric Y₂O₃ thin films. Silicate Bulletin, 2010, 29(5): 1063.
[36]	TAN Y C. Preparation and properties of plasma etched yttrium matrix composite ceramic. Guangzhou: Guangdong University of Technology, 2021.
[37]	JUN P S, HYUNGSUN K, MIN L S. Solid-state synthesis of yttirum oxyfluoride powders and their application to suspension plasma spray coating. Korean Journal of Materials Research, 2017, 27(12): 710.
[38]	KIM D M, OH Y S, KIM S, et al. The erosion behaviors of Y₂O₃ and YF₃ coatings under fluorocarbon plasma. Thin Solid Films, 2011, 519(20): 6698.
[39]	KWON H, KIM Y, PARK H, et al. The importance of intimate inter-crystallite bonding for the plasma erosion resistance of vacuum kinetic sprayed Y₂O₃ coating. Surface & Coatings Technology, 2019, 374: 493.
[40]	KITAMURA J, MIZUNO H, KATO N, et al. Plasma-erosion properties of ceramic coating prepared by plasma spraying. Materials Transactions, 2006, 47(7): 1677.
