SiCf/SiC陶瓷基复合材料高温环境损伤原位监测研究进展

doi:10.15541/jim20230581

无机材料学报 ›› 2024, Vol. 39 ›› Issue (6): 609-622.DOI: 10.15541/jim20230581

SiC_f/SiC陶瓷基复合材料高温环境损伤原位监测研究进展

吴晓晨¹(), 郑瑞晓¹(), 李露²(), 马浩林², 赵培航¹, 马朝利²

1.北京航空航天大学材料科学与工程学院
2.北京航空航天大学前沿科学技术创新研究院, 北京 100191

收稿日期:2023-12-18 修回日期:2024-01-25 出版日期:2024-06-20 网络出版日期:2024-01-31
通讯作者: 郑瑞晓, 副教授. E-mail: zhengruixiao@buaa.edu.cn;
李露, 副研究员. E-mail: li_lu@buaa.edu.cn
作者简介:吴晓晨(1998-), 男, 博士研究生. E-mail: wuxiaochen@buaa.edu.cn
基金资助:
国家自然科学基金(92060301);中国航空发动机集团产学研合作项目(HFZL2020CXY022)

Research Progress on In-situ Monitoring of Damage Behavior of SiC_f/SiC Ceramic Matrix Composites at High Temperature Environments

WU Xiaochen¹(), ZHENG Ruixiao¹(), LI Lu²(), MA Haolin², ZHAO Peihang¹, MA Chaoli²

1. School of Materials Science and Engineering, Beihang University, Beijing 100191, China
2. Research Institute for Frontier Science, Beihang University, Beijing 100191, China

Received:2023-12-18 Revised:2024-01-25 Published:2024-06-20 Online:2024-01-31
Contact: ZHENG Ruixiao, associate professor. E-mail: zhengruixiao@buaa.edu.cn;
LI Lu, associate professor. E-mail: li_lu@buaa.edu.cn
About author:WU Xiaochen (1998-), male, PhD candidate. E-mail: wuxiaochen@buaa.edu.cn
Supported by:
National Natural Science Foundation of China(92060301);Industry-University Research Cooperation Project of AECC(HFZL2020CXY022)

摘要/Abstract

摘要：

连续SiC纤维增强SiC(SiC_f/SiC)复合材料具有高比强度、高比模量、耐高温、耐辐照等优点, 在先进航空发动机热端部件和核反应堆包壳等领域具有广阔的应用前景。SiC_f/SiC复合材料具有纤维、界面、基体等复杂的多尺度结构, 其服役环境苛刻、损伤失效过程复杂, 深刻理解与准确分析其在近服役环境下损伤失效模式对于材料和构件的可靠服役具有重要意义。传统的“事后分析”方法无法获取材料在复杂服役环境下的损伤失效过程数据, 因此迫切需要发展面向高温服役环境的复合材料原位表征测试技术。本文介绍了基于扫描电子显微镜、数字图像相关、显微计算机断层扫描、声发射、电阻等原位监测方法的基本原理、优势与局限性, 重点讨论了以上各种原位监测方法及多种原位监测方法联用在SiC_f/SiC复合材料高温环境力学表征中的最新研究进展。最后, 总结了SiC_f/SiC复合材料高温环境原位监测技术存在的挑战, 并对多种原位技术联用、太赫兹辐射等新型检测技术、复杂构件的损伤原位监测方法等未来发展方向进行了初步展望。

关键词: SiC_f/SiC复合材料, 原位监测, 数字图像相关, 声发射, 显微计算机断层扫描, 综述

Abstract:

Continuous SiC fiber-reinforced SiC (SiC_f/SiC) composites possess high specific strength, high specific modulus, high-temperature resistance, and radiation resistance, making them suitable for applications in hot-end parts of advanced aero-engines and claddings of nuclear reactors. SiC_f/SiC composites are composed of fibers, interfaces and matrix, endowing them with complex multi-scale structural characteristics. These composites are designed to serve in harsh environment, and their damage and failure process are complex. A profound understanding and accurate analysis of damage and failure mechanisms of SiC_f/SiC composites under service environments are of great significance for the optimized design of materials and the reliable service of components. Traditional “post-mortem analysis” methods are incapable of acquiring data during the damage and failure process of materials under complex service environments. Therefore, there is an urgent need to develop in-situ characterization techniques for composites under high-temperature service environments. This paper reviewed the principles, advantages, and limitations of in-situ monitoring methods based on scanning electron microscopy, digital image correlation, micro computational tomography, acoustic emission, and electrical resistance. It focused on the latest research progress in the high-temperature mechanical characterization of SiC_f/SiC composites using various in-situ monitoring methods and combinations thereof. It summarized the challenges in the in-situ monitoring technologies of SiC_f/SiC composites under high-temperature environments and provided a preliminary outlook on the future development directions, such as the combined use of multiple in-situ monitoring techniques, new detection technologies like terahertz radiation, and in-situ damage monitoring methods for complex components.

Key words: SiC_f/SiC composite, in-situ monitoring, digital image correlation, acoustic emission, micro computational tomography, review

中图分类号:

TB332

吴晓晨, 郑瑞晓, 李露, 马浩林, 赵培航, 马朝利. SiC_f/SiC陶瓷基复合材料高温环境损伤原位监测研究进展[J]. 无机材料学报, 2024, 39(6): 609-622.

WU Xiaochen, ZHENG Ruixiao, LI Lu, MA Haolin, ZHAO Peihang, MA Chaoli. Research Progress on In-situ Monitoring of Damage Behavior of SiC_f/SiC Ceramic Matrix Composites at High Temperature Environments[J]. Journal of Inorganic Materials, 2024, 39(6): 609-622.

图/表 11

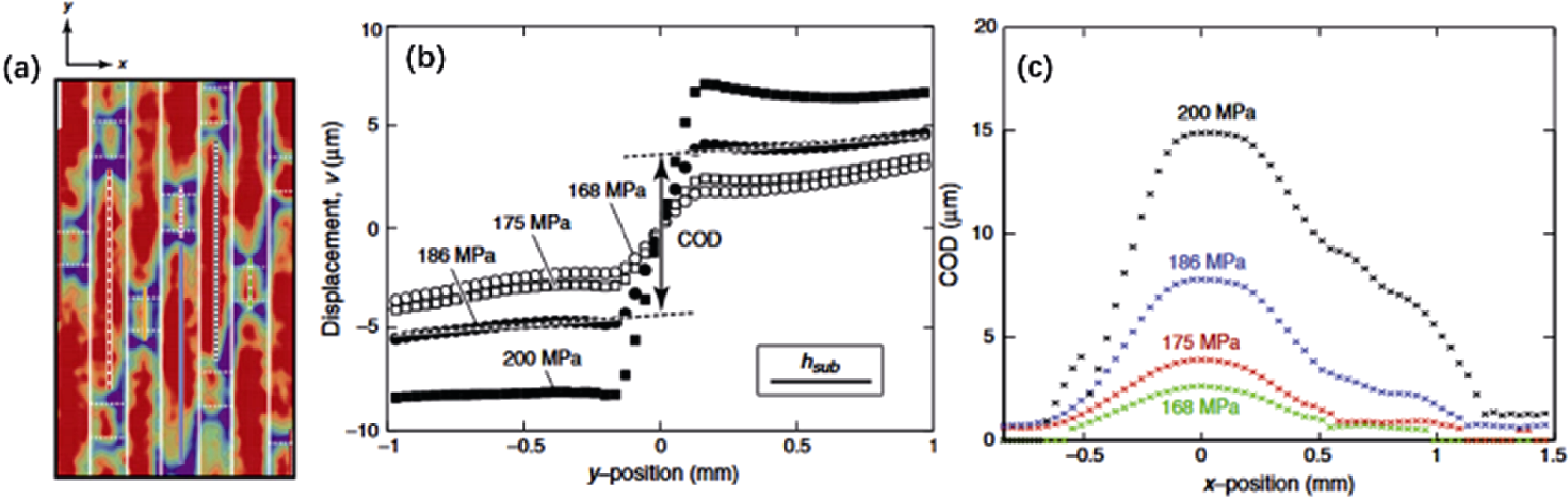

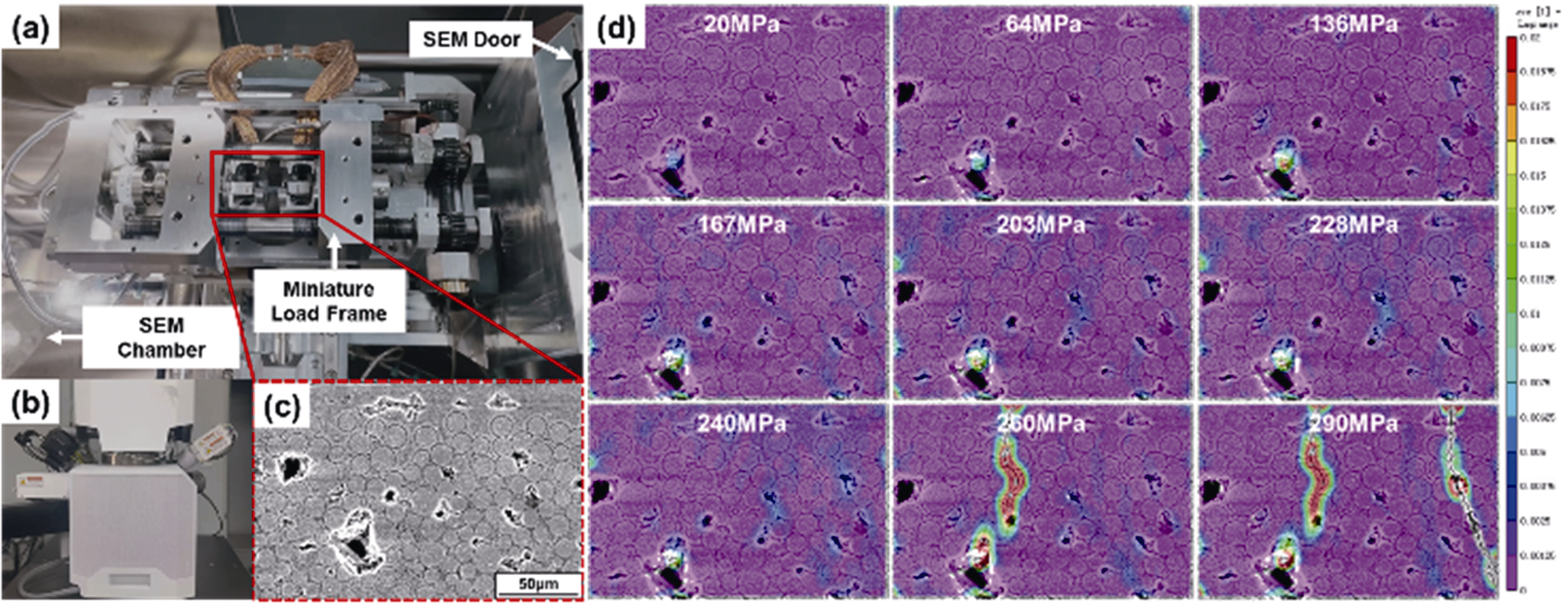

图1 二维编织SiCf/SiC复合材料DIC应变测量结果[18]

Fig. 1 DIC strain measurement results of two-dimensional woven SiCf/SiC composites[18] (a) Distribution of surface strain field; (b) Demonstration of COD determination procedure; (c) Distribution of COD at different stress levels

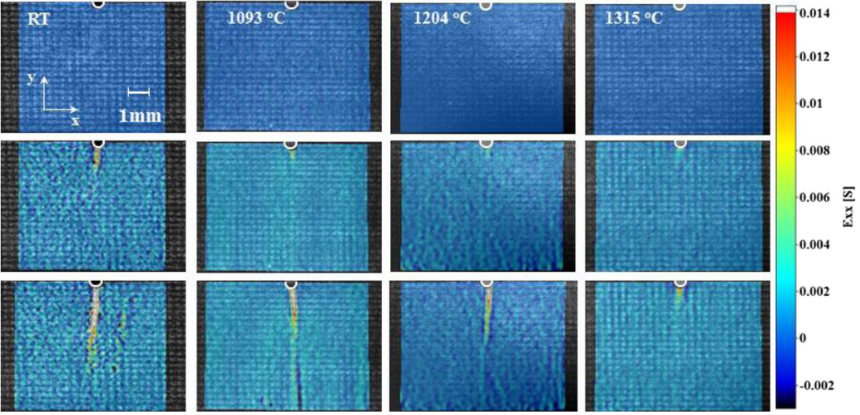

图2 单缺口SiCf/SiC样品在室温、1093、1204和1315 ℃单轴拉伸载荷下的全场应变图[25]

Fig. 2 Full field strain maps of single-notched SiCf/SiC samples monotonically loaded in tension at room temperature, 1093, 1204 and 1315 ℃ showing crack propagation[25]

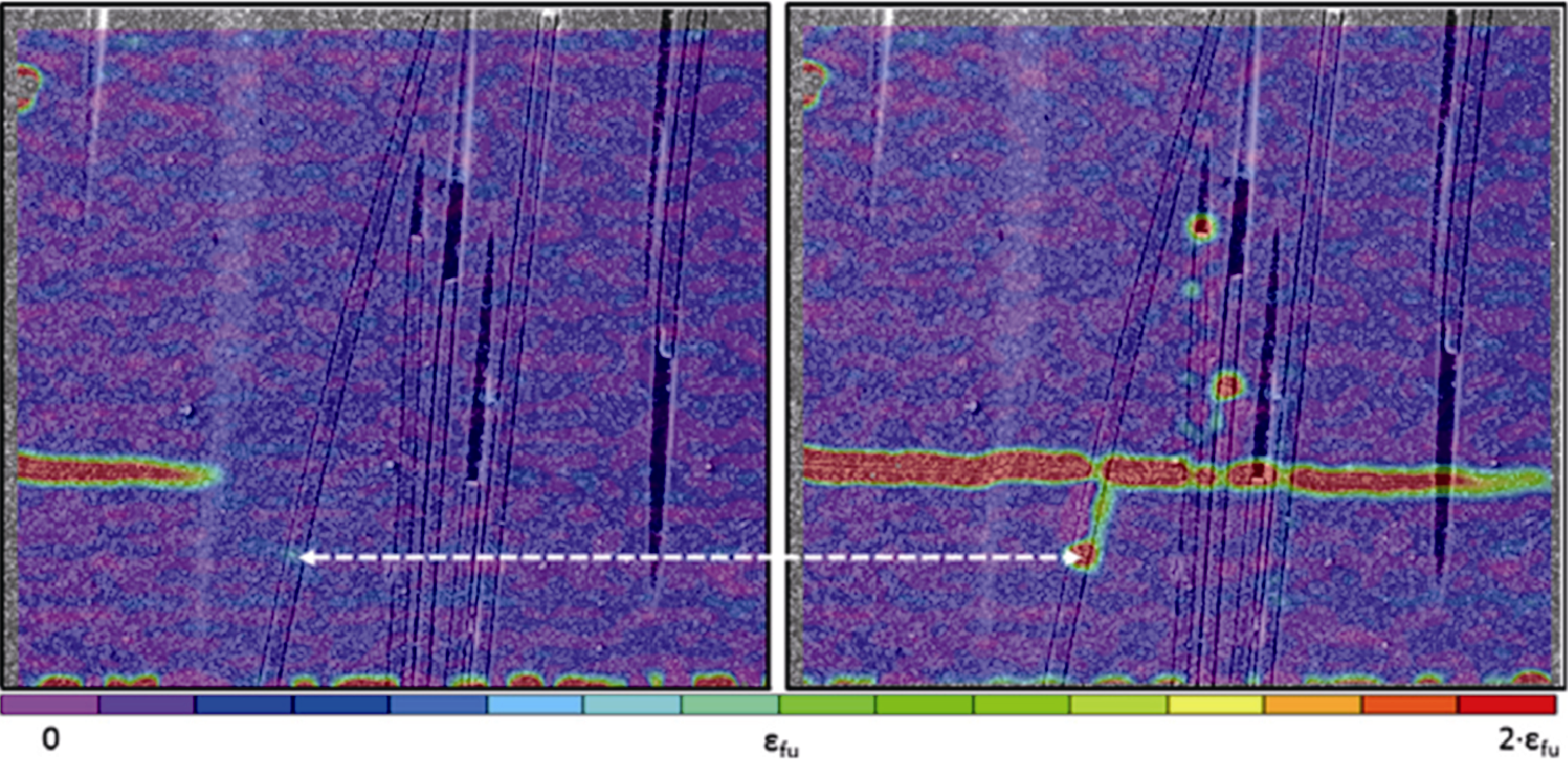

图3 2D-SiCf/SiC复合材料中纤维断裂的演化过程[31]

Fig. 3 Evolution process of fiber fracture in 2D-SiCf/SiC composites[31]

图4 2.5D-SiCf/SiC复合材料拉伸载荷下纬纱微区的应变演变情况

Fig. 4 Strain evolution of the micro-zone in weft yarn under tensile load in 2.5D-SiCf/SiC composites (a) Elevated-temperature in-situ micro-loading stage; (b) SEM equipment; (c) Distribution of speckles on the surface of the sample at the weft yarn; (d) Evolution process of strain cloud map in the microzone within the weft yarn of the composite specimen

图5 基于实验室X射线源开发的高温原位Lab-μ-CT设备[46]

Fig. 5 High-temperature in -situ Lab-μ-CT device developed by using a laboratory X-ray source[46] (a) Schematic diagram of the elevated-temperature in-situ μ-CT apparatus; (b) Schematic of the dynamic seal structure; (c) Schematic of the heating chamber with the specimen mounted in grips

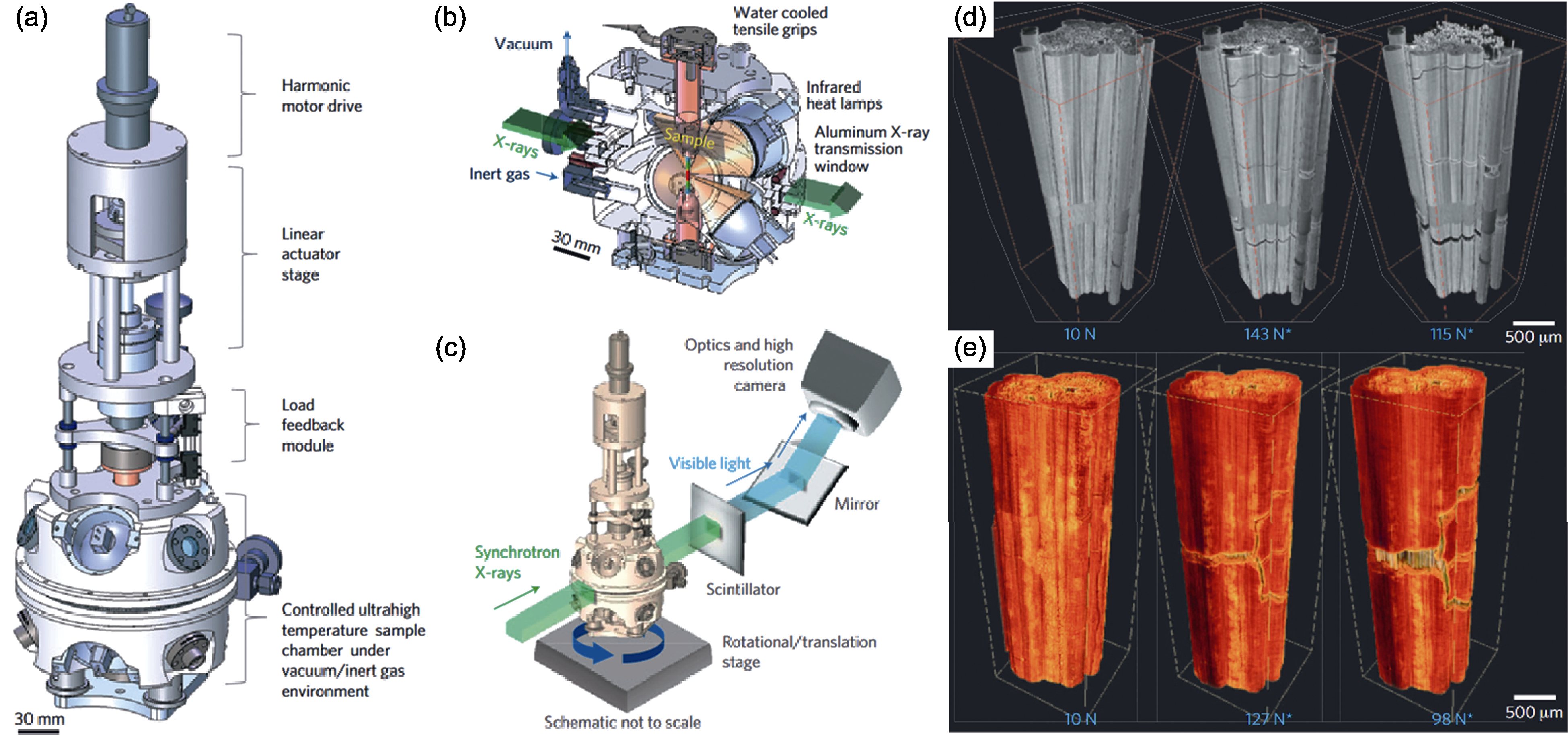

图6 用于定量分析超高温真空环境下的SiCf/SiC复合材料内部裂纹和损伤演变过程的SR-μ-CT超高温原位拉伸/压缩试验台[49]

Fig. 6 SR-μ-CT in -situ tensile/compression test rig to quantitatively analyze the internal matrix crack and damage evolution of SiCf/SiC composites under ultrahigh temperature[49] (a) Schematic illustration of in-situ ultrahigh temperature tensile test rig for synchrotron X-ray computed microtomography; (b) Sectional view of the heating chamber illustrating X-ray transmission path through the heating chamber and sample; (c) Schematic of the rig in transmission mode for X-ray computed tomography; (d, e) 3D volume-rendered µ-CT images from specimens tested at (d) room temperature and (e) 1750 ℃ at several applied tensile loads

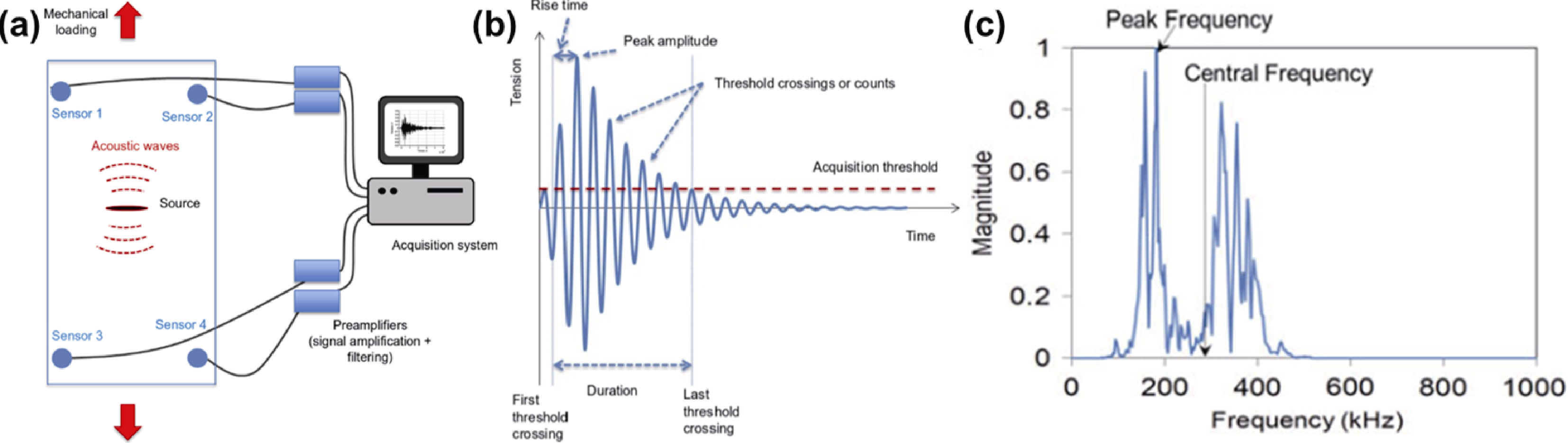

图7 (a) AE原理示意图, (b) 典型时域波形信号及描述符和 (c) 典型频域波形信号及描述符[59]

Fig. 7 (a) Schematic diagram of AE, and typical AE waveform with main discriptors in (b) time domain and (c) frequency domain[59]

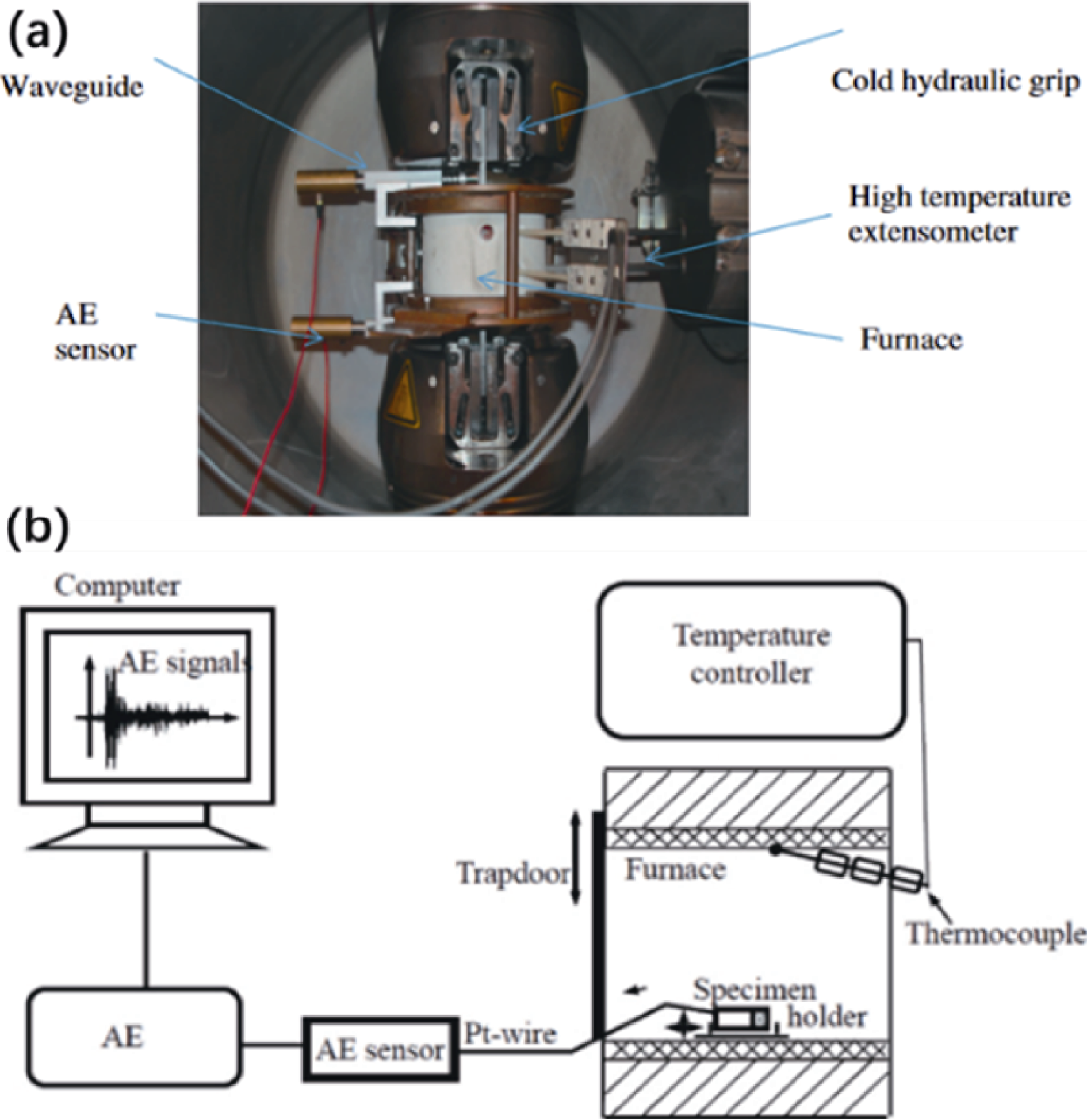

图8 (a) 用波导杆对CMC进行高温力学试验AE原位监测[59]和(b) 循环加热和冷却试验用波导丝进行AE原位监测的实验装置示意图[68]

Fig. 8 (a) Instrumentation with waveguide rod during mechanical test on CMC at high temperature[59]and (b) schematic of the experimental set-up for cyclic heating and cooling tests and AE measurements using waveguide wire[68]

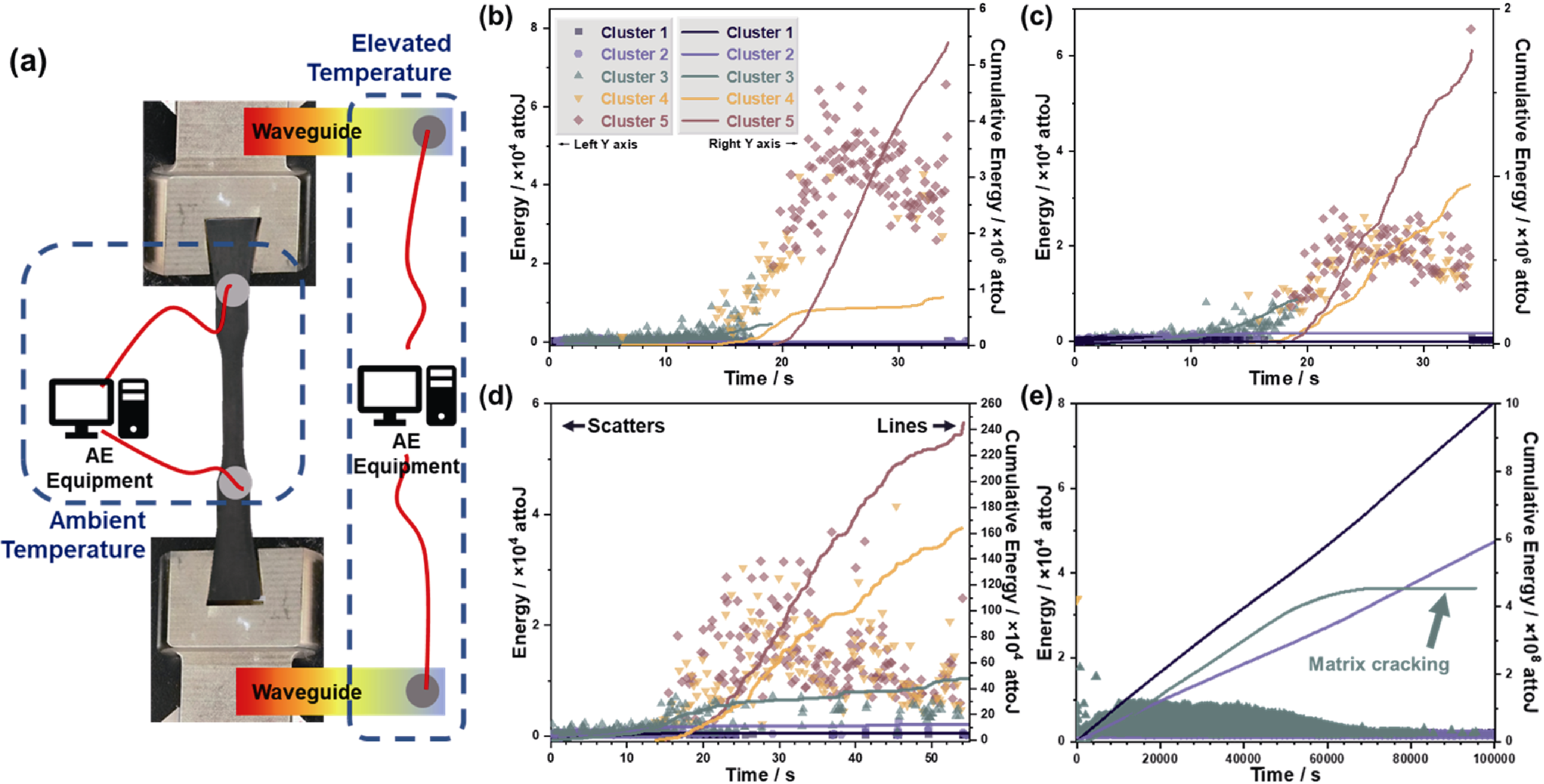

图9 AE原位监测2D-SiCf/SiC复合材料室温、高温拉伸及高温疲劳结果

Fig. 9 In-situ AE monitoring results of 2D-SiCf/SiC composites at ambient temperature, high temperature tensile and high temperature fatigue (a) Placement of AE sensors at ambient temperature and high temperature; (b-e) Energy and cumulative energy-time diagrams after classification of AE signals (b) without and (c) with waveguides at ambient temperature tensile, and after classification of AE signals at 1350 ℃/air environment (d) tensile and (e) fatigue

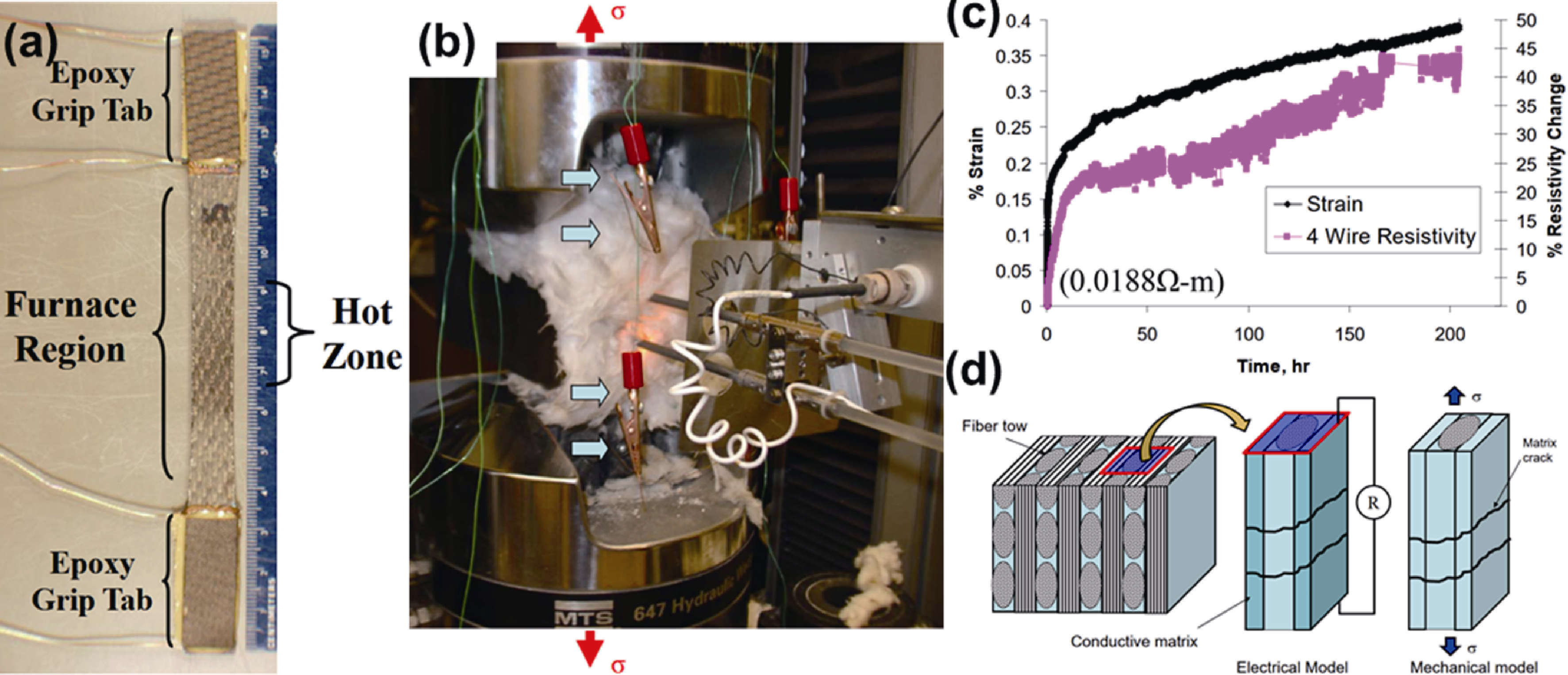

图10 1315 ℃下ER原位监测高温蠕变试验[79]

Fig. 10 In-situ ER monitoring of high-temperature creep test at 1315 ℃[79] (a) Four-probe method for sample resistance wiring arrangement; (b) Arrangement of high-temperature creep equipment device; (c) Creep curve and corresponding resistance curve; (d) Physical principle diagram of resistance method for creep damage monitoring

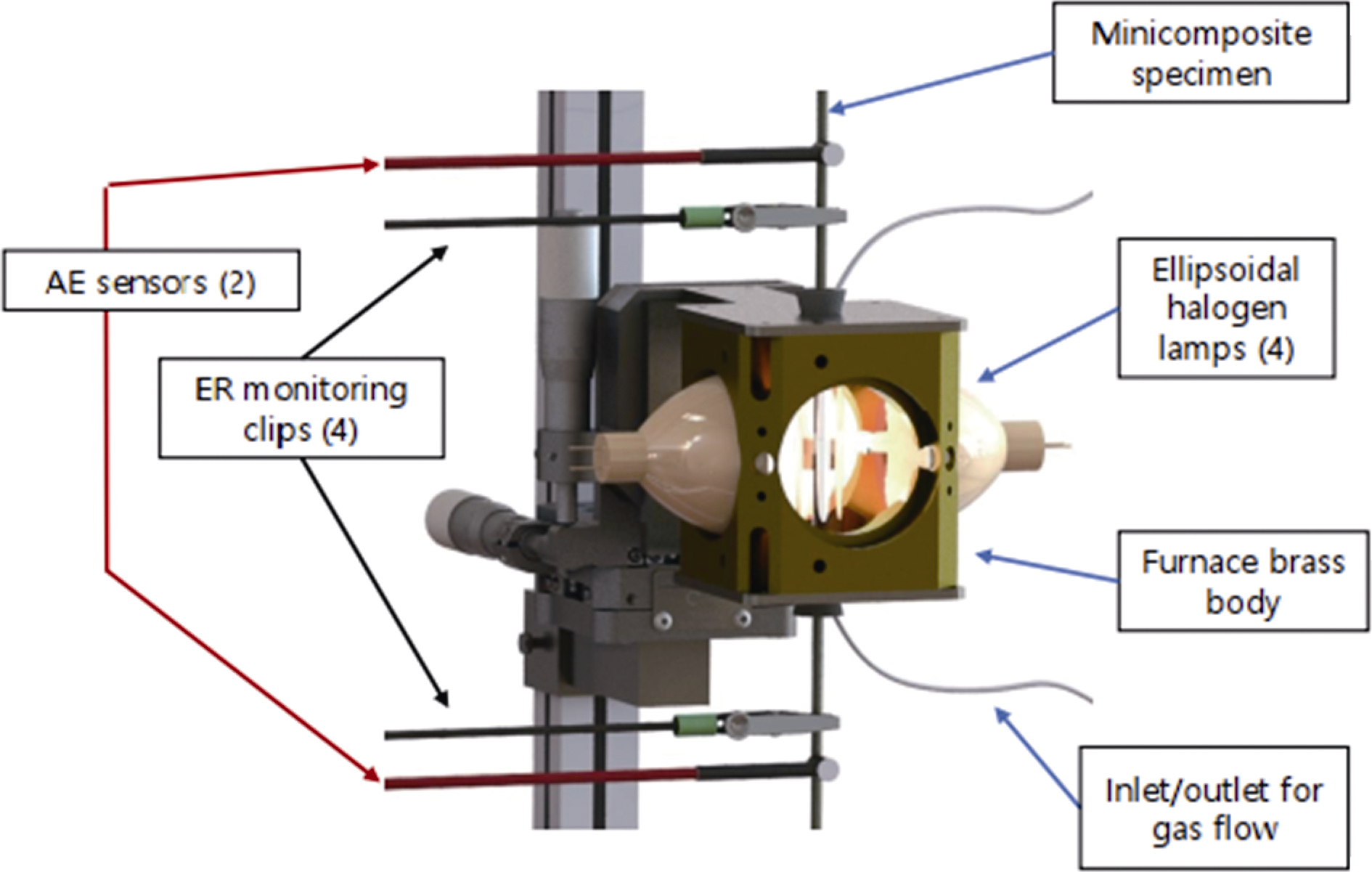

图11 耦合AE和ER原位监测装置的红外加热高温实验装置[93]

Fig. 11 Radiation heating high-temperature experimental apparatus coupled with AE and ER in-situ monitoring devices[93]

参考文献 93

[1]	刘巧沐, 黄顺洲, 何爱杰. 碳化硅陶瓷基复合材料在航空发动机上的应用需求及挑战. 材料工程, 2019, 47(2): 1.
[2]	沙建军, 代吉祥, 张兆甫. 纤维增韧高温陶瓷基复合材料(C_f, SiC_f/SiC)应用研究进展. 航空制造技术, 2017(19): 16.
[3]	XU S, ZHENG C, BI Y, et al. In-situ TEM investigations on the microstructural evolution of SiC fibers under ion irradiation: amorphization and grain growth. Journal of the European Ceramic Society, 2023, 43(4): 1376.
[4]	SONG C, YE F, CHENG L, et al. Long-term ceramic matrix composite for aeroengine. Journal of Advanced Ceramics, 2022, 11(9): 1343.
[5]	CHATEAU C, GÉLÉBART L, BORNERT M, et al. Modeling of damage in unidirectional ceramic matrix composites and multi-scale experimental validation on third generation SiC/SiC minicomposites. Journal of the Mechanics and Physics of Solids, 2014, 63: 298.
[6]	HAN D, YE F, CHENG L, et al. Matrix cracking of 2D SiC/SiC composite characterized by in situ SEM and nano-CT. Ceramics International, 2023, 49(8): 12508.
[7]	DELAGE J, SAIZ E, AL NASIRI N. Fracture behaviour of SiC/SiC ceramic matrix composite at room temperature. Journal of the European Ceramic Society, 2022, 42(7): 3156.
[8]	ZHAO S, ZHOU X, YU J, et al. Mechanical properties and in situ crack growth observation of SiC/SiC composites. Ceramics International, 2014, 40(5): 7481.
[9]	梁杰存, 韩琦男, 贺志武, 等. 扫描显微环境下原位高温力学测量技术及其应用研究. 中国科学: 物理学力学天文学, 2018, 48(9): 71.
[10]	祺跃科技. 祺跃自研产品系列: 原位高温拉伸台(2022-12-15) [2024-01-21]. http://mp.weixin.qq.com/s?__biz=MzA4NTgzMzc1Ng==&mid=2247484072&idx=1&sn=5f947cc76feb36074fd722279b89c4ca&chksm=9fd0a3dba8a72acd159cf2064eb5ff511b9e89e8724cdc6dd8f14544a01588e45f91c00ae710#rd.
[11]	马晋遥, 王晋, 赵云松, 等. 一种第二代镍基单晶高温合金1150 ℃原位拉伸断裂机制研究. 金属学报, 2019, 55(8): 987.
[12]	DETWILER K, HUNT R, OPILA E. In-situ observation of micro-cracking in a SiC/BN/SiC ceramic matrix composite under tension. Open Ceramics, 2023, 14: 100366.
[13]	MIYASHITA Y, KANDA K, ZHU S, et al. Observations of fatigue damage process in SiC/SiC composites at room and elevated temperatures. International Journal of Fatigue, 2002, 24(2): 241.
[14]	罗雅煊, 董亚丽, 李露, 等. 基于数字图像相关方法的SiC_f/SiC陶瓷基复合材料力学行为表征. 航空材料学报, 2023, 43(3): 60.
[15]	HOLMES J, SOMMACAL S, DAS R, et al. Digital image and volume correlation for deformation and damage characterisation of fibre-reinforced composites: a review. Composite Structures, 2023, 315: 116994.
[16]	YAMAGUCHI I. Speckle displacement and decorrelation in the diffraction and image fields for small object deformation. Optica Acta: International Journal of Optics, 1981, 28(10): 1359.
[17]	PETERS W H, RANSON W F. Digital imaging techniques in experimental stress analysis. Optical Engineering, 1982, 21(3): 427.
[18]	RAJAN V P, ROSSOL M N, ZOK F W. Optimization of digital image correlation for high-resolution strain mapping of ceramic composites. Experimental Mechanics, 2012, 52(9): 1407.
[19]	BERNACHY-BARBE F, GÉLÉBART L, BORNERT M, et al. Characterization of SiC/SiC composites damage mechanisms using digital image correlation at the tow scale. Composites Part A: Applied Science and Manufacturing, 2015, 68: 101.
[20]	BUMGARDNER C H, HEIM F M, ROACHE D C, et al. Unveiling hermetic failure of ceramic tubes by digital image correlation and acoustic emission. Journal of the American Ceramic Society, 2020, 103(3): 2146.
[21]	BUMGARDNER C H, HEIM F M, ROACHE D C, et al. Characterizing environment-dependent fracture mechanisms of ceramic matrix composites via digital image correlation. Journal of the American Ceramic Society, 2021, 104(12): 6545.
[22]	PRESBY M J, KANNAN M, MORSCHER G N, et al. An investigation of the end-notched flexure and end-loaded split tests applied to the mode II interlaminar fracture of a SiC/SiC ceramic matrix composite. Journal of Engineering for Gas Turbines and Power, 2020, 142: 041027.
[23]	TABLEAU N, ABOURA Z, KHELLIL K, et al. Accurate measurement of in-plane and out-of-plane shear moduli on 3D woven SiC-SiBC material. Composite Structures, 2017, 172: 319.
[24]	MORSCHER G N, MAXWELL R. Monitoring tensile fatigue crack growth and fiber failure around a notch in laminate SIC/SIC composites utilizing acoustic emission, electrical resistance, and digital image correlation. Journal of the European Ceramic Society, 2019, 39(2): 229.
[25]	MEYER P, WAAS A M. Mesh-objective two-scale finite element analysis of damage and failure in ceramic matrix composites. Integrating Materials and Manufacturing Innovation, 2015, 4(1): 63.
[26]	MEYER P, WAAS A M. Experimental results on the elevated temperature tensile response of SiC/SiC ceramic matrix notched composites. Composites Part B: Engineering, 2018, 143: 26.
[27]	陈俊, 佀明森, 张人发, 等. 高温下C/SiC复合材料弯曲断裂性能实时测试和微观结构表征分析. 实验力学, 2016, 31(2): 243.
[28]	MAO W G, CHEN J, SI M S, et al. High temperature digital image correlation evaluation of in-situ failure mechanism: an experimental framework with application to C/SiC composites. Materials Science and Engineering: A, 2016, 665: 26.
[29]	TRACY J, DALY S, SEVENER K. Multiscale damage characterization in continuous fiber ceramic matrix composites using digital image correlation. Journal of Materials Science, 2015, 50(15): 5286.
[30]	SEVENER K M, TRACY J M, CHEN Z, et al. Crack opening behavior in ceramic matrix composites. Journal of the American Ceramic Society, 2017, 100(10): 4734.
[31]	TRACY J, WAAS A, DALY S. A new experimental approach for in situ damage assessment in fibrous ceramic matrix composites at high temperature. Journal of the American Ceramic Society, 2015, 98(6): 1898.
[32]	LOVAAS N. Minimizing noise and bias in DIC(2020-11-25) [2023-11-30]. https://correlated.kayako.com/article/25-minimizing-noise-and-bias-in-dic.
[33]	王龙, 冯国林, 李志强, 等. X射线断层扫描在材料力学行为研究中的应用. 强度与环境, 2017, 44(6): 43.
[34]	LI Q, CHEN Y, CHEN Y, et al. Effects of void defects on fracture features and tensile strength of C/SiC composites: an image-based FEM study. Applied Composite Materials, 2022, 29(3): 1021.
[35]	GAO Y, WANG Y, YANG X, et al. Synchrotron X-ray tomographic characterization of CVI engineered 2D-woven and 3D-braided SiC_f/SiC composites. Ceramics International, 2016, 42(15): 17137.
[36]	SAUCEDO-MORA L, LOWE T, ZHAO S, et al. In situ observation of mechanical damage within a SiC-SiC ceramic matrix composite. Journal of Nuclear Materials, 2016, 481: 13.
[37]	CHEN Y, GÉLÉBART L, CHATEAU C, et al. Analysis of the damage initiation in a SiC/SiC composite tube from a direct comparison between large-scale numerical simulation and synchrotron X-ray micro-computed tomography. International Journal of Solids and Structures, 2019, 161: 111.
[38]	YANG H, XU S, ZHANG D, et al. In-situ tensile damage and fracture behavior of PIP SiC/SiC minicomposites at room temperature. Journal of the European Ceramic Society, 2021, 41(14): 6869.
[39]	GUO W, GAO Y, SUN L. In-situ CT characterization of 2D woven SiC_f/SiC composite loading under compression. Science and Engineering of Composite Materials, 2022, 29(1): 394.
[40]	CHATEAU C, GÉLÉBART L, BORNERT M, et al. In situ X-ray microtomography characterization of damage in SiC_f/SiC minicomposites. Composites Science and Technology, 2011, 71(6): 916.
[41]	HILMAS A M, SEVENER K M, HALLORAN J W. Damage evolution in SiC/SiC unidirectional composites by X-ray tomography. Journal of the American Ceramic Society, 2020, 103(5): 3436.
[42]	刘海龙, 张大旭, 祁荷音, 等. 基于X射线CT原位试验的平纹SiC/SiC复合材料拉伸损伤演化. 上海交通大学学报, 2020, 54(10): 1074.
[43]	冯宇琦, 张毅, 张大旭, 等. 基于深度学习的2.5D陶瓷基复合材料损伤识别与评估. 硅酸盐学报, 2021, 49(8): 1765.
[44]	ZHANG D, LIU Y, LIU H, et al. Characterisation of damage evolution in plain weave SiC/SiC composites using in situ X-ray micro-computed tomography. Composite Structures, 2021, 275: 114447.
[45]	YANG C, WU S, WU S, et al. In-situ characterization on crack propagation behavior of SiC_f/SiC composites during monotonic tensile loading. Journal of the European Ceramic Society, 2022, 42(15): 6836.
[46]	ZHU R, QU Z, YANG S, et al. An in situ microtomography apparatus with a laboratory X-ray source for elevated temperatures of up to 1000 ℃. Review of Scientific Instruments, 2021, 92(3): 033704.
[47]	ZHU R, NIU G, QU Z, et al. In-situ quantitative tracking of micro- crack evolution behavior inside CMCs under load at high temperature: a deep learning method. Acta Materialia, 2023, 255: 119073.
[48]	HABOUB A, BALE H A, NASIATKA J R, et al. Tensile testing of materials at high temperatures above 1700 ℃ with in situ synchrotron X-ray micro-tomography. Review of Scientific Instruments, 2014, 85(8): 083702.
[49]	BALE H A, HABOUB A, MACDOWELL A A, et al. Real-time quantitative imaging of failure events in materials under load at temperatures above 1600 ℃. Nature Materials, 2013, 12(1): 40.
[50]	MAZARS V, CATY O, COUÉGNAT G, et al. Damage investigation and modeling of 3D woven ceramic matrix composites from X-ray tomography in-situ tensile tests. Acta Materialia, 2017, 140: 130.
[51]	LIU C, CHEN Y, SHI D, et al. In situ investigation of failure in 3D braided SiC_f/SiC composites under flexural loading. Composite Structures, 2021, 270: 114067.
[52]	CROOM B P, XU P, LAHODA E J, et al. Quantifying the three-dimensional damage and stress redistribution mechanisms of braided SiC/SiC composites by in situ volumetric digital image correlation. Scripta Materialia, 2017, 130: 238.
[53]	CHEN Y, GÉLÉBART L, CHATEAU C, et al. 3D detection and quantitative characterization of cracks in a ceramic matrix composite tube using X-ray computed tomography. Experimental Mechanics, 2020, 60(3): 409.
[54]	CHEN Y, GÉLÉBART L, CHATEAU C, et al. Crack initiation and propagation in braided SiC/SiC composite tubes: effect of braiding angle. Journal of the European Ceramic Society, 2020, 40(13): 4403.
[55]	FORNA-KREUTZER J P, ELL J, BARNARD H, et al. Full-field characterisation of oxide-oxide ceramic-matrix composites using X-ray computed micro-tomography and digital volume correlation under load at high temperatures. Materials & Design, 2021, 208: 109899.
[56]	GAO X, LEI B, ZHANG Y, et al. Identification of microstructures and damages in silicon carbide ceramic matrix composites by deep learning. Materials Characterization, 2023, 196: 112608.
[57]	DU Y, ZHANG D, WANG L, et al. Damage mechanism characterisation of plain weave ceramic matrix composites under in-plane shear using in-situ X-ray micro-CT and deep-learning-based image segmentation. Journal of the European Ceramic Society, 2024, 44(1): 142.
[58]	BADRAN A, MARSHALL D, LEGAULT Z, et al. Automated segmentation of computed tomography images of fiber-reinforced composites by deep learning. Journal of Materials Science, 2020, 55(34): 16273.
[59]	GROSSE C U, OHTSU M, AGGELIS D G, et al. Acoustic emission testing:basics for research-applications in engineering. Cham: Springer International Publishing, 2022.
[60]	MAILLET E, GODIN N, R’MILI M, et al. Damage monitoring and identification in SiC/SiC minicomposites using combined acousto-ultrasonics and acoustic emission. Composites Part A: Applied Science and Manufacturing, 2014, 57: 8.
[61]	MOEVUS M, GODIN N, R’MILI M, et al. Analysis of damage mechanisms and associated acoustic emission in two SiC_f/[Si-B-C] composites exhibiting different tensile behaviours. Part II: unsupervised acoustic emission data clustering. Composites Science and Technology, 2008, 68(6): 1258.
[62]	SHAN Q, XUE Y, HU J. The anti-oxidation mechanism of SiC_f/SiC-B₄C modified with Al₂O₃ in wet atmosphere based on machine learning. Journal of the American Ceramic Society, 2022, 105(9): 5853.
[63]	SHAN Q, XU Q, XUE Y, et al. The tensile damage behavior of SiC_f/SiC-B₄C after oxidation in wet atmosphere based on acoustic emission pattern recognition. Journal of the American Ceramic Society, 2021, 104(8): 4131.
[64]	MUIR C, TULSHIBAGWALE N, FURST A, et al. Quantitative benchmarking of acoustic emission machine learning frameworks for damage mechanism identification. Integrating Materials and Manufacturing Innovation, 2023, 12(1): 70.
[65]	MORSCHER G N. Modal acoustic emission of damage accumulation in a woven SiC/SiC composite. Composites Science and Technology, 1999, 59(5): 687.
[66]	SWAMINATHAN B, MCCARTHY N R, ALMANSOUR A S, et al. Microscale characterization of damage accumulation in CMCs. Journal of the European Ceramic Society, 2021, 41(5): 3082.
[67]	NOZAWA T, KOYANAGI T, KATOH Y, et al. Failure evaluation of neutron-irradiated SiC/SiC composites by underwater acoustic emission. Journal of Nuclear Materials, 2022, 566: 153787.
[68]	YANG L, ZHOU Y C, LU C. Damage evolution and rupture time prediction in thermal barrier coatings subjected to cyclic heating and cooling: an acoustic emission method. Acta Materialia, 2011, 59(17): 6519.
[69]	宫永辉, 武小峰, 尹晓峰, 等. 高温条件下波导杆的在线损伤检测. 无损检测, 2019, 41(09): 70.
[70]	杨丽, 周益春, 朱旺. 热障涂层失效的声发射实时表征技术研究进展. 中国材料进展, 2020, 39(11): 878.
[71]	MOMON S, MOEVUS M, GODIN N, et al. Acoustic emission and lifetime prediction during static fatigue tests on ceramic- matrix-composite at high temperature under air. Composites Part A: Applied Science and Manufacturing, 2010, 41(7): 913.
[72]	MOMON S, GODIN N, REYNAUD P, et al. Unsupervised and supervised classification of AE data collected during fatigue test on CMC at high temperature. Composites Part A: Applied Science and Manufacturing, 2012, 43(2): 254.
[73]	MAILLET E. Analysis of acoustic emission energy release during static fatigue tests at intermediate temperatures on ceramic matrix composites: towards rupture time prediction. Composites Science and Technology, 2012, 72(9): 1001.
[74]	MAILLET E, GODIN N, R’MILI M, et al. Real-time evaluation of energy attenuation: a novel approach to acoustic emission analysis for damage monitoring of ceramic matrix composites. Journal of the European Ceramic Society, 2014, 34(7): 1673.
[75]	GODIN N, REYNAUD P, FANTOZZI G. Challenges and limitations in the identification of acoustic emission signature of damage mechanisms in composites materials. Applied Sciences, 2018, 8(8): 1267.
[76]	SMITH C E, MORSCHER G N, XIA Z H. Monitoring damage accumulation in ceramic matrix composites using electrical resistivity. Scripta Materialia, 2008, 59(4): 463.
[77]	MANSOUR R, MAILLET E, MORSCHER G N. Monitoring interlaminar crack growth in ceramic matrix composites using electrical resistance. Scripta Materialia, 2015, 98: 9.
[78]	XIA Z, SUJIDKUL T, NIU J, et al. Modeling of electromechanical behavior of woven SiC/SiC composites. Composites Part A: Applied Science and Manufacturing, 2012, 43(10): 1730.
[79]	SMITH C, MORSCHER G, XIA Z. Electrical resistance of SiC/SiC ceramic matrix composites for damage detection and life-prediction: E-17375. Cleveland: NASA Glenn Research Center, 2009: 9-18.
[80]	APPLEBY M, MORSCHER G, ZHU D. Correlation of electrical resistance to CMC stress-strain and fracture behavior under high heat-flux thermal and stress gradients: GRC-E-DAA-TN20638. Cleveland: NASA Glenn Research Center, 2015: 16.
[81]	SIMON C, REBILLAT F, CAMUS G. Electrical resistivity monitoring of a SiC/[Si-B-C] composite under oxidizing environments. Acta Materialia, 2017, 132: 586.
[82]	MEI H, CHENG L. Damage analysis of 2D C/SiC composites subjected to thermal cycling in oxidizing environments by mechanical and electrical characterization. Materials Letters, 2005, 59(26): 3246.
[83]	栾新刚.3D C/SiC在复杂耦合环境中的损伤机理与寿命预测. 西安: 西北工业大学博士学位论文, 2007.
[84]	魏婷婷.基于电阻抗成像的陶瓷基复合材料高温燃气损伤检测方法. 南京: 南京航空航天大学硕士学位论文, 2020.
[85]	WANG F, TENG X, HU X, et al. Damage and failure analysis of a SiC_f/SiC ceramic matrix composite using digital image correlation and acoustic emission. Ceramics International, 2022, 48(4): 4699.
[86]	DUAN Y, QIU H, YANG T, et al. Flexural failure mechanism of 2.5D woven SiC_f/SiC composites: combination of acoustic emission, digital image correlation and X-ray tomography. Composites Communications, 2021, 28: 100921.
[87]	MAILLET E, SINGHAL A, HILMAS A, et al. Combining in-situ synchrotron X-ray microtomography and acoustic emission to characterize damage evolution in ceramic matrix composites. Journal of the European Ceramic Society, 2019, 39(13): 3546.
[88]	EL RASSI J, HEGEMAN A L, MORSCHER G N. A ply-level electrical resistance approach to monitor crack evolution in a laminate SiC/SiC composites. Journal of the European Ceramic Society, 2022, 42(13): 5355.
[89]	WHITLOW T, JONES E, PRZYBYLA C. In-situ damage monitoring of a SiC/SiC ceramic matrix composite using acoustic emission and digital image correlation. Composite Structures, 2016, 158: 245.
[90]	SIMON C, REBILLAT F, HERB V, et al. Monitoring damage evolution of SiC_f/[SiBC]_m composites using electrical resistivity: crack density-based electromechanical modeling. Acta Materialia, 2017, 124: 579.
[91]	MORSCHER G N, GORDON N A. Acoustic emission and electrical resistance in SiC-based laminate ceramic composites tested under tensile loading. Journal of the European Ceramic Society, 2017, 37(13): 3861.
[92]	APPLEBY M P, ZHU D, MORSCHER G N. Mechanical properties and real-time damage evaluations of environmental barrier coated SiC/SiC CMCs subjected to tensile loading under thermal gradients. Surface and Coatings Technology, 2015, 284: 318.
[93]	BROCKMAN C, SWITZER C, ALMANSOUR A, et al. High-temperature mechanical tensile testing of unidirectional SiC_f/SiC composites using a versatile lamp furnace. 11th International Conference on High Temperature Ceramic Matrix Composites, Jeju, 2023: 315.

SiC_f/SiC陶瓷基复合材料高温环境损伤原位监测研究进展

Research Progress on In-situ Monitoring of Damage Behavior of SiC_f/SiC Ceramic Matrix Composites at High Temperature Environments

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 11

参考文献 93

相关文章 15

编辑推荐

Metrics

本文评价

[1]	王伟明, 王为得, 粟毅, 马青松, 姚冬旭, 曾宇平. 以非氧化物为烧结助剂制备高导热氮化硅陶瓷的研究进展[J]. 无机材料学报, 2024, 39(6): 634-646.
[2]	蔡飞燕, 倪德伟, 董绍明. 高熵碳化物超高温陶瓷的研究进展[J]. 无机材料学报, 2024, 39(6): 591-608.
[3]	赵日达, 汤素芳. 多孔碳陶瓷化改进反应熔渗法制备陶瓷基复合材料研究进展[J]. 无机材料学报, 2024, 39(6): 623-633.
[4]	方光武, 谢浩元, 张华军, 高希光, 宋迎东. CMC-EBC损伤耦合机理及一体化设计研究进展[J]. 无机材料学报, 2024, 39(6): 647-661.
[5]	张幸红, 王义铭, 程源, 董顺, 胡平. 超高温陶瓷复合材料研究进展[J]. 无机材料学报, 2024, 39(6): 571-590.
[6]	李广宇, 岳一凡, 王波, 张程煜, 索涛, 李玉龙. 2D-SiC/SiC复合材料的弹丸冲击损伤及冲击后拉伸性能[J]. 无机材料学报, 2024, 39(5): 494-500.
[7]	张慧, 许志鹏, 朱从潭, 郭学益, 杨英. 大面积有机-无机杂化钙钛矿薄膜及其光伏应用研究进展[J]. 无机材料学报, 2024, 39(5): 457-466.
[8]	李宗晓, 胡令祥, 王敬蕊, 诸葛飞. 氧化物神经元器件及其神经网络应用[J]. 无机材料学报, 2024, 39(4): 345-358.
[9]	鲍可, 李西军. 化学气相沉积法制备智能窗用热致变色VO₂薄膜的研究进展[J]. 无机材料学报, 2024, 39(3): 233-258.
[10]	师维刚, 张超, 李玫, 王晶, 张程煜. 2D-SiC_f/SiC复合材料层间I型断裂试验及表征[J]. 无机材料学报, 2024, 39(1): 45-50.
[11]	胡梦菲, 黄丽萍, 李贺, 张国军, 吴厚政. 锂/钠离子电池硬碳负极材料的研究进展[J]. 无机材料学报, 2024, 39(1): 32-44.
[12]	柯鑫, 谢炳卿, 王忠, 张敬国, 王建伟, 李占荣, 贺会军, 汪礼敏. 第三代半导体互连材料与低温烧结纳米铜材的研究进展[J]. 无机材料学报, 2024, 39(1): 17-31.
[13]	董思吟, 帖舒婕, 袁瑞涵, 郑霄家. 低维卤化物钙钛矿直接型X射线探测器研究进展[J]. 无机材料学报, 2023, 38(9): 1017-1030.
[14]	张伦, 吕梅, 朱俊. Cs₂AgBiBr₆钙钛矿太阳能电池研究进展[J]. 无机材料学报, 2023, 38(9): 1044-1054.
[15]	陈雨, 林埔安, 蔡冰, 张文华. 钙钛矿太阳能电池无机空穴传输材料的研究进展[J]. 无机材料学报, 2023, 38(9): 991-1004.

SiCf/SiC陶瓷基复合材料高温环境损伤原位监测研究进展

Research Progress on In-situ Monitoring of Damage Behavior of SiCf/SiC Ceramic Matrix Composites at High Temperature Environments

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 11

参考文献 93

相关文章 15

编辑推荐

Metrics

本文评价

SiC_f/SiC陶瓷基复合材料高温环境损伤原位监测研究进展

Research Progress on In-situ Monitoring of Damage Behavior of SiC_f/SiC Ceramic Matrix Composites at High Temperature Environments
