摘要:
电卡效应是指电介质材料中由于施加或去除电场导致的材料温度变化的现象, 包括正电卡效应和负电卡效应两种类型。电卡效应作为一种高效率、无噪音、环境友好的制冷效应, 在固态制冷特别是集成电路制冷领域显示出广阔的应用前景, 在过去的几十年中吸引了科研人员广泛的研究兴趣。研究表明, 通过结合正负电卡效应, 可以显著提高电卡效应的制冷能力。与正电卡效应不同, 负电卡效应因其独特的物理起源, 调控手段极为有限。本文以负电卡效应为中心, 重点介绍反铁电材料中负电卡效应的最新研究进展, 具体内容包括以下四个部分: 首先, 从电卡效应的研究历史出发, 介绍了电卡效应的制冷原理, 介绍了一个典型的能将正、负电卡效应结合的双制冷循环; 其次, 介绍了基于Maxwell关系的负电卡效应间接测试方法, 以及几种负电卡效应直接测试方法, 并讨论了不同方法的适用条件和优缺点; 再次, 以典型的负电卡效应材料——反铁电材料为例, 着重介绍了负电卡效应的物理起源, 综述了反铁电薄膜和反铁电块体材料中的负电卡效应, 并对其它铁电材料中的负电卡效应做了简要介绍; 最后, 对负电卡效应的研究进行了总结和展望。
中图分类号:
吴明, 肖娅男, 李华强, 刘泳斌, 高景晖, 钟力生, 娄晓杰. 反铁电材料中负电卡效应的研究进展[J]. 无机材料学报, 2022, 37(4): 376-386.
WU Ming, XIAO Yanan, LI Huaqiang, LIU Yongbin, GAO Jinghui, ZHONG Lisheng, LOU Xiaojie. Negative Electrocaloric Effects in Antiferroelectric Materials: a Review[J]. Journal of Inorganic Materials, 2022, 37(4): 376-386.

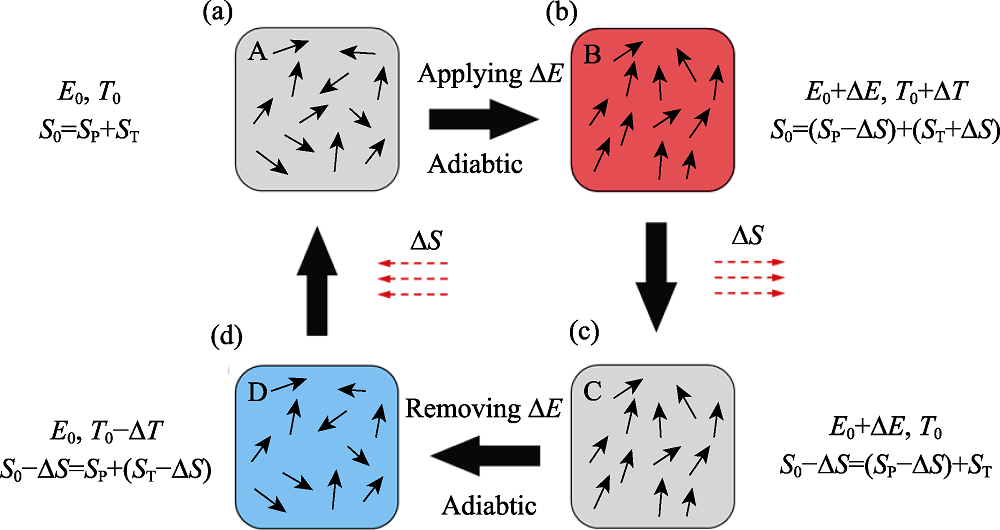

图1 电卡效应冷却循环中的极化翻转、温度变化和熵变示意图
Fig. 1 Schematic of polarization switching, temperature change and entropy change during cooling cycle of electrocaloric effect (a) In virgin state, the ferroelectric polarization randomly distributs; (b) With the application of electric field, the ferroelectric polarization is aligned, and the temperature of the ferroelectric materials is increased; (c) After an isothermal process, the temperature of the ferroelectric materials decreases to the environment temperature; (d) After removal of the electric field, the ferroelectric polarization recovers randomly distribution, the temperature of the ferroelectric materials decreases

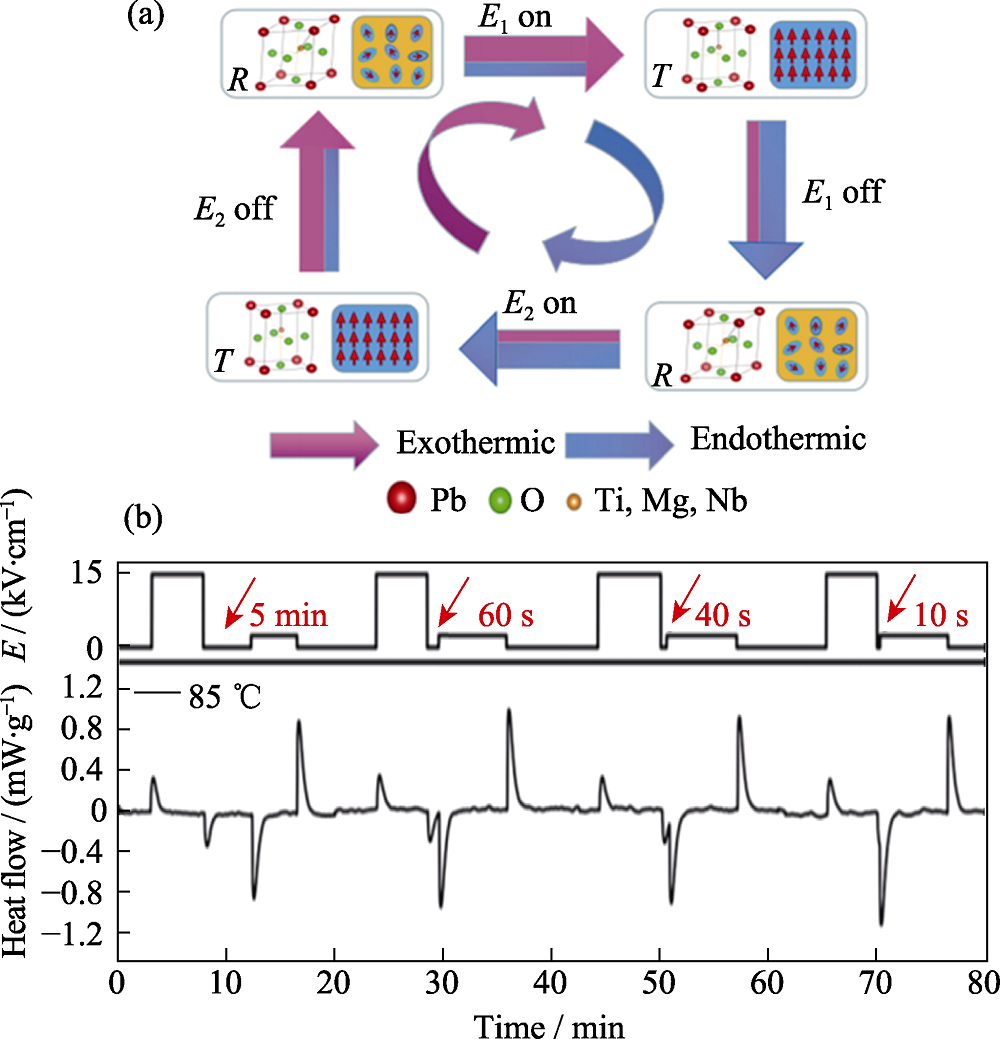

图2 基于正负电卡效应共存的制冷循环[10]
Fig. 2 Feasible combination of positive and negative electrocaloric effect[10] (a) Schematic of the cooling cycle; (b) Heat flow of the dual cooling cycle measured by DSC

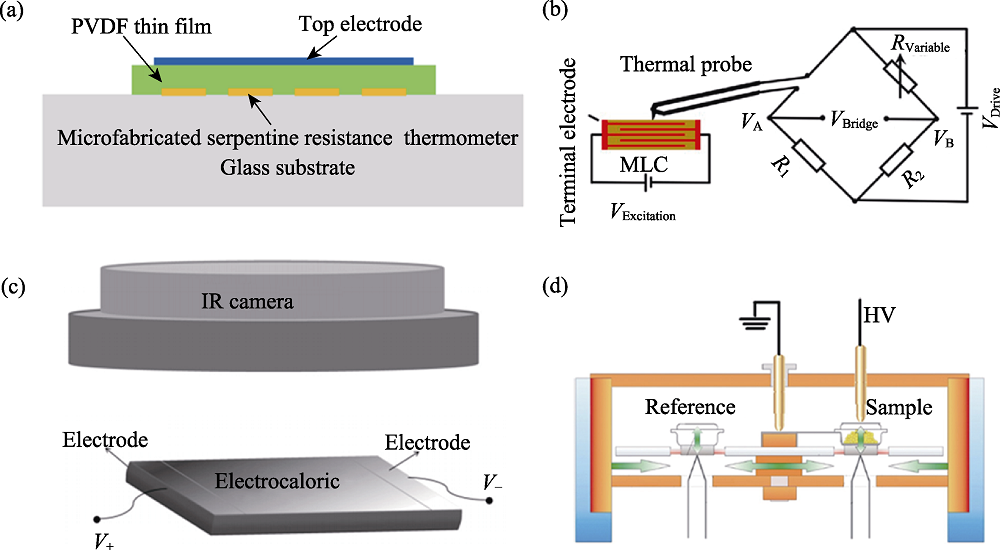

图3 电卡效应直接测量法
Fig. 3 Direct measurements of electrocaloric effect (a) Thermocouple or thermometer[15]; (b) Scanning thermal microscopy[16]; (c) Infra-red camera[17]; (d) Modified differential scanning calorimetry[18]
图4 反铁电材料中的电畴、电滞回线和产生负电卡效应的可能机制示意图[27]
Fig. 4 Electric domain and representative hysteresis loop of antiferroelectrics, schematic of a possible mechanism of negative electrocaloric effect in antiferroelectrics[27] Electric domain of antiferroelectrics (a) before and (b) after being polarized; (c) Representative hysteresis loop of antiferroelectrics; Schematic of a possible mechanism of negative ECE in antiferroelectrics (d1) without any electric field and (d2) under a modest electric field

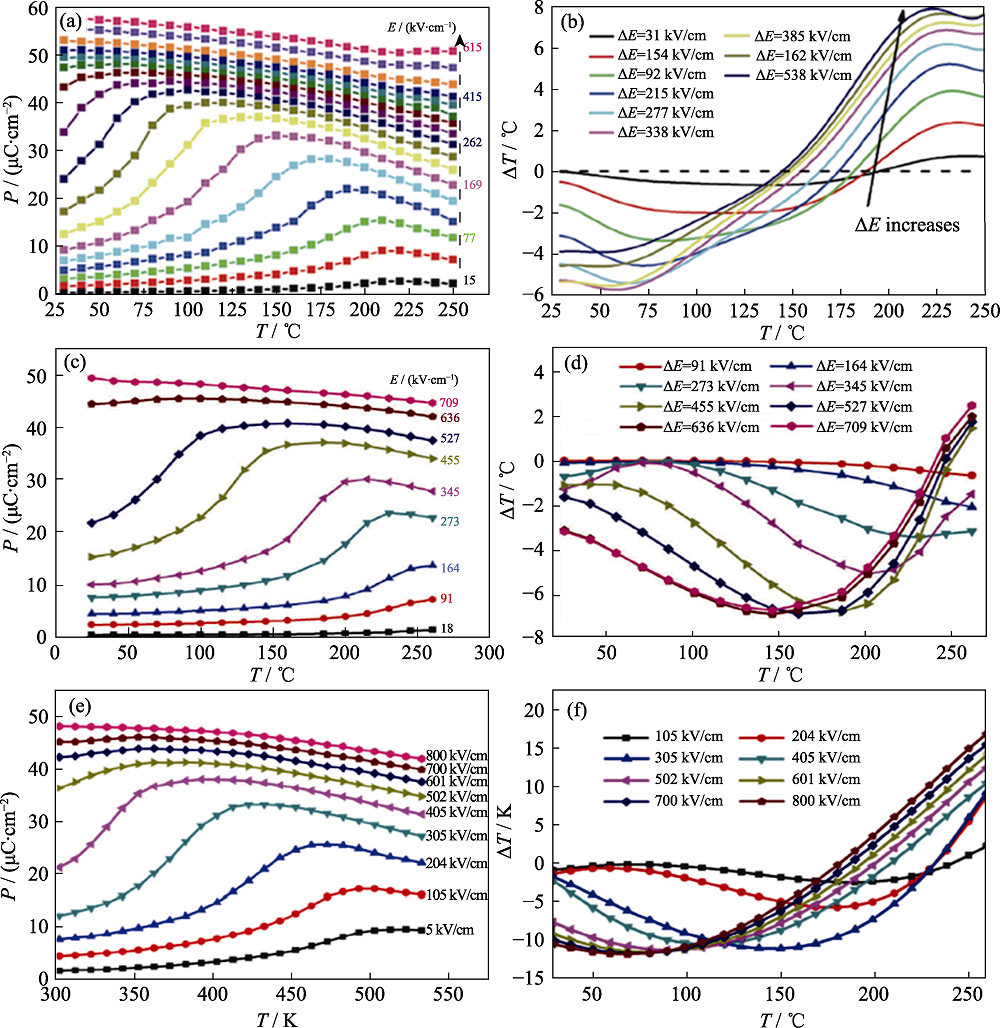

图5 PbZrO3基反铁电薄膜中的负电卡效应
Fig. 5 Negative electrocaloric effect in PbZrO3-based antiferroelectric thin films (a) P-T curves and (b) temperature change of (Pb0.97, La0.02)(Zr0.95,Ti0.05)O3 thin film[21]; (c) P-T curves and (d) temperature change of 4% (molar ratio) Eu doped PbZrO3 thin film[32]; (e) P-T curves and (f) temperature change of 1% Yb (molar ratio) doped PbZrO3 thin film[33]
图6 PbZrO3薄膜中利用界面缺陷增强负电卡效应[29]
Fig. 6 Interface-defect-enhanced negative electrocaloric effect in PbZrO3 thin films[29] (a) Mechanism of the defect-dipole-suppressed antiferroelectric-ferroelectric phase transition during electric cycling; (b) Antiferroelctric-ferroelectric phase transition field of the PbZrO3 thin films with interface defect (p-PZO) and without interface defect (f-PZO); (c) Comparison of negative ECE in different materials Colorful figures are available on website
图7 不同电场下PbZrO3、(Pb0.97,La0.02)(Zr0.95,Ti0.05)O3和B位非化学计量比(Pb0.97,La0.02)(Zr0.95,Ti0.05)1+yO3 (y=-0.03, -0.01, 0.01, 0.03)陶瓷的负电卡效应
Fig. 7 Negative electrocaloric effects of PbZrO3, (Pb0.97,La0.02)(Zr0.95,Ti0.05)O3 and B-site nonstoichiometric (Pb0.97,La0.02)(Zr0.95,Ti0.05)1+yO3 (y=-0.03, -0.01, 0.01, 0.03) ceramics under different electric fields (a) PbZrO3[34]; (b) (Pb0.97,La0.02)(Zr0.95,Ti0.05)O3[35]; (c) B-site nonstoichiometric (Pb0.97,La0.02)(Zr0.95,Ti0.05)1+yO3 (y=-0.03, -0.01, 0.01, 0.03)[36] Colorful figures are available on website
图8 两种PNZST陶瓷在不同温度下测试的电滞回线以及两种陶瓷的P-T曲线、温度变化ΔT和熵变ΔS[37]
Fig. 8 Hysteresis loops of PNZST13/2/2 and PNZST43/8/2 under different temperatures, P-T curves, temperature change ΔT and entropy change ΔS of PNZST13/2/2 and PNZST43/8/2[37] (a) Hysteresis loops of PNZST13/2/2; (b) Hysteresis loops of PNZST43/8/2; (c-e) P-T curves, temperature change ΔT and entropy change ΔS of PNZST13/2/2; (f-h) P-T curves, temperature change ΔT and entropy change ΔS of PNZST43/8/2 Colorful figures are available on website
图9 (Pb0.97La0.02)(Zr0.66Sn0.23Ti0.11)O3单晶、(Pb0.97La0.02)(Zr0.66Sn0.27Ti0.07)O3单晶、(Pb0.97La0.02)(Zr0.80Sn0.14Ti0.06)O3陶瓷和(Pb0.97La0.02)(ZrxSn0.94-xTi0.06)O3陶瓷的电卡效应
Fig. 9 Electrocaloric effect of (Pb0.97La0.02)(Zr0.66Sn0.23Ti0.11)O3 single crystal, (Pb0.97La0.02)(Zr0.66Sn0.27Ti0.07)O3 single crystal, (Pb0.97La0.02)(Zr0.80Sn0.14Ti0.06)O3 ceramics, and (Pb0.97La0.02)(ZrxSn0.94-xTi0.06)O3 ceramics (a, b) Hysteresis loops and temperature change ΔT of the (Pb0.97La0.02)(Zr0.66Sn0.23Ti0.11)O3 single crystal[9]; (c, d) Hysteresis loops and temperature change ΔT of the (Pb0.97La0.02)(Zr0.66Sn0.27Ti0.07)O3 single crystal[40]; (e) Temperature change ΔT of the (Pb0.97La0.02)(Zr0.80Sn0.14Ti0.06)O3 ceramics[39]; (f) Comparison of the temperature change in (Pb0.97La0.02)(ZrxSn0.94-xTi0.06)O3 ceramics with other dielectric materials[39] Colorful figures are available on website
