Mo掺杂α-MnO2电催化析氧反应的理论研究

doi:10.15541/jim20210280

摘要/Abstract

摘要：

析氧反应(Oxygen Evolution Reaction, OER)在解决能源短缺和环境问题中扮演了重要角色, 但需要巨大的过电位克服缓慢的动力学势垒, 因此开发高效电催化剂成为不可或缺的一步。本工作应用密度泛函理论研究了α-MnO₂(001)和Mo掺杂α-MnO₂(001)的电催化析氧反应性能, 根据反应路径计算了吉布斯自由能、态密度和差分电荷密度。研究结果表明Mo掺杂可以有效调节α-MnO₂(001)面的电子结构, 改善中间物和催化剂之间的脱吸附能力, 为OER提供更多的电子。吉布斯自由能结果表明Mo掺杂α-MnO₂(001)体系中*OOH生成O₂是发生OER的决速步骤, Mo掺杂降低了过电位, 产生的过电位为1.01 V, 表现出良好的析氧催化性能。

关键词: 析氧反应, 密度泛函理论, 吉布斯自由能, 催化活性

Abstract:

Oxygen evolution reaction (OER) plays an important role in solving energy shortage and environmental problems, but it requires a huge overpotential to overcome the slow kinetic barriers, so the development of high- efficiency electrocatalysts has become an indispensable step. In this work, the performance of α-MnO₂(001) and Mo doped α-MnO₂(001) electrocatalytic oxygen evolution reaction were studied by using density functional theory. Gibbs free energy, density of states and differential charge density were calculated according to the reaction path. The research results show that Mo doping can effectively modulate the electronic structure of α-MnO₂(001) surface, improve desorption and adsorption capacity between intermediates and the catalyst, and provide more electrons for OER. Gibbs free energy calculation results indicate that the formation of O₂ from *OOH is the rate-determining step for OER in the Mo doped α-MnO₂(001) system. Mo doping reduces the overpotential to 1.01 V, which presents a good catalytic performance for oxygen evolution.

Key words: oxygen evolution reaction, density functional theory, Gibbs free energy, catalytic activity

中图分类号:

TQ151

王鹏, 靳遵龙, 陈宁光, 刘勇豪. Mo掺杂α-MnO₂电催化析氧反应的理论研究[J]. 无机材料学报, 2022, 37(5): 541-546.

WANG Peng, JIN Zunlong, CHEN Ningguang, LIU Yonghao. Theoretical Investigation of Mo Doped α-MnO₂ Electrocatalytic Oxygen Evolution Reaction[J]. Journal of Inorganic Materials, 2022, 37(5): 541-546.

图/表 5

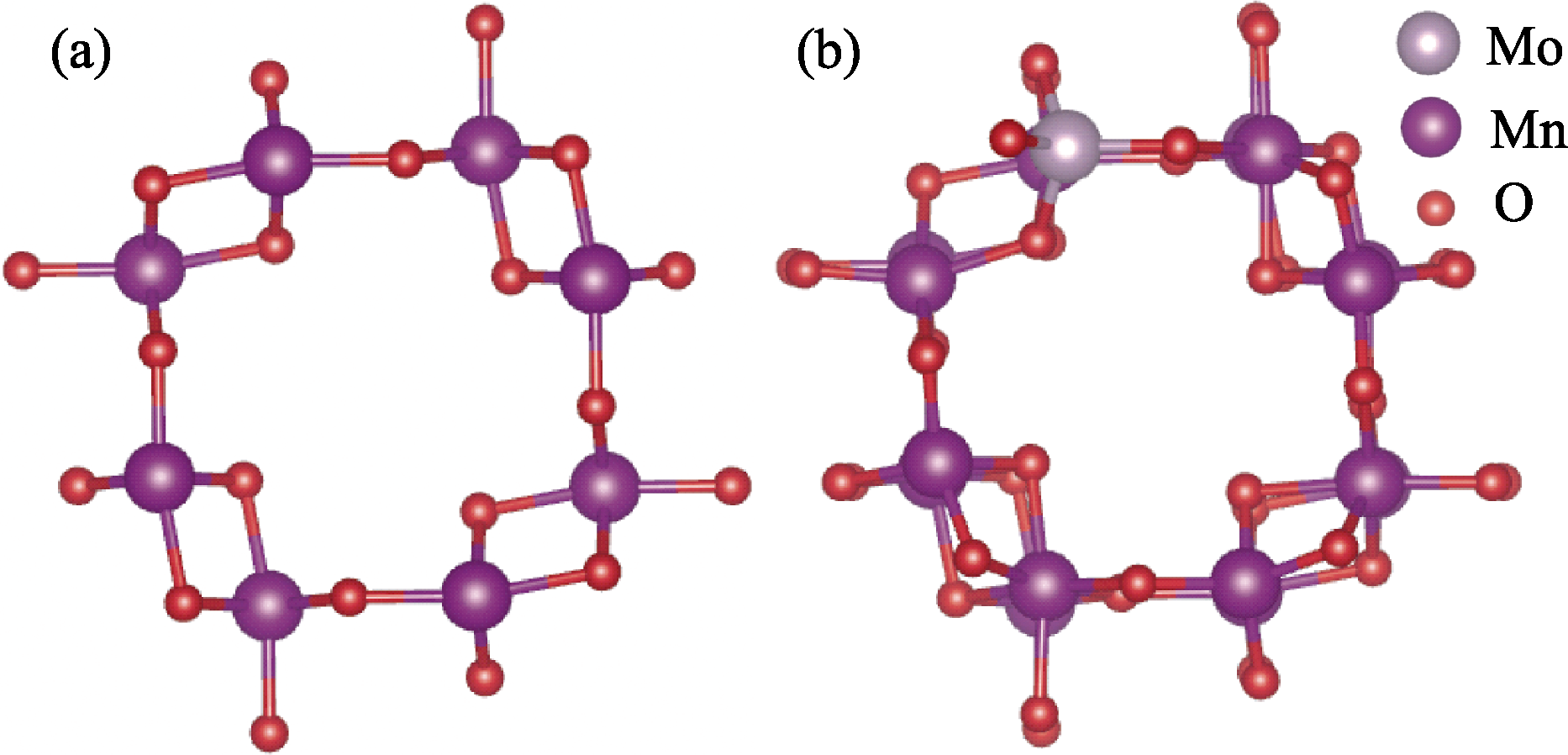

图1 (a) α-MnO2(001)和(b) Mo掺杂α-MnO2(001)优化结构的俯视图

Fig. 1 Top view of optimized structures for (a) α-MnO2(001) and (b)Mo doped α-MnO2(001)

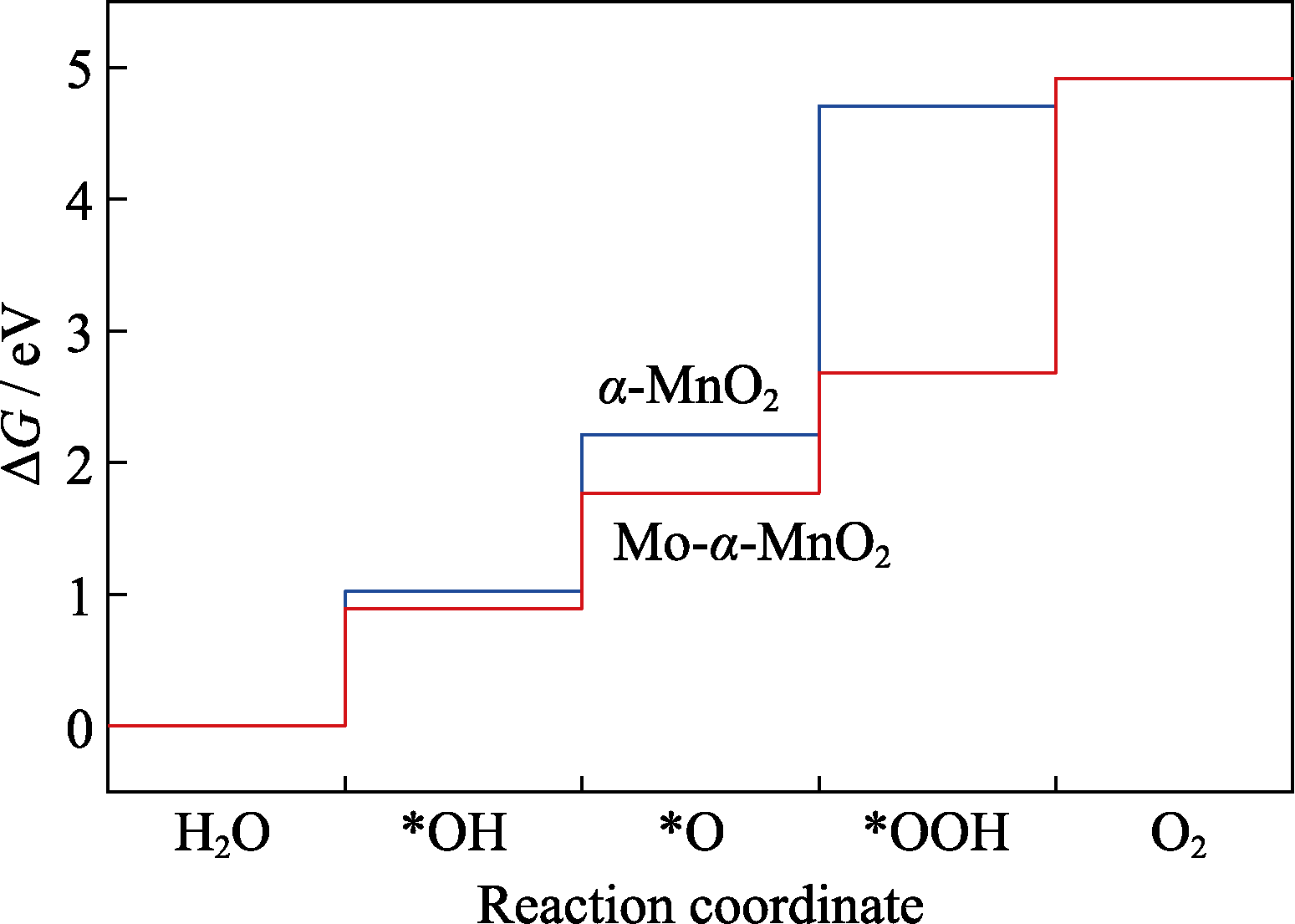

图2 α-MnO2和Mo掺杂α-MnO2的OER自由能图

Fig. 2 OER free energy diagrams of α-MnO2 and Mo doped α-MnO2

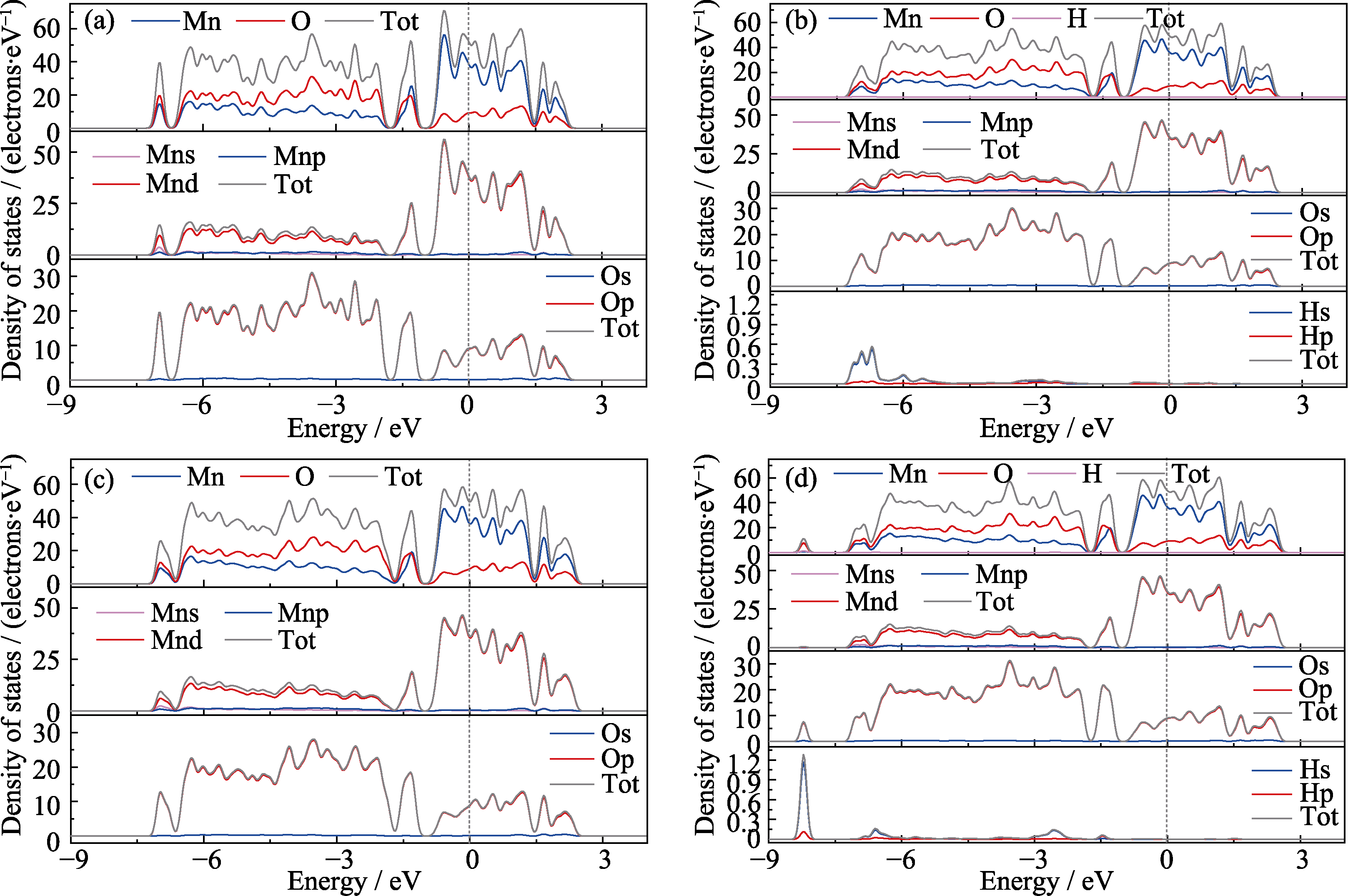

图3 α-MnO2吸附不同中间物的态密度图

Fig. 3 DOS of α-MnO2 adsorbing different intermediates (a) Undoped; (b)*OH; (c)*O; (d)*OOH Colorful figures are available on website

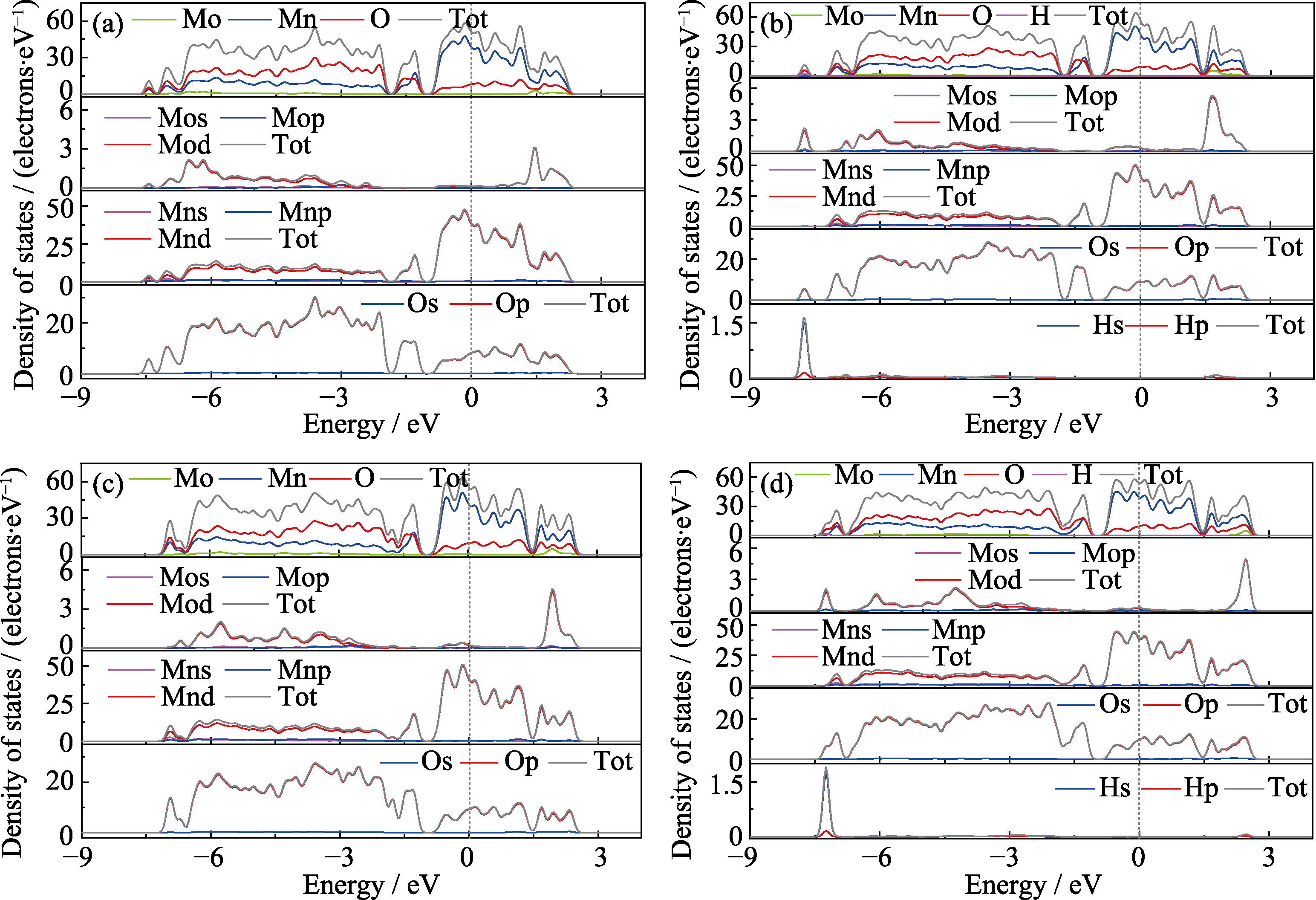

图4 Mo掺杂α-MnO2吸附不同中间物的态密度图

Fig. 4 DOS of Mo-doped α-MnO2 adsorbing different intermediates (a) Undoped; (b)*OH; (c)*O; (d)*OOH Colorful figures are available on website

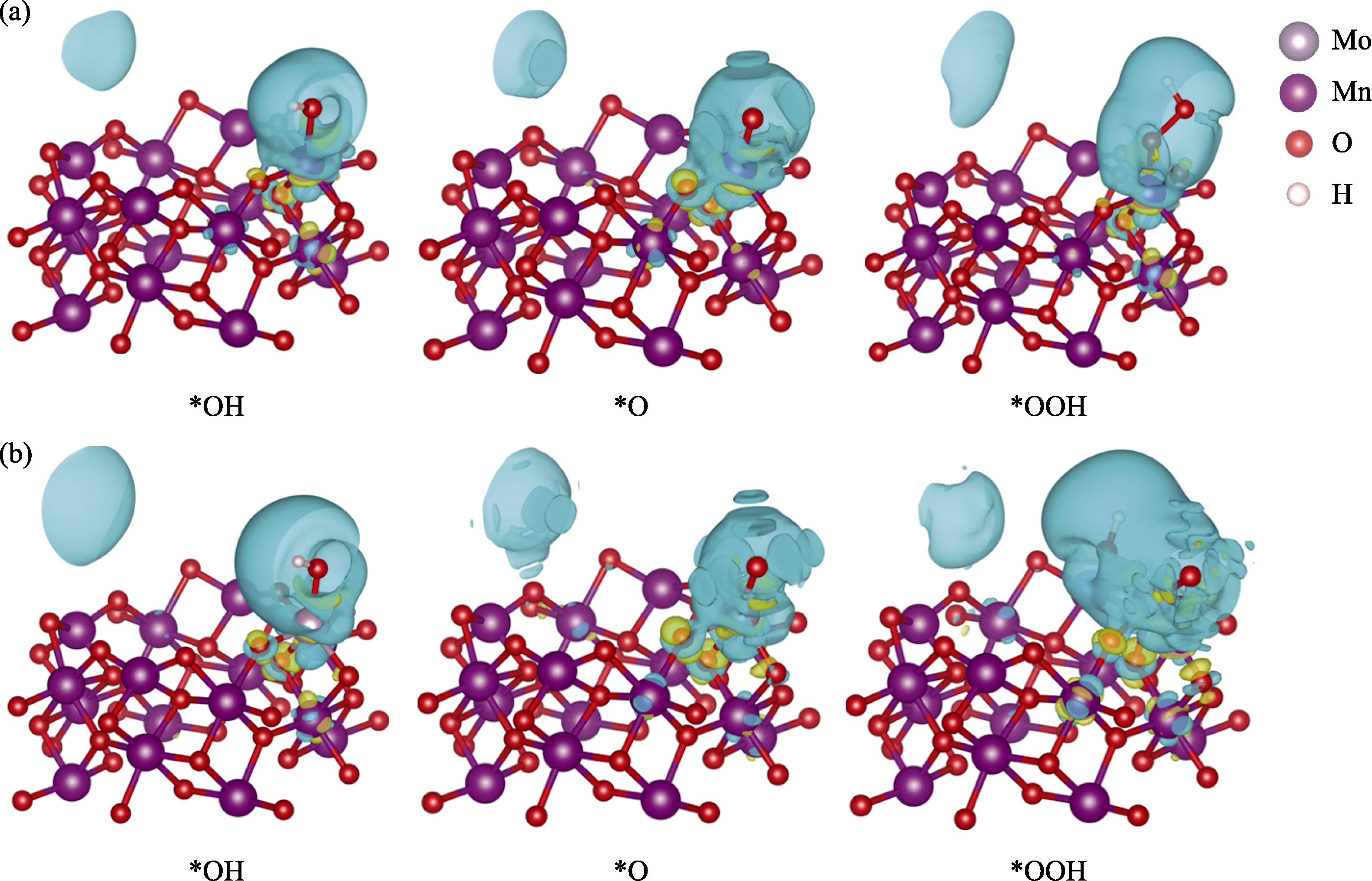

图5 (a) α-MnO2和(b) Mo掺杂α-MnO2吸附不同中间物的差分电荷密度图

Fig. 5 Charge density difference of (a) α-MnO2 and (b) Mo doped α-MnO2 adsorbing different intermediates Blue area refers consuming charge; Yellow area refers assembling charge

参考文献 29

[1]	JAMESH M I. Recent progress on earth abundant hydrogen evolution reaction and oxygen evolution reaction bifunctional electrocatalyst for overall water splitting in alkaline media. Journal of Power Sources, 2016,333:213-236.
[2]	SHEN J Q, LIAO P Q, ZHOU D D, et al. Modular and stepwise synthesis of a hybrid metal-organic framework for efficient electrocatalytic oxygen evolution. Journal of the American Chemical Society, 2017,139:1778-1781.
[3]	ZHANG Y C, AFZAL N, PAN L, et al. Structure-activity relationship of defective metal-based photocatalysts for water splitting: experimental and theoretical perspectives. Advanced Science, 2019,6:1900053.
[4]	LIM J, PARK D, JEON S S, et al. Ultrathin IrO₂ nanoneedles for electrochemical water oxidation. Advanced Functional Materials, 2018,28(4):1704796.
[5]	ZHAO Z H, ZhANG L P, XIA Z H, et al. Electron transfer and catalytic mechanism of organic molecule-adsorbed graphene nanoribbons as efficient catalysts for oxygen reduction and evolution reactions. Journal of Physical Chemistry C, 2016,120:2166-2175.
[6]	ZHAO Z H, XIA Z H. Design principles for dual-element-doped carbon nanomaterials as efficient bifunctional catalysts for oxygen reduction and evolution reactions. ACS Catalysis, 2016,6(3):1553-1558.
[7]	YE Z G, QIN C L, MA G, et al. Cobalt-iron oxide nanoarrays supported on carbon fiber paper with high stability for electrochemical oxygen evolution at large current densities. ACS Applied Materials & Interfaces, 2018,10(46):39809-39818.
[8]	ANANTHARAJ S, REDDY P N, KUNDU S. Core-oxidized amorphous cobalt phosphide nanostructures: an advanced and highly efficient oxygen evolution catalyst. Inorganic Chemistry, 2017,56(3):174-1756.
[9]	YU L, YANG J F, GUAN B Y, et al. Hierarchical hollow nanoprisms based on ultrathin Ni-Fe layered double hydroxide nanosheets with enhanced electrocatalytic activity towards oxygen evolution. Angewandte Chemie-International Edition, 2018,57(1):172-176.
[10]	BURKE M S, KAST M G, TROTOCHAUD L, et al. Cobalt-iron (oxy) hydroxide oxygen evolution electrocatalysts: the role of structure and composition on activity, stability, and mechanism. Journal of the American Chemical Society, 2015,137(10):3638-3648.
[11]	TROTOCHAUD L, YOUNG S L, RANNEY J K, et al. Nickel- iron oxyhydroxide oxygen-evolution electrocatalysts: the role of intentional and incidental iron incorporation. Journal of the American Chemical Society, 2014,136:6744-6753.
[12]	PARGOLETTI E, CAPPELLETTI G, MINGUZZI A, et al. High- performance of bare and Ti-doped α-MnO₂ nanoparticles in catalyzing the oxygen reduction reaction. Journal of Power Sources, 2016,325:116-128.
[13]	ZHAO Y F, ZHANG J Q, WUA W J, et al. Cobalt-doped MnO₂ ultrathin nanosheets with abundant oxygen vacancies supported on functionalized carbon nanofibers for efficient oxygen evolution. Nano Energy, 2018,54:129-137.
[14]	LEHTIMAEKI M, HOFFMANNOVA H, BOYTSOVA O, et al. Targeted design of α-MnO₂ based catalysts for oxygen reduction. Electrochimica Acta, 2016,191:452-461.
[15]	SELVAKUMAR K, KUMAR S M S, THANGAMUTHU R, et al. Development of shape-engineered a-MnO₂ materials as bi-functional catalysts for oxygen evolution reaction and oxygen reduction reaction in alkaline medium. International Journal of Hydrogen Energy, 2014,39(36):21024-21036.
[16]	XIA W, MAHMOOD A, LIANG Z B, et al. Earth-abundant nanomaterials for oxygen reduction. Angewandte Chemie- International Edition, 2016,55(8):2650-2676.
[17]	KRESSE G, HAFNER J. Ab initio molecular-dynamics simulation of the liquid etalamorphous-semiconductor transition in germanium. Physical Review B, 1994,49:14251-14269.
[18]	BLOCHL P E. Projector augmented-wave method. Phys. Rev. B, 1994,50(24):17953-17979.
[19]	PERDEW J P, BURKE K, ERNZERHOF M. Rationale for mixing exact exchange with density functional approximations. Chemical Physics, 1996,105(22):9982-9985.
[20]	PENG L, WANG L, NIE Y, et al. Dual-ligand synergistic modulation: a satisfactory strategy for simultaneously improving the activity and stability of oxygen evolution electrocatalysts. ACS Catalysis, 2017,7:8184-8191.
[21]	XUE Z, ZHANG X Y, QIN J Q, et al. Revealing Ni-based layered double hydroxides as high-efficiency electrocatalysts for the oxygen evolution reaction: a DFT study. Journal of Materials Chemistry A, 2019,7(40):23091-23097.
[22]	MURDACHAEW G, LAASONEN K. Oxygen evolution reaction on nitrogen-doped defective carbon nanotubes and graphene. Journal of Physical Chemistry C, 2018,122(45):25882-25892.
[23]	WANG L X, WU M H, LANG X Y,et al. High-performance nitrogen fixation over Mo atom modified defective α-MnO₂(001). ChemCatChem, 2020,12:3937-3945.
[24]	GAO X P, ZHOU Y N, TAN Y J, et al. Graphyne doped with transition-metal single atoms as effective bifunctional electrocatalysts for water splitting. Applied Surface Science, 2019,492:8-15.
[25]	LI A, FENG J R, ZHANG Y, et al. Controllable tuning of Fe-N nanosheets by Co substitution for enhanced oxygen evolution reaction. Nano Energy, 2019,57:644-652.
[26]	HEESE-GARTLEIN J, RABE A, BEHRENS M. Challenges in the application of manganese oxide powders as OER electrocatalysts: synthesis, characterization, activity and stability of nine different Mn _xO_y compounds. Zeitschrift Für Anorganische und Allgemeine Chemie, 2021,647:1-11.
[27]	ZHOU Y N, GAO G P, Li Y, et al. Transition-metal single atoms in nitrogen-doped graphenes as efficient active centers for water splitting: a theoretical study. Physical Chemistry Chemical Physics, 2019,21(6):7959-7966.
[28]	LI R C, HU B H, YU T W, et al. Insights into correlation among surface-structure-activity of cobalt-derived pre-catalyst for oxygen evolution reaction. Advanced Science, 2020,7(5):1902830.
[29]	LEE T H, LEE S A, PARK H,et al. Understanding the enhancement of the catalytic properties of goethite by transition metal doping: critical role of O* formation energy relative to OH* and OOH. ACS Applied Energy Materials*, 2020,3(2):1634-1643.
