Al/Mo-C中间层对锆合金表面Zr2Al3C4涂层界面性能影响

doi:10.15541/jim20200286

无机材料学报 ›› 2021, Vol. 36 ›› Issue (5): 541-546.DOI: 10.15541/jim20200286

所属专题：【结构材料】热障与环境障涂层；【结构材料】核用陶瓷

Al/Mo-C中间层对锆合金表面Zr₂Al₃C₄涂层界面性能影响

叶文浩¹^,²(), 魏强¹^,³(), 梁佳敏¹^,², 周洁²^,⁴, 孟凡平², EKLUND Per⁴, 黄庆²()

1.天津大学材料科学与工程学院, 天津 300350
2.中国科学院宁波材料技术与工程研究所, 新能源技术研究所,宁波 315201
3.河北工业大学机械工程学院, 天津 300130
4.Department of Physics, Chemistry, and Biology (IFM), Linköping University, Linköping 581 83, Sweden

收稿日期:2020-05-25 修回日期:2020-08-20 出版日期:2021-05-20 网络出版日期:2021-04-19
通讯作者: 魏强, 教授. E-mail: weiqiang.tju@163.com; 黄庆, 研究员. E-mail: huangqing@nimte.ac.cn
作者简介:叶文浩(1995-), 女, 硕士研究生. E-mail:1097706905@qq.com

Zr₂Al₃C₄ Coatings on Zirconium-alloy Substrates with Enhanced Adhesion and Diffusion Barriers by Al/Mo-C Interlayers

YE Wenhao¹^,²(), WEI Qiang¹^,³(), LIANG Jiamin¹^,², ZHOU Jie²^,⁴, MENG Fanping², EKLUND Per⁴, HUANG Qing²()

1. School of Materials Science and Engineering, Tianjin University, Tianjin 300350, China
2. Engineering Laboratory of Advanced Energy Materials, Ningbo Institute of Materials Technology and Engineering, Chinese Academy of Sciences, Ningbo 315201, China
3. School of Mechanical Engineering, Hebei University of Technology, Tianjin 300130, China
4. Department of Physics, Chemistry, and Biology (IFM), Linköping University, Linköping 581 83, Sweden

Received:2020-05-25 Revised:2020-08-20 Published:2021-05-20 Online:2021-04-19
Contact: WEI Qiang, professor. E-mail: weiqiang.tju@163.com; HUANG Qing, professor. E-mail: huangqing@nimte.ac.cnhuangqing@nimte.ac.cn
About author:YE Wenhao(1995-), female, Master candidate. E-mail:1097706905@qq.com
Supported by:
National Natural Science Foundation of China(51873146);Ningbo Municipal Natural Science Foundation(2018A610005);Major Project of the Ministry of Science and Technology of China(2015ZX06004-001);Swedish Government Strategic Research Area in Materials Science on Functional Materials at Linköping University(Faculty Grant SFO-Mat-LiU No. 2009 00971)

摘要/Abstract

摘要：

锆合金表面涂层研究作为提高核燃料包壳事故容错能力的重要技术手段之一, 能够有效解决失水事故下锆水反应的问题。Zr₂Al₃C₄以其优异的抗氧化性能和适用于核环境的化学组分而成为锆合金包壳的候选涂层材料之一。由于Zr₂Al₃C₄涂层与锆合金基底之间的元素扩散以及热膨胀系数不匹配等问题, 在其上制备Zr₂Al₃C₄涂层的相关研究较少。本研究通过磁控溅射结合后续热处理工艺, 以Al/Mo-C作为扩散屏障层, 在锆合金基底上制备Zr₂Al₃C₄涂层。结合X射线衍射仪、扫描电子显微镜和透射电子显微镜等分析手段, 研究了Al/Mo-C中间层对涂层的相和微观结构的影响。结果表明, 在800 ℃退火3 h后, 未添加中间层的涂层开裂, 同时由于Zr-Al-C涂层与基底之间存在明显的元素扩散, 导致Zr₂Al₃C₄无法成相。Al/Mo-C中间层作为扩散屏障, 能够有效阻止退火过程中Zr-Al-C涂层和基底之间的元素扩散, 从而大大降低Zr-Al-C涂层与标准化学量比的偏差, 有利于最终涂层中Zr₂Al₃C₄相的形成。此外, 该扩散屏障层能够抑制Zr₂Al₃C₄涂层在退火过程中产生裂纹, 同时将退火态涂层与锆合金基底的结合力提高30 N。

关键词: Zr₂Al₃C₄, 中间层, 扩散屏障, 结合力

Abstract:

Zircaloy coating is one of the crucial technical ways to improve the accident tolerance of nuclear fuel cladding, which enables the zirconium-water reaction problems to be solved. Zr₂Al₃C₄ coating is one type of candidate solutions to improve the high-temperature oxidation resistance of zirconium claddings. However, little study has been performed on the synthesis of Zr₂Al₃C₄coatings on zirconium alloy substrates due to the inter-diffusion, as well as the difference of the thermal expansion coefficients between the Zr₂Al₃C₄ coating and the substrates. In this study, Zr₂Al₃C₄ coatings were prepared through room-temperature magnetron sputtering and post annealing on zirconium alloy (ZIRLO) substrates with magnetron-sputtered Al/Mo-C interlayers. The effects of Al/Mo-C interlayers on phases and microstructures of Zr-Al-C coatings after annealing were studied by different methods. It is found that the coatings without interlayer are broken and no Zr₂Al₃C₄ phase is formed due to significant interdiffusion between the Zr-Al-C coating and the substrate during annealing at 800 ℃ for 3 h. The Al/Mo-C interlayers prevented elemental diffusion between Zr-Al-C coatings and substrates during the post-annealing process. The Al/Mo-C interlayers act as diffusion barriers and greatly reduce the stoichiometric deviations from Zr₂Al₃C₄ phase, which facilitates the formation of the Zr₂Al₃C₄ phase in the final coating. Moreover, this diffusion-barrier layers contribute to eliminating cracks induced by the difference of the thermal expansion coefficients between the Zr₂Al₃C₄ coatings and substrates. At the same time, the adhesions between Zr-Al-C coatings with Al/Mo-C interlayers and substrates were improved after annealing, with their strength exceeding 30 N.

Key words: Zr₂Al₃C₄, coating interlayer, diffusion, adhesion

中图分类号:

TB34

叶文浩, 魏强, 梁佳敏, 周洁, 孟凡平, EKLUND Per, 黄庆. Al/Mo-C中间层对锆合金表面Zr₂Al₃C₄涂层界面性能影响[J]. 无机材料学报, 2021, 36(5): 541-546.

YE Wenhao, WEI Qiang, LIANG Jiamin, ZHOU Jie, MENG Fanping, EKLUND Per, HUANG Qing. Zr₂Al₃C₄ Coatings on Zirconium-alloy Substrates with Enhanced Adhesion and Diffusion Barriers by Al/Mo-C Interlayers[J]. Journal of Inorganic Materials, 2021, 36(5): 541-546.

图/表 7

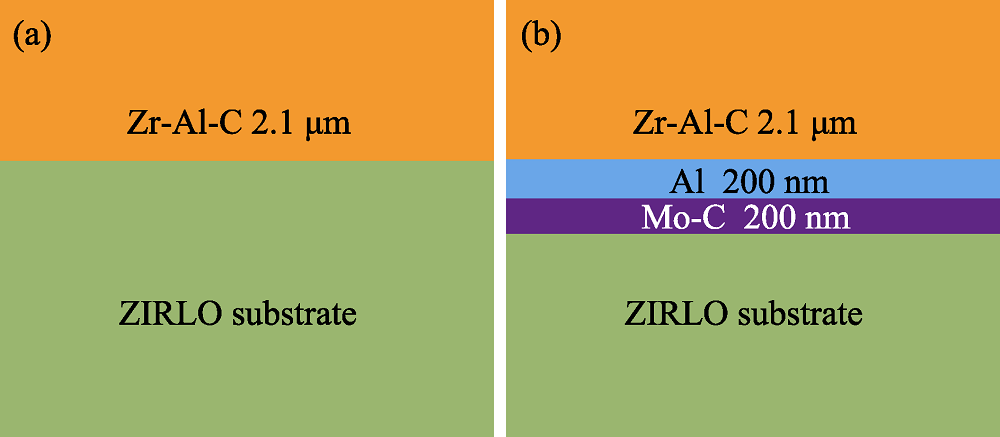

Fig. 1 Schematic views of the monolithic Zr-Al-C coating and the Al/Mo-C interlayer system

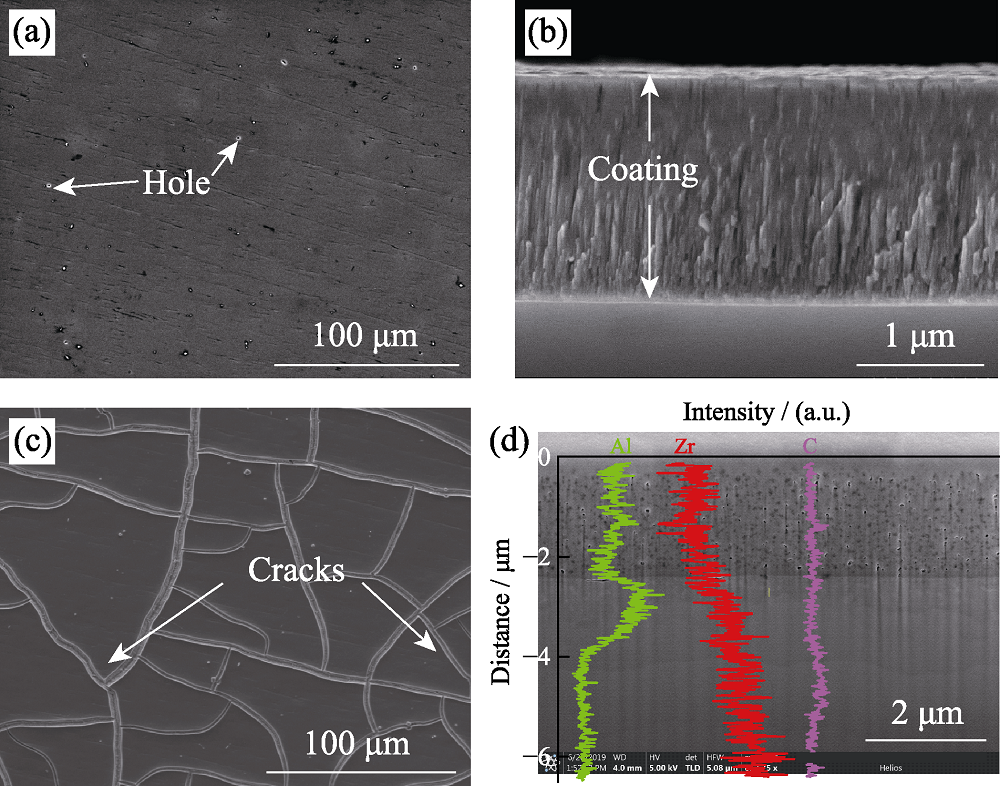

Fig. 2 SEM images of the monolithic Zr-Al-C coating on ZIRLO substrate (a-b) Surface top view and cross section view of as-deposited coating; (c-d) Surface top view and cross section view of the coating annealed at 800 ℃ and its EDS line-scan

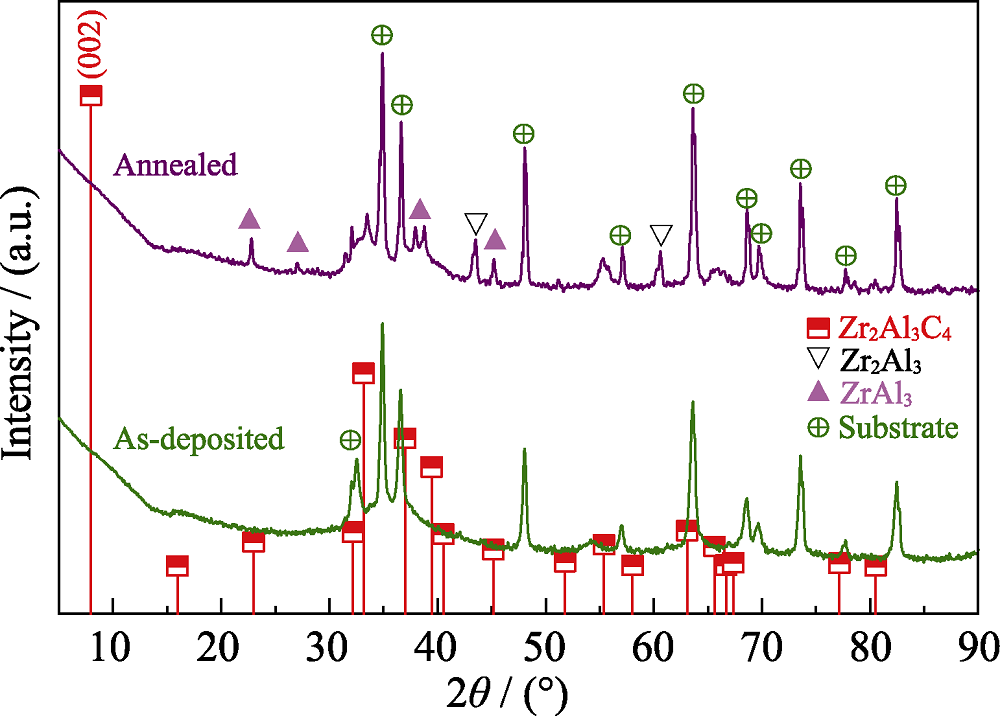

Fig. 3 XRD patterns of the as-deposited and annealed coatings on ZIRLO substrates without any interlayer

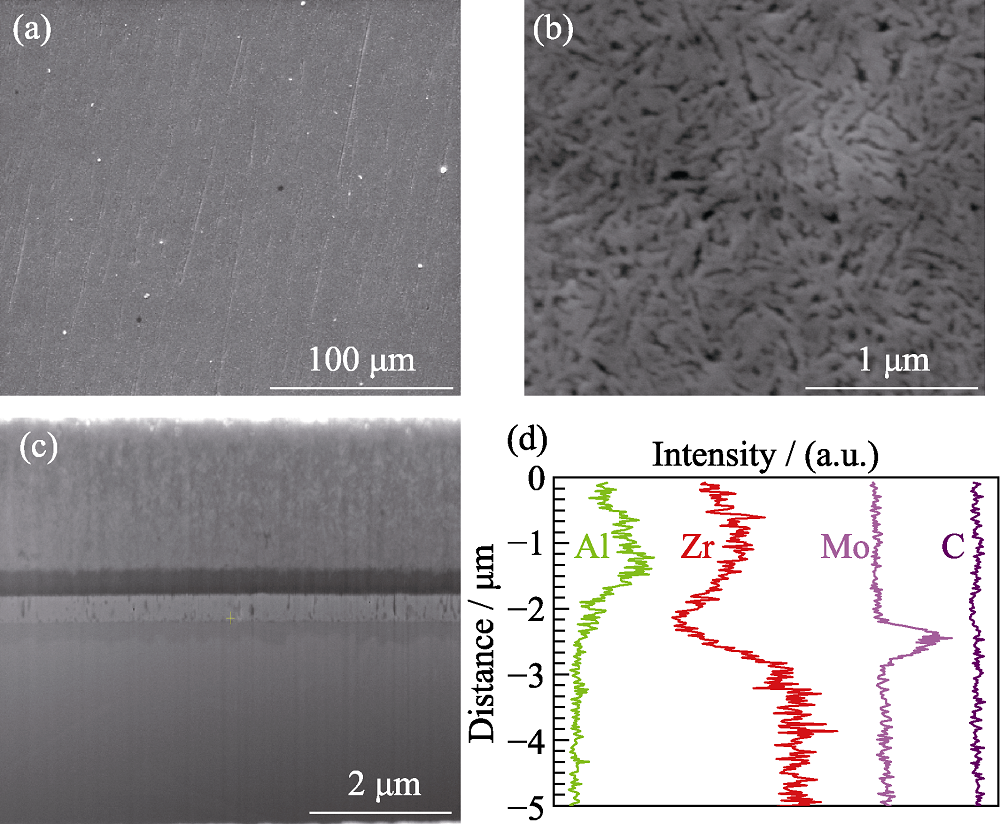

Fig. 4 SEM images of the multilayered C-Mo/Al/Zr-Al-C annealed coatings on ZIRLO substrate and EDS line scan along the cross-section (a-b) Surface top view; (c) Cross section view; (d) EDS-line scan of the coating along the cross-section line in (c) from top and bottom

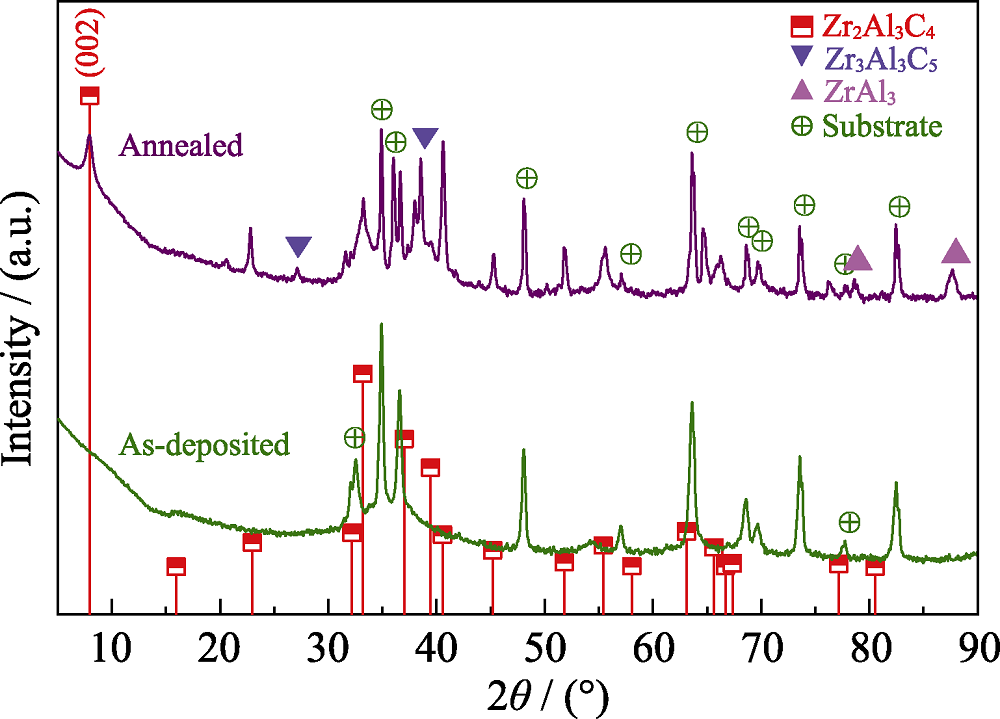

Fig. 5 XRD patterns of as-deposited and annealed coatings on ZIRLO substrates with Al/Mo-C interlayer

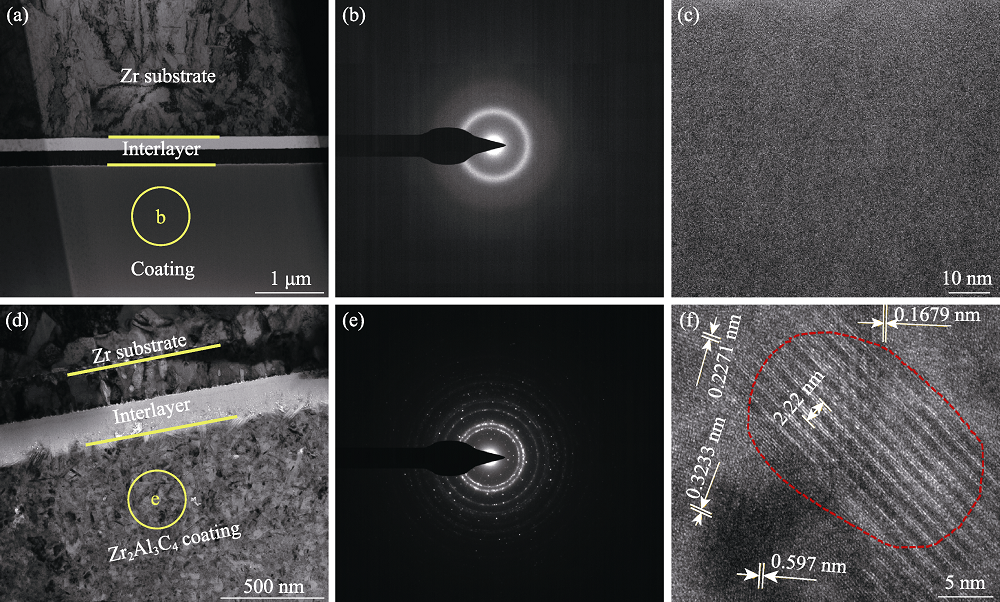

Fig. 6 TEM cross-section images and digital image of C-Mo/Al/Zr-Al-C multilayer coatings on ZIRLO substrates (a, d) Overview images; (b, e) Selective area electron diffraction (SAED) patterns marked in (a) and (d), respectively; (c, f) HRTEM images

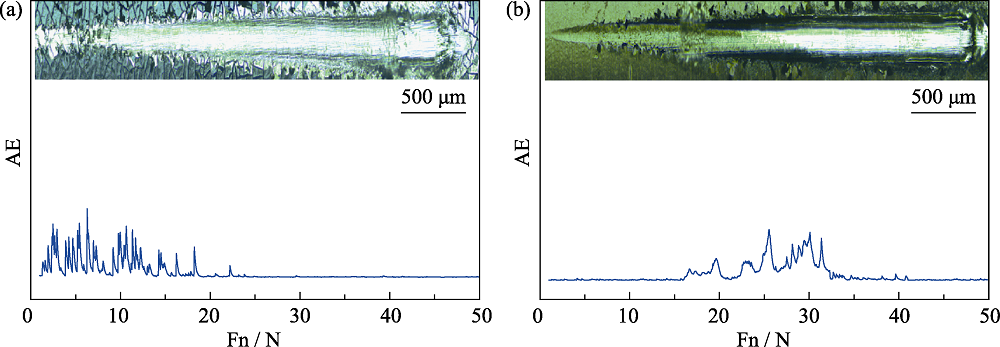

Fig. 7 Optical micrographs of scratch tracks and acoustic emission signals as functions of load for the annealed coatings on the Zr-substrate (a) Zr-Al-C coating without interlayer; (b) Coating with Al/Mo-C interlayer

参考文献 19

[1]	KIM H G, YANG J H, KIM W J, et al. Development status of accident-tolerant fuel for light water reactors in Korea. Nuclear Engineering & Technology, 2016,48(1):1-15.
[2]	PARK D J, KIM H G, JUNG Y I, et al. Behavior of an improved Zr fuel cladding with oxidation resistant coating under loss-of-coolant accident conditions. Journal of Nuclear Materials, 2016,482(15):75-82.
[3]	LEE C M, SOHN D S. Enhanced high-temperature oxidation resistance of a zircon-nium alloy cladding by high-temperature preformed oxide on the cladding. Corrosion Science, 2018,131:116-125.
[4]	KURATA M. Research and development methodology for practical use of accident tolerant fuel in light water reactors. Nuclear Engineering & Technology, 2016,48(1):26-32.
[5]	BARSOUM M W. The M_N₊₁AX_N phases: a new class of solids: thermodynamically stable nanolaminates. Progress in Solid State Chemstry, 2000,28(1):201-281.
[6]	SUN Z M. Progress in research and development on MAX phase: a family of layered ternary compounds. International Materials Reviews, 2011,56(3):143-166.
[7]	LAI C C, TUCKER M D, EKLUND P, et al. Synthesis and characterization of Zr₂Al₃C₄ thin films. Thin Solid Films, 2015,595:142-147.
[8]	HOFFMAN E N, VINSON D W, SINDELAR P L, et al. MAX phase carbides and nitrides: properties for future nuclearpower plant in-core applications and neutron transmutation analysis. Nuclear Engineering and Design, 2012,244:17-24.
[9]	THOMAS L, BENSU T, DANIEL P, et al. The double solid solution (Zr, Nb)₂(Al, Sn)C MAX phase : a steric stability approach. Scientific Reports, 2018,8(1):12801. URL PMID
[10]	LAPAUW T, LAMBRINOU K, CABIOC’H T, et al. Synthesis of the new MAX phase Zr₂AlC. Journal of the European Ceramic Society, 2016,36:1847-1853.
[11]	LAPAUW T, HALIM J, LU J, et al. Synthesis of the novel Zr₃AlC₂ MAX phase. Journal of the European Ceramic Society, 2016,36:943-947.
[12]	QARRA H H, KNOWLES K M, VICKERS M E, et al. Heavy ion irradiation damage in Zr₃(Al_0.9Si_0.1)C MAX phase. Journal of Nuclear Materials, 2020,540.
[13]	ZHOU Y C, HE L F, LIN Z J, et al. Synthesis and structure- property relationships of a new family of layered carbides in Zr-Al(Si)-C and Hf-Al(Si)-C systems. Journal of the European Ceramic Society, 2013,33(15/16):2831-2865.
[14]	HE L F, LIN Z J, WANG J Y, et al. Synthesis and characterization of bulk Zr₂Al₃C₄ ceramic. Journal of the American Ceramic Society, 2007,90(11):3687-3689.
[15]	FUKUDA K, MORI S, HASHIMOTO S. Crystal structure of Zr₂Al₃C₄. Journal of the American Ceramic Society, 2005,88(12):3528-3530.
[16]	HE L F, LU X P, BAO Y W, et al. High-temperature internal friction, stiffness and strength of Zr-Al(Si)-C ceramics. Scripta Materialia, 2009,61(1):60-63.
[17]	HE L F, ZHONG H B, XU J J, et al. Ultrahigh temperature oxidation of Zr₂Al₃C₄ via rapid induction heating. Scripta Materialia, 2009,60(7):547-550.
[18]	PETUKHOV V. Thermal expansion of zirconium in the solid phase. High Temperatures High Pressures, 2003, 35-36(1):15-23.
[19]	Liang J M, Wei Q, Ge F F, et al. Synthesis of Zr₂Al₃C₄ coatings on zirconium-alloy substrates with Al-C/Si interlayers as diffusion barriers. Vacuum, 2018,160:128-132.
