无机材料学报 ›› 2020, Vol. 35 ›› Issue (8): 939-946.DOI: 10.15541/jim20190469
所属专题: 结构陶瓷论文精选(2020); 功能材料论文精选(2020); 【虚拟专辑】分离膜,复相陶瓷(2020~2021)
收稿日期:
2019-09-10
修回日期:
2019-11-01
出版日期:
2020-08-20
网络出版日期:
2020-01-20
作者简介:
张 博(1995–), 女, 硕士研究生. E-mail: 基金资助:
ZHANG Bo1(),ZHANG Ning1,YANG Jianhua2,LAN Jiancheng2,WANG Jinqu1,2
Received:
2019-09-10
Revised:
2019-11-01
Published:
2020-08-20
Online:
2020-01-20
Supported by:
摘要:
采用廉价的大孔α-Al2O3作为载体, 通过二次晶种诱导+两步变温水热合成工艺, 成功制备出薄而致密的高性能T型沸石膜。该方法能够充分发挥晶种的诱导成核作用, 通过改变两阶段水热晶化温度和时间来控制晶种外延生长和晶体生长方向, 最终获得了连续、无缺陷的a&b取向T型沸石膜。实验过程中详细考察了第一阶段的晶化温度、晶化时间以及第二阶段的晶化温度对沸石膜表面结构和性能的影响, 并将最优两步晶化条件下制备的膜用于90wt%的异丙醇/水渗透汽化分离, 在75 ℃下膜的通量为3.84 kg·m -2·h -1, 分离因子大于10000。
中图分类号:
张博,张宁,杨建华,兰建成,王金渠. 两步晶化制备高性能a&b取向T型沸石膜[J]. 无机材料学报, 2020, 35(8): 939-946.
ZHANG Bo,ZHANG Ning,YANG Jianhua,LAN Jiancheng,WANG Jinqu. High Performance a&b Oriented T Zeolite Membrane by a Two-stage Crystallization Synthesis[J]. Journal of Inorganic Materials, 2020, 35(8): 939-946.
图1 α-Al2O3载体((a)-表面, (b)-截面)、大晶种(c)、小晶种(d)、大晶种修饰后的载体((e)-表面, (f)-截面)以及小晶种层((g)-表面, (h)-截面)的SEM照片
Fig. 1 SEM images of α-Al2O3 support photographed from surface (a) and cross section (b), large seeds (c), small seeds (d), modified by large seeds photographed from surface (e) and cross section (f), and the small seed layer photographed from surface (g) and cross section (h)

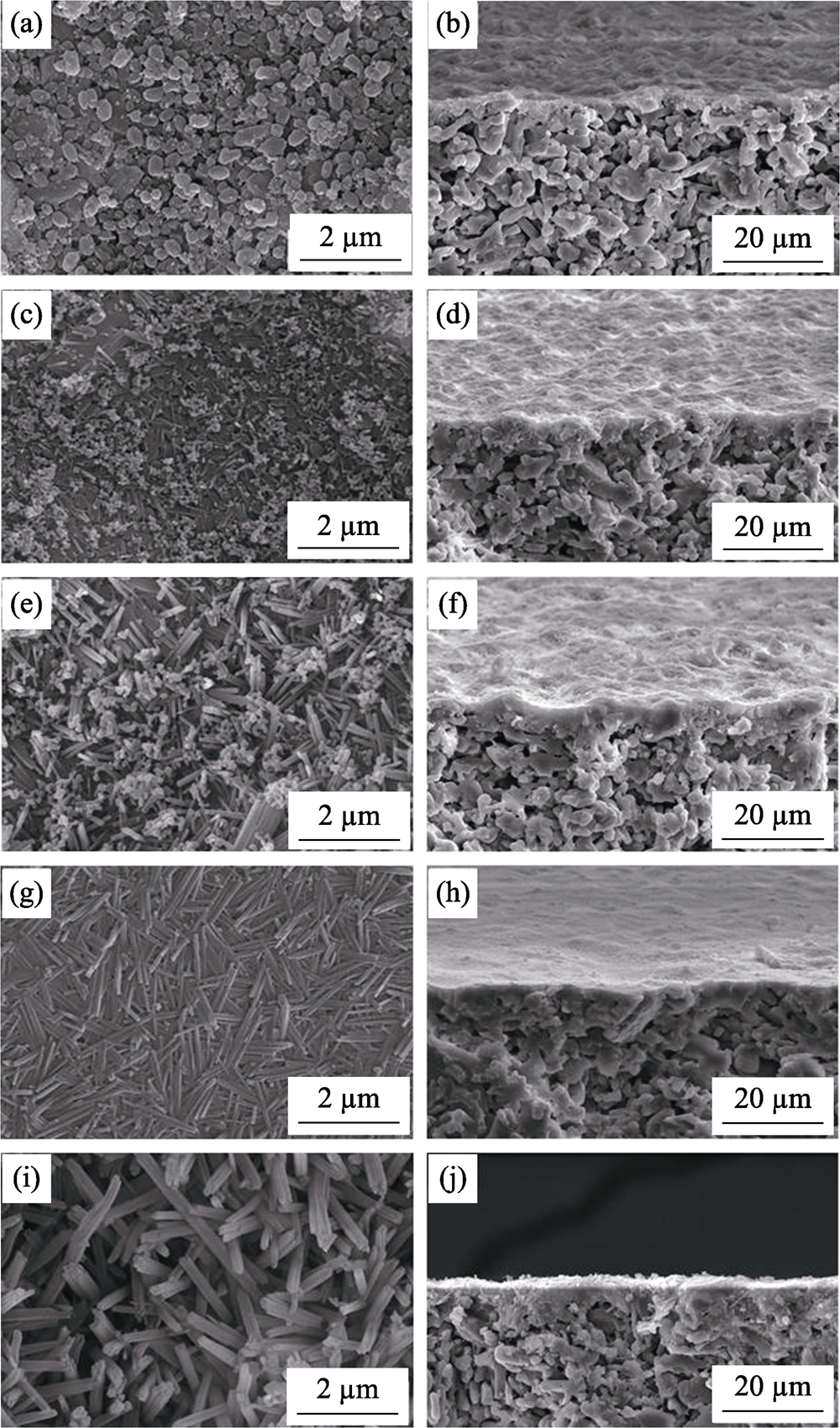

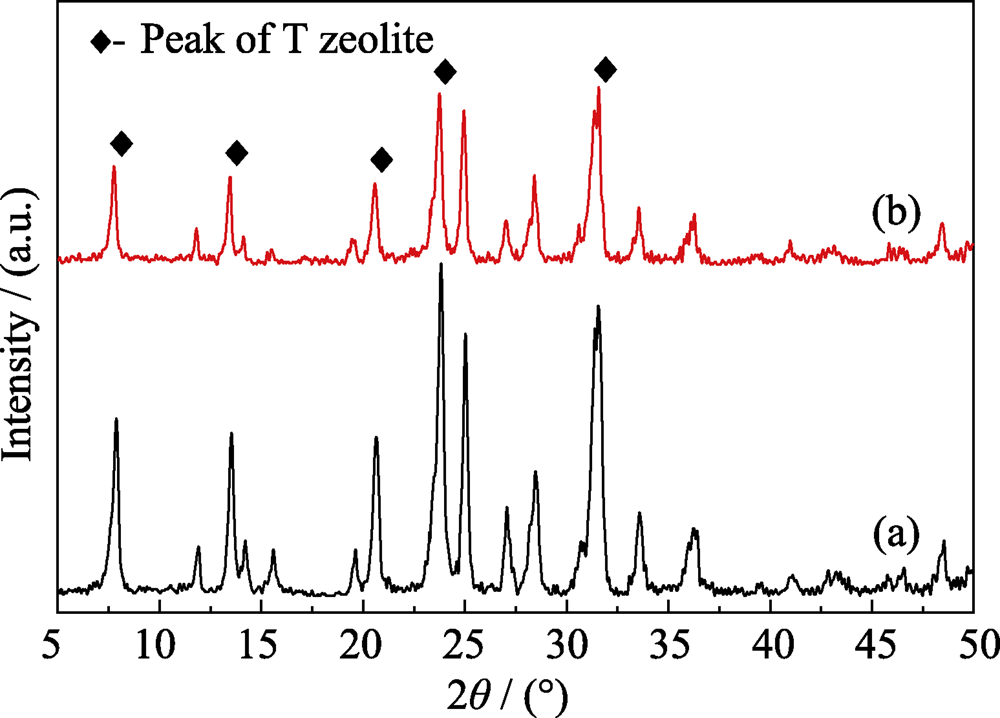

图3 不同的第一步晶化温度下第一步晶化后的T型沸石膜的SEM照片
Fig. 3 SEM images of T-type zeolite membranes after first-step crystallization prepared at different first-step crystallization temperatures (a, b) M1-1, 110 ℃; (c, d) M2-1, 120 ℃; (e, f) M3-1, 130 ℃; (g, h) M4-1, 135 ℃; (i, j) M5-1, 150 ℃

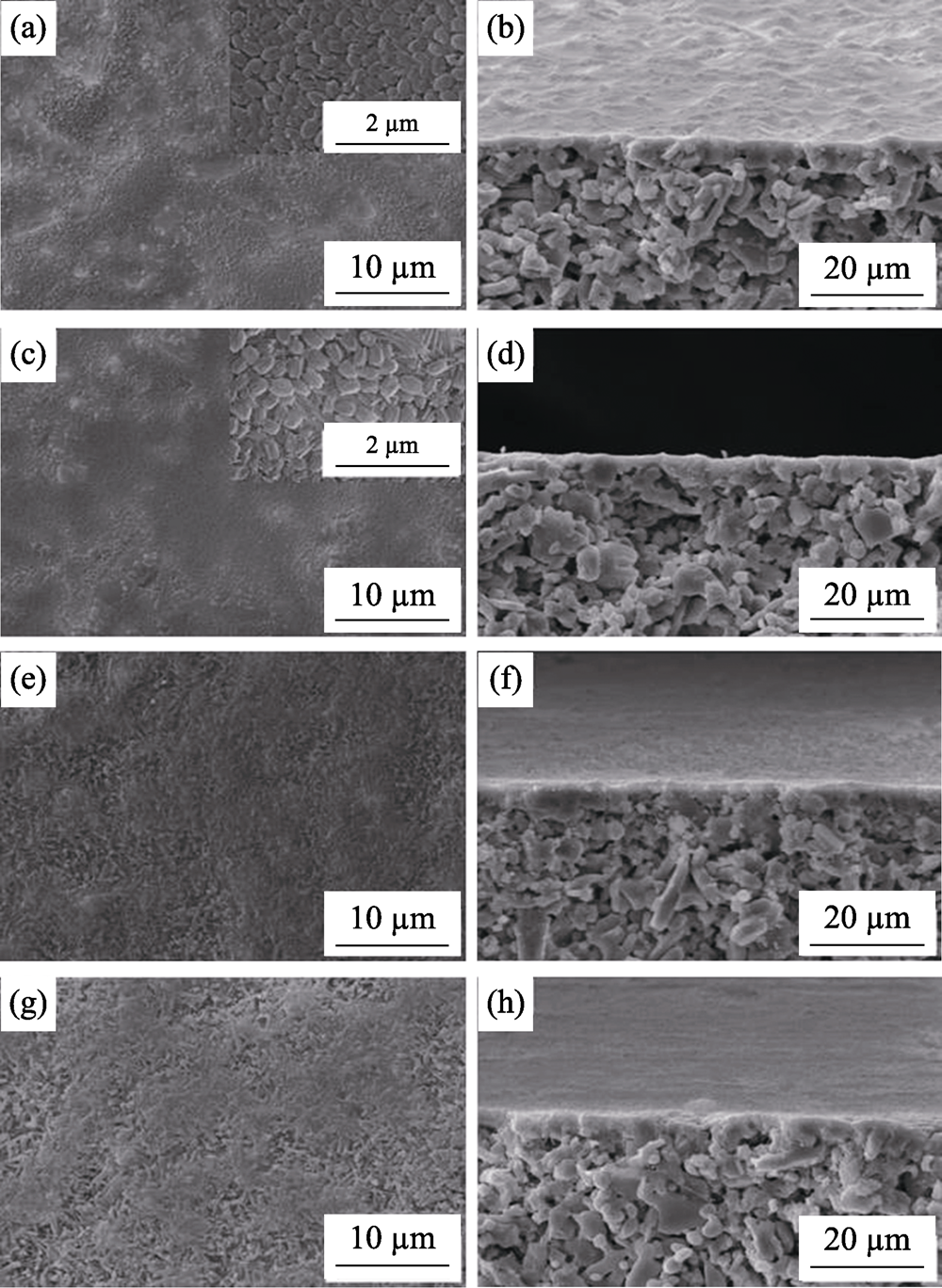

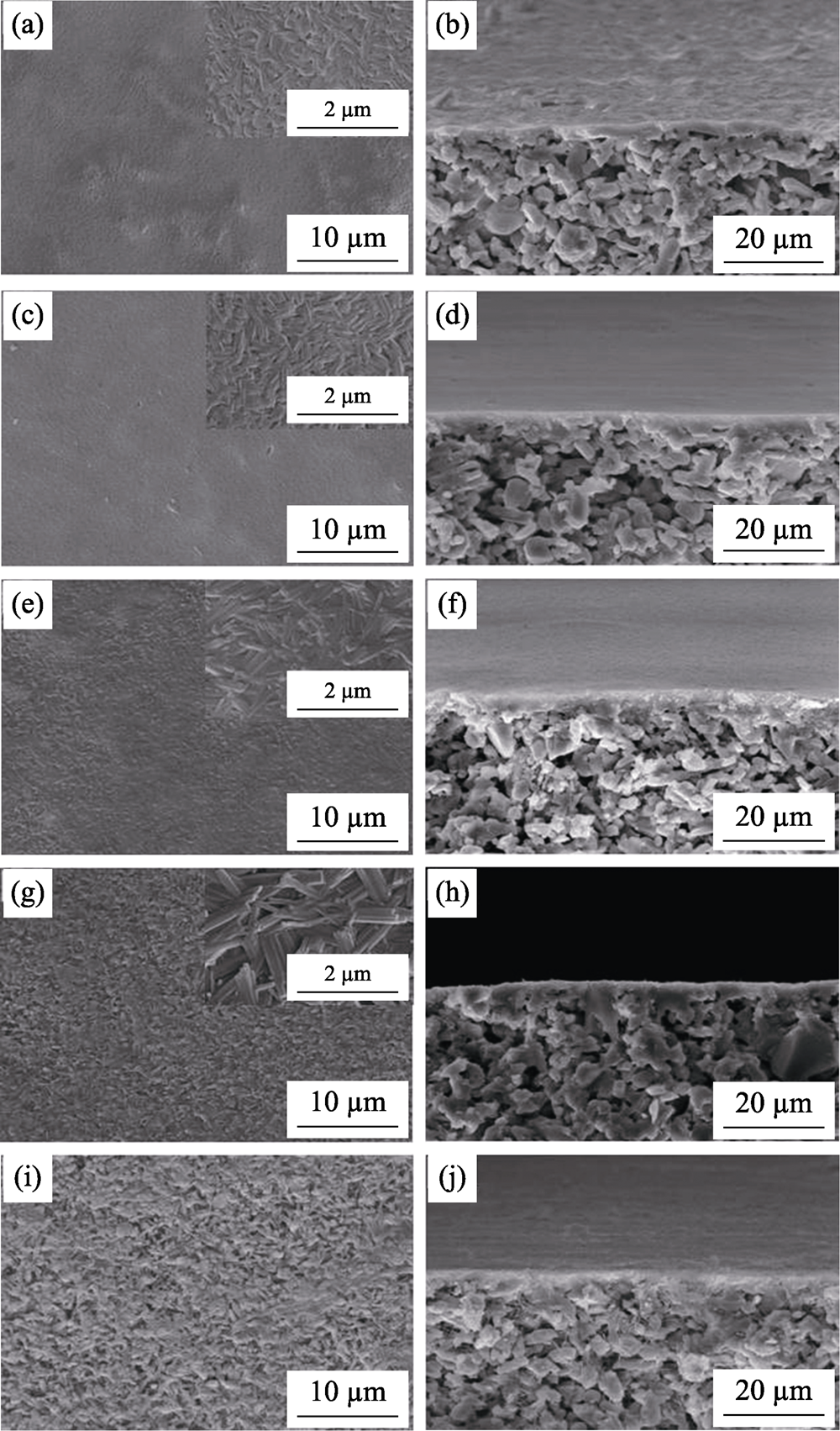

图4 不同的第一步晶化温度下两步晶化后的T型沸石膜的SEM照片
Fig. 4 SEM images of T-type zeolite membranes after two-step crystallizations prepared at different first-step crystallization temperature (a, b) M1, 110 ℃; (c, d) M2, 120 ℃; (e, f) M3, 130 ℃; (g, h) M4, 135 ℃; (i, j) M5, 150 ℃
No. | First-step crystallization | Second-step crystallization | J/ (kg·m-2·h-1) | α | ||
---|---|---|---|---|---|---|
Temp./℃ | Time/h | Temp./℃ | Time/h | |||
M1 | 110 | 4 | 110 | 6 | - | - |
M2 | 120 | 4 | 110 | 6 | 4.19 | 968 |
M3 | 130 | 4 | 110 | 6 | 3.87 | 5219 |
M4 | 135 | 4 | 110 | 6 | 3.84 | >10000 |
M5 | 150 | 4 | 110 | 6 | 3.53 | 2918 |
表1 不同的第一步晶化温度制备的T型沸石膜的渗透汽化性能
Table 1 Pervaporation performance of T zeolite membranes prepared under different first-step crystallization temperatures
No. | First-step crystallization | Second-step crystallization | J/ (kg·m-2·h-1) | α | ||
---|---|---|---|---|---|---|
Temp./℃ | Time/h | Temp./℃ | Time/h | |||
M1 | 110 | 4 | 110 | 6 | - | - |
M2 | 120 | 4 | 110 | 6 | 4.19 | 968 |
M3 | 130 | 4 | 110 | 6 | 3.87 | 5219 |
M4 | 135 | 4 | 110 | 6 | 3.84 | >10000 |
M5 | 150 | 4 | 110 | 6 | 3.53 | 2918 |

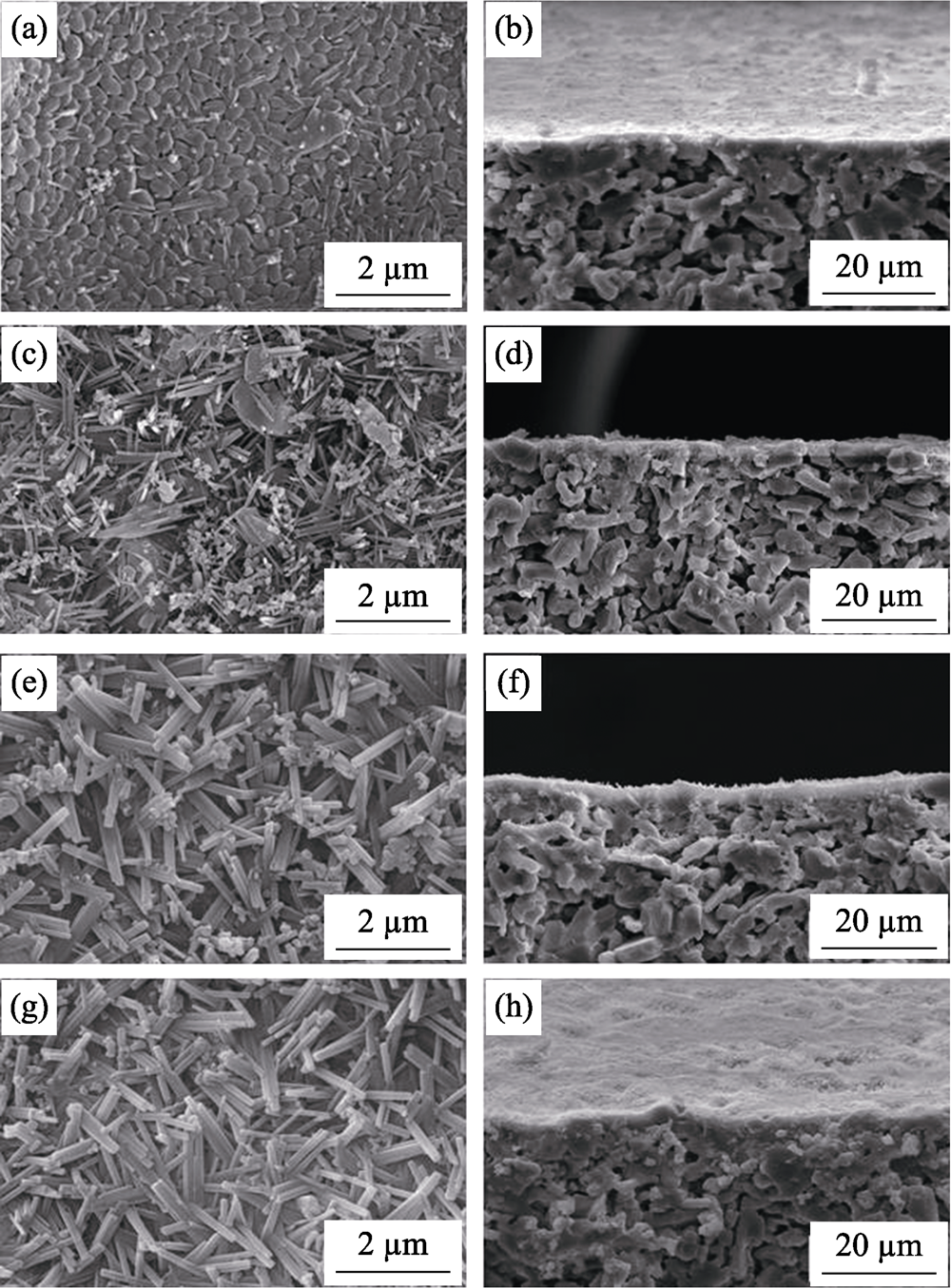

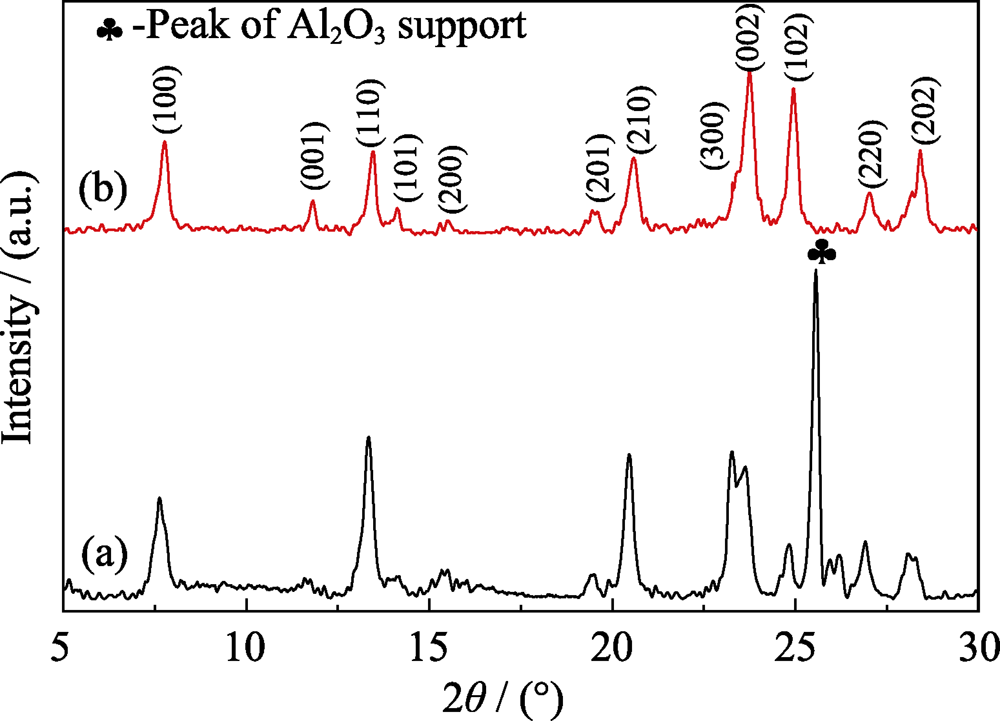

图6 不同的第一步晶化时间下第一步晶化后的T型沸石膜的SEM照片
Fig. 6 SEM images of T-type zeolite membranes after first-step crystallization prepared with varying first-step crystallization time (a, b) M6-1, 2 h; (c, d) M7-1, 3 h; (e, f) M8-1, 5 h; (g, h) M9-1, 6 h
图7 不同的第一步晶化时间下两步晶化后的T型沸石膜的SEM照片
Fig. 7 SEM images of T-type zeolite membranes after two-step crystallizations prepared with different first-step crystallization time (a, b) M6, 2 h; (c, d) M7, 3 h; (e, f) M8, 5 h; (g, h) M9, 6 h
No. | First-step crystallization | Second-step crystallization | J/ (kg ·m-2·h-1) | α | ||
---|---|---|---|---|---|---|
Temp./℃ | Time/h | Temp./℃ | Time/h | |||
M6 | 135 | 2 | 110 | 6 | - | - |
M7 | 135 | 3 | 110 | 6 | 4.04 | 915 |
M4 | 135 | 4 | 110 | 6 | 3.84 | >10000 |
M8 | 135 | 5 | 110 | 6 | 4.2 | 2371 |
M9 | 135 | 6 | 110 | 6 | 4.97 | 697 |
表2 不同的第一步晶化时间制备的T型沸石膜的渗透汽化性能
Table 2 Pervaporation performance of T zeolite membranes prepared with different first-step crystallization time
No. | First-step crystallization | Second-step crystallization | J/ (kg ·m-2·h-1) | α | ||
---|---|---|---|---|---|---|
Temp./℃ | Time/h | Temp./℃ | Time/h | |||
M6 | 135 | 2 | 110 | 6 | - | - |
M7 | 135 | 3 | 110 | 6 | 4.04 | 915 |
M4 | 135 | 4 | 110 | 6 | 3.84 | >10000 |
M8 | 135 | 5 | 110 | 6 | 4.2 | 2371 |
M9 | 135 | 6 | 110 | 6 | 4.97 | 697 |
图8 不同第二步晶化温度下两步晶化后的T型沸石膜的SEM照片
Fig. 8 SEM images of T-type zeolite membranes after two-step crystallizations prepared at different second-step crystallization temperatures (a, b) M10, 90 ℃; (c, d) M11, 100 ℃; (e, f) M12, 120 ℃; (g, h) M13, 130 ℃
No | First-step crystallization | Second-step crystallization | J/ (kg·m-2·h-1) | α | ||
---|---|---|---|---|---|---|
Temp./℃ | Time/h | Temp./℃ | Time/h | |||
M10 | 135 | 4 | 90 | 6 | - | - |
M11 | 135 | 4 | 100 | 6 | 3.94 | 2646 |
M4 | 135 | 4 | 110 | 6 | 3.84 | >10000 |
M12 | 135 | 4 | 120 | 6 | 3.97 | 5867 |
M13 | 135 | 4 | 130 | 6 | 3.41 | 5594 |
表3 不同的第二步晶化温度制备的T型沸石膜的渗透汽化性能
Table 3 Pervaporation performance of T zeolite membranes prepared under different second-step crystallization temperatures
No | First-step crystallization | Second-step crystallization | J/ (kg·m-2·h-1) | α | ||
---|---|---|---|---|---|---|
Temp./℃ | Time/h | Temp./℃ | Time/h | |||
M10 | 135 | 4 | 90 | 6 | - | - |
M11 | 135 | 4 | 100 | 6 | 3.94 | 2646 |
M4 | 135 | 4 | 110 | 6 | 3.84 | >10000 |
M12 | 135 | 4 | 120 | 6 | 3.97 | 5867 |
M13 | 135 | 4 | 130 | 6 | 3.41 | 5594 |
Support | Temp./ ℃ | Time/ h | J/ (kg·m-2·h-1) | α | Ref. |
---|---|---|---|---|---|
α-Al2O3 disc | 120 | 24 | 2.24 | 10000 | [29] |
α-Al2O3 tube | 100 | 30 | 2.52 | 10000 | [21] |
α-Al2O3 tube | 120 | 16 | 2.96 | 6400 | [23] |
α-Al2O3 tube | 100+140a | 8+1a | 2.15 | 10000 | [19] |
α-Al2O3 tube | 150+120b | 4+8b | 2.04 | 2874 | [30] |
α-Al2O3 tube | 135+110c | 4+6c | 3.84 | >10000 | This work |
表4 T型沸石膜用于75 ℃、90wt%异丙醇/水体系分离的渗透蒸发性能
Table 4 Pervaporation performance of zeolite T membranes for 90wt% isopropanol/water mixture at 75 ℃
Support | Temp./ ℃ | Time/ h | J/ (kg·m-2·h-1) | α | Ref. |
---|---|---|---|---|---|
α-Al2O3 disc | 120 | 24 | 2.24 | 10000 | [29] |
α-Al2O3 tube | 100 | 30 | 2.52 | 10000 | [21] |
α-Al2O3 tube | 120 | 16 | 2.96 | 6400 | [23] |
α-Al2O3 tube | 100+140a | 8+1a | 2.15 | 10000 | [19] |
α-Al2O3 tube | 150+120b | 4+8b | 2.04 | 2874 | [30] |
α-Al2O3 tube | 135+110c | 4+6c | 3.84 | >10000 | This work |
