炭辅助的固态粒子烧结工艺制备多孔TiO2/不锈钢膜

doi:10.15541/jim20140531

无机材料学报 ›› 2015, Vol. 30 ›› Issue (4): 427-431.DOI: 10.15541/jim20140531

炭辅助的固态粒子烧结工艺制备多孔TiO₂/不锈钢膜

魏磊¹, 黄彦²

(1. 中国船舶重工集团公司第七一八研究所, 邯郸 056027; 2. 南京工业大学化学化工学院, 材料化学工程国家重点实验室, 南京 210009)

收稿日期:2014-10-20 修回日期:2014-12-25 出版日期:2015-04-29 网络出版日期:2015-03-26
作者简介:魏磊(1986–), 男, 博士, 工程师. E-mail: weilei1108@163.com

Preparation of Porous TiO₂/Stainless-steel Membranes by Carbon Assisted Solid-state Particle Sintering

WEI Lei¹, HUANG Yan²

(1. The 718th Research Institute of CSIC, Handan 056027, China; 2. State Key Laboratory of Materials-oriented Chemical Engineering, College of Chemistry and Chemical Engineering, Nanjing Tech University, Nanjing 210009, China)

Received:2014-10-20 Revised:2014-12-25 Published:2015-04-29 Online:2015-03-26
About author:WEI Lei. E-mail: weilei1108@163.com

摘要/Abstract

摘要：

提出了一种炭辅助的固态粒子烧结工艺, 可在大孔烧结金属载体表面直接制得无过渡层的多孔陶瓷膜。以纳米TiO₂为成膜粒子, 以大孔不锈钢滤管为载体, 以聚乙烯醇(PVA)为粘结剂, 采用浸渍提拉法在载体表面涂覆。考察了不同烧结气氛(氮气和空气)对陶瓷膜制备的影响。通过扫描电子显微镜、X射线衍射、热重分析和孔径测试对材料进行表征。实验发现, 试样在空气中烧结后膜层发生严重剥落, 而在氮气中烧结后膜层完整。这是由于PVA在氮气中高温碳化生成炭, 所形成的TiO₂和炭的混合结构削弱了因载体表面状况差和陶瓷—金属间热膨胀系数不匹配而引起的陶瓷层烧结应力。待陶瓷颗粒烧结后, 涂层中的炭经空气热处理脱除。所制备的多孔TiO₂/不锈钢膜的膜层厚度约10 μm, 平均孔径为0.21 μm, 室温下氮气通量为1.72 m³/(m²·h·kPa)。

关键词: 固态粒子烧结, 大孔不锈钢载体, 多孔TiO2/不锈钢膜, 烧结气氛, 烧结应力

Abstract:

Porous ceramic membranes on macroporous metal support without any intermediate layer were prepared by a solid-state particle sintering assisted with carbon. Nano-scale TiO₂ particle and macroporous stainless-steel tube were employed as membrane material and support, respectively. For surface coating, polyvinyl alcohol (PVA) was used as adhesive agent, and dip-coating procedure was performed. Effect of different sintering atmosphere (i.e., nitrogen and air) during the preparation of porous ceramic membrane was investigated. For characterization, scanning electron microscopy, X-ray diffraction, thermogravimetry and porometry analyses were conducted, respectively. It was found that serious peeling of the ceramic membrane was occurred when the coated sample was heat-treated in air, but an integrated membrane was achieved when the sintering atmosphere was replaced with nitrogen. Owing to the existence of carbon generated by the carbonization of PVA in nitrogen at high temperature, the mixed structure of TiO₂ and carbon can help to weaken the membrane sintering stress which is caused by poor quality of the support surface and by mismatch of the thermal-expansion-coefficients of ceramic and metal. After the sintering of TiO₂ particle, the generated carbon can be removed by heat-treatment in air, resulting in a porous TiO₂/stainless-steel membrane. The membrane thickness and mean pore size are 10 μm and 0.21μm, respectively, and the corresponding nitrogen flux is 1.72 m³/(m²·h·kPa) at room temperature.

Key words: solid-state particle sintering, macroporous stainless-steel support, porous TiO2/stainless-steel membrane, sintering atmosphere, sintering stress

中图分类号:

TB321

魏磊, 黄彦. 炭辅助的固态粒子烧结工艺制备多孔TiO₂/不锈钢膜[J]. 无机材料学报, 2015, 30(4): 427-431.

WEI Lei, HUANG Yan. Preparation of Porous TiO₂/Stainless-steel Membranes by Carbon Assisted Solid-state Particle Sintering[J]. Journal of Inorganic Materials, 2015, 30(4): 427-431.

图/表 7

图1 大孔不锈钢载体表面SEM微观形貌

Fig. 1 SEM image of suface of the macroporous stainless- steel support

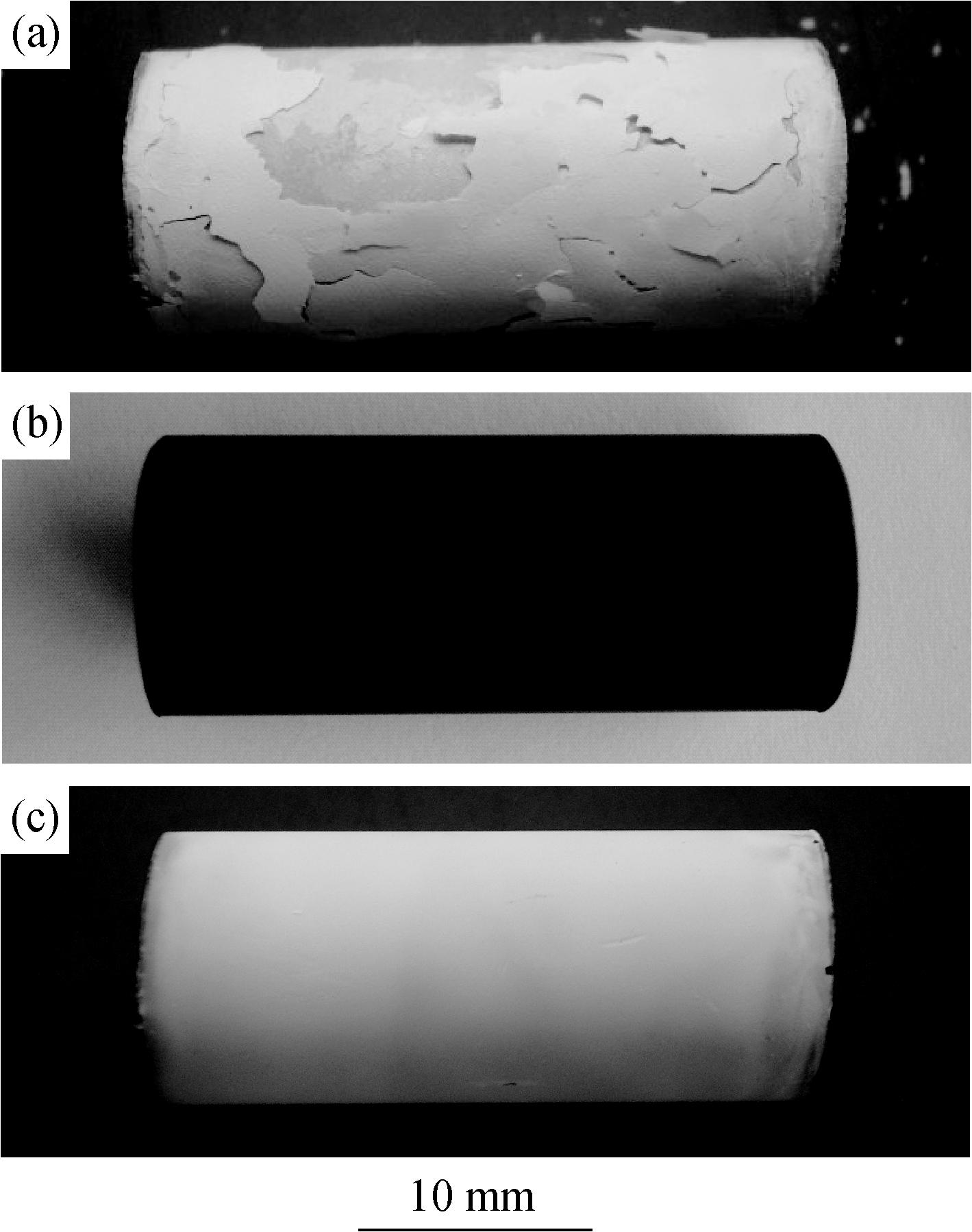

图2 样品M-0(a)、M-1(b)和M-2(c)的实物照片

Fig. 2 Photographs of (a) M-0, (b) M-1 and (c) M-2

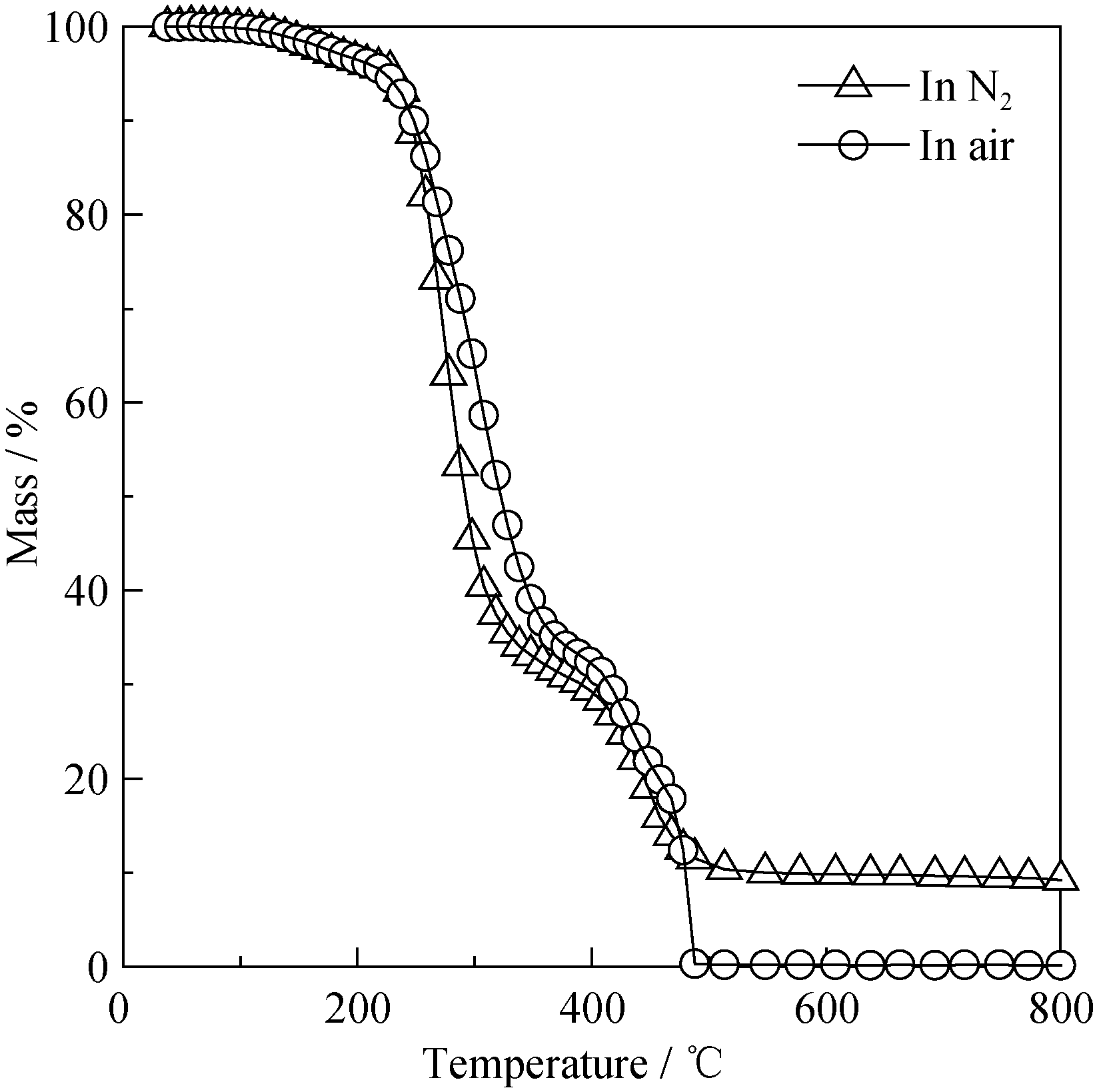

图3 PVA在空气和氮气气氛中的热重分析

Fig. 3 Thermogravimetric analyses of PVA in air and in nitrogen

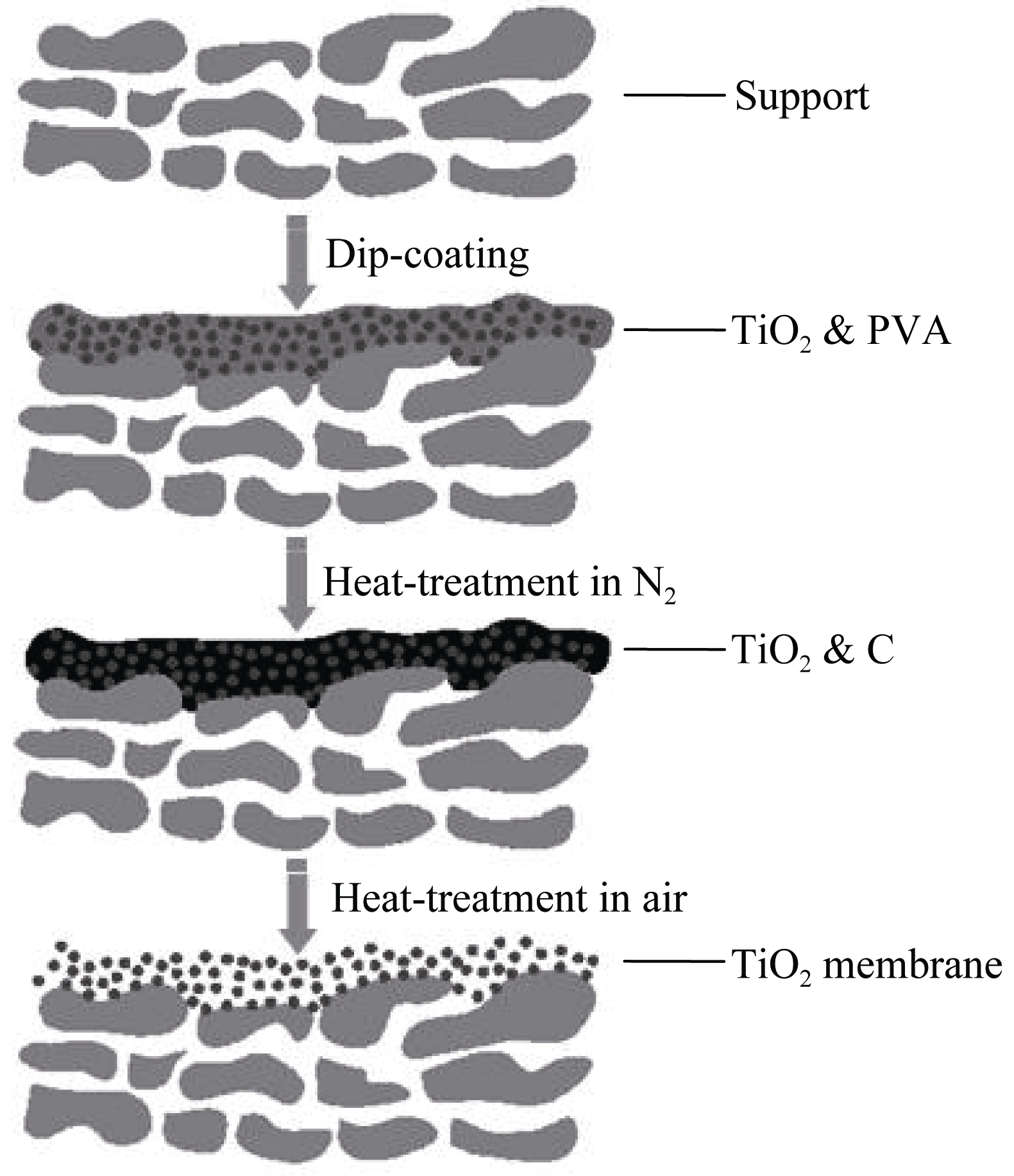

图4 炭辅助的固态粒子烧结工艺示意图

Fig. 4 Schematic of the carbon assisted solid-state particle sintering process

图5 M-1(a)、M-2(b)表面和M-2断面(c)的SEM照片

Fig. 5 Surface SEM images of (a) M-1 and (b) M-2, (c) cross-section SEM image of M-2

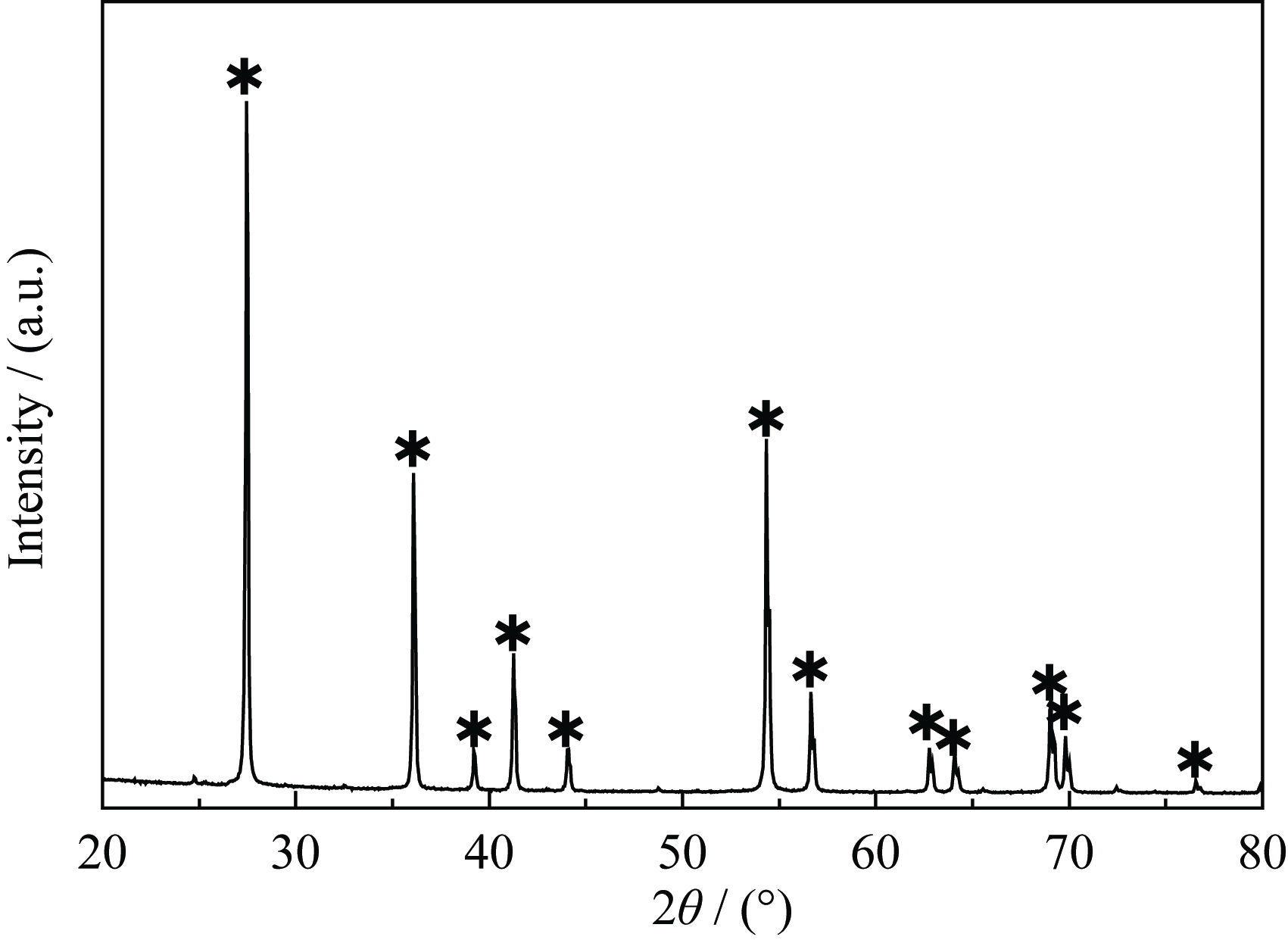

图6 样品M-2表面TiO2膜的XRD图谱

Fig. 6 XRD pattern of TiO2 membrane of sample M-2

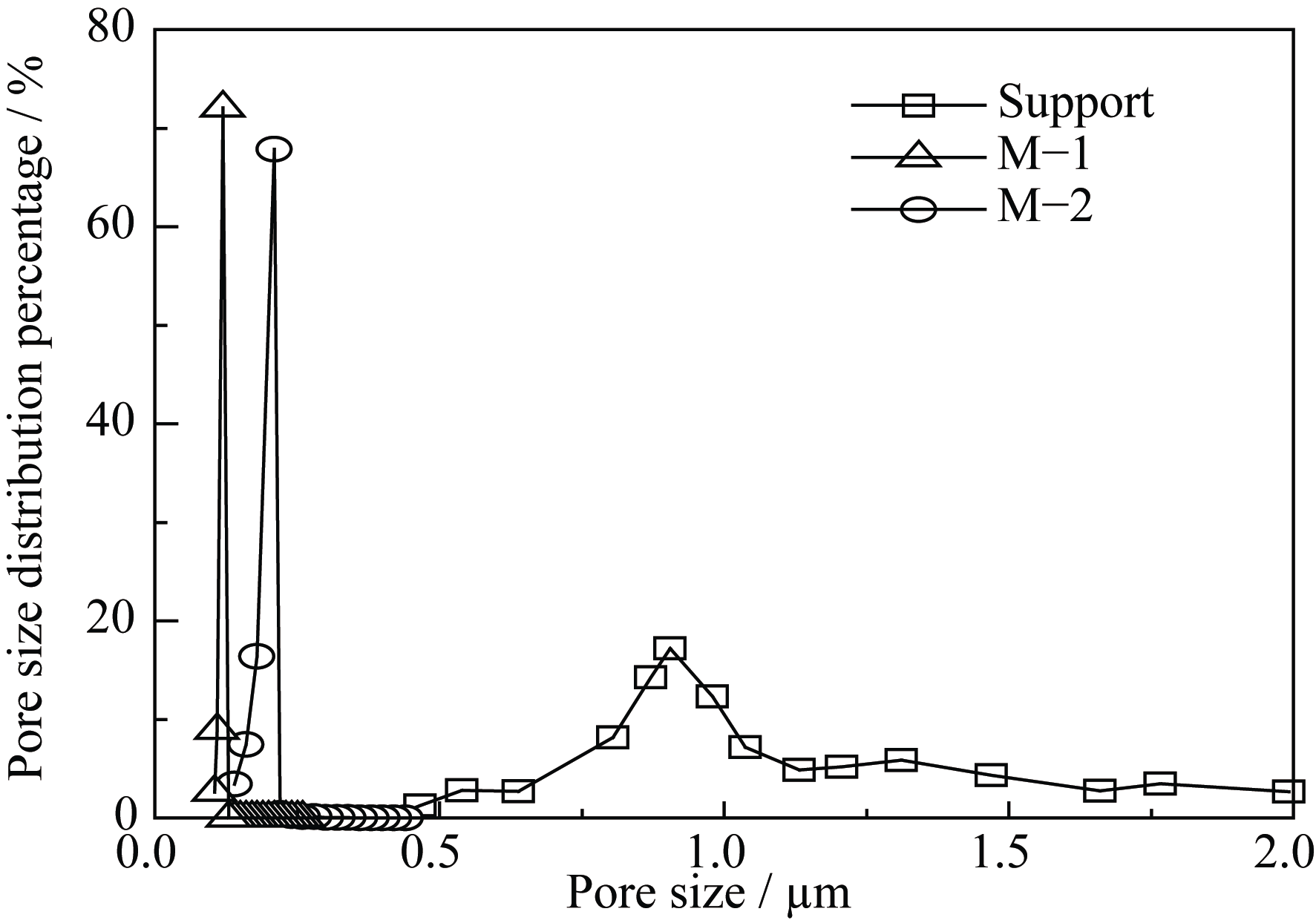

图7 不锈钢载体、M-1和M-2样品的孔径分布

Fig. 7 Pore size distribution of the samples of stainless-steel support, M-1 and M-2

参考文献 16

[1]	徐南平. 面向应用过程的陶瓷膜材料设计、制备与应用. 北京: 科学出版社, 2005: 313-427.
[2]	SALEHI E, MADAENI S S, SHAMSABADI A A, et al.Applicability of ceramic filters in pretreatment of coke-contaminated petrochemical wasterwater: economic feasibility study.Ceram. Int., 2014, 40(3): 4805-4810.
[3]	CHANG Q B, ZHOU J E, WANG Y Q, et al.Application of ceramic microfiltration membrane modified by nano-TiO2 coating in separation of a stable oil-in-water emulsion.J. Membr. Sci., 2014, 456: 128-133.
[4]	LI Z H, QIU N X, YANG G M.Effects of synthesis parameters on the microstructure and phase structure of porous 316L stainless steel supported TiO2 membranes.J. Membr. Sci., 2009, 326(2): 533-538.
[5]	GESTEL T V, SEBOLD D, MEULENBERG W A, et al.Manufacturing of new nano-structured ceramic-metallic composite microporous membranes consisting of ZrO2, Al2O3, TiO2 and stainless steel.Solid State Ionics, 2008, 179(27-32): 1360-1366.
[6]	MEULENBERG W A, MERTENS J, BRAM M, et al.Graded porous TiO2 membranes for microfiltration.J. Eur. Ceram., 2006, 26(4/5): 449-454.
[7]	XIA CHANG-RONG, GAO JIAN-FENG, PENG DING-KUN, et al.Preparation of yttria stabilized zirconia ultrafiltration membranes with inorganic precursors.J. Inorg. Mater., 2001, 16(1): 188-192.
[8]	FUJII T, YANO T, NAKAMURA K, et al.The Sol-Gel preparation and characterization of nanoporous silica membrane with controlled pore size.J. Membr. Sci., 2001, 187(1/2): 171-180.
[9]	ZHAO L, BRAM M, BUCHKREMER H P, et al.Preparation of TiO2 composite microfiltration membranes by the wet powder spraying method.J. Membr. Sci., 2004, 244(1/2): 107-115.
[10]	黄彦, 俞健, 舒世立, 等. 一种多孔不锈钢—陶瓷复合膜的制备工艺. 中国, CN200810020318.0. 2008.
[11]	WEI LEI, YU JIAN, HU XIAO-JUAN, et al.Buffering of the sintering stress for fabrication of microporous Al2O3/stainless-steel membranes.J. Inorg. Mater., 2014, 29(4): 433-437.
[12]	ASTM F316-03. Standard test methods for pore size characteristics of membrane filters by bubble point and mean flow pore test. 2003.
[13]	JAMES A G, KENNETT S. Filter element with porous nickel-based alloy substrate and metal oxide membrane. US patent, US 2003/0000891 A1. 2003.
[14]	SHANNON R D, PASK J A.Kinetics of the anatase-rutile transformation.J. Am. Ceram. Soc., 1965, 48(8): 391-398.
[15]	QIU MING-HUI, FENG JUN, FAN YI-QUN, et al.Stress analysis in the preparation of bi-layer membranes by co-sintering process.J. Inorg. Mater., 2009, 24(3): 617-622.
[16]	赵静. Al2O3-ZrO2复合陶瓷微滤膜的制备及表征. 江苏: 南京工业大学硕士学位论文, 2006.
