无定形晶种引导三次生长制备完备性TAPO-5膜

刘旭光¹, 马欣¹, 刘勇¹, 张宝泉^1,²

1. 青岛科技大学材料科学与工程学院, 青岛266042

2. 天津大学化工学院, 化学工程国家重点实验室, 天津 300072

摘要

TAPO-5膜可以通过三次生长法制备。它的完备性与所用晶种以及膜的多晶结构密切相关。393 K下晶化所得无定形晶种有利于引导制备完备性TAPO-5膜。然而, 晶态TAPO-5晶种引导制备的TAPO-5膜存在大量的裂纹(即晶界缺陷), 这破坏了膜的完备性。这些不同结果可以通过SEM、XRD 和单组分气体渗透(He)测试进行说明。它与铺展润湿法所形成的晶种层的不同形式有关。无定形晶种层的典型特征是晶种分散于载体的大孔缺陷中。然而, 晶态TAPO-5将以连续晶种层的形式存在。因此, 无定形晶种更适合引导制备完备性TAPO-5膜。

关键词: 三次生长; 无定形晶种; TAPO-5膜; 铺展润湿法

中图分类号:TQ174 文献标志码:A 文章编号:1000-324X(2015)05-0555-06

Preparation of Perfective TAPO-5 Membrane through Tertiary Growth with Amorphous Seed

LIU Xu-Guang¹, MA Xin¹, LIU Yong¹, ZHANG Bao-Quan^1,²

1. College of Materials Science and Engineering, Qingdao University of Science and Technology, Qingdao 266042, China

2. State Key Laboratory of Chemical Engineering, School of Chemical Engineering and Technology, Tianjin University, Tianjin 300072, China

Biography: LIU Xu-Guang(1983-), male, associate professor. E-mail: liuxuguang@qust.edu.cn

Fund:Foundation item: National Natural Science Foundation of China (21136008); National Ocean Public Project of China (201405008)

Abstract

TAPO-5 membranes were synthesized through a tertiary growth method. Its perfection significantly depends on the adopted seed and itself poly-crystalline structure. Amorphous seed synthesized at a low crystallization temperature (393 K), obviously favors producing the perfective TAPO-5 membrane. TAPO-5 crystal seed, however, induces the growth of its membrane with a larger extent of cracks ( i.e., grain boundary defect), destructing itself perfection. Those diverse results are associated with the disparate seeds layers deposited by a spreading-wetting method, and consistently demonstrated by SEM, XRD, and single gas (He) permeation test. A typical feature of the amorphous TAPO-5 seed layer is its dispersive distribution pattern in the macro holes of support. A continuous layer, however, is observed for the TAPO-5 crystal seed layer. The amorphous seed is explained as a prior seed for the perfective TAPO-5 membrane.

Keyword: tertiary growth; amorphous seed; TAPO-5 membrane; spreading-wetting method

Show Figures

Aluminophosphate molecular sieves (AlPO-n), where n denotes a particular structure type, have been recognized as a novel ordered microporous materials^[1]. Their AlPO₄ frameworks are rich of structural chemistry and special physiochemical properties of isomorphous substitution by heteroatoms^[2], like metal-aluminophosphate MAPO-n (M = Ti, Fe, etc)^[3]. This enables them with excellent catalytic and separation properties. Typically, Ti incorporated AFI type aluminophosphate molecular sieve (TAPO-5, T = Ti) exhibits catalytic activities of selective oxidation, owning to its framework Ti as redox active centers^[4]. TAPO-5, as well as TS-1 membrane^[5], is of particular interests for possible applications as a catalytic or separation membrane. Its catalytic/separation membrane requires free of defects, i.e., no pinhole and cracks^[6]. Those defects will lead to short flow of reactants/feeds and fault catalytic/separation activities. Obtaining a high quality TAPO-5 membrane is critical to adopting it as the catalytic/separation membrane.

Available methods for preparing zeolite membranes include in-situ growth^[7], seeded growth^[8], and dry gel synthesis^[9]. Among those methods, the seeded growth is widely used to prepare zeolite membranes, e.g., AFI^[10], CHA^[11], and LTA^[12], because of its preferable reproducibility^[13]. The quality of the membranes prepared by the seeded growth method is considerably affected by the seeding methods, including dip-coating^[14], rubbing^[15], vacuum seeding^[16], and filtration seeding^[17]. Among these methods, the dip-coating method is easy to perform and generally adopted. The adopted seeds is paid few attentions. It depends on the crystalline nature of the seeds. Nano-sized crystals are popularly employed in the seeded growth. Amorphous seeds with a semi-crystal nature exhibits diverse induction behavior during the seed growth. This work will demonstrate that the amorphous seed is superior to the crystal seed in inducing the growth of the perfective TAPO-5 membrane. The as-synthesized TAPO- 5 membrane is activated by a mild method of catalytic hydrocracking^[18]. Its template is hydrocracked to small molecules, its perfect structure being maintained.

1 Experiments

1.1 Materials

Phosphoric acid (H₃PO₄, 85wt%), pseudoboehmite (Al₂O₃, 67wt%, Aluminum Corporation of China, Ltd, Shandong Branch), and TiOSO₄ were used as sources for phosphorus, aluminum, and titanium, respectively. Triethylamine (abbreviated as TEA) was chosen as the template for TAPO-5. These agents, except for pseudoboehmite, were all purchased from Sinopharm Chemical Reagent Co. Ltd. Homemade SiO₂/α -Al₂O₃ disc (SiO₂, 32wt%, O.D.= 20 mm^[19]) was employed as supports for the TAPO-5 membrane.

1.2 Synthesis of TAPO-5 seeds

TAPO-5 seeds were synthesized via a solid-phase transformation method with a bath composition of 0.05TiO₂:0.10H₂O₂:1.00Al₂O₃:1.10P₂O₅:1.50TEA:25.00H₂O.

Their preparation procedures were described as following. Phosphoric acid of 25.37 g weight was diluted with 18 g of ultrapure (UP) water and stirred for 10 min. Pseudoboehmite of 15.22 g weight was slowly introduced into the diluted phosphoric acid under vigorously stirring. A homogeneous Al-H₃PO₄ sol was obtained. This sol was dropped to an orange translucent TiOSO₄-H₂O₂ aqueous solution, gained by dissolving 1.05 g of TiOSO₄ in 1.13 g of H₂O₂ and diluted with 18 g of UP water. A yellow homogeneous Ti-Al-H₃PO₄ sol was obtained after stirring for 2 h, and dropped with 15.18 g of TEA. This mixture was stirred for 1 h and aged overnight as a solid gel at room temperature. The resultant solid gel was loaded into a 50 mL Teflon autoclave and crystallized at 373-433 K for 24 h. Solid products were centrifuged, washed, and dried at 333 K.

1.3 Preparation of TAPO-5 seed layers

The spreading-wetting method, basing on a dip-coating route^[14], was typically performed as following. A seed ethanol suspension was prepared through dispersing a certain amount of the TAPO-5 seeds (synthesized at 393, 413, or 433 K) in ethanol at 351 K. The seed content was chosen to be 1wt%. The supports were dipped into those suspensions for 10 s and taken out. The seeded supports were dried at 353 K for 4 h and calcined at 823K for 3 h.

1.4 Seeded growth of TAPO-5 membrane

The seeded growth was executed from a precursor sol with a bath composition of 0.05TiO₂:1.00Al₂O₃:1.10P₂O₅: 1.50TEA:105.00H₂O:0.10H₂O₂. This bath composition, with more water content, was prepared as the procedures of the TAPO-5 seed. The resultant precursor sol of volume about 11 mL was loaded into a 50 mL Teflon lined autoclave. The seeded support was placed levelly on a homemade Teflon hold, with its seeded side facing down, and immersed in that precursor sol. The secondary growth was carried out at 433 K for 48 h. After cooled to room temperature, the yield sample was removed out of the autoclave, washed with UP water, and dried at 333 K for overnight. They were utilized to a tertiary growth with the fresh precursor sol^[20]. The resultant membranes were separated from that mother sol, washed, and dried at 333 K for overnight. Activating those membranes was achieved by a Pd/SiO₂ catalytic hydrocracking method performed as following^[18]. The as-synthesized TAPO-5 membranes were loaded in the Pd/SiO₂ catalyst bed and heated to 593 K at 1 K/min, holding for 3 h, in a hydrogen flow at 593 K, before that test.

1.5 Characterization

X-ray diffraction (XRD) patterns were collected on a Rigaku D-MAX2500/PC X-ray diffractometer using Cu Kα radiation. Scanning electron microscope (SEM) images were gained through scanning electron microscopy on a FEI Nanosem 430. Single gas (He) permeation of the TAPO-5 membranes was tested via transient permeation apparatus as described in the reference of [21]. The permeance (f , mol/(m²· s· Pa)) is plotted as a function of varying average pressure (P_av) and fitted with a dusty-gas model (f = α +β · P_av, where permeability coefficients α and β are attributed to Knudsen and viscous flow, respectively^[22]).

2 Results and discussion

XRD (Fig. 1) and SEM (Fig. 2) characterization were utilized to reveal the crystal structure and morphology of the as-synthesized seeds crystallized at three temperatures (393, 413 and 433 K), respectively. The seed crystallized at 393 K displays four extremely broad reflections centered at 2θ = 15° , 28° , 38° , and 48° in Fig. 1(a), indicating a semi-crystal nature. This seed, hereinafter, is claimed as an amorphous seed. Its semi-crystal nature led to an irregular morphology of nano size, as shown in Fig. 2(a). Another seed, crystallized at an elevated temperature of 413 K, exhibits sharp diffraction peaks of an AFI structure, and some ambiguous peaks of aluminophospate (Fig. 1(b)). A certain amount of regular crystal thus is observed in Fig. 2(b). Employing a higher crystallization temperature of 433 K results in a well crystalized TAPO-5 with the AFI structure, verified by these sharp peaks (2θ = 7.4° , 21.0° , 22.5° , and 25.9° , etc.) in Fig. 1(c). This seed shows a plate- like morphology with a thickness less than 150 nm. Its high-aspect-ratio is estimated to be less than 0.2, as comparable to the reported value (0.3) of an available plate-like SAPO-5 seed^[23].

	Figure Option View Download New Window
	Fig. 1 XRD patterns of the as-synthesized TAPO-5 seeds crystallized at 393 K (a), 413 K (b), and 433 K (c)

	Figure Option View Download New Window

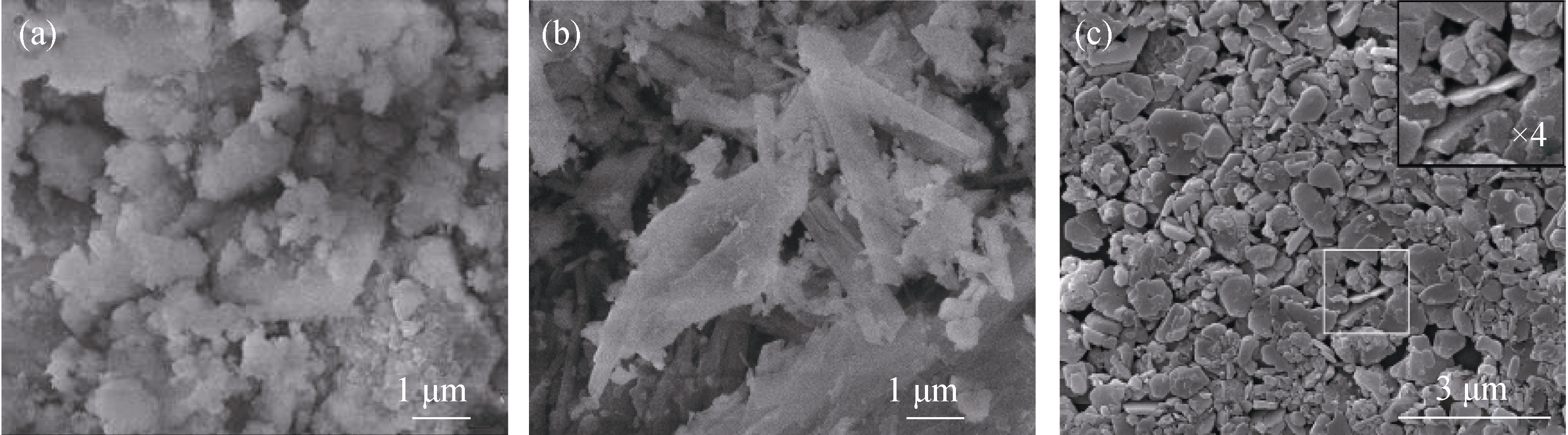

	Fig. 2 SEM images of the as-synthesized TAPO-5 seeds crystallized at 393 K (a), 413 K (b) and 433 K (c)

It is well known that amorphous or nano-sized zeolites exhibit high activity for inducing its membrane growth^[24]. Those seeds, crystallized at different temperatures (393, 413, and 433 K), were utilized to deposit on SiO₂/Al₂O₃ supports, and induced the growth of TAPO-5 membrane. The resulted seeds layers show distinguished XRD patterns (Fig. 3). There are obvious AFI peaks associated with the crystallized TAPO-5 seed layer (Fig. 3(c)), depositing the seed crystallized at 433 K. Both XRD patterns of the seed layers (Fig. 3(a), (b)), deposited the seeds crystallized at 393 K, or 413 K, does not show any diffraction peaks due to the AFI pattern. This is attributed to few of the amorphous TAPO-5 seeds deposited on the support.

Presence of those seeds and the toughness bare support, however, was confirmed by SEM characterization (Fig. 4). It is seen that these seeds layers show diverse distributions on supports. Most of the amorphous seed are well dispersed in the macro holes of toughness support. For the seeded support with the seed crystallized at 413 K, some of the nano particles were similarly distributed in the macro holes of support, while some of the large particles were located on the surface of support. The crystallized plate-like TAPO-5 seed, synthesized at 433 K, almost remained on the support’ s surface as a continuous layer with plenty of pinholes. Those distinguish seeds distributions may cause different growth behaviors and the quality of zeolite membrane^[25].

	Figure Option View Download New Window

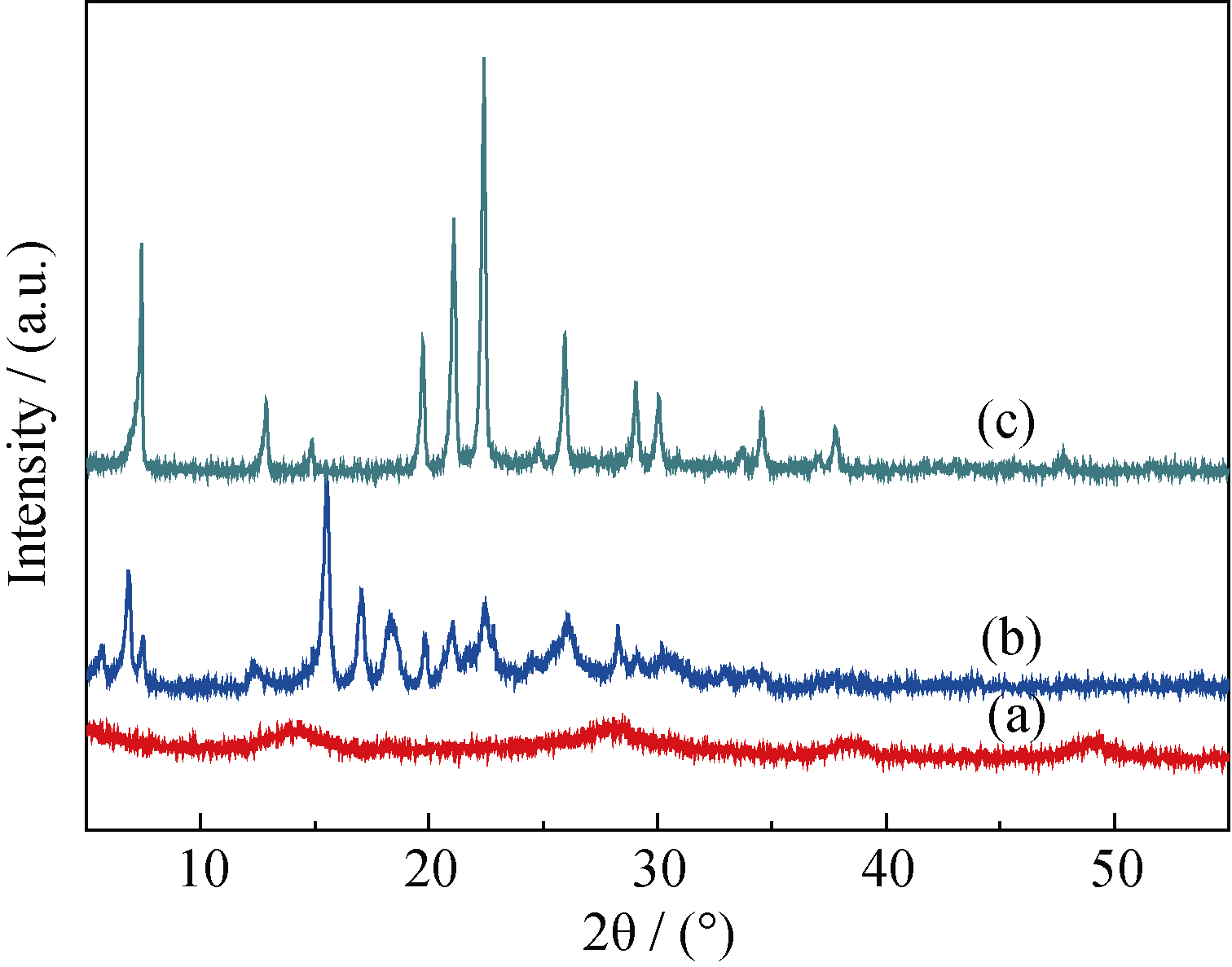

	Fig. 3 XRD patterns of the seeded supports with TAPO-5 seeds crystallized at 393 K (a), 413 K (b) and 433 K (c)

Those seeded supports were performed a tertiary growth for TAPO-5 membranes. The resultant TAPO-5 membranes all exhibit typical XRD patterns owning to AFI type crystal (Fig. 5). These peaks, due to different crystal surfaces, indicate non-oriented growth of the TAPO-5 membrane. This phenomenon is obviously diverse to epitaxial growth of oriented AFI membrane on seeded smooth supports^{[20, 23]}. It is worth noting a more possible choose of that toughness support in practice. The TAPO-5 membrane, however, may not in-situ growth on the bare support^[9].

Those non-oriented TAPO-5 membranes are shown through SEM images in Fig. 6. They exhibit a continuous ploy-crystalline structure with some cracks (i.e., grain boundary defects), whatever the seeds are adopted. These cracks, destructing the perfection of the membranes, were formed in response to thermal tensile stresses^[6]. Their extent, however, associates with the adopted seeds, as seen from those SEM images. A little extent of that crack is observed for the TAPO-5 membrane seeded by the amorphous seed. A much larger extent of the crack presences in the TAPO-5 membrane seeded by the TAPO-5 crystal. That crack is noted in the cross sectional images (Fig. 6(i)), also illustrating the non-oriented ploy-crystalline structure with a thickness of 18-20 μ m. It is not observed in Fig. 6(c) of the TAPO-5 membrane seeded by the amorphous seed. Another focus is incorporating Ti into the framework of TAPO-5 membranes, as revealed by UV-vis spectra in Fig.7. Similar strong absorbtion bands between 200- 300 nm, ascribed to charger transfer of the framework Ti^{[3, 9]}, suggest negligible diverse in micro structure associated with Ti.

	Figure Option View Download New Window

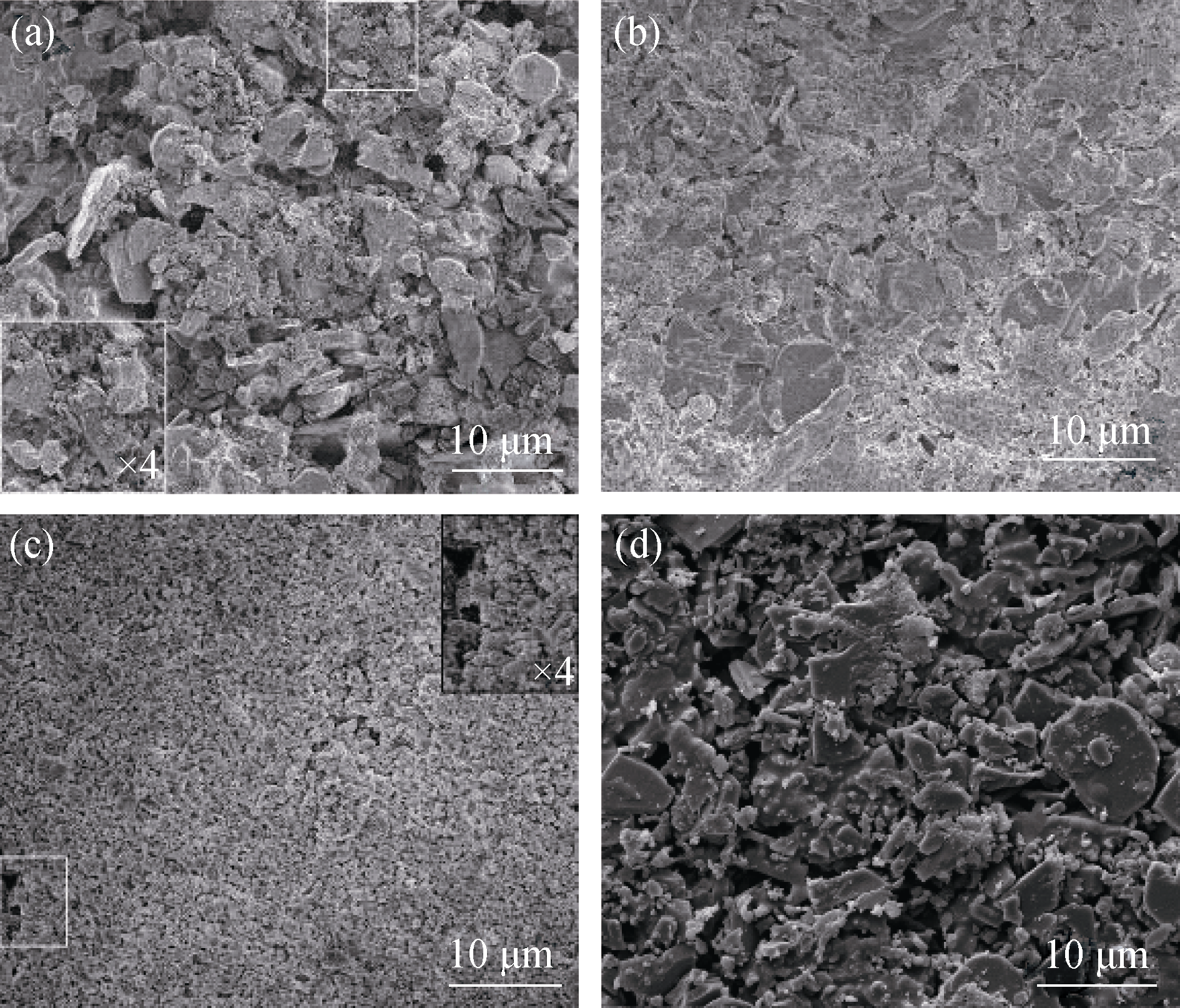

	Fig. 4 SEM images of the seeded supports with TAPO-5 seeds crystallized at 393 (a), 413 (b), 433 K (c), and bare support (d)

	Figure Option View Download New Window

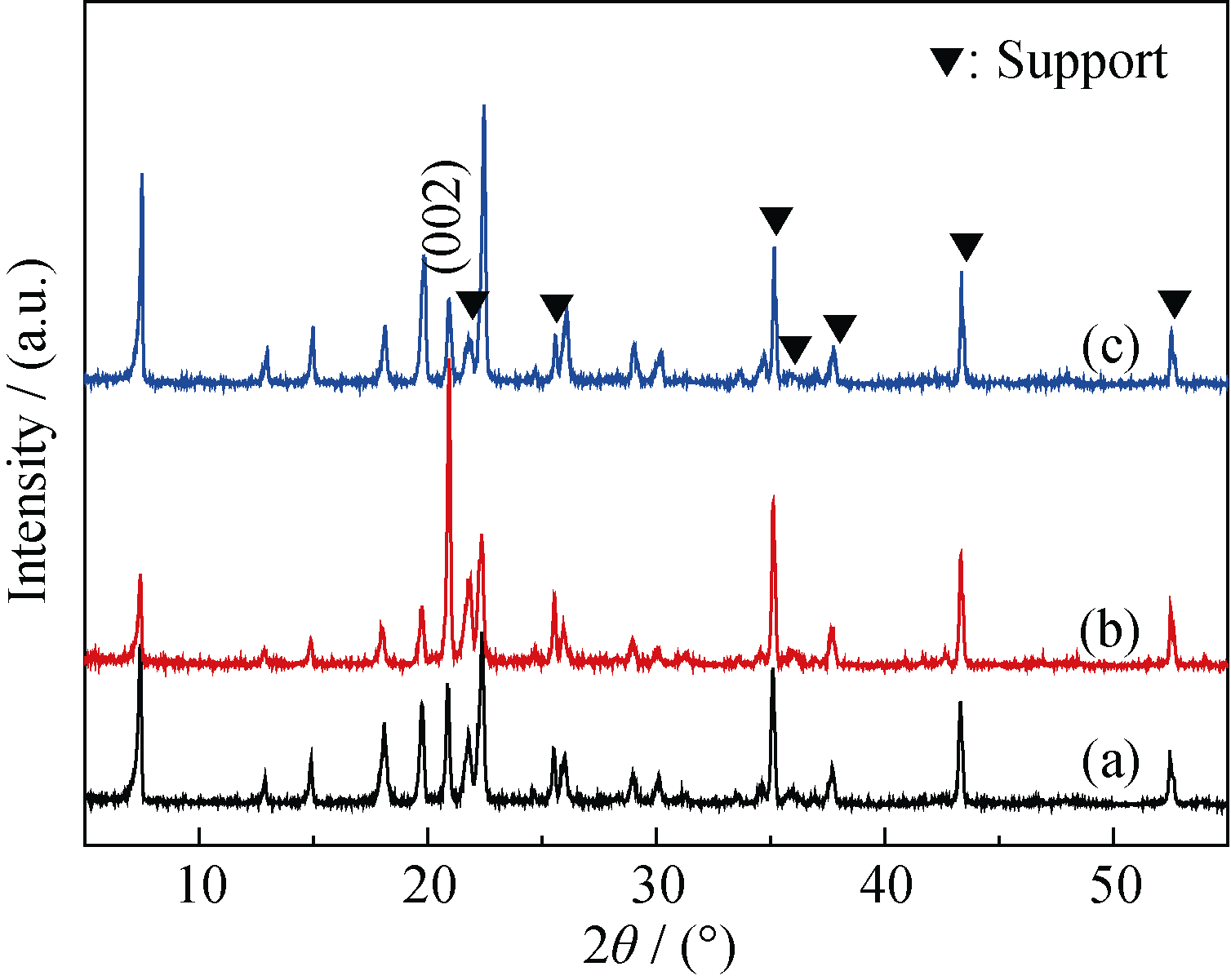

	Fig. 5 XRD patterns of the TAPO-5 membranes, which seeds are synthesized at 393 K (a), 413 K (b) and 433 K (c)

These seeds, with different crystallinity, obviously brings about distinguish hetero epitaxial growth behaviors of the TAPO-5 membrane on the support, and thus the diverse perfection proved by single gas permeation associated^[22].

He permeance of the as-synthesized TAPO-5 membrane, seeded with the amorphous seed, was measured o be less than 1× 10^-10 mol/(m²· s· Pa), verifying its perfection. He permeance of the as-synthesized TAPO-5 membranes, synthesized with the crystal seeds, were more than 1× 10^-7mol/(m²· s· Pa) before activation, suggesting those defective membranes. Aftertactivated by the Pd/SiO₂ catalytic hydrocracking method performed at 593 K, these membrane are tested for the He permeance and fitted with a dusty-gas model (Fig. 8). The permeance of the activated TAPO-5 membrane, seeded with the amorphous seed, is noticeably lower than those of the TAPO-5 membrane seeded with the crystals. A much smaller viscous flow coefficient (0.004) of the former TAPO-5 membrane indicates negligible defects. Both larger viscous flow coefficients (1.340 and 3.120) for the later membranes prove the grain boundary defects as revealed by the SEM images.

Those results illustrate priority of the amorphous seed on synthesizing the perfective TAPO-5 membrane. This may be associated with its high activity for inducing the inter-grown of TAPO-5 crystal and forming the polycrystalline structure^[24]. Another possible promotional effect is the dispersive distribution of the amorphous seeds in the holes of supports^[25].

	Figure Option View Download New Window

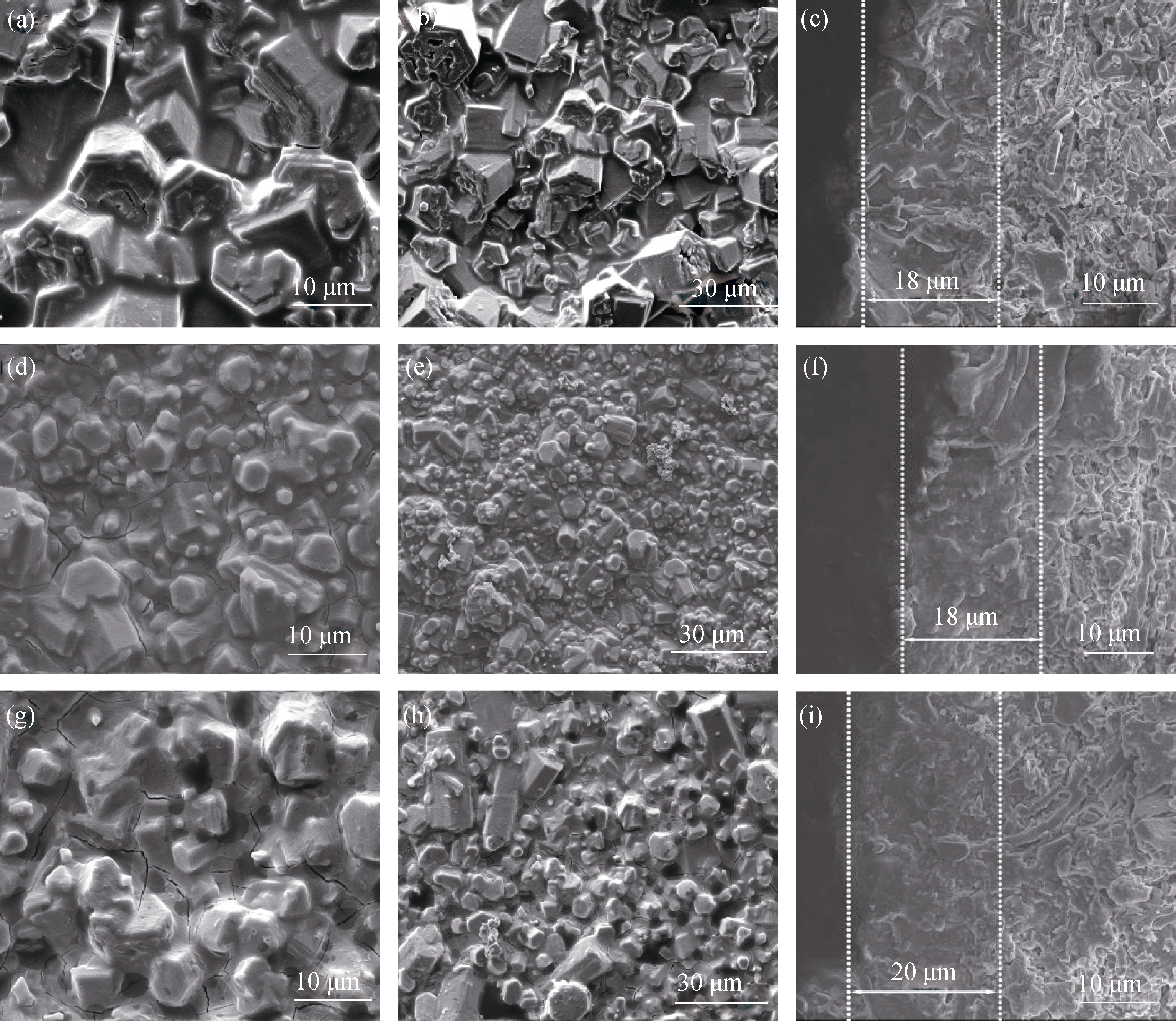

	Fig. 6 Surface and cross sectional SEM images of the TAPO-5 membranes, whose seeds are synthesized at 393 K (a, b, c), 413 K (d, e, f) and 433 K (g, h, i)

	Figure Option View Download New Window

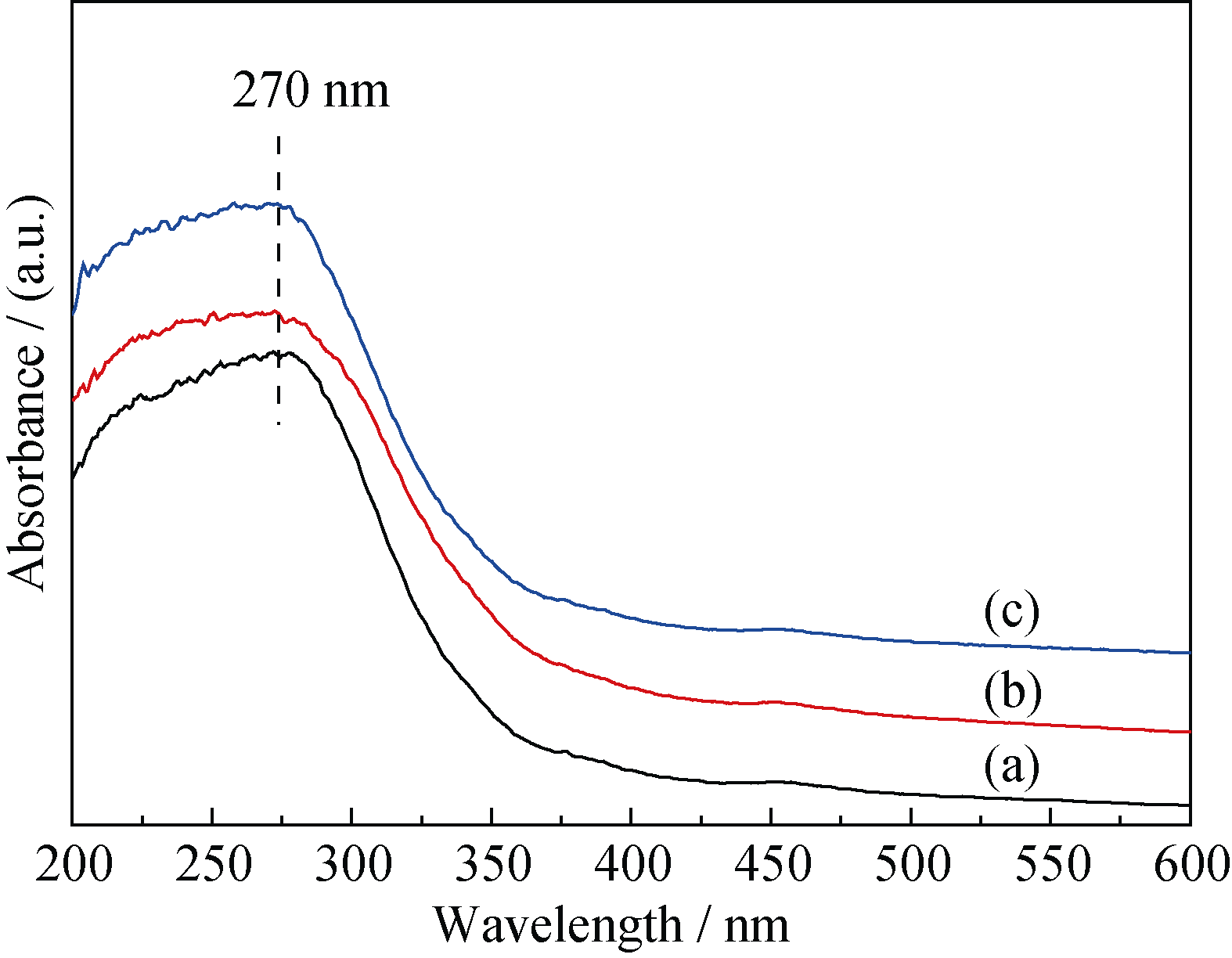

	Fig. 7 UV-Vis diffuse reflection spectra of TAPO-5 membranes, which seeds are synthesized at 393 K (a), 413 K (b) and 433 K (c)

	Figure Option View Download New Window

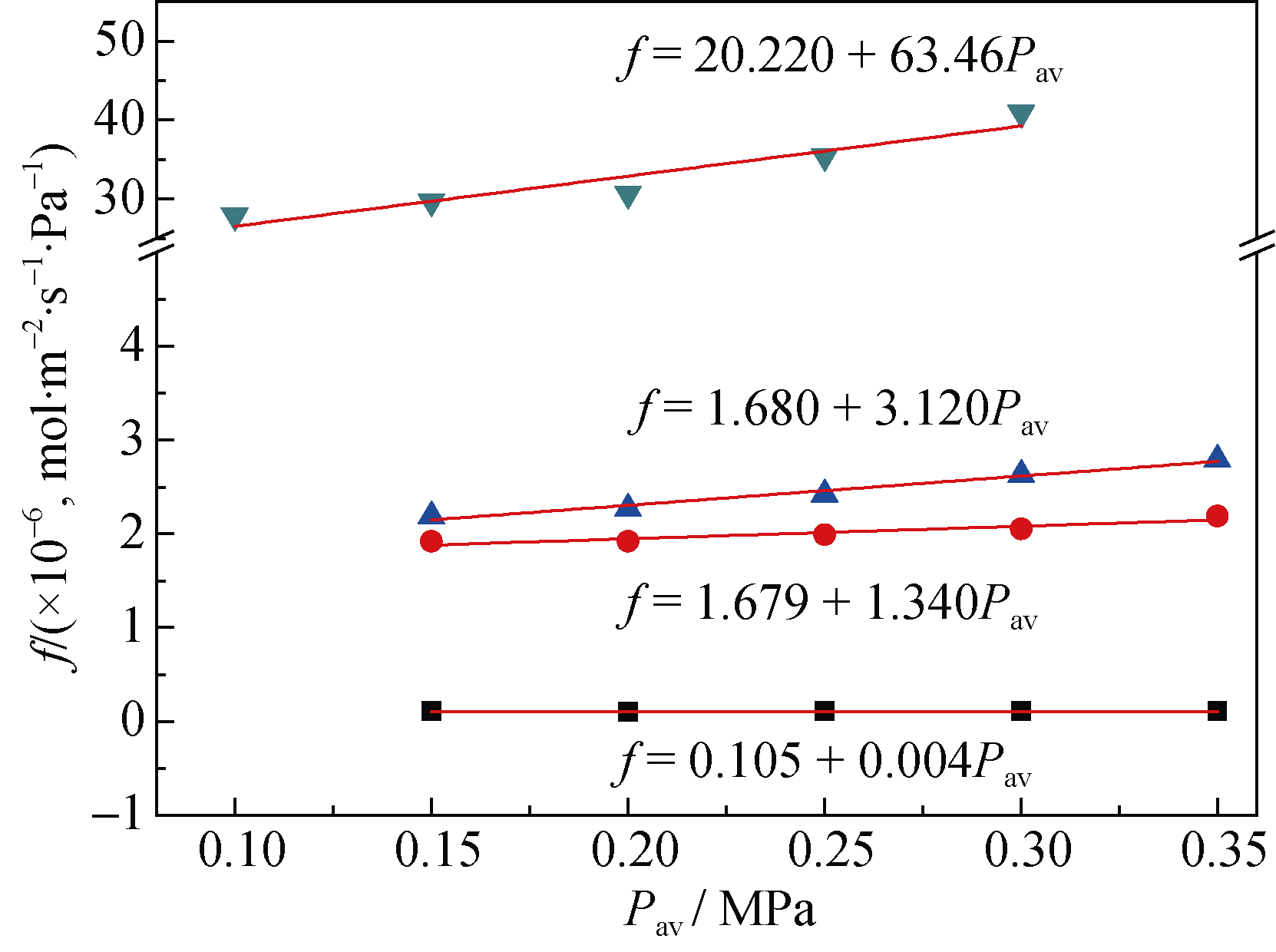

	Fig. 8 He permeance of the bare support (▼) and TAPO-5 membranes, whose seeds are synthesized at 393 K (■), 413 K (●) and 433 K (▲)

3 Conclusions

TAPO-5 seeds were synthesized at different crystallization temperature. Amorphous seed was obtained at the crystallization temperature of 393 K, while a crystallized TAPO-5 seed was synthesized at 433 K. Whatever kind of those seeds are feasible to induce the growth of the TAPO-5 membrane, as proved by the XRD characterization. The former amorphous seed, but the later crystal seed, was beneficial to obtain crack-free TAPO-5 membrane. This behavior is associated with the disparate seeds layers deposited by the spreading-wetting method, and consistently illustrated by the SEM images and single gas permeation. The amorphous seed thus is a prior choice to prepare the perfective TAPO-5 membrane via the tertiary growth.
