Er<sup>3+</sup>掺杂ZnWO<sub>4</sub>的合成及光催化活性研究

引用本文

周宇, 张志洁, 徐家跃, 储耀卿, 尤明江. Er³⁺掺杂ZnWO₄的合成及光催化活性研究 . 无机材料学报, 2015, 30(5): 549-554
ZHOU Yu, ZHANG Zhi-Jie, XU Jia-Yue, CHU Yao-Qing, YOU Ming-Jiang. Synthesis and Enhanced Photocatalytic Activity of Er³⁺-doped ZnWO₄ . Journal of lnorganic Materials,2015, 30(5): 549-554 复制到剪切板

Permissions

This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Er³⁺掺杂ZnWO₄的合成及光催化活性研究

周宇, 张志洁, 徐家跃, 储耀卿, 尤明江

上海应用技术学院材料科学与工程学院, 晶体生长研究所, 上海201418

摘要

通过水热法合成了不同浓度Er³⁺掺杂ZnWO₄纳米棒, 并通过XRD、TEM和DRS等对其进行了表征。通过在模拟太阳光照射下光降解RhB的速度来检测ZnWO₄样品的光催化活性, 研究了Er³⁺掺杂浓度对ZnWO₄催化活性的影响。实验结果表明, 当Er³⁺掺杂浓度为2mol%时, 其光催化性能最好, 因为引进Er³⁺后, Er³⁺加快了电荷分离效率。

关键词: Er3+掺杂钨酸锌; 光催化剂; 罗丹明B; 电荷分离

中图分类号:TQ174 文献标志码:A 文章编号:1000-324X(2015)05-0549-06

Synthesis and Enhanced Photocatalytic Activity of Er³⁺-doped ZnWO₄

ZHOU Yu, ZHANG Zhi-Jie, XU Jia-Yue, CHU Yao-Qing, YOU Ming-Jiang

Institute of Crystal Growth, School of Materials Science and Engineering, Shanghai Institute of Technology, Shanghai 201418, China

Biography: ZHOU Yu(1989-), male, candidate of master degree. E-mail: zhouyu564022786@163.com

Corresponding author: ZHANG Zhi-Jie, PhD. E-mail: zjzhang@sit.edu.cn; XU Jia-Yue, Professor. E-mail: xujiayue@sit.edu.cn

Fund:Foundation item: National Natural Science Foundation of China (51342007, 51402194); Shanghai Science and Technology Committee (11JC1412400, 14YF1410700)

Abstract

Er³⁺-doped ZnWO₄ nanorods with different doping concentrations were synthesized by a hydrothermal method. The as-prepared products were characterized by XRD, TEM and DRS. The photocatalytic activities of the as-prepared ZnWO₄ samples were evaluated by photo-degradation of RhB under simulated solar light irradiation and the effects of Er³⁺ doping on the photocatalytic activity of ZnWO₄ were investigated. The result showed that the sample with the doping concentration of 2mol% exhibited the best photocatalytic performance, which could be ascribed to the promoted charge separation efficiency of Er³⁺-doped ZnWO₄.

Keyword: Er3+-doped ZnWO4; photocatalyst; Rhodamine B; charge separation

Show Figures

Water pollution is one of the most serious environmental problems in modern society. Semiconductor- mediated photocatalytic degradation is a promising technique for wastewater treatment. In recent years, semiconductor-based photocatalysis has attracted more and more attention for solving environment problems, especially for the removal of organic contaminants under sunlight^{[1, 2, 3, 4, 5, 6, 7, 8]}.

Tungstates are widely used functional materials, and it has been confirmed that tungstates are a class of promising photocatalysts^{[9, 10, 11]}. ZnWO₄ as an important member of tungstates, due to its photocatalytic properties and potential applications, has received intense research attention^{[12, 13]}. Up to now, ZnWO₄has been used for water splitting and decomposition of organic pollutants under UV irradiation^{[14, 15, 16, 17]}. However, improvement of photocatalytic activity of ZnWO₄is still indispensable because the photo-activity of ZnWO₄ is not high enough for the requirements of practical application.

It is known that the photocatalytic activity depends strongly on the separation efficiency of photo-generated electron-hole pairs. Up to date, great efforts have been made to facilitate the electron-hole separation and enhance the photocatalytic activity of ZnWO₄, including cation doping^{[18, 19]}, anion doping such as fluorine or chlorine^{[12, 20, 21]}, and coupling with other semiconductors such as Bi₂WO₆^[22] or ZnO^[23]. Especially, doping of lanthanide ions with 4f electron configuration has been proposed as an effective way to eliminate the recombination of electron-hole pairs. For example, it has been reported that doping with Eu³⁺, Er³⁺ or Ce⁴⁺ could improve the photocatalytic activity of TiO₂^{[24, 25]}, and doping with Er³⁺ could enhance the photocatalytic activity of Bi₂WO₆^[26]. Inspired by those progresses, we intended to design a doped ZnWO₄photocatalyst by introducing lanthanide ion Er³⁺. To the best of our knowledge, there are no reports on the photocatalytic activity of Er³⁺-doped ZnWO₄.

In this work, Er³⁺-doped ZnWO₄ photocatalysts were synthesized by a simple hydrothermal process. The product synthesized by this method had uniform phase and good crystallization. Moreover, the shape and size of the product could be controlled. The photo-activity evaluation, via the degradation of RhB under simulated solar light, demonstrated that doping appropriate amount of Er³⁺could enhance the photocatalytic performance of ZnWO₄effectively. Moreover, the mechanism of the photocatalytic process for Er³⁺-doped ZnWO₄was discussed in detail.

1 Experimental procedures

1.1 Synthesis

All chemicals used were analytic grade reagents without further purification. The experimental process of synthesizing Er³⁺-doped ZnWO₄ photocatalysts was as follows: 1 mmol of Na₂WO₄· 2H₂O was dissolved in 10 mL of deionized water to obtain solution A. Meanwhile, 1 mmol of Zn(NO₃)₂· 6H₂O was dissolved in 10 mL of deionized water to obtain solution B. Then an appropriate amount of Er(NO₃)₃ solution was slowly added to solution A under stirring. After that, solution B was added to the mixed solution to obtain a white suspension. The pH value of the suspension was adjusted to 8 by the addition of NaOH solution, then sealed in a Teflon-lined stainless steel autoclave and heated at 433 K for 16 h under autogenous pressure. The obtained solid product was washed thoroughly with deionized water and dried at 333 K. In this work, the doping concentrations of Er³⁺were 0, 1mol%, 2mol%, 2.5mol%, 3.5mol%, 5mol%, and 7mol%, respectively.

1.2 Characterization

The phase and composition of as-prepared samples were measured by the powder X-ray diffractometer operated at 40 kV and 30 mA using Cu Kα radiation (λ =0.15418 nm). The morphologies of the products were obtained by transmission electron microscope (FEI tecnai G2F30). UV-Vis DRS was performed on a Cary 5000 UV-Vis spectrophotometer.

1.3 Photocatalytic test

The photocatalytic activities of the as-prepared samples were evaluated by the photocatalytic degradation of RhB under simulated solar light using a 500 W Xe lamp as the light source. The experiments were performed at room temperature as follows: 0.05 g of photocatalyst was added into 50 mL of RhB solution (1× 10^-5mol/L). The suspensions were magnetically stirred in the dark for 0.5 h in order to ensure the adsorption/desorption equilibrium between the photocatalyst powders and the solution. 3 mL of suspensions were sampled every 0.5 h and centrifuged to remove the photocatalyst powders. Evaluation of the photocatalytic activities of the photocatalysts was conducted by recording the variations of the absorption band maximum through a UV-Vis spectrophotometer (Cary 5000) and the concentration of RhB was analyzed by recording the variations of the absorption band maximum (552 nm).

2 Results and discussion

2.1 Crystal structure

The XRD patterns of the as-prepared Er³⁺-doped ZnWO₄ samples with different doping concentrations were shown in Fig. 1. All the peaks in the patterns matched well with the characteristic reflections of zinc tungstate (JCPDS 15-0774). No signals for any other phases were observed, which indicated that the products were pure phase and Zn²⁺ was successfully replaced by Er³⁺ and Er³⁺ was uniformly incorporated into the lattice.

2.2 UV-Vis spectra

Figure 2 showed the diffuse reflectance spectra (DRS) of pure ZnWO₄ and the 2mol% Er³⁺-doped ZnWO₄ sample. Fig. 1 Powder X-ray diffraction patterns for Er³⁺-doped ZnWO₄ with different doping concentrations.It indicated that pure ZnWO₄ presented an absorption edge around 400 nm. For the Er³⁺-doped ZnWO₄ sample, there were also some sharp absorption bands originated from characteristic f-f or f-d transition of the Er³⁺ion. The transition peaks, which centered at 365, 378, 489, 520, 548, 653, and 795 nm, were attributed to the transitions of ⁴I_15/2→ ⁴G_9/2, ⁴I_15/2→ ⁴G_11/2, ⁴I_15/2→ ⁴F_7/2, ⁴I_15/2→ ⁴H_11/2, ⁴I_15/2→ ⁴S_3/2, ⁴I_15/2→ ⁴F_9/2, ⁴I_15/2→ ⁴I_9/2, respectively^[27].

	Figure Option View Download New Window

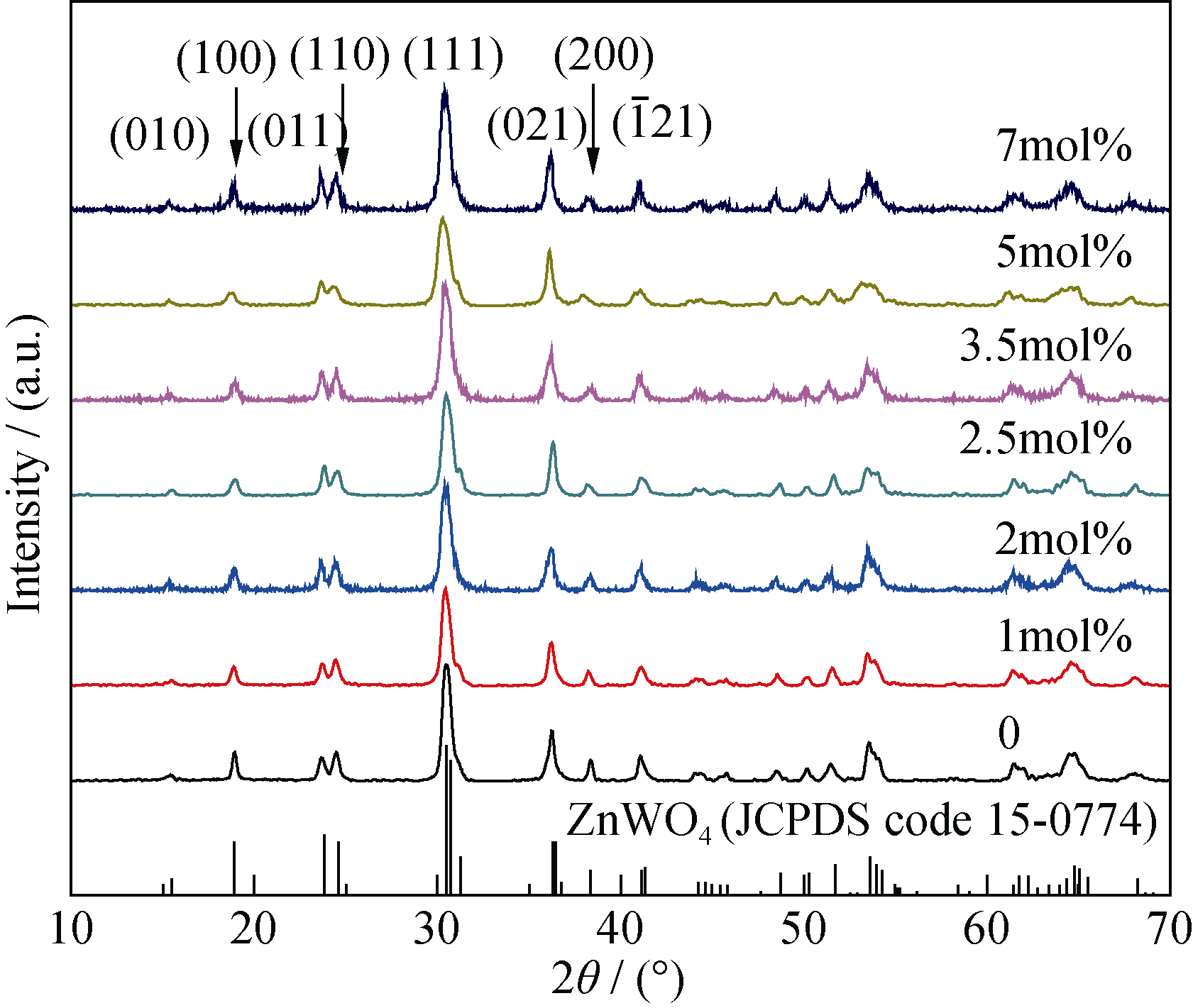

	Fig. 1 Powder X-ray diffraction patterns for Er³⁺-doped ZnWO₄ with different doping concentrations

	Figure Option View Download New Window
	Fig. 2 UV-Vis diffuses reflectance spectra of the as-prepared ZnWO₄ samples

2.3 Morphology

The morphologies and microstructures of pure ZnWO₄ and the 2mol% Er³⁺-doped ZnWO₄ samples were investigated with TEM, as shown in Fig. 3. It could be seen clearly that the as-prepared samples exhibited nanorods structure, which indicated that Er³⁺ doping did not change the morphologies of ZnWO₄. Moreover, pure ZnWO₄nanorods were 35 nm in diameter and 40-60 nm in length (Fig. 3(a)) and the Er³⁺-doped ZnWO₄ were 10 nm in diameter and 30-70 nm in length (Fig. 3(c)). This is because that doping Er³⁺ could influence the growing interface and finally change the diameter of ZnWO₄ nanorods according to the chemical bonding theory of single crystal growth^{[28, 29]}. The HRTEM images showed clear lattice fringes of d=0.247 nm for pure ZnWO₄(Fig. 3(b)) and d=0.253 nm for Er³⁺-doped ZnWO₄(Fig. 3(d)), which matched the d-spacing of the (021) plane of ZnWO₄.

	Figure Option View Download New Window
	Fig. 3 Typical TEM and HRTEM images of the as-synthesized ZnWO₄ samples (a, b) Pure ZnWO₄; (c, d) 2mol% Er³⁺-doped ZnWO₄

2.4 Photocatalytic activities of the catalysts

The absorption spectra of RhB after degradation by the 2mol% Er³⁺-doped ZnWO₄ sample was shown in Fig. 4(a). It was clear that the absorption of RhB was negligible after 3 h, which indicated that RhB was degraded completely. The photocatalytic activities of the Er³⁺-doped ZnWO₄ samples were determined by comparing the degradation efficiency of RhB under simulated solar light irradiation (Fig. 4 (b)). Blank test showed that the degradation of RhB was negligible in the absence of photocatalyst under light illumination. It could be seen that the photocatalytic activity of ZnWO₄was enhanced with the introduction of Er³⁺ and reached a maximum with the doping concentration of 2mol%. Then the photocatalytic activity decreased when the doping concentration of Er³⁺ further increased.

Moreover, the comparison of the apparent rate constantkin Fig. 5 showed the 2mol% Er³⁺-doped ZnWO₄ sample had the highest k value in the degradation of RhB (1.411 h^-1), while that of pure ZnWO₄ was only 0.534 h^-1. In other words, the photocatalytic activity of the 2mol% Er³⁺-doped ZnWO₄ sample was 2.64 times that of pure ZnWO₄. This result indicated that Er³⁺ doping played an important role in the enhancement of the photocatalytic activity.

The photocatalytic activities of the 2mol% Er³⁺-doped ZnWO₄ sample under different conditions were shown in Fig. 6. It could be seen clearly that when the pH value of the RhB solution was 3, the sample showed the highest photocatalytic activity (Fig. 6(a)). This is because the pH value can change the surface electrical property of ZnWO₄ and its adsorption ability. Moreover, it could be seen from Fig. 6(b) that when the amount of the photocatalyst and the concentration of RhB were not changed, the more amount of RhB solution was, the weaker the photocatalytic activity was. When the amount of RhB solution increased, fewer photons could penetrate through the solution, which led to the decreased photocatalytic activity.

2.5 Mechanism of the enhanced photo-activities

It’ s known that the photocatalysis efficiency is determined by the competition between the charge separation process and the charge recombination process, and a desired photocatalyst is expected to promote the charge transfer process while suppressing the recombination process. The introduction of Er³⁺could facilitate the charge separation process in such a way: As illustrated in Fig. 7, the presence of Er³⁺ ions might cause the following steps^{[30, 31]}.

	Figure Option View Download New Window

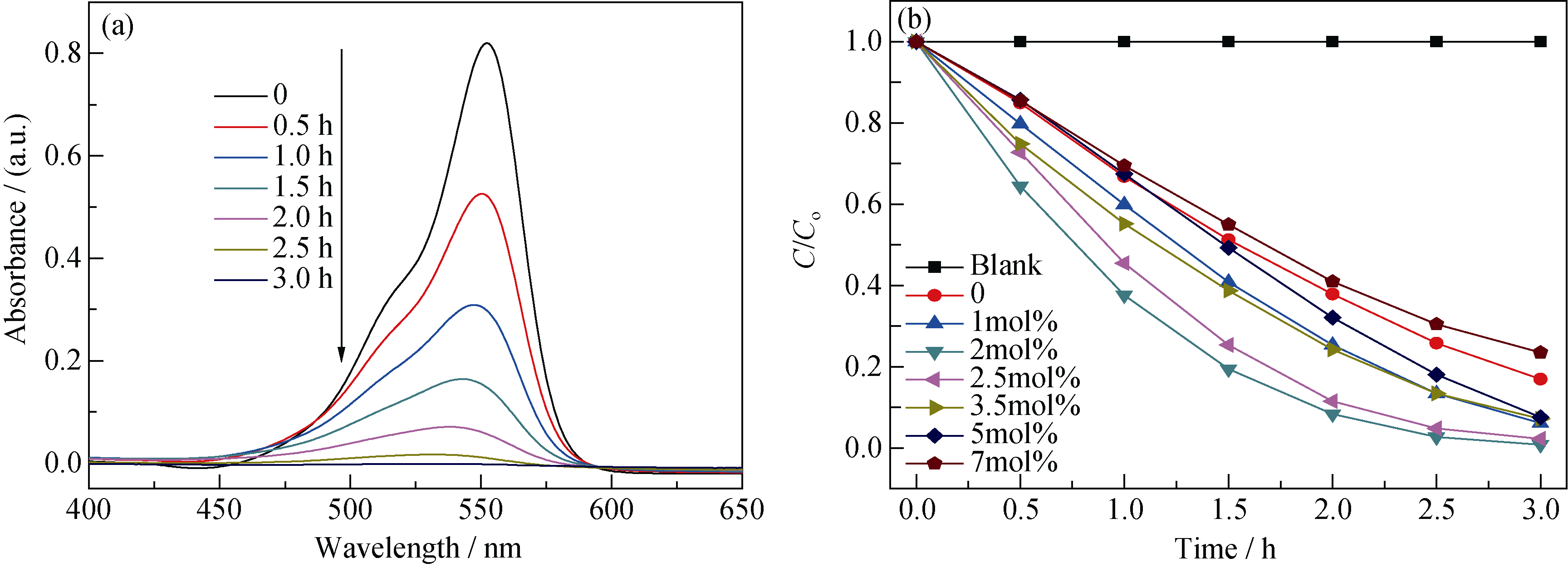

	Fig. 4 The absorption spectra of RhB after degradation by the 2mol% Er³⁺-doped ZnWO₄ sample (a) and degradation efficiency of RhB by the as-prepared samples under a 500 W Xe lamp as a function of time (b)

	Figure Option View Download New Window

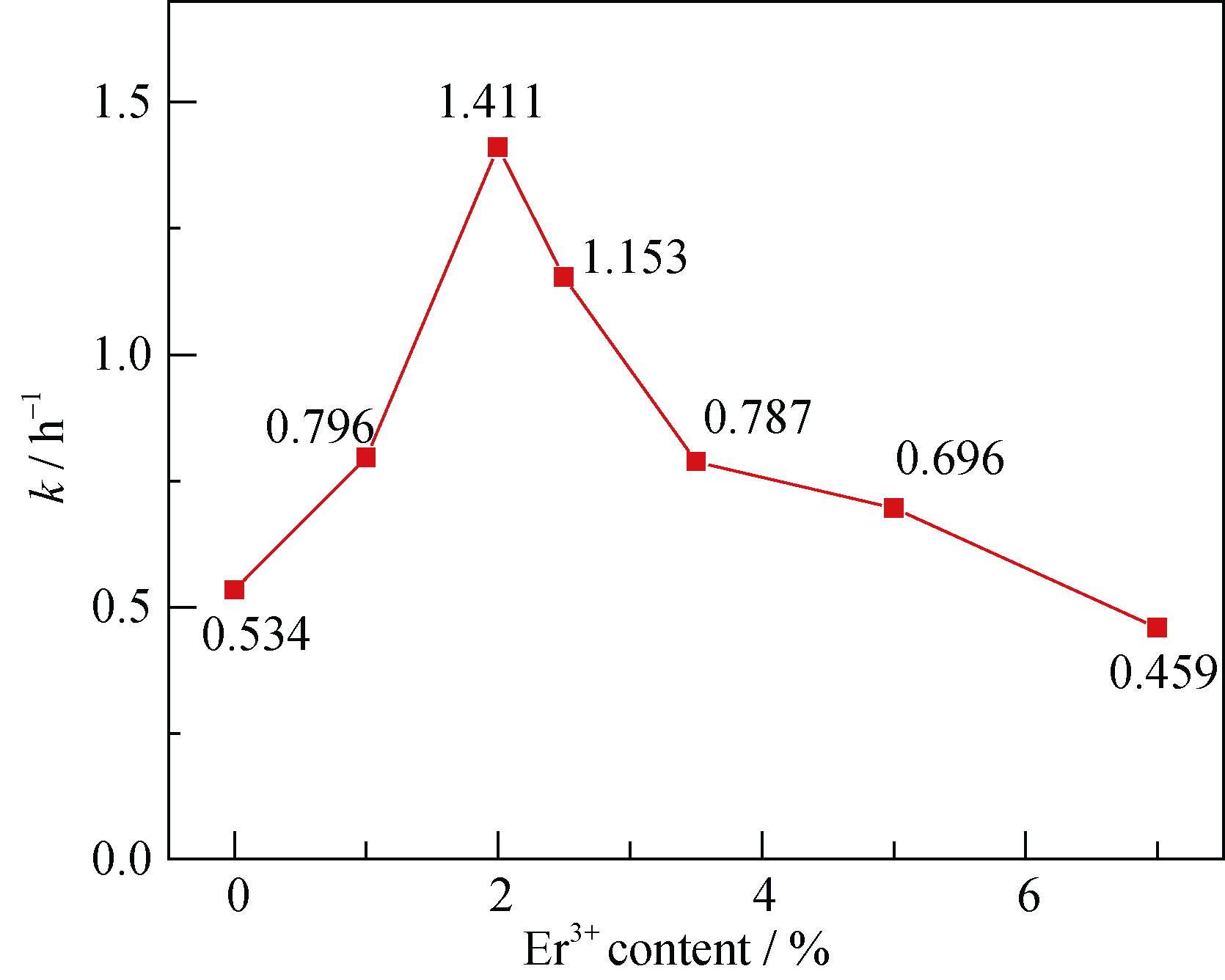

	Fig. 5 The rate constant k of Er³⁺-doped ZnWO₄ with different doping concentrations

	Figure Option View Download New Window

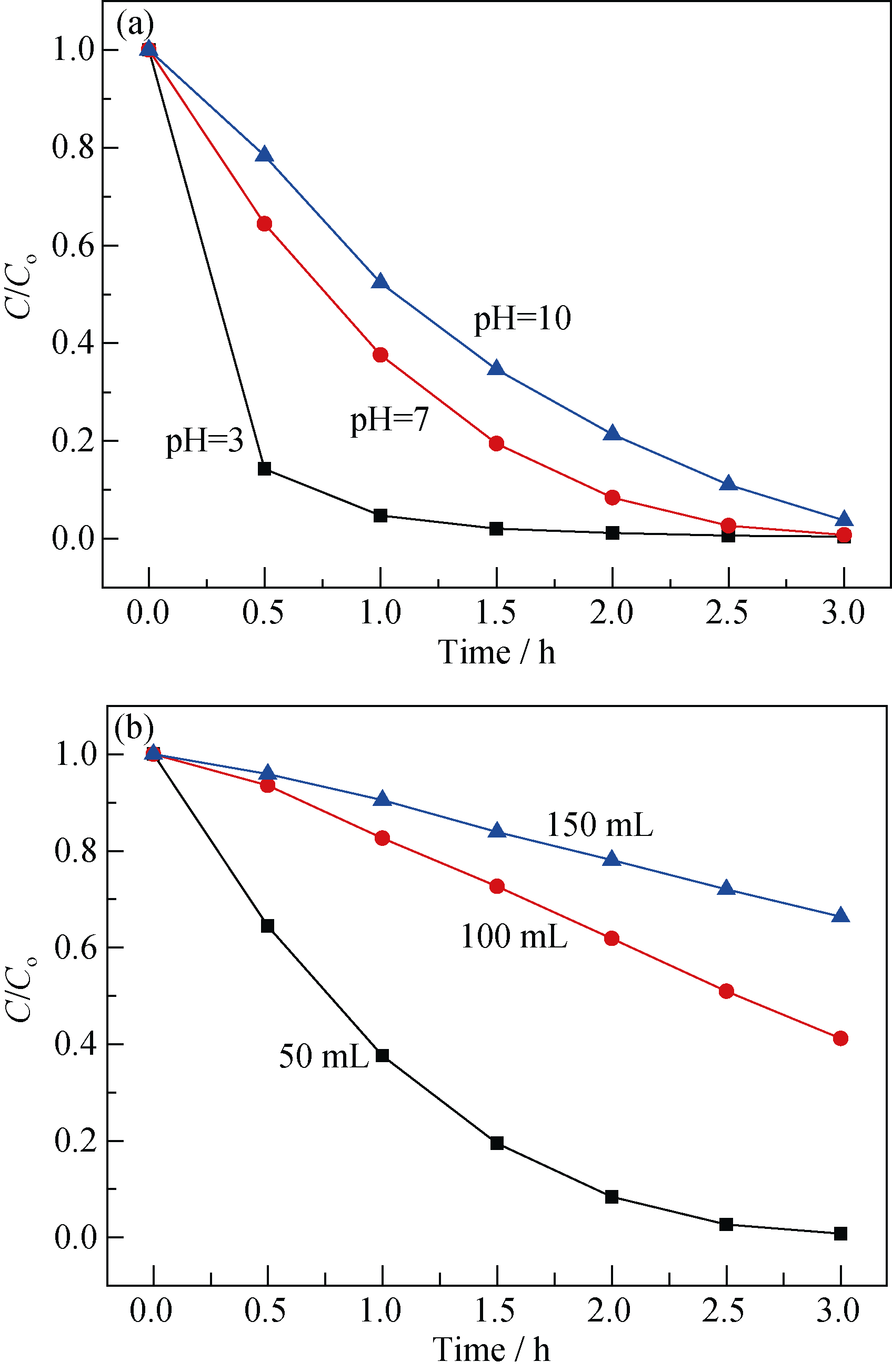

	Fig. 6 Degradation efficiency of RhB by the 2mol% Er³⁺-doped ZnWO₄ sample under different conditions (a) Different pH values of the RhB solution; (b) Different amounts of the RhB solution

ZnWO₄ + hv → ZnWO₄(e^-+h⁺) (1)

Er³⁺ + e^- → Er²⁺(2)

Er²⁺ + O₂→ Er³⁺ + O• ₂- (3)

h⁺, O• ₂- + RhB → degraded products (4)

In the photocatalytic process, the Er³⁺ ion trapped the photo-generated electrons and formed a reduction species Er²⁺ ion, and then the Er²⁺ could be oxidized back to Er³⁺ by the adsorbed oxygen. The electron-hole recombination rate could be reduced due to the recycle reactions. In addition, when Er³⁺ was introduced into the system, the substitution of Er³⁺ for Zn²⁺ led to the formation of [Er_Zn]⁺ defects. Meanwhile, [V_Zn]^2-cation vacancies were generated for charge compensation. The {2[Er_Zn]⁺- [V_Zn]^2-} defect groups could act as electron and hole traps, so as to inhibit the recombination and extend the lifetime of charge carriers. Therefore, appropriate doping amount of Er³⁺could enhance the photocatalytic process by suppressing the charge recombination effectively. However, when the doping concentration of Er³⁺ increased further, excess of Er³⁺could act as electron/hole recombination centers, which led to a decreased photocatalytic activity. So there existed an optimum doping concentration for Er³⁺.

	Figure Option View Download New Window

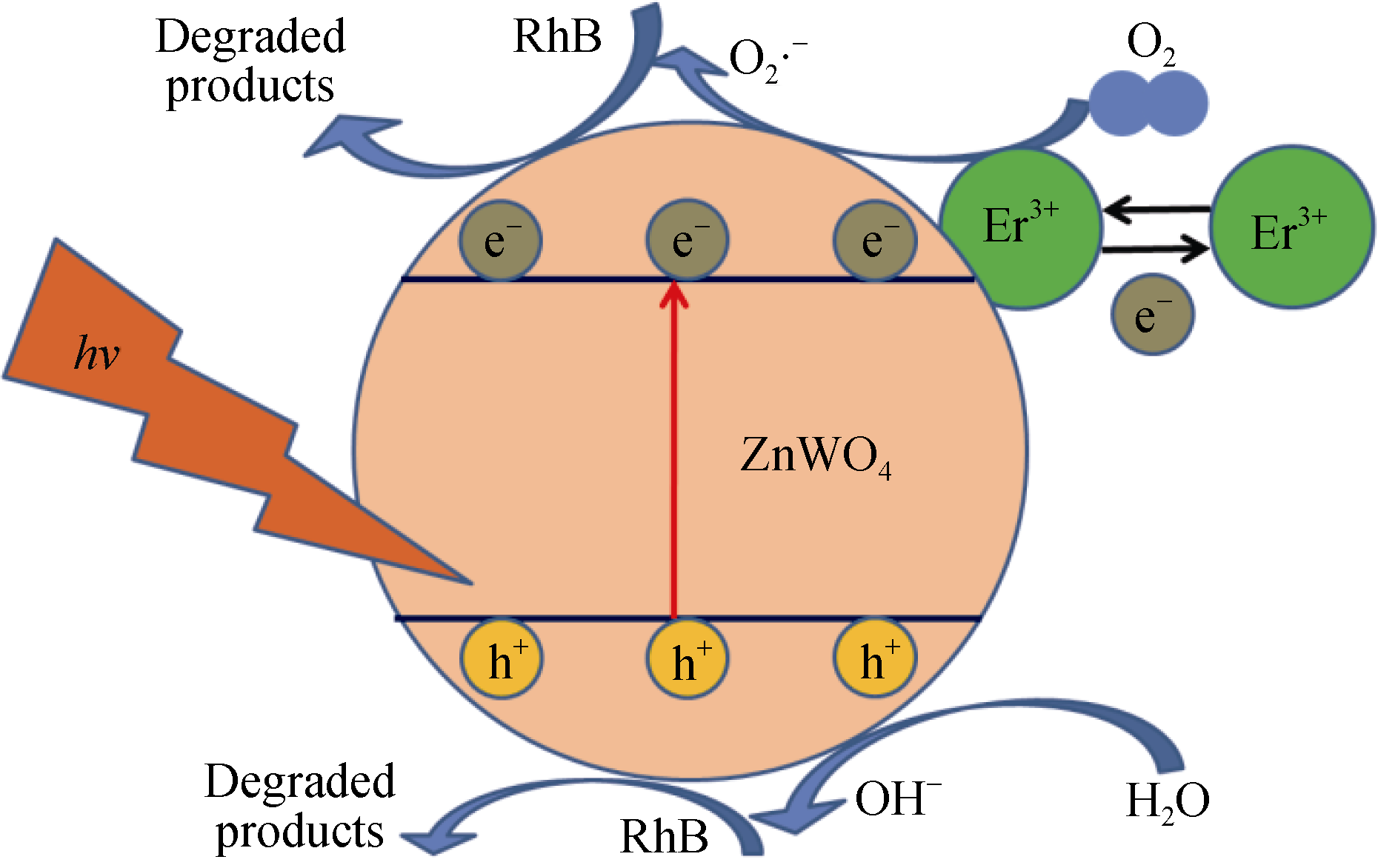

	Fig. 7 Schematic for the photocatalytic mechanism of Er³⁺- doped ZnWO₄

3 Conclusion

Er³⁺-doped ZnWO₄ photocatalysts were synthesized by a hydrothermal method. The effects of Er³⁺ doping on the photocatalytic activity of ZnWO₄ catalysts were investigated. 2mol% Er³⁺-doped ZnWO₄sample exhibited the highest photocatalytic activity, which was 2.64 times that of pure ZnWO₄. The enhanced photocatalytic activity could be attributed to the higher charge separation efficiency brought by Er³⁺ doping. Our work indicates that the introduction of lanthanide ion could be a plausible strategy to develop efficient photocatalysts for environmental remediation and is worth to be extended to the preparation of other photocatalysts with high activity.
