AZO films were deposited on the glass substrates at different sputtering pressures ranging from 0.2 Pa to 2.2 Pa by direct current magnetron sputtering using JPG450 sputtering system. A commercially available sintered ceramic ZnO:Al (2wt% Al₂O₃) target (99.99% purity) of 60 mm in diameter was employed. Before deposition, glass substrates were ultrasonically cleaned in acetone, distilled water and ethanol, successively. The target to substrate distance was 6.5 cm. The background pressure was 6.6×10^-4 Pa and the substrate temperature was kept at 200℃ in the sputtering. A DC power of 34 W was used for all samples and the sputtering time was 40 min.

The film thickness was examined using a surface profiler (Ambios, XP2). The crystalline phase was examined by X-ray powder diffraction analysis using a CuKα radiation (Philips χ’Pert diffractometer). The microstructure was observed with a scanning electron microscope (SEM) (JSM-6360, Japan). The electrical resistivity was obtained using standard four-point probe measurement. The optical properties were measured by UV-Vis spectrophotometer (Shimadzu uv3150, Japan).

The film thickness was examined using a surface profiler, and the thicknesses of films deposited at 0.2, 0.6, 1.0, 1.4, 1.8 and 2.2 Pa are 346, 298, 268, 129, 122 and 110 nm, respectively. The dependence of the deposition rate on sputtering pressure is shown in Fig. 1. As predicted by Keller and Simmons^{[ 14]}, the deposition rate decreases with increasing argon pressure according to the Equation

(1)

Where R₀ is the deposition rate pre-factor, P is the pressure inside the sputtering chamber, d_ST is the sample-target distance and ( pd)₀ is the pressure-distance parameter describing the mean free path of sputtered atoms at a certain pressure. Its value can be determined by fitting the Equation (1) to the measured deposition rate^{[ 15]}. Here fitting parameters include a deposition rate pre-factor R₀=9.98 nm/min and ( pd)₀= 55 Pa·cm.

Fig. 1

	Figure Option ViewDownloadNew Window

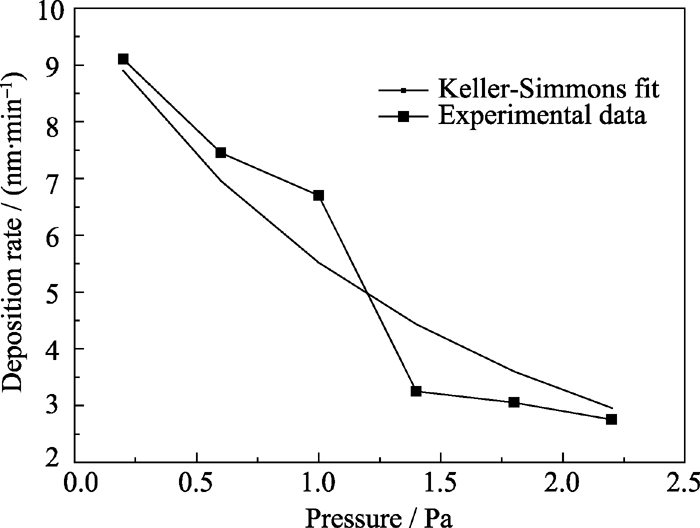

	Fig. 1 Dependence of deposition rate on sputtering pressureThe solid curve is the fitting line according to Keller-Simmons model

Figure 2 shows the XRD patterns of the AZO films deposited at sputtering pressures of 0.2, 0.6, 1.0, 1.4, 1.8 and 2.2 Pa, respectively. The crystalline phase of all films is hexagonal wurtzite.

Fig. 2

	Figure Option ViewDownloadNew Window

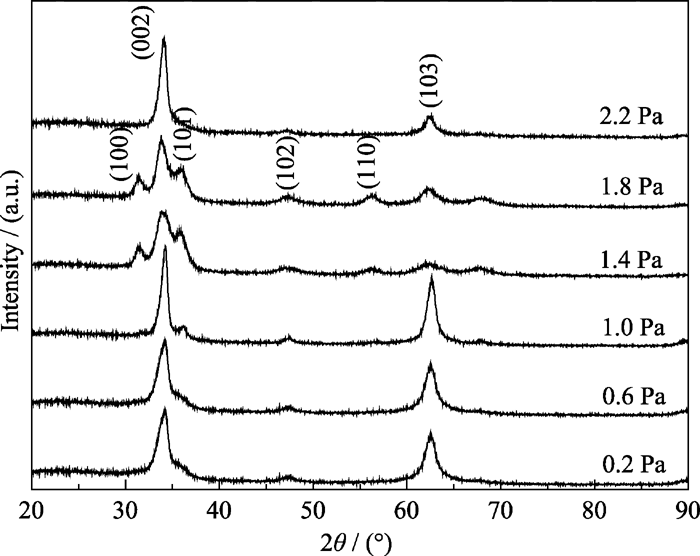

	Fig. 2 XRD patterns of the AZO films deposited at different sputtering pressures

The film deposited at 0.2 Pa shows a strong peak of (002) and a weaker peak of (103), which is in agreement with the reports^{[ 16, 17, 18]}. With increasing the sputtering pressure to 1.0, 1.4 Pa, the (101) and (100) peaks appear respectively. At the same time, the (103) peak becomes weaker. However, when the sputtering pressure is up to 2.2 Pa, the films have strong (002) peak and show obvious preferred orientation of (002).

In general, the textured film growth can be realized either by an evolution competition process of the statistically oriented grains or by a particle flux-determined selective growth process. In the former case, the so-called van der Drift mechanism, only grains with their fastest crystal growth direction parallel to the film growth direction can survive while other grains will be overgrown. In the latter case, grains with a certain special orientation will be allowed to grow by ion impact while the growth of other grains will be suppressed due to a selective ion etching or resputtering process^{[ 19]}.

As to the film growth in this work, the van der Drift mechanism can be ruled out. The growth of (002), (101) and (100) faces are fast, and v(002)> v(101)> v(100), according to Li^{[ 20]}. The fast growth is mainly due to the low surface energy. With the increasing sputtering pressure, the deposition rate of the film decreases, which is useful for horizontal migration of atoms. The atoms will migrate to these faces possessing low surface energy. So, the (101) and (100) peak appear respectively with the increasing sputtering pressure to 1.0, 1.4 Pa, and up to 2.2 Pa, the film shows obvious preferred orientation of (002).

The scanning electron microscope images of AZO films have been taken to evaluate their surface morphology and microstructure. Figure 3 shows the surface mi crographs of films as a function of the sputtering pressure. It is found that the sputtering pressure has a great influence on film surface structure. The film deposited at the sputtering pressure of 0.2 Pa shows surface features of densely packed fibrous grains (4 nm) and gains aggregateing. The films deposited at 0.6 Pa and 1.0 Pa show surface features of mainly hexagonal and some other shapes and the particle size becomes larger. The films deposited at 1.4 Pa and 1.8 Pa show surface features of uniform particle shape and particle size. The film deposited at 2.2 Pa shows perfect hexagonal structure. The results from the surface micrographs of films are quite consistent with XRD analysis as shown in Fig. 2.

Fig. 3

	Figure Option ViewDownloadNew Window
	Fig. 3 SEM images of the AZO films deposited at different sputtering pressures

The deposition rate is high at 0.2 Pa and the atoms deposited on the substrate are prevented by new arriving atoms from further diffusing in the film. Meanwhile, new nuclei are continuously formed in the process of deposition, leading to small critical nucleation in the film. Therefore, the film deposited at 0.2 Pa shows surface features of densely packed fibrous grains. The deposition rate decreases with the increasing sputtering pressure, which is useful for horizontal migration of atoms. Further, the crystalline size becomes larger and so uniform columnar structure is formed in the film and the grain surface begins to form unique crystallographic morphology. At higher sputtering pressures, grains in the film surface form regular and close hexagonal arrangement, and meanwhile the crystallization is improved.

Figure 4 shows the resistivity variation of films depending upon the sputtering pressure. The resistivity of the films decreases greatly with the increasing sputtering pressure ranging from 0.2 Pa to 1.0 Pa, and then increases lightly with the increasing sputtering pressure ranging from 1.4 Pa to 2.2 Pa. A minimum resistivity value of 8.4×10^-4 Ω·cm is seen at 1.4 Pa. This result is in agreement with Zhu’s report^{[ 21]}.

Fig. 4

	Figure Option ViewDownloadNew Window

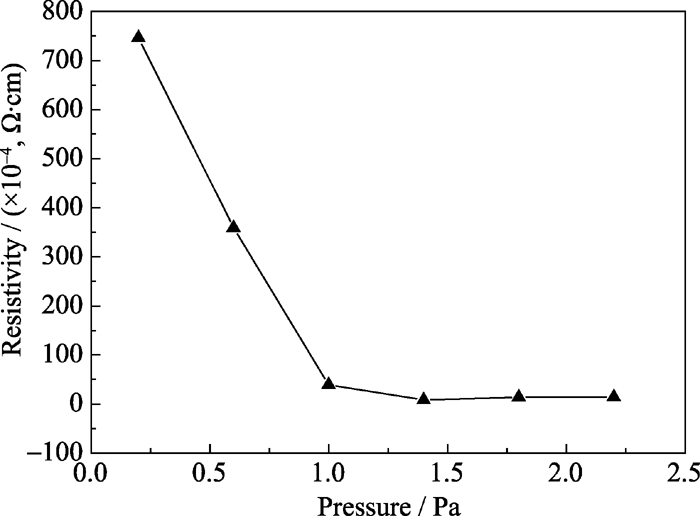

	Fig. 4 Resistivity of the AZO films as a function of sputtering pressure

The resistivity of semiconductor materials is determined according to the Equation,

(2)

Where, n is carrier concentration, μ is carrier mobility, and e is electronic unit. The mobility in the film is affected by scattering and the carrier concentration is mainly affected by the Al dopant. The greatly decreasing resistivity in the pressare range of 0.2 Pa to 1.0 Pa may be due to the increasing grain size (as shown in Fig. 3), which could decrease the grain boundary scattering and brings an increase of carrier mobility. At meantime, the decreasing deposition rate with the increasing sputtering pressure is useful for horizontal migration of atoms and more Al substitution, which brings an increase of carrier concentration.

The lightly increasing resistivity with the increasing sputtering pressure over the range of 1.4 Pa to 2.2 Pa may be due to the small thickness of the films. The thickness of the transparent conductive film has a significant impact on the electrical properties^{[ 22]}. For the thicker films, the resistivity has no relationship with the thickness. However, the resistivity will increase with the decrease of the thickness, when the film is very thin.

The optical transmission spectra for visible and near-IR spectra of films are shown in Fig. 5. All investigated films show more than 80% transmission between 400 and 800 nm and more than 60% transmission over range of near-infrared wave.

Fig. 5

	Figure Option ViewDownloadNew Window

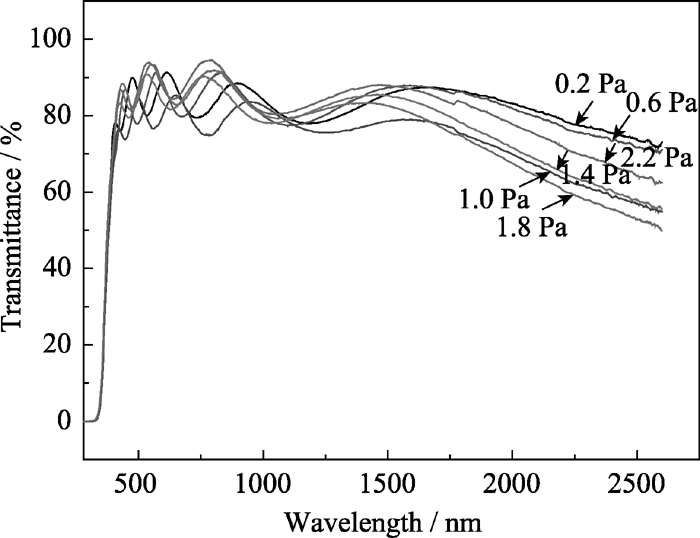

	Fig. 5 Transmittance spectra of the AZO films deposited at different sputtering pressures

A criterion parameter Q, which characterizes the electro-optical properties of films, was defined as the ratio of normalized average transmission to normalized resistivity:

(3)

In this study, the average transmission and the resistivity of films have been normalized to 90% and 8×10^-4 Ω·cm, respectively. The variation of Q with the sputtering pressure is shown in Fig. 6. It can be seen that the maximum value of Q obtained at 1.4 Pa is 0.9, which is mainly due to the minimum resistivity.

Fig. 6

	Figure Option ViewDownloadNew Window
	Fig. 6 Variation of Q with the sputtering pressure

1) The deposition rate decreases with the increasing sputtering pressure according to Keller-Simmons model.

2) With the increasing sputtering pressure, the film show the strong peaks of (002) and (103) firstly, and then the (101) and (100) peaks appear; finally, the film has the only strong (002) peak. These results appear because (002), (101) and (100) planes possess low surface energy.

3) The film surface structure is greatly depended on the sputtering pressure, which is consistent with the XRD result.

4) The film deposited at 1.4 Pa shows the lowest resistivity, high transparency and the highest Q value, mainly due to the uniform particle shape and particle size. The decrease of grain boundary scattering will bring on the weaker scattering process of carriers and photons in the AZO films.
