Synthesis of Zn0.4(CuGa)0.3Ga2S4/CdS Photocatalyst for CO2 Reduction

doi:10.15541/jim20210480

Abstract

Abstract:

Conversion of CO₂ into fuels by photocatalysis is promising in solving the energy crisis and the greenhouse effect. Among various photocatalytic materials, Zn_1-2_x(CuGa)_xGa₂S₄ materials possess visible light response and high conduction band potential, which are ideal CO₂ reduction materials from thermodynamics aspect. However, their photocatalytic CO₂ reduction activity is still low which is urgent to improve its activity in terms of kinetics. In this study, Zn_0.4(CuGa)_0.3Ga₂S₄ was synthesized and composited with CdS nanoparticles with different proportions to form Zn_0.4(CuGa)_0.3Ga₂S₄/CdS heterojunction photocatalysts. A series of characterizations suggest that CdS is uniformly grown on surface of Zn_0.4(CuGa)_0.3Ga₂S₄ microcrystals to form a Z-scheme type all-solid heterojunction composite materials. Such a structure effectively suppresses the recombination of electron-hole pairs and improve the photocatalytic performance. In the solution CO₂ reduction system, the as-prepared Zn_0.4(CuGa)_0.3Ga₂S₄/CdS can effectively reduce CO₂ into CO under visible light irradiation. The optimal molar ratio of Zn_0.4(CuGa)_0.3Ga₂S₄ and CdS in composite materials is 2 : 1, whose photocatalytic performance is 1.7 times of that of Zn_0.4(CuGa)_0.3Ga₂S₄/ CdS and 1.6 times of that of CdS. This work constructs all solid Z-scheme type Zn_0.4(CuGa)_0.3Ga₂S₄/CdS heterojunction materials with enhanced photocatalytic activity for CO₂ reduction, which is promising for designing novel photocatalysts in field of artificial photosynthesis.

Key words: photocatalysis, Z-scheme heterojunction, carbon dioxide reduction, sulfide

CLC Number:

TQ174

LIU Peng, WU Shimiao, WU Yunfeng, ZHANG Ning. Synthesis of Zn_0.4(CuGa)_0.3Ga₂S₄/CdS Photocatalyst for CO₂ Reduction[J]. Journal of Inorganic Materials, 2022, 37(1): 15-21.

Figures/Tables 9

Fig. 1 XRD patterns of as-prepared products

Fig. 2 (a,b) SEM images, (c,d) TEM images, (e) HRTEM image of Zn0.4(CuGa)0.3Ga2S4/CdS-2 : 1

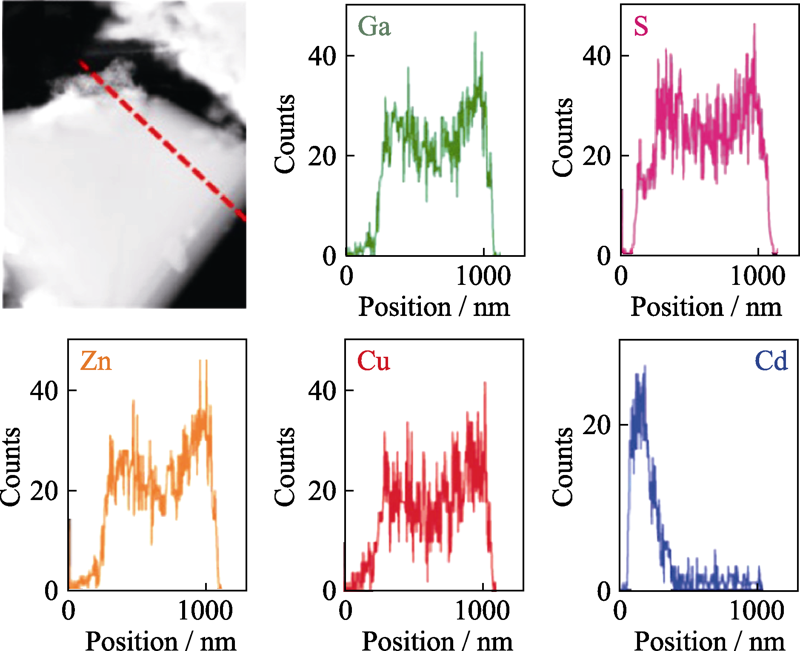

Fig. 3 EDS elemental line scanning analyses of Zn0.4(CuGa)0.3Ga2S4/CdS-2 : 1

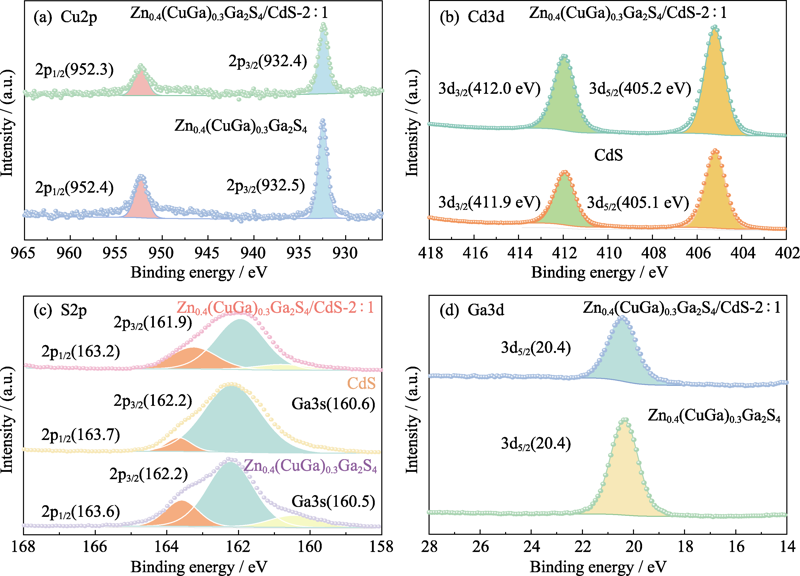

Fig. 4 (a) Cu2p, (b) C3d, (c) S2p, (d) Ga3d XPS spectra of Zn0.4(CuGa)0.3Ga2S4/CdS-2 : 1, Zn0.4(CuGa)0.3Ga2S4 and CdS

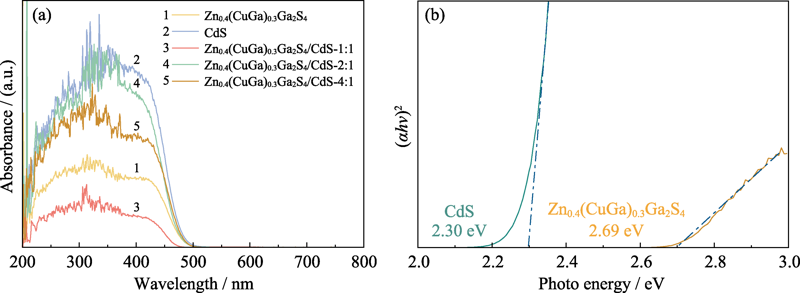

Fig. 5 UV-Vis adsorption spectra (a) and band gap energy calculation diagram (b) of samples

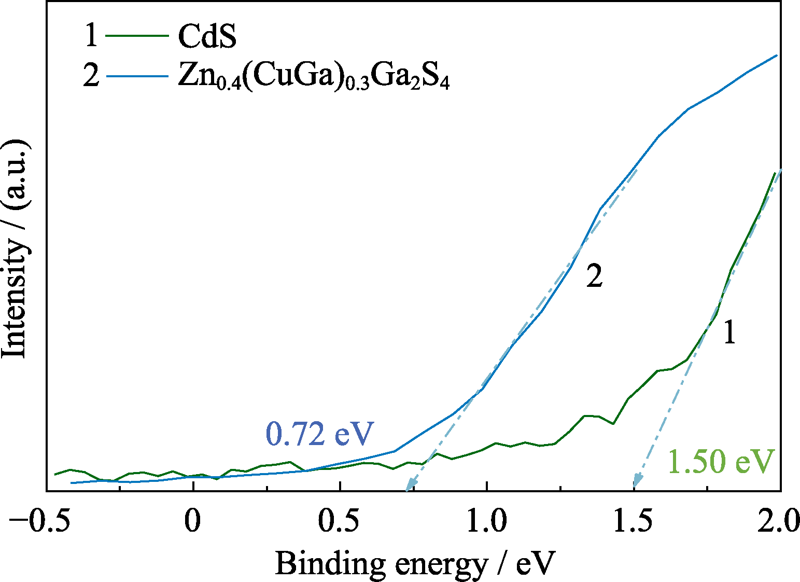

Fig. 6 VB-XPS spectra of Zn0.4(CuGa)0.3Ga2S4 and CdS

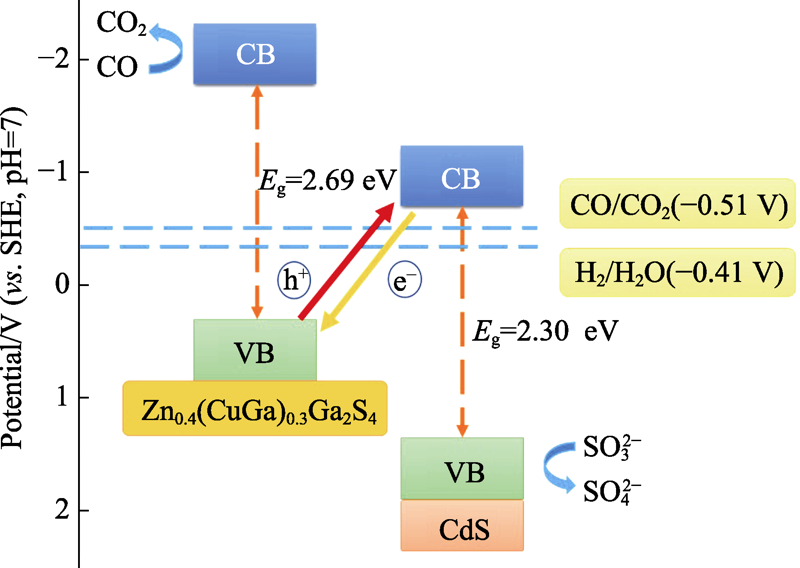

Fig. 7 Scheme of relatively energy band position for Zn0.4(CuGa)0.3Ga2S4 and CdS

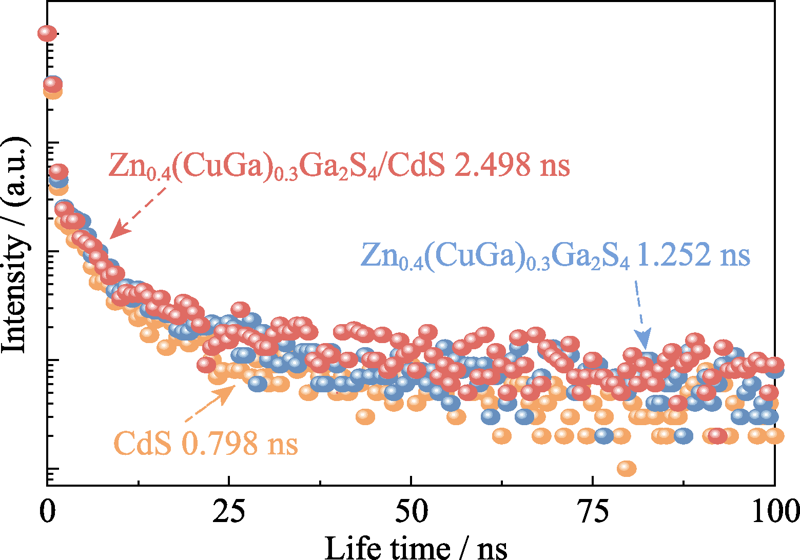

Fig. 8 TRPL spectra of samples Zn0.4(CuGa)0.3Ga2S4/CdS-2 : 1, Zn0.4(CuGa)0.3Ga2S4 and CdS Colorful figures are available on website

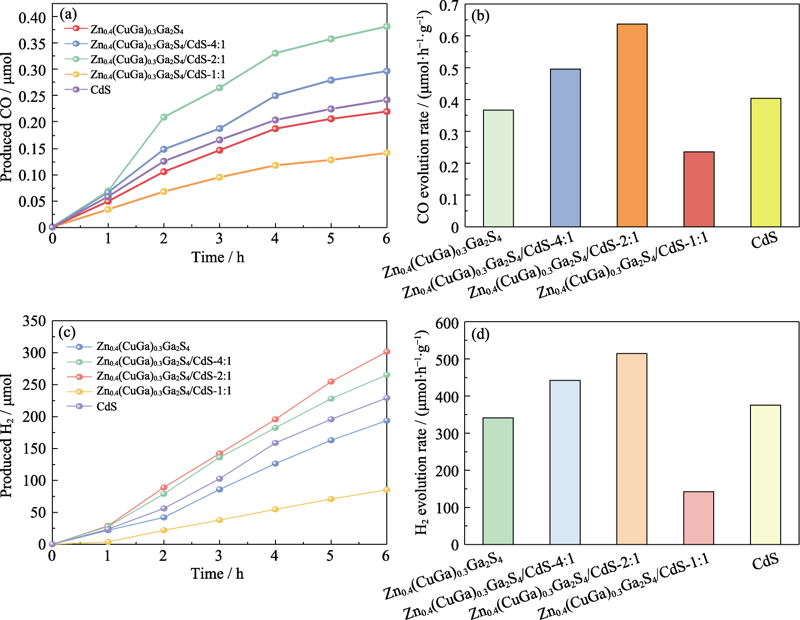

Fig. 9 (a) CO evolution vs. irradiation time, (b) CO evolution rate, (c) H2 evolution vs. irradiation time, and (d) H2 evolution rate over Zn0.4(CuGa)0.3Ga2S4/CdS-4 : 1, Zn0.4(CuGa)0.3Ga2S4/CdS-2 : 1, Zn0.4(CuGa)0.3Ga2S4/CdS-1 : 1, Zn0.4(CuGa)0.3Ga2S4, and CdS Colorful figures are available on website

References 30

[1]	CHU S, MAJUMDAR A. Opportunities and challenges for a sustainable energy future. Nature, 2012, 488(7411):294-303. DOI URL
[2]	霍景沛, 林冲, 陈桂煌等. 光催化二氧化碳还原催化体系研究进展. 化学推进剂与高分子材料, 2020, 18(3):8-14.
[3]	LI K, PENG B S, PENG T Y. Recent advances in heterogeneous photocatalytic CO₂ conversion to solar fuels . ACS Catal, 2016, 6:7485-7527. DOI URL
[4]	赵志强, 张贺, 焦畅, 等. 全球CCUS技术和应用现状分析. 现代化工, 2021, 41(4):5-10.
[5]	王冰, 赵美明, 周勇, 等. 光催化还原二氧化碳制备太阳燃料研究进展及挑战. 中国科学: 技术科学, 2017, 47(3):286-296.
[6]	MIKKELSEN M, JØRGENSEN M, KREBS F C. The teraton challenge. A review of fixation and transformation of carbon dioxide. Energy and Environmental Science, 2010, 3(1):43-81. DOI URL
[7]	ARAI T, SATO S, KAJINO T, et al. Solar CO₂ reduction using H₂O by a semiconductor/metal-complex hybrid photocatalyst: enhanced efficiency and demonstration of a wireless system using SrTiO₃ photoanodes. Energy and Environmental Science, 2013, 6(4):1274-1282. DOI URL
[8]	HASHIMOTO K, IRIE H, FUJISHIMA A. TiO₂ photocatalysis: a historical overview and future prospects. Japanese Journal of Applied Physics, 2005, 44(12):8269-8285. DOI URL
[9]	LONG R, LI Y, SONG L, et al. Coupling solar energy into reactions: materials design for surface plasmon-mediated catalysis. Small, 2015, 11(32):3873-3889. DOI URL
[10]	HUANG H, ZHOU J, ZHOU J, et al. Structure-retentive synthesis of a highly ordered mesoporous Nb₂O₅/N-doped graphene nanocomposite with superior interfacial contacts and improved visible- light photocatalysis. Catalysis Science & Technology, 2019, 9(13):3373-3379.
[11]	ZHANG H, CHEN Y, ZHU X, et al. Mn²⁺-doped Zn₂GeO₄ for photocatalysis hydrogen generation. International Journal of Energy Research, 2019, 43(9):5013-5019. DOI URL
[12]	ZHANG J, LI W, LI Y, et al. Self-optimizing bifunctional CdS/Cu₂S with coexistence of light-reduced CuO for highly efficient photocatalytic H₂ generation under visible-light irradiation. Applied Catalysis B: Environmental, 2017, 217:30-36. DOI URL
[13]	MANZI A, SIMON T, SONNLEITNER C, et al. Light-induced cation exchange for copper sulfide based CO₂ reduction. Journal of the American Chemical Society, 2015, 137(44):14007-14010. DOI URL
[14]	ZHAO M, HUANG F, LIN H, et al. CuGaS₂-ZnS p-n nanoheterostructures: a promising visible light photo-catalyst for water-splitting hydrogen production. Nanoscale, 2016, 8(37):16670-16676. DOI URL
[15]	KAGA H, KUDO A. Cosubstituting effects of copper(I) and gallium (III) for ZnGa₂S₄ with defect chalcopyrite structure on photocatalytic activity for hydrogen evolution. Journal of Catalysis, 2014, 310:31-36. DOI URL
[16]	王宗鹏, 林志萍, 申士杰, 等. 异质结光催化材料的新进展. 催化学报, 2021, 42(5):710-730.
[17]	董虹星, 刘秋平, 贺跃辉. BiVO₄基纳米异质结光催化材料的研究进展. 材料导报, 2018, 32(10):3358-3367.
[18]	SARKAR D, GHOSH C K, MUKHERJEE S, et al. Three dimensional Ag₂O/TiO₂ type-II (p-n) nanoheterojunctions for superior photocatalytic activity. ACS Applied Materials and Interfaces, 2013, 5(2):331-337. DOI URL
[19]	WANG H, ZHANG L, CHEN Z, et al. Semiconductor heterojunction photocatalysts: design, construction, and photocatalytic performances. Chemical Society Reviews, 2014, 43(15):5234-5244. DOI URL
[20]	PANMAND R P, SETHI Y A, et al. In situ fabrication of highly crystalline CdS decorated Bi₂S₃ nanowires (nano-heterostructure) for visible light photocatalyst application. RSC Advances, 2016, 6:23508-23517. DOI URL
[21]	GUO F, SHI W, LI M, et al. 2D/2D Z-scheme heterojunction of CuInS₂/g-C₃N₄ for enhanced visible-light-driven photocatalytic activity towards the degradation of tetracycline. Separation and Purification Technology, 2019, 210:608-615. DOI URL
[22]	TADA H, MITSUI T, KIYONAGA T, et al. All-solid-state Z-scheme in CdS-Au-TiO₂ three-component nanojunction system. Nature Materials, 2006, 5(10):782-786. DOI URL
[23]	HE Y, ZHANG L, TENG B, et al. New application of Z-scheme Ag₃PO₄/g-C₃N₄ composite in converting CO₂ to fuel. Environmental Science & Technology, 2014, 49(1):649-656. DOI URL
[24]	ZHOU Q, KANG S Z, LI X, et al. One-pot hydrothermal preparation of wurtzite CuGaS₂ and its application as a photoluminescent probe for trace detection of l-noradrenaline. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2015, 465:124-129. DOI URL
[25]	LIANG Q, JIANG G, ZHAO Z, et al. CdS-decorated triptycene- based polymer: durable photocatalysts for hydrogen production under visible-light irradiation. Catalysis Science & Technology, 2015, 5(6):3368-3374.
[26]	WU S, PANG H, ZHOU W, et al. Stabilizing CuGaS₂ by crystalline CdS through an interfacial Z-scheme charge transfer for enhanced photocatalytic CO₂ reduction under visible light. Nanoscale, 2020, 12(16):8693-8700. DOI URL
[27]	MA F, ZHAO G, LI C, et al. Fabrication of CdS/BNNSs nanocomposites with broadband solar absorption for efficient photocatalytic hydrogen evolution. CrystEngComm, 2016, 18(4):631-637. DOI URL
[28]	ZHENG Z, ZHANG N, WANG T, et al. Ag_1.69Sb_2.27O_6.25 coupled carbon nitride photocatalyst with high redox potential for efficient multifunctional environmental applications. Applied Surface Science, 2019, 487(March):82-90. DOI URL
[29]	SIMON T, BOUCHONVILLE N, BERR M J, et al. Redox shuttle mechanism enhances photocatalytic H₂ generation on Ni-decorated CdS nanorods. Nature Materials, 2014, 13(11):1013-1018. DOI URL
[30]	吴唯, 周勇, 刘尚军, 等. InAs量子点低温盖层对其发光特性的影响. 半导体光电, 2020, 41(1):89-92.
