Journal of Inorganic Materials ›› 2020, Vol. 35 ›› Issue (5): 525-531.DOI: 10.15541/jim20190300
Previous Articles Next Articles
WANG Pengren,GOU Yanzi(),WANG Hao
Received:
2019-06-20
Revised:
2019-07-29
Published:
2020-05-20
Online:
2019-09-12
Supported by:
CLC Number:

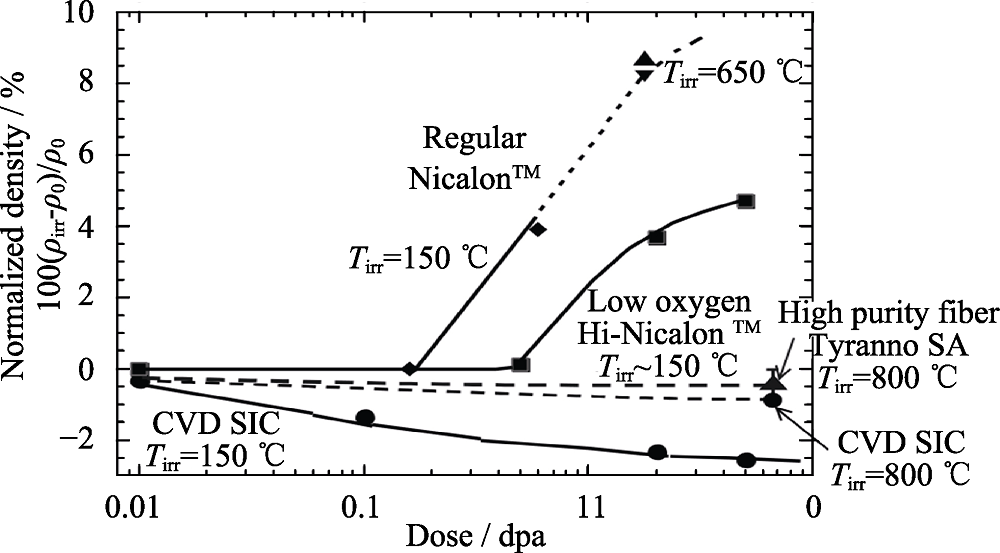

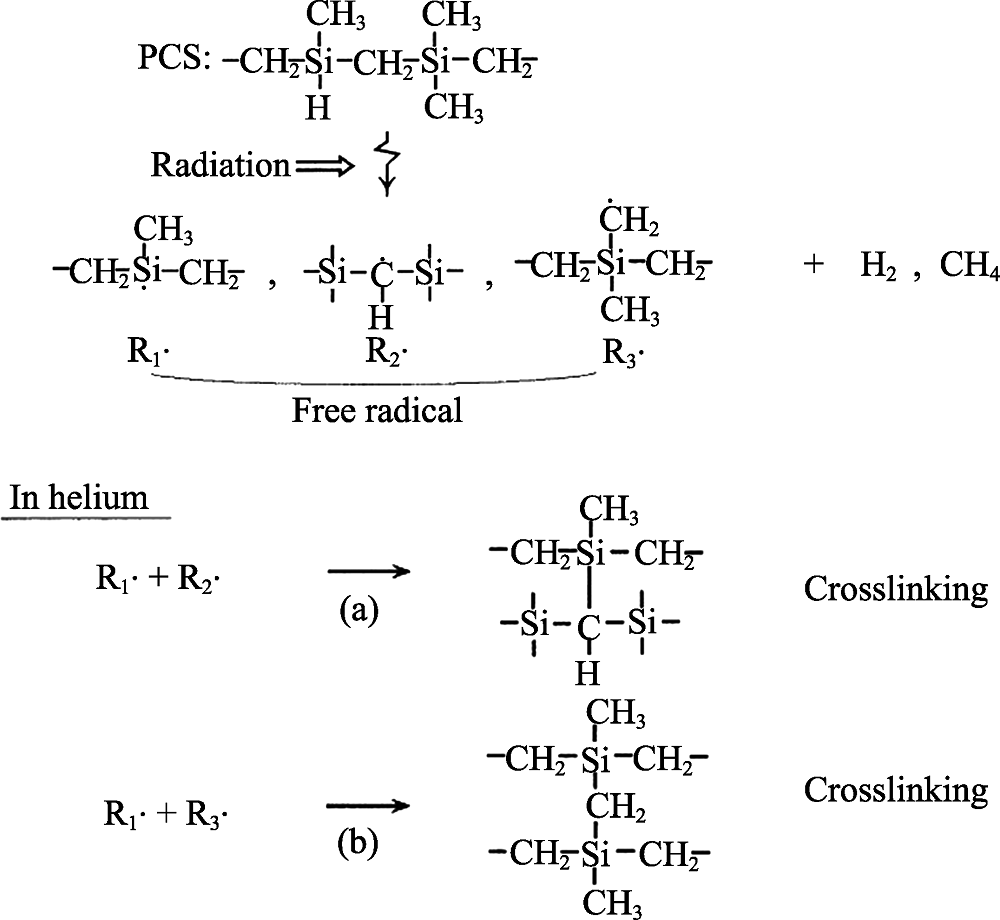

WANG Pengren, GOU Yanzi, WANG Hao. Third Generation SiC Fibers for Nuclear Applications[J]. Journal of Inorganic Materials, 2020, 35(5): 525-531.

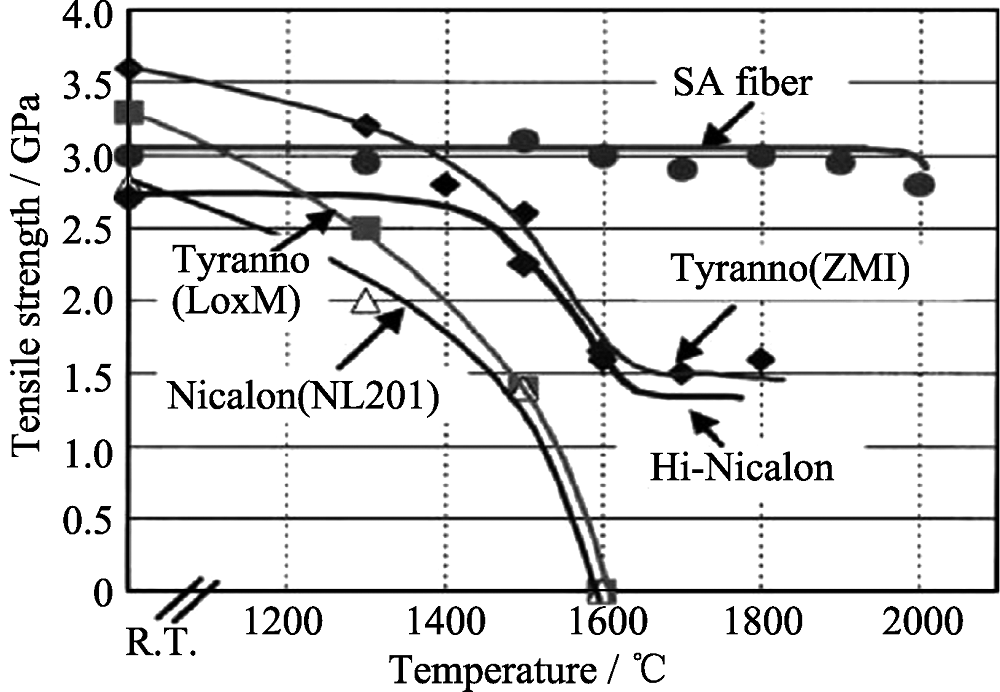

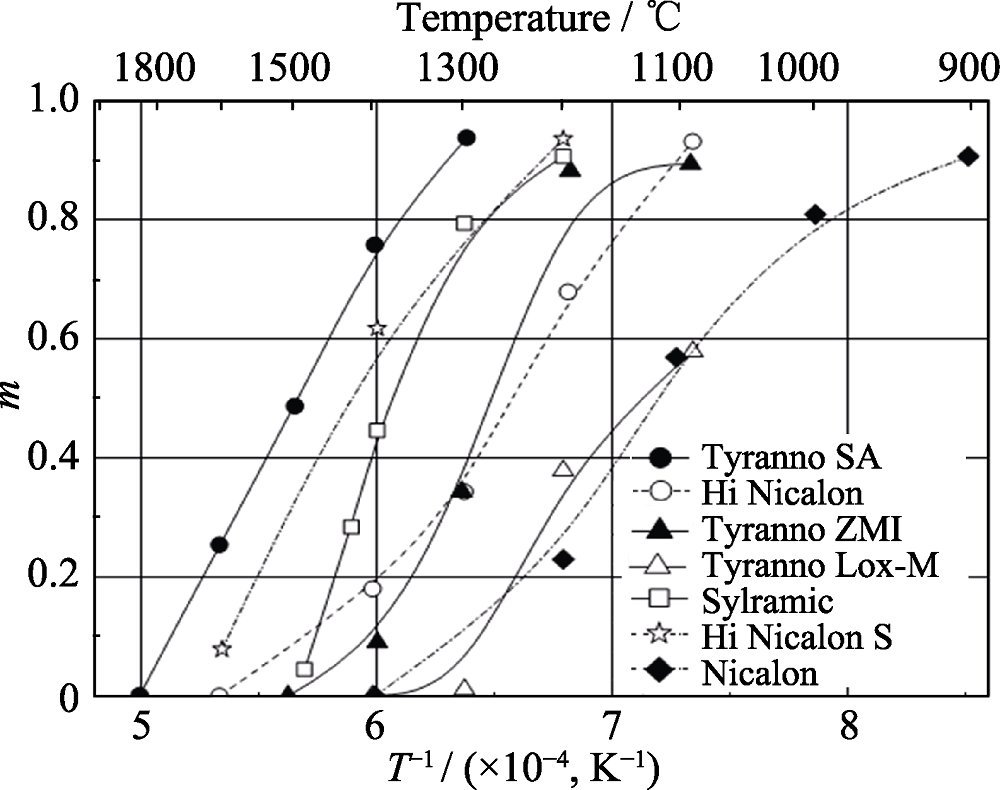

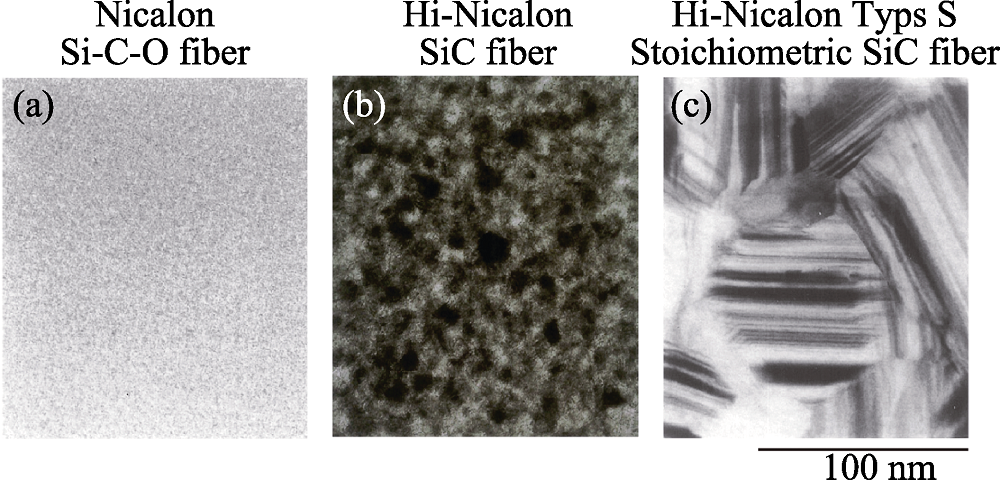

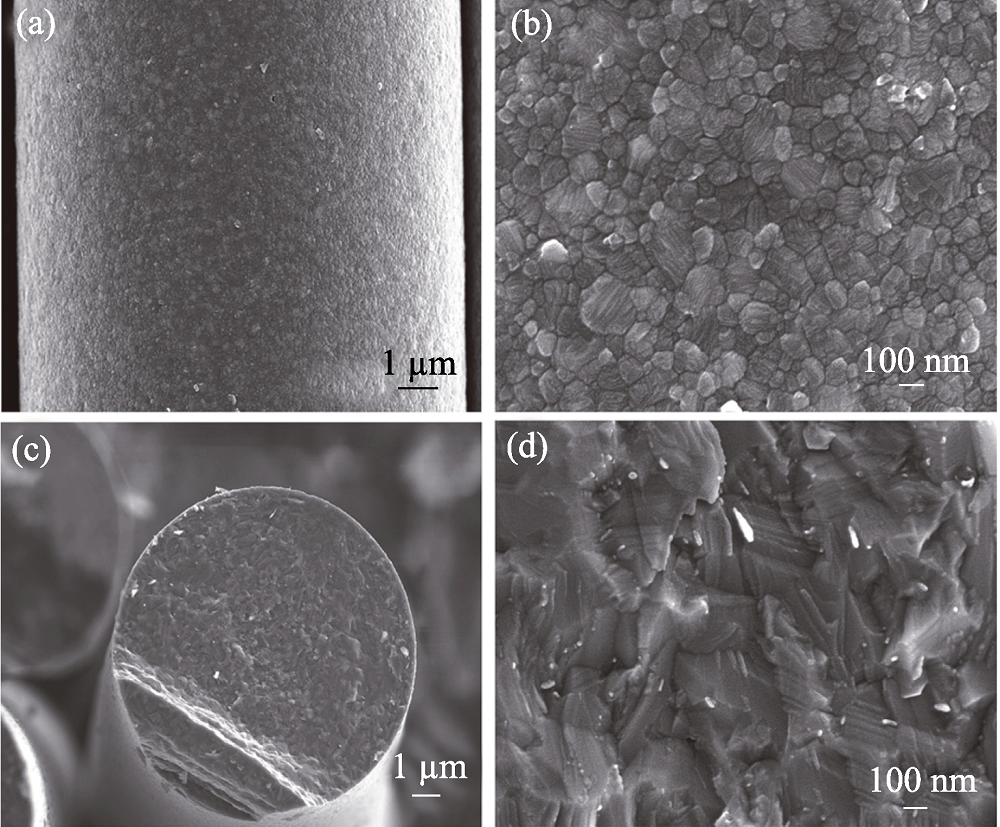

Trade mark | Tensile strength/GPa | Young’s modulus/GPa | Diameter/μm | C/Si | |
---|---|---|---|---|---|
First generation | Nicalon 200 | 3.0 | 200 | 14 | 1.33 |
Tyranno Lox-M | 3.3 | 185 | 11 | 1.38 | |
KD-I | >2.5 | >170 | 11.5 | 1.29 | |
Second generation | Hi-Nicalon | 2.8 | 270 | 12 | 1.39 |
Tyranno ZE | 3.5 | 233 | 11 | 1.34 | |
KD-II | >2.7 | >250 | 11.5 | 1.35-1.40 | |
Third generation | Hi-Nicalon S | 2.6 | 340 | 12.0 | 1.05 |
KD-S | 2.7 | 310 | 11.0 | 1.08 | |
Tyranno SA | 2.8 | 375 | 8.0&10.0 | 1.08 | |
KD-SA | 2.5 | 350 | 10.5 | 1.05 | |
Sylramic | 3.2 | 400 | 10.0 | 1.01 |
Table 1 Compositions and mechanical properties of three generations SiC fibers[5,13-18]

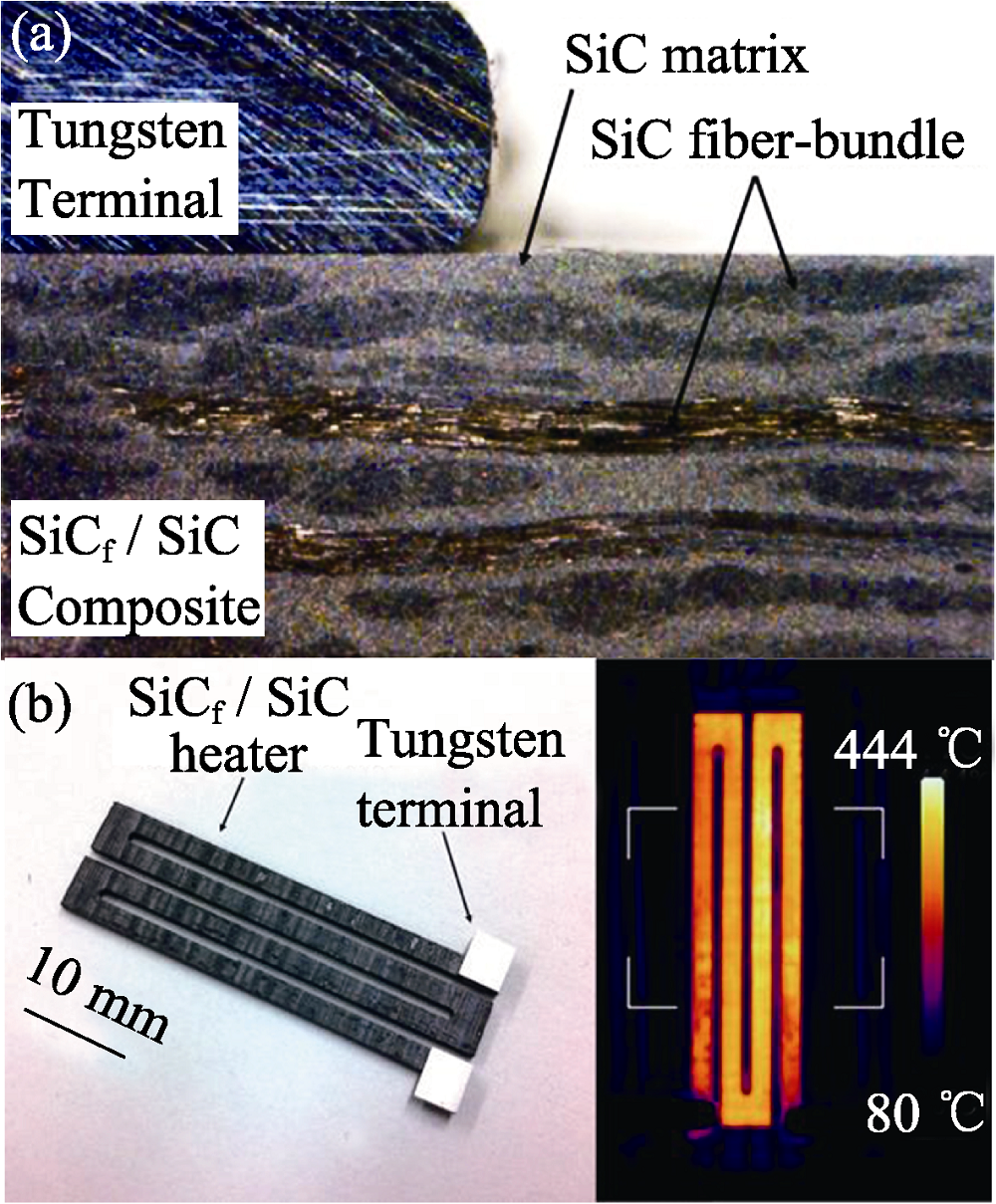

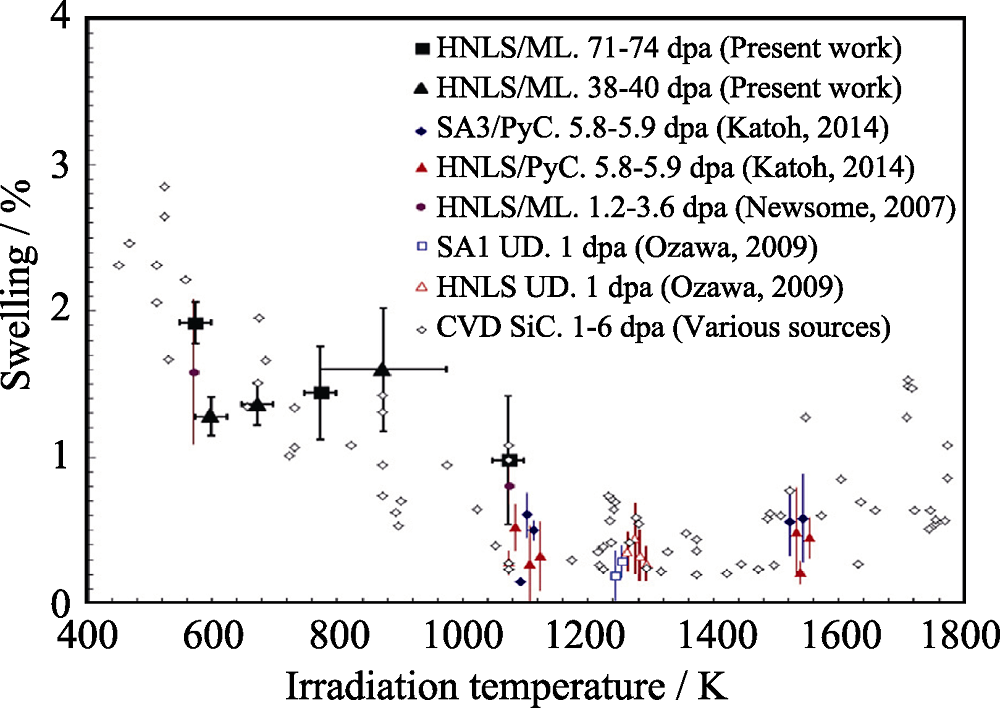

Trade mark | Tensile strength/GPa | Young’s modulus/GPa | Diameter/μm | C/Si | |
---|---|---|---|---|---|
First generation | Nicalon 200 | 3.0 | 200 | 14 | 1.33 |
Tyranno Lox-M | 3.3 | 185 | 11 | 1.38 | |
KD-I | >2.5 | >170 | 11.5 | 1.29 | |
Second generation | Hi-Nicalon | 2.8 | 270 | 12 | 1.39 |
Tyranno ZE | 3.5 | 233 | 11 | 1.34 | |
KD-II | >2.7 | >250 | 11.5 | 1.35-1.40 | |
Third generation | Hi-Nicalon S | 2.6 | 340 | 12.0 | 1.05 |
KD-S | 2.7 | 310 | 11.0 | 1.08 | |
Tyranno SA | 2.8 | 375 | 8.0&10.0 | 1.08 | |
KD-SA | 2.5 | 350 | 10.5 | 1.05 | |
Sylramic | 3.2 | 400 | 10.0 | 1.01 |
Brand name | Fiber type | Preparation technology | Tensile strength at room temperature / MPa | Failure duration |
---|---|---|---|---|
Hypercomp PP-HN | Hi-Nicalon | MI | 321 | >1000 h/1200 ℃ |
Hypercomp SC-HN | Hi-Nicalon | MI | 358 | >1000 h/1200 ℃ |
N22 | Sylramic | CVI+MI | 400 | ~500 h/1204 ℃ |
N24-A | Sylramic-iBN | CVI+MI | 450 | ~500 h/1315 ℃ |
N24-B | Sylramic-iBN | CVI+MI | 450 | ~500 h/1315 ℃ |
N24-C | Sylramic-iBN | CVI+MI | 310 | >1000 h/1315 ℃ |
N26 | Sylramic-iBN | CVI+PIP | 330 | ~300 h/1450 ℃ |
A410 | Hi-Nicalon | CVI | 200-315 | 600 h/1200 ℃ |
A416 | Hi-Nicalon S | CVI | 200-315 | 200 h/1400 ℃ |
Table 2 Different SiCf/SiC composites and their properties[46]
Brand name | Fiber type | Preparation technology | Tensile strength at room temperature / MPa | Failure duration |
---|---|---|---|---|
Hypercomp PP-HN | Hi-Nicalon | MI | 321 | >1000 h/1200 ℃ |
Hypercomp SC-HN | Hi-Nicalon | MI | 358 | >1000 h/1200 ℃ |
N22 | Sylramic | CVI+MI | 400 | ~500 h/1204 ℃ |
N24-A | Sylramic-iBN | CVI+MI | 450 | ~500 h/1315 ℃ |
N24-B | Sylramic-iBN | CVI+MI | 450 | ~500 h/1315 ℃ |
N24-C | Sylramic-iBN | CVI+MI | 310 | >1000 h/1315 ℃ |
N26 | Sylramic-iBN | CVI+PIP | 330 | ~300 h/1450 ℃ |
A410 | Hi-Nicalon | CVI | 200-315 | 600 h/1200 ℃ |
A416 | Hi-Nicalon S | CVI | 200-315 | 200 h/1400 ℃ |
