Thermoelectric Property of Zn-Sb Doped Mg2(Si,Sn) Alloys

doi:10.15541/jim20180388

Abstract

Abstract:

As a type of medium-temperature thermoelectric materials, Mg₂(Si,Sn) alloy thermoelectric materials have been widely concerned because of the low cost and environmental friendliness. Heavily Sb doping can effectively induce Mg vacancy so as to reduce the thermal conductivity in Mg₂(Si,Sn)-based materials, but at the same time lead to a decrease of Seebeck coefficient. In this study, high-quality Mg_2.12-_ySi_0.4Sn_0.5Sb_0.1Zn_y (y=0-0.025) samples were successfully synthesized by high temperature melting and vacuum hot-pressing method. Zn element was introduced into the heavily Sb-doped Mg₂(Si,Sn) material to investigate the double doping effect on the electroacoustic transport properties. The results show that Zn-Sb double doping could effectively reduce the total thermal conductivity of Mg₂(Si,Sn)-based materials by obviously suppressing the electronic thermal conductivity and at the same time enhance the Seebeck coefficient of Zn-doped samples, so as to compensate for the loss of electrical conductivity, and maintain high electrical performance. Significantly optimized thermal conductivity and electrical performance ultimately improve the thermoelectric figure of meritZT of the material. At 823 K, the maximum ZT of Mg_2.095Si_0.4Sn_0.5Sb_0.1Zn_0.025 reached 1.42.

Key words: thermoelectric materials, Mg₂(Si, Sn) alloy, zinc-antimony doping, figure of merit

CLC Number:

TB381

YU Guan-Ting, XIN Jia-Zhan, ZHU Tie-Jun, ZHAO Xin-Bing. Thermoelectric Property of Zn-Sb Doped Mg₂(Si,Sn) Alloys[J]. Journal of Inorganic Materials, 2019, 34(3): 310-314.

Figures/Tables 5

Fig.1 XRD patterns of Mg2.12-ySi0.4Sn0.5Sb0.1Zny (y=0-0.025)

Fig.2 Backscattered SEM images of Mg2.12-ySi0.4Sn0.5Sb0.1Zny(a) y=0.015; (b)y=0.025

Fig.3 Temperature dependences of electrical properties of Mg2.12-ySi0.4Sn0.5Sb0.1Zny (y=0-0.025)(a) Electrical conductivity; (b) Seebeck coefficient; (c) Power factor

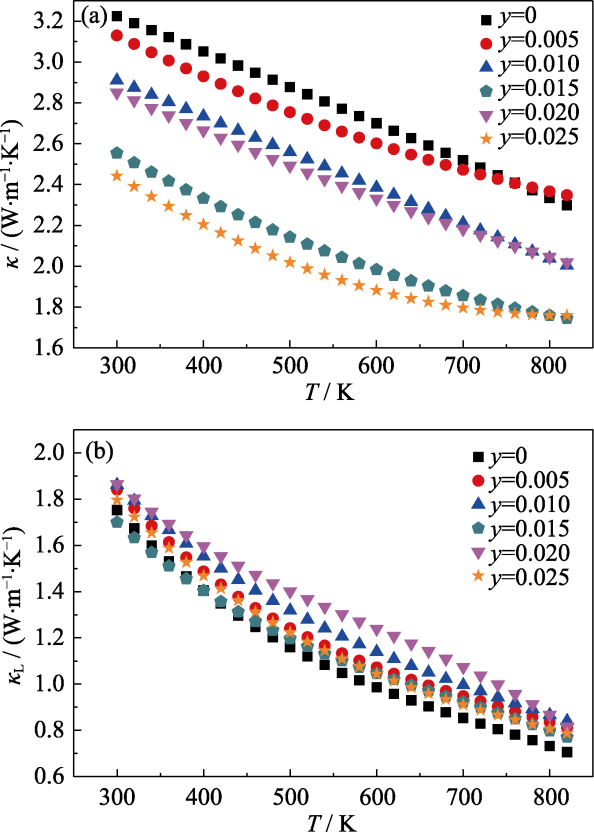

Fig.4 Temperature dependences of thermal properties of Mg2.12-ySi0.4Sn0.5Sb0.1Zny(y=0-0.025)(a) Total thermal conductivity; (b) Lattice thermal conductivity

Fig.5 Temperature dependences of figure of merit ZT for Mg2.12-ySi0.4Sn0.5Sb0.1Zny(y=0-0.025)

References 26

[1]	HE J, TRITT T M. Advances in thermoelectric materials research: looking back and moving forward. Science, 2017, 357(6358): 1369-1-9.
[2]	ZHU T J, LIU Y T, FU C G, et al. Compromise. Compromise and synergy in high-efficiency thermoelectric materials. Advanced Materials, 2017, 29(14): 1605884-1-26.
[3]	HU L P, ZHU T J, LIU X H,et al. Point defect engineering of high-performance bismuth-telluride-based thermoelectric materials. Advanced Functional Materials, 2014, 24: 5211-5218.
[4]	ZHAI R S, WU Y H, ZHU T J,et al. Thermoelectric performance of p-type zone-melted Se-doped Bi0.5Sb1.5Te3 alloys. Rare Metals, 2018, 37(4): 308-315.
[5]	ZHANG Q H, XU L L, WANG L J,et al. Effects of different amount of Se-doping on microstructures and thermoelectric properties of n-type Bi2Te3-xSex. Journal of Inorganic Materials, 2014, 29(11): 1139-1144.
[6]	YING P J, LIU X H, FU C G,et al. High performance α-MgAgSb thermoelectric materials for low temperature power generation. Chemistry of Materials, 2015, 27(3): 909-913.
[7]	PEI Y Z, LALONDE A D, WANG H,et al. Low effective mass leading to high thermoelectric performance. Energy & Environmental Science, 2012, 5(7): 7963-7969.
[8]	QIN B C, XIAO Y, ZHOU Y M,et al. Thermoelectric transport properties of Pb-Sn-Te-Se system. Rare Metals, 2017, 37(4): 343-350.
[9]	LIU X H, ZHU T J, WANG H,et al. Low electron scattering potentials in high performance Mg2Si0.45Sn0.55 based thermoelectric solid solutions with band convergence. Advanced Energy Materials, 2013, 3(9): 1238-1244.
[10]	JIANG G Y, HE J, ZHU T J,et al. High performance Mg2(Si,Sn) solid solutions: a point defect chemistry approach to enhancing thermoelectric properties.Advanced Functional Materials, 2014, 24(24): 3776-3781.
[11]	CHEN X, GIRARD S N, MENG F, et al. Approaching the minimum thermal conductivity in rhenium-substituted higher manganese silicides. Advanced Energy Materials, 2014, 4(14): 1400452-1-10.
[12]	ZAITSEV V K, FEDOROV M I, GURIEVA E A, et al. Highly effective Mg2Si1-xSnx thermoelectrics. Physical Review B, 2006, 74(4): 045207-1-5.
[13]	YAO Z, QIU P F, LI X Y,et al. Investigation on quick fabrication of n-type filled skutterudites. Journal of Inorganic Materials, 2016, 31(12): 1375-1382.
[14]	SLACK G A, HUSSAIN M A.The maximum possible conversion efficiency of silicon-germanium thermoelectric generators.Journal of Applied Physics, 1991, 70(5): 2694-2718.
[15]	VINING C B, LASKOW W, HANSON J O,et al. Thermoelectric properties of pressure-sintered Si0.8Ge0.2 thermoelectric alloys. Journal of Applied Physics, 1991, 69(8): 4333-4340.
[16]	ZHU T J, FU C G, XIE H H, et al. High efficiency half-Heusler thermoelectric materials for energy harvesting. Advanced Energy Materials, 2015, 5(19): 1500588-1-13.
[17]	FU C G, BAI S Q, LIU Y T, et al. Realizing high figure of merit in heavy-band p-type half-Heusler thermoelectric materials. Nature Communications, 2015, 6: 8144-1-7.
[18]	BROWN S R, KAUZLARICH S M, GASCOIN F,et al. Yb14MnSb11 new high efficiency thermoelectric material for power generation. Chemistry of Materials, 2006, 18: 1873-1877.
[19]	GAO H L, ZHU T J, LIU X X,et al. Flux synthesis and thermoelectric properties of eco-friendly Sb doped Mg2Si0.5Sn0.5 solid solutions for energy harvesting. Journal of Materials Chemistry, 2011, 21(16): 5933-5937.
[20]	HAN Z M, ZHANG X, LU Q M,et al. Preparation and thermoelectric properties of (Mg2Si1-xSbx)0.4-(Mg2Sn)0.6 alloys. Journal of Inorganic Materials, 2012, 27(8): 822-826.
[21]	DU Z L, ZHU T J, CHEN Y,et al. Roles of interstitial Mg in improving thermoelectric properties of Sb-doped Mg2Si0.4Sn0.6 solid solutions. Journal of Materials Chemistry, 2012, 22(14): 6838-6844.
[22]	LIU W, TANG X F, LI H,et al. Optimized thermoelectric properties of Sb-doped Mg2(1+z)Si0.5-ySn0.5Sby through adjustment of the Mg content.Chemistry of Materials, 2011, 23(23): 5256-5263.
[23]	GAO H L, ZHU T J, ZHAO X B,et al. Influence of Ca substitution on the thermoelectric properties of Mg2Si. Journal of Materials Science & Engineering, 2010, 28(2): 260-262.
[24]	GAO H L, ZHU T J, ZHAO X B,et al. Synergetic effect of Zn substitution on the electron and phonon transport in Mg2Si0.5Sn0.5-based thermoelectric materials. Dalton Transactions, 2014, 43(37): 14072-14078.
[25]	YANG S H, ZHU T J, SUN T, et al. Nanostructures in high-performance (GeTe)x(AgSbTe2)100-x thermoelectric materials. Nanotechnology, 2008, 19(24): 245707-1-5.
[26]	ZHAO J B, LIU Z X, REID J,et al. Thermoelectric and electrical transport properties of Mg2Si multi-doped with Sb, Al and Zn. Journal of Materials Chemistry A, 2015, 3(39): 19774-19782.
