Porous Bamboo Charcoal/TiO2 Nanocomposites: Preparation and Photocatalytic Property

doi:10.15541/jim20180379

Abstract

Abstract:

Here we report a novel surface modified bamboo charcoal/TiO₂ (SMBC/TiO₂) nanocomposites with high adsorption and photocatalytic property. SMBC were prepared by a wet oxidization method of cheap natural bamboo charcoal (BC) with good absorbent and chemical stabilities. After modification, high density of carboxyl groups were generated on the surface of BC, thus SMBC particles can be easily dispersed in water and have stronger interactions with TiO₂ nanoparticles, which ensure SMBC uniformly coated on TiO₂. And SMBC/TiO₂ nanocomposties have much higher specific surface area than BC/TiO₂, which could offer higher adsorption capacity. The saturated adsorption capacity of SMBC/TiO₂ is approximately 1.6 times, 12.1 times as great as BC/TiO₂ and pure TiO₂, respectively. The synergetic effect of adsorption and catalysis endow SMBC/TiO₂ composites much higher photocatalytic activity than BC/TiO₂ and pure TiO₂ for MB degradation, and the rate constant for MB photocatalytic degradation of SMBC/TiO₂ was almost 7 times and 6 times as large as BC/TiO₂ and pure TiO₂, respectively.

Key words: TiO₂, porous materials, wet oxidization, photocatalysis, adsorption

CLC Number:

TF125

PANG Qiu-Hu, LIAO Guang-Fu, HU Xiao-Yu, ZHANG Quan-Yuan, XU Zu-Shun. Porous Bamboo Charcoal/TiO₂ Nanocomposites: Preparation and Photocatalytic Property[J]. Journal of Inorganic Materials, 2019, 34(2): 219-224.

Figures/Tables 8

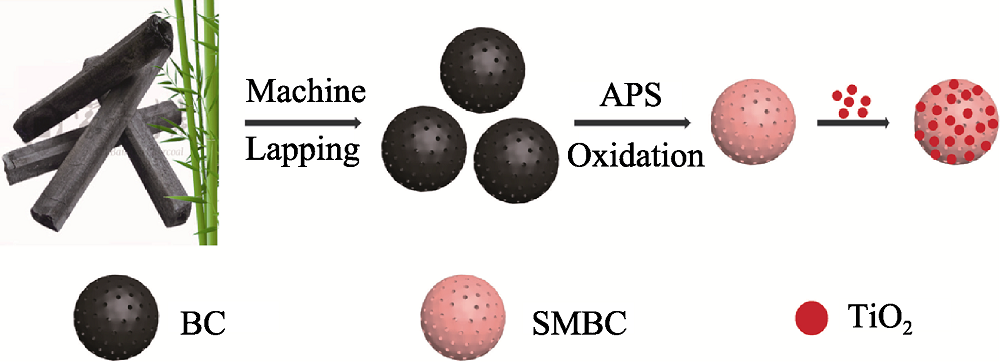

Scheme 1 Schematic illustration of the formation for SMBC/TiO2 nanocomposites

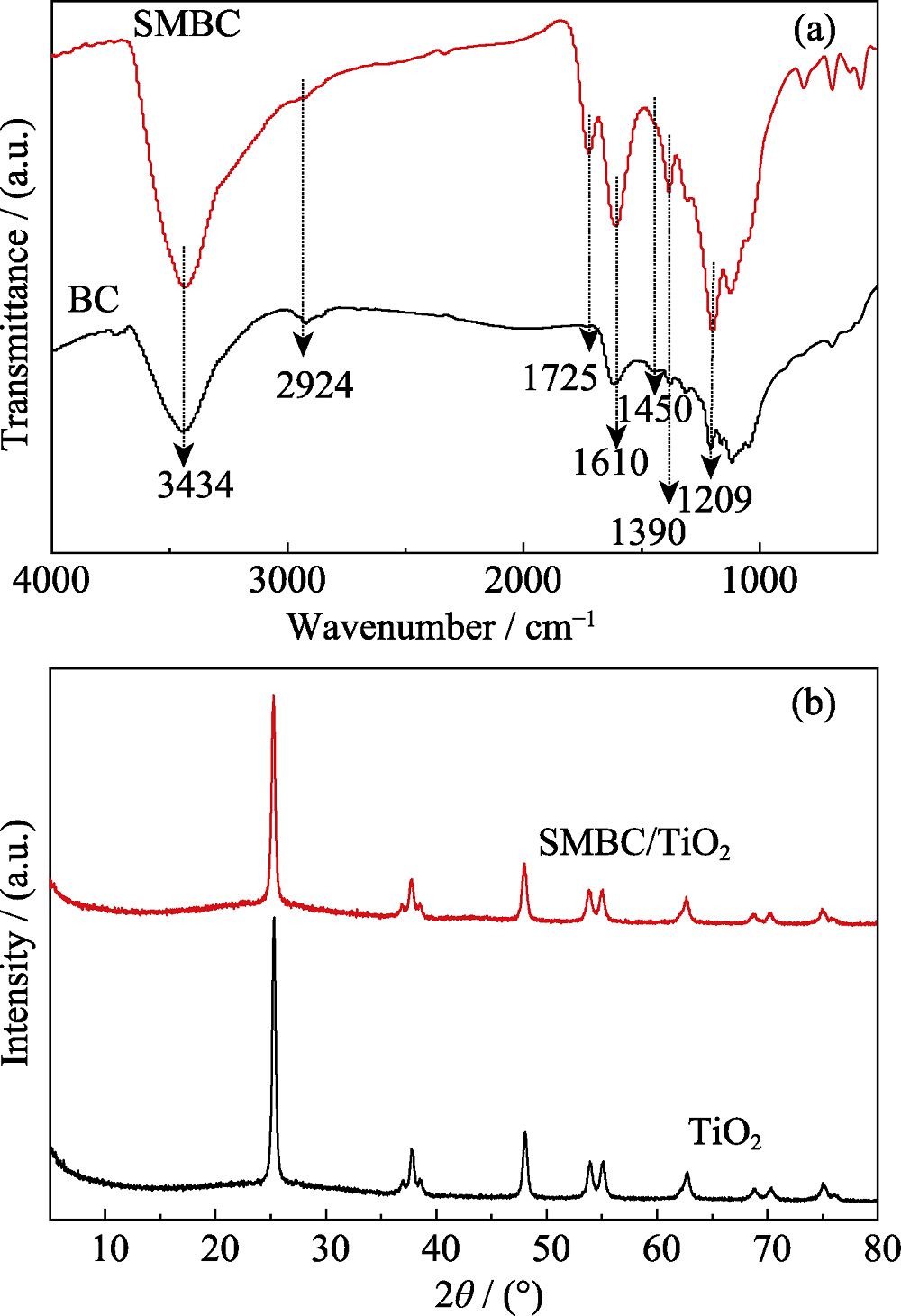

Fig. 1 (a) FT-IR spectra of BC and SMBC, (b) XRD patterns of pure TiO2 and SMBC/ TiO2 nanocomposites

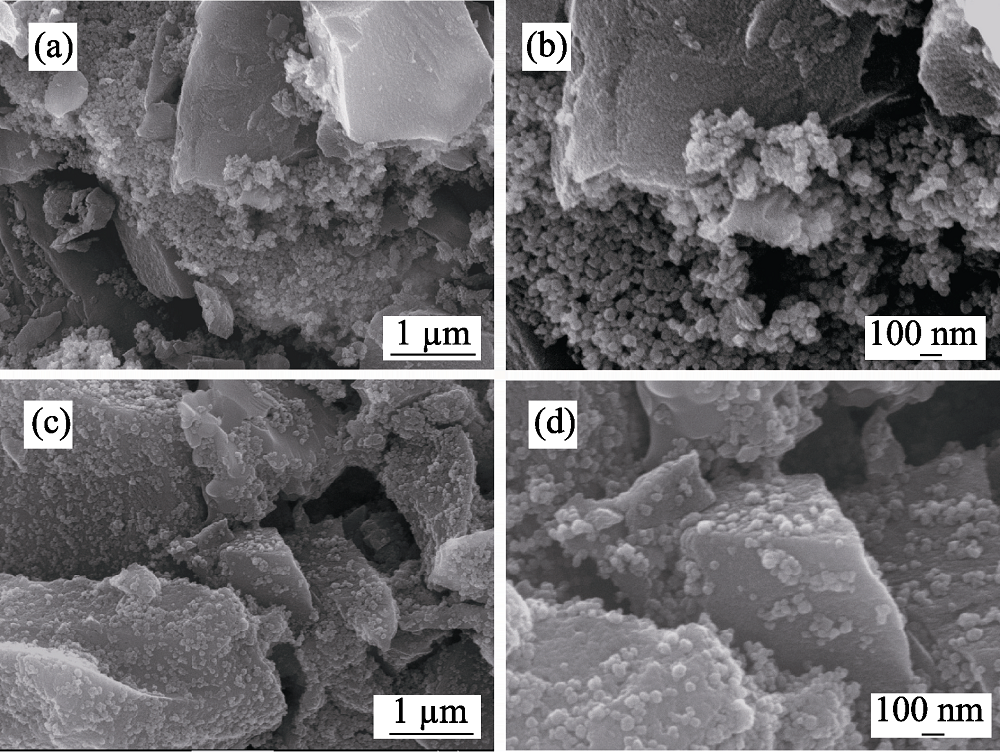

Fig. 2 FESEM images of nanocomposites(a-b) BC/TiO2; (c-d) SMBC/TiO2

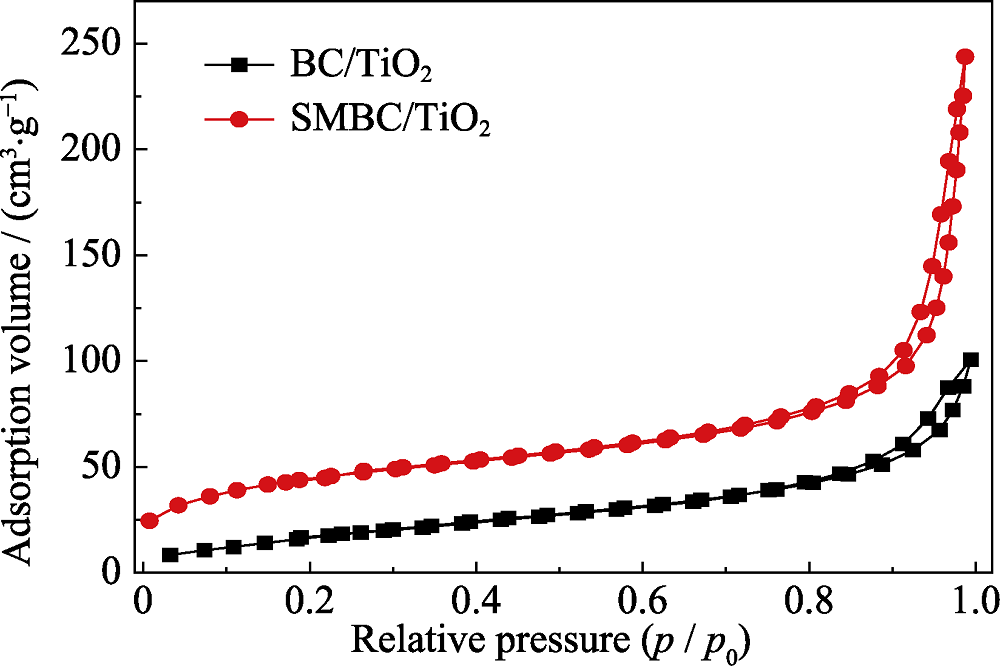

Fig. 3 N2 adsorption-desorption isotherms of BC/TiO2 and SMBC/TiO2 nanocomposit

Table 1 Textural properties of different materials

Sample	S_BET/(m²·g^-1)	V_t/(cm³·g^-1)	Pore size/nm
BC/TiO₂	71	0.17	7.7
SMBC/TiO₂	155	0.36	13.7

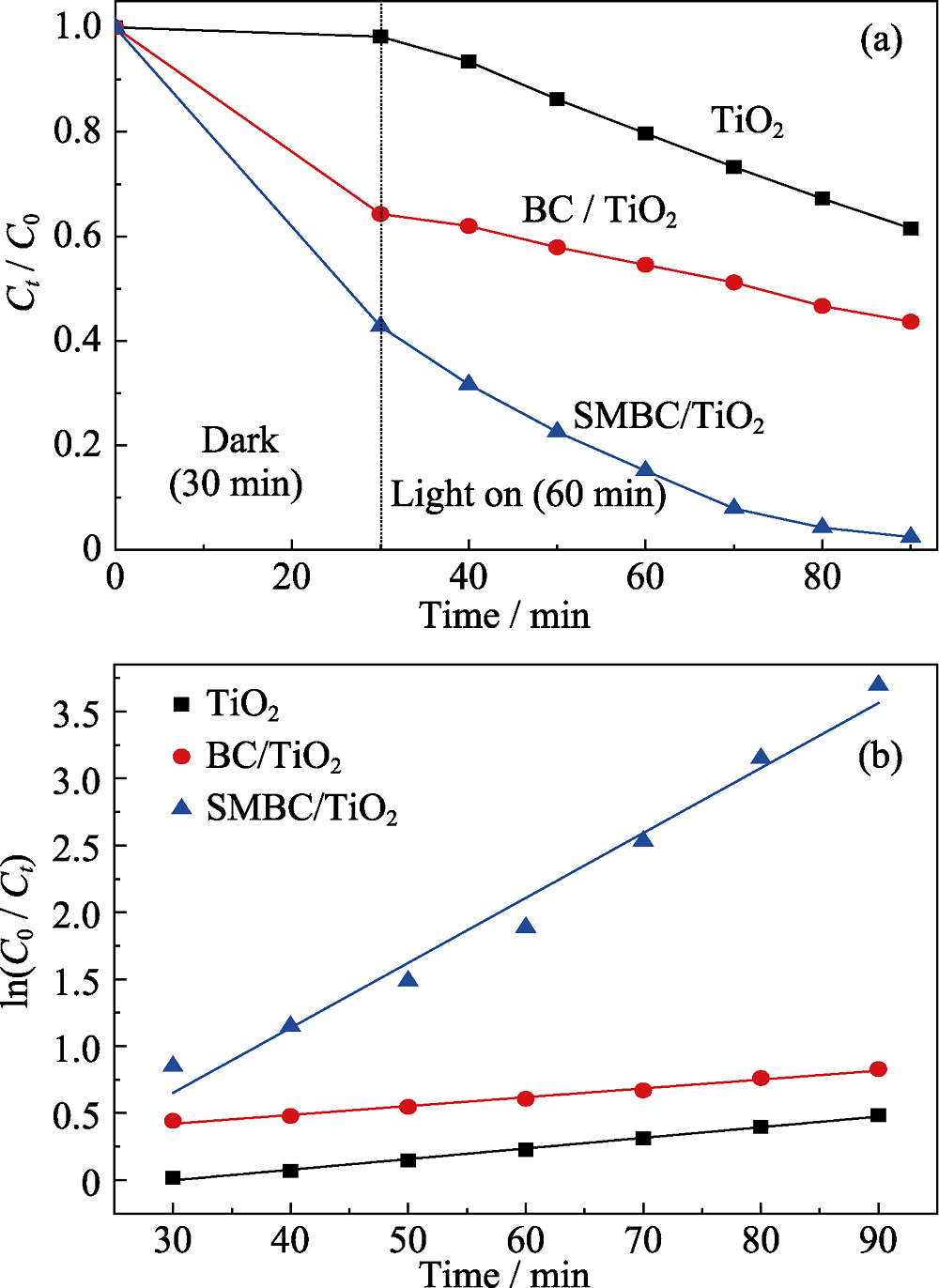

Fig. 4 (a) Changes of relative concentration of MB in the presence of TiO2, BC/TiO2 and SMBC/TiO2 under the same condition, and (b) ln(C0/Ct) vs. time of MB photocatalytic degradation for pure TiO2, BC/TiO2 and SMBC/TiO2

Table 2 Saturated adsorption capacity of MB in dark and kinetic data of photocatalytic degradation in the presence of different catalysts

Sample	Q/(mg·g^-1)	k/(×10^-2, min^-1)
TiO₂	5.9	0.79
BC/TiO₂	44.7	0.66
SMBC/TiO₂	71.5	4.85

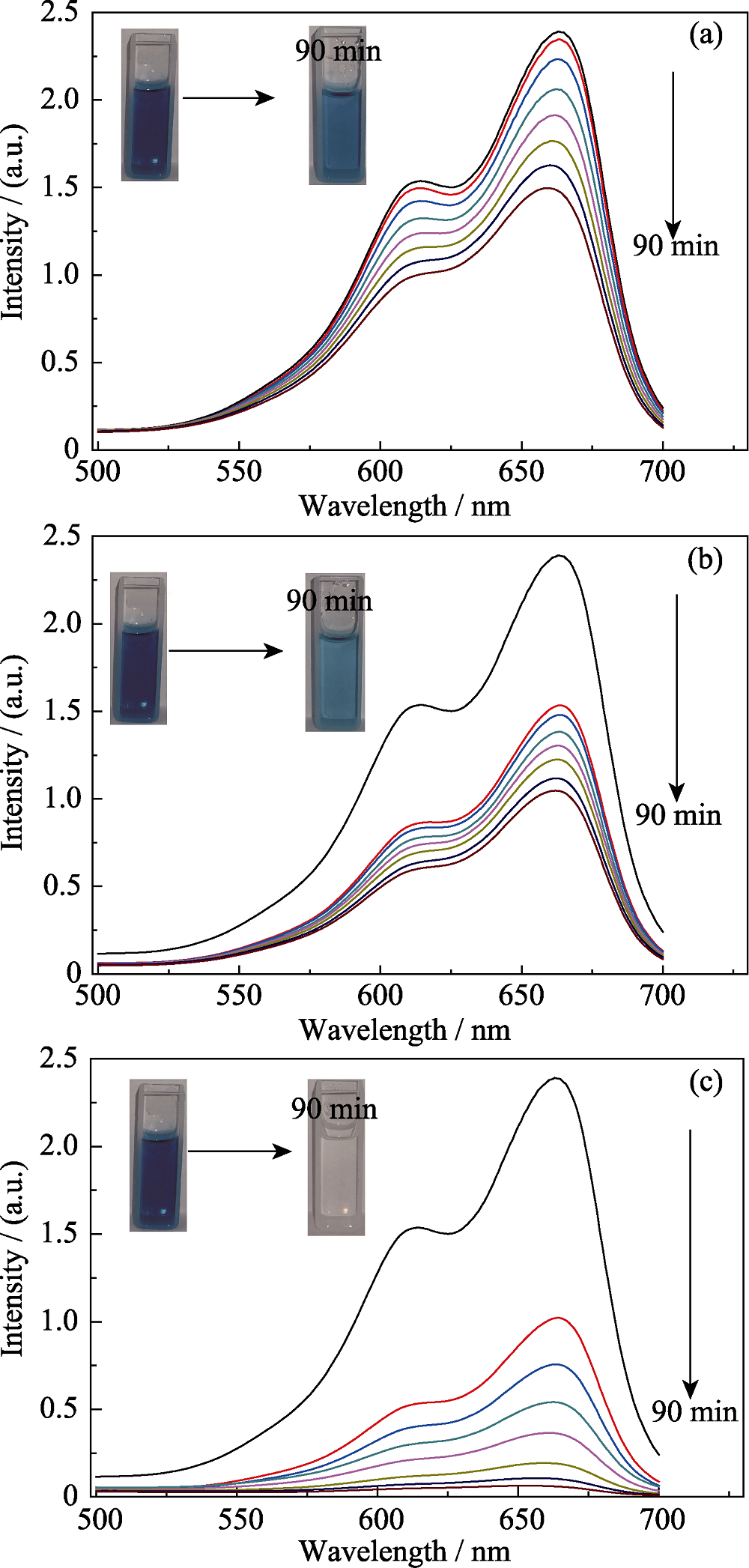

Fig. 5 Time-dependent UV-Vis spectra of MB aqueous solution in the presence of pure TiO2 (a), BC/TiO2 (b) and SMBC/TiO2 (c). The insets show the corresponding changes of MB aqueous solution in color

References 15

[1]	PU SHI-HUA, LONG DING-BIAO, WANG MIN-QIANG,et al. Design, synthesis and photodegradation ammonia properties of MoS2@TiO2 encapsulated carbon coaxial nanobelts. Materials Letters, 2017, 209: 56-59.
[2]	WU FANG-JUN, LIU WEI, QIU JIE-LONG,et al. Enhanced photocatalytic degradation and adsorption of methylene blue via TiO2 nanocrystals supported on graphene-like bamboo charcoal. Applied Surface Science, 2015, 358: 425-435.
[3]	QIAN XU-FANG, REN MENG, YUE DONG-TING,et al. Mesoporous TiO2 films coated on carbon foam based on waste polyurethane for enhanced photocatalytic oxidation of VOCs. Applied Catalysis B: Environmental, 2017, 212: 1-6.
[4]	YANG JI-KAI, WANG GUO-ZHENG, WANG DAN,et al. A self-cleaning coating material of TiO2 porous microspheres/cement composite with high-efficient photocatalytic depollution performance. Materials Letters, 2017, 200: 1-5.
[5]	MAMAGHANI AH, HAGHIGHAT FARIBORZ, LEE CHANG- SEO,et al. Photocatalytic oxidation technology for indoor environment air purification: the state-of-the-art. Applied Catalysis B: Environmental, 2017, 203: 247-269.
[6]	LIAO GUANG-FU, CHEN JUN, ZENG WEI-GUO,et al. Facile preparation of uniform nanocomposite spheres with loading silver nanoparticles on polystyrene-methyl acrylic acid spheres for catalytic reduction of 4-nitrophenol. The Journal of Physical Chemistry C, 2016, 120(45): 25935-25944.
[7]	LIAO GUANG-FU, ZHAO WEN-ZHE, LI QING,et al. Novel poly(acrylic acid)-modified tourmaline/silver composites for adsorption removal of Cu(II) ions and catalytic reduction of methylene blue in water. Chemistry Letters, 2017, 46(11): 1631-1634.
[8]	KAMEGAWA TAKASHI, ISHIGURO YASUSHI, SETO HIROKI,et al. Enhanced photocatalytic properties of TiO2-loaded porous silica with hierarchical macroporous and mesoporous architectures in water purification. Journal of Materials Chemistry A, 2015, 3(5): 2323-2330.
[9]	PAN XUAN, ZHAO YONG, LIU SHU,et al. Comparing graphene- TiO2 nanowire and graphene-TiO2 nanoparticle composite photocatalysts. ACS Applied Materials & Interfaces, 2012, 4(8): 3944-3950.
[10]	RADOIČIĆ MARIJA, ĆIRIĆ-MARJANOVIĆ GORDANA, SPASOJEVIĆ VULK,et al. Superior photocatalytic properties of carbonized PANI/TiO2 nanocomposites. Applied Catalysis B: Environmental, 2017, 213: 155-166.
[11]	CHOU CHUEN-SHII, CHEN CHUNG-YUNG, LIN SHEAU- HORNG,et al. Preparation of TiO2/bamboo-charcoal-powder composite particles and their applications in dye-sensitized solar cells. Advanced Powder Technology, 2015, 26(3): 711-717.
[12]	WU ZHANG-XIONG, WEBLEY PAUL A, ZHAO DONG-YUAN,et al. Comprehensive study of pore evolution, mesostructural stability, and simultaneous surface functionalization of ordered mesoporous carbon (FDU-15) by wet oxidation as a promising adsorbent. Langmuir, 2010, 26(12): 10277-10286.
[13]	XIA KAI-SHENG, GAO QIU-MING, WU CHUN-DONG,et al. Activation, characterization and hydrogen storage properties of the mesoporous carbon CMK-3. Carbon, 2007, 45(10): 1989-1996.
[14]	CHOI MINKEE, RYOO RYONG.Mesoporous carbons with KOH activated framework and their hydrogen adsorption.Journal of Materials Chemistry, 2007, 17(39): 4204-4209.
[15]	TIAN HONG-WEI, SHEN KAI, HU XIAO-YING,et al. N, S Co-doped graphene quantum dots-graphene-TiO2 nanotubes composite with enhanced photocatalytic activity. Journal of Alloys and Compounds, 2017, 691: 369-337.
