Direct View for the Deformation Evolution of Sulfur Electrode during Li-S Battery Cycling

doi:10.15541/jim20160325

Abstract

Abstract:

An experimental set-up was developed which can observe electrode deformation and electrochemical reaction in-situ during the charge-discharge cycling of lithium-sulfur battery. The positive bending deformation during charge and discharge was monitored at real time. It was found that the positive curvature increased during discharge and reduced during open circuit. The curvature would recover the original state during charge period. As electrochemical reaction proceeds, the electrolyte near positive electrode gradually become yellow and deepened due to polysulfide dissolution of discharge products. Results of surface and section morphology observation on sulfur electrode before and after cycle using scanning electron microscope (SEM) were consistent with curvature changes during cycling and verified the volumetric expansion of sulfur electrode.

Key words: lithium-sulfur battery, bending deformation, electrode expansion, transparent battery, sulfur electrode

CLC Number:

O646

WANG Yu-Hui, JIN Jun, GUO Zhan-Sheng, WEN Zhao-Yin. Direct View for the Deformation Evolution of Sulfur Electrode during Li-S Battery Cycling[J]. Journal of Inorganic Materials, 2017, 32(3): 247-251.

Figures/Tables 6

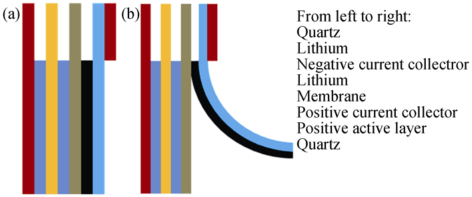

Fig. 1 Schematic of battery assembly (a) before and (b) after transformation

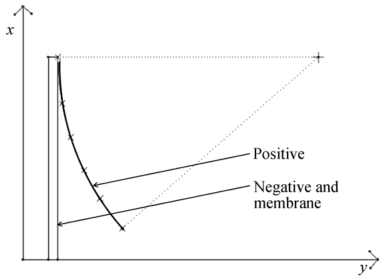

Fig. 2 Schematic of deformation monitoring and curvature calculation

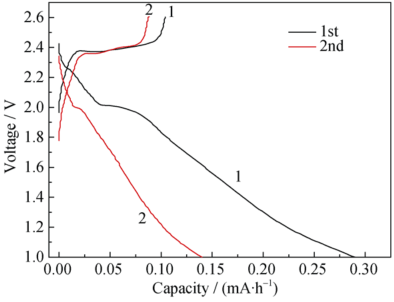

Fig. 3 First and second charge-discharge curves of Li-S battery

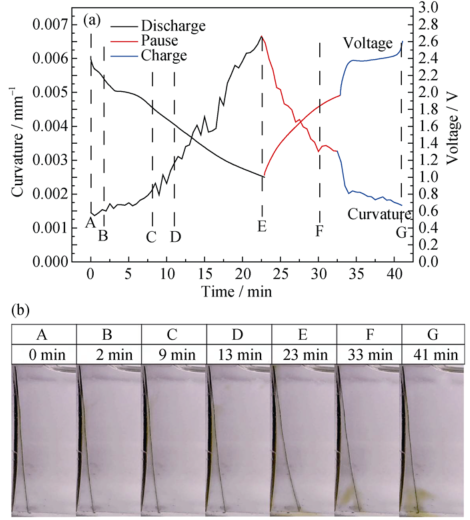

Fig. 4 Relation curves between voltage, electrochemical reaction, electrode deformation, and cycle time(a) Changes in voltage and positive deformation over time under complete charge and discharge cycle; (b) Portion screenshot of electrochemical reaction and electrode deformation during cycle

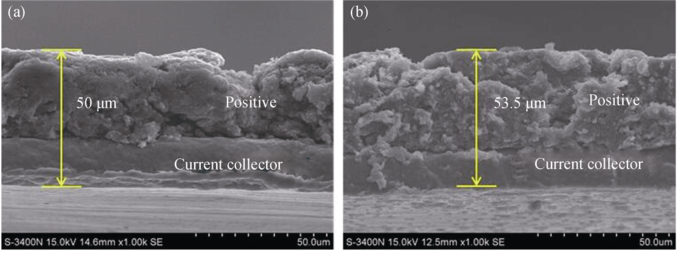

Fig. 5 Cross section showing thick changing of S electrode(a) Before 1st charge-diacharge cycle; (b) After 1st charge-diacharge cycle

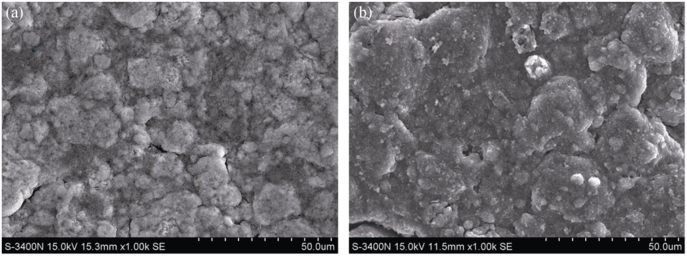

Fig. 6 Surface morphologies of S electrode(a) Before 1st charge-diacharge cycle; (b) After 1st charge-diacharge cycle
