摘要:
金属有机框架因具有多孔结构、高比表面积、丰富的官能团和金属活性位点以及良好的生物相容性和降解性而被广泛应用于生物医学领域。本研究提出以卟啉基金属有机框架纳米颗粒(PCN-224)为载体负载高化学价态的高铁酸钾氧化剂(K2FeO4, Fe(VI)), 经牛血清蛋白(BSA)包覆表面制备多功能复合纳米颗粒(Fe(VI)@PCN@BSA), 用于肿瘤光-化学动力学联合治疗。实验结果表明, PCN-224纳米颗粒粒径约为90 nm, 而Fe(VI)@PCN@BSA纳米颗粒粒径约为100 nm。Fe(VI)@PCN@BSA纳米颗粒在模拟肿瘤微环境条件下能够催化H2O2反应, 产生有细胞毒性的•OH而实现化学动力学效应, 同时也能够氧化分解部分H2O2产生O2, 在660 nm激光照射下提高单线态氧(1O2)产生量, 增强光动力学效应。进一步细胞实验证实Fe(VI)@PCN@BSA纳米颗粒具有较好的生物相容性, 能够获得增强的光-化学动力学联合治疗肿瘤效果。因此, Fe(VI)@PCN@BSA纳米颗粒在肿瘤治疗方面具有潜在的应用前景。
中图分类号:
王玉伟, 陈佳杰, 田正芳, 朱敏, 朱钰方. 卟啉基金属有机框架负载高铁酸钾: 光-化学动力学联合治疗肿瘤性能研究[J]. 无机材料学报, 2021, 36(12): 1305-1315.
WANG Yuwei, CHEN Jiajie, TIAN Zhengfang, ZHU Min, ZHU Yufang. Potassium Ferrate-loaded Porphyrin-based (VI) Metal-organic Frameworks for Combined Photodymanic and Chemodynamic Tumor Therapy[J]. Journal of Inorganic Materials, 2021, 36(12): 1305-1315.

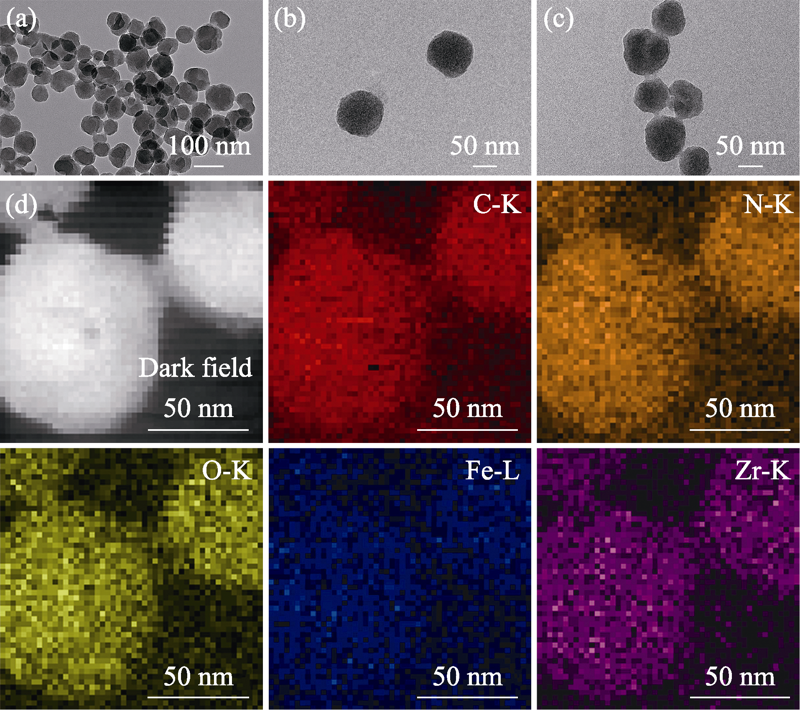

图1 (a)PCN-224、(b)Fe(VI)@PCN-224和(c)Fe(VI)@PCN @BSA纳米颗粒的TEM照片及(d)Fe(VI)@PCN@BSA纳米颗粒的元素分布图
Fig. 1 TEM images of (a) PCN-224, (b) Fe(VI)@PCN-224 and (c) Fe(VI)@PCN@BSA nanoparticles, and (d) elemental mapping of Fe(VI)@PCN@BSA nanoparticles

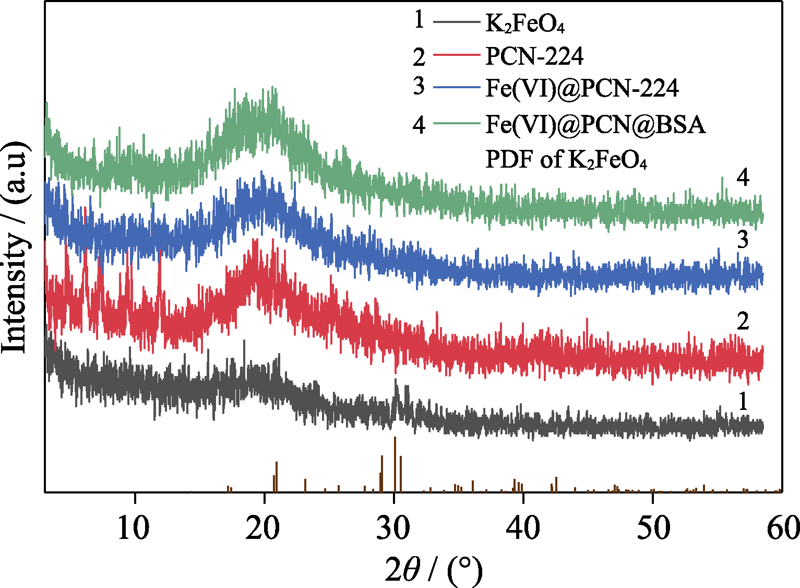

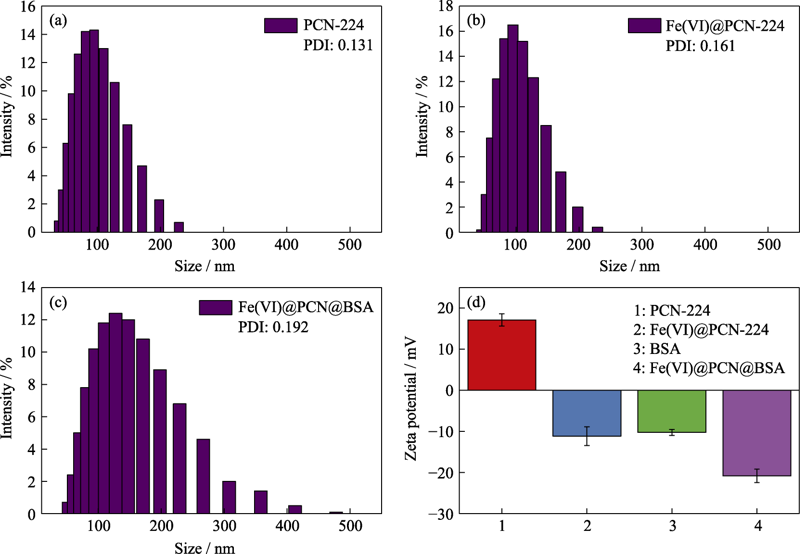

图3 (a)PCN-224、(b)Fe(VI)@PCN-224和(c)Fe(VI)@PCN@BSA纳米颗粒的DLS粒径分布图以及(d)BSA和PCN-224、Fe(VI)@PCN-224、Fe(VI)@PCN@BSA纳米颗粒的表面Zeta电位
Fig. 3 DLS size distributions of (a) PCN-224, (b) Fe(VI)@PCN-224 and (c) Fe(VI)@PCN@BSA nanoparticles, and (d) Zeta potentials of BSA, PCN-224, Fe(VI)@PCN, and Fe(VI)@PCN@BSA nanoparticles

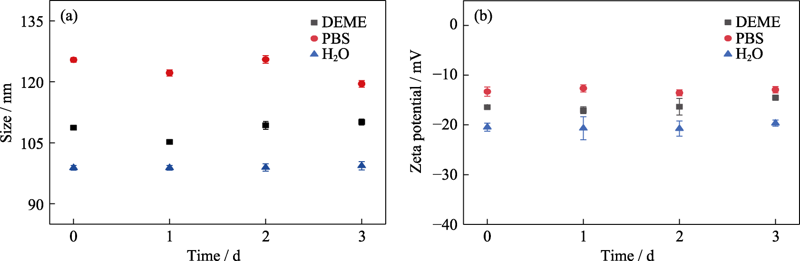

图4 Fe(VI)@PCN@BSA纳米颗粒在H2O、PBS和DEME培养基中的(a)粒径和(b)Zeta电位的变化图
Fig. 4 Changes of (a) size and (b) Zeta potential of Fe(VI)@PCN@BSA nanoparticles in H2O, PBS and DEME

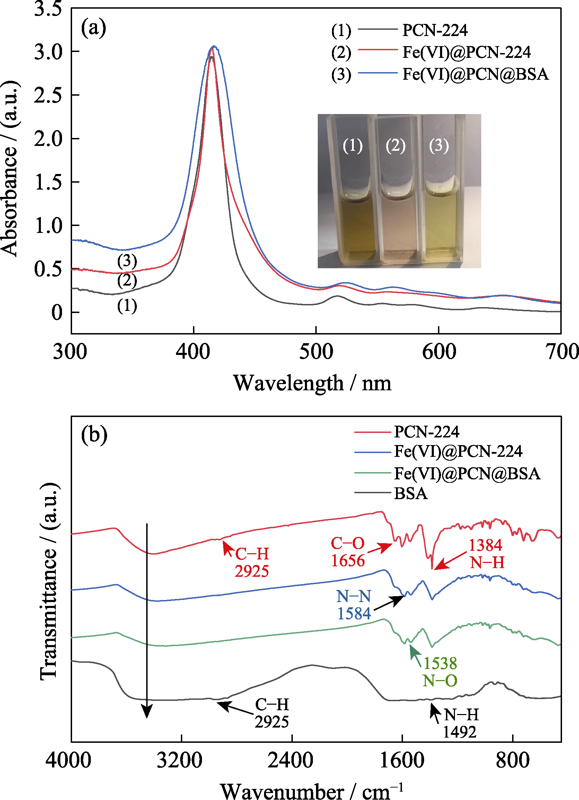

图5 (a)PCN-224、Fe(VI)@PCN-224和Fe(VI)@PCN@BSA纳米颗粒的紫外-可见光吸收光谱图, 其中插图为纳米颗粒悬浮液的光学照片, 以及(b)BSA、PCN-224、Fe(VI)@PCN-224和Fe(VI)@PCN@BSA纳米颗粒的傅里叶变换红外光谱图
Fig. 5 (a) UV-Vis absorption spectra of PCN-224, Fe(VI)@PCN-224, and Fe(VI)@PCN@BSA suspensions (inset is pictures of the suspensions), and (b) Fourier transform infrared spectra of BSA, PCN-224, Fe(VI)@PCN-224, and Fe(VI)@PCN@BSA nanoparticles

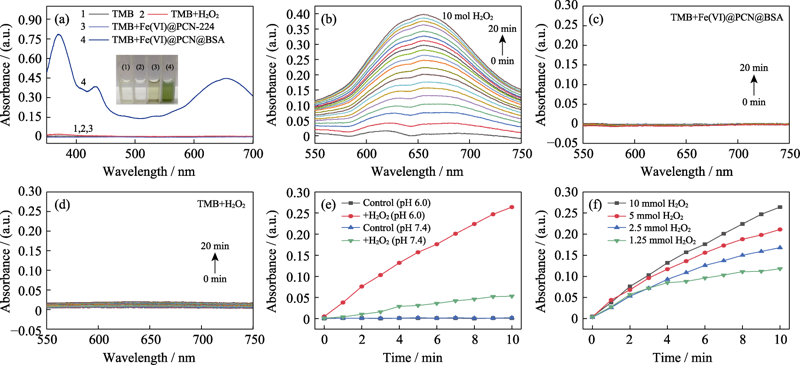

图6 Fe(VI)@PCN@BSA 纳米颗粒的化学动力学性能
Fig. 6 Chemodynamic properties of Fe(VI)@PCN@BSA nanoparticles (a) UV-Vis absorption spectra of TMB solutions under different conditions with inset showing photographs of TMB solutions after reaction for 10 min under different conditions; (b) Absorbance changes of TMB solutions with time after adding Fe(VI)@PCN@BSA nanoparticles (50 µg/mL) into TMB solutions under pH 6.0 with H2O2 (10 mmol/L); (c) Absorbance changes of TMB solutions with time after adding Fe(VI)@PCN@BSA nanoparticles (50 µg/mL) into TMB solutions with pH 6.0; (d) Absorbance changes of TMB solutions with time under pH 6.0 with H2O2 (10 mmol/L); (e) Curves of absorbance at 652 nm versus time for TMB solutions with Fe(VI)@PCN@BSA nanoparticles under acidic (pH 6.0) or neutral (pH 7.4) conditions with or without H2O2; (f) Absorbance changes at 652 nm versus time for TMB solutions under pH 6.0 with different concentrations of H2O2 after adding the same amount of Fe(VI)@PCN@BSA nanoparticles

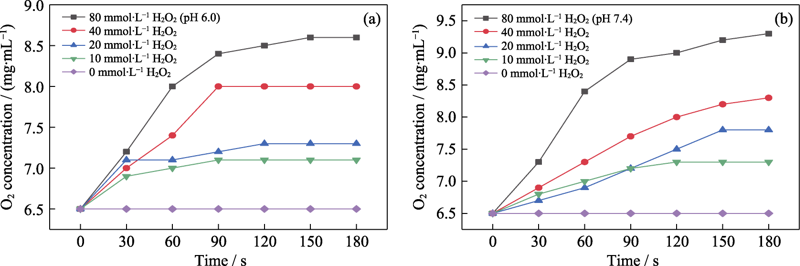

图7 (a)pH 6.0和(b)pH 7.4, 不同H2O2浓度的乙酸钠测试液中加入Fe(VI)@PCN@BSA纳米颗粒(50 μg/mL)后的溶解氧含量变化图
Fig. 7 Changes of dissolved O2 in NaAc solutions under (a) pH 6.0 and (b) pH 7.4 with different H2O2 concentrations after the addition of Fe(VI)@PCN@BSA nanoparticles (50 μg/mL)

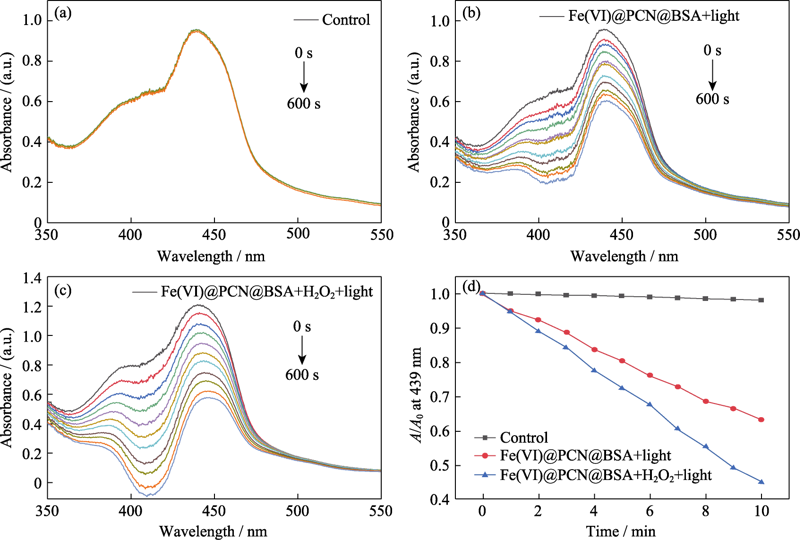

图8 (a~c)加入Fe(VI)@PCN@BSA纳米颗粒(50 μg/mL)的DPBF溶液在不同处理条件下的紫外-可见光吸收光谱图及(d)不同组别的DPBF溶液在439 nm处的特征吸收值变化图
Fig. 8 (a-c) UV-Vis absorbance spectra of the DPBF solutions with Fe(VI)@PCN@BSA nanoparticles (50 μg/mL) and (d) absorbance changes of DPBF solutions at 439 nm for different groups (a) Without 660 nm laser irradiation; (b) With 660 nm laser irradiation; (c) With H2O2 (10 mmol/L) and 660 nm laser irradiation

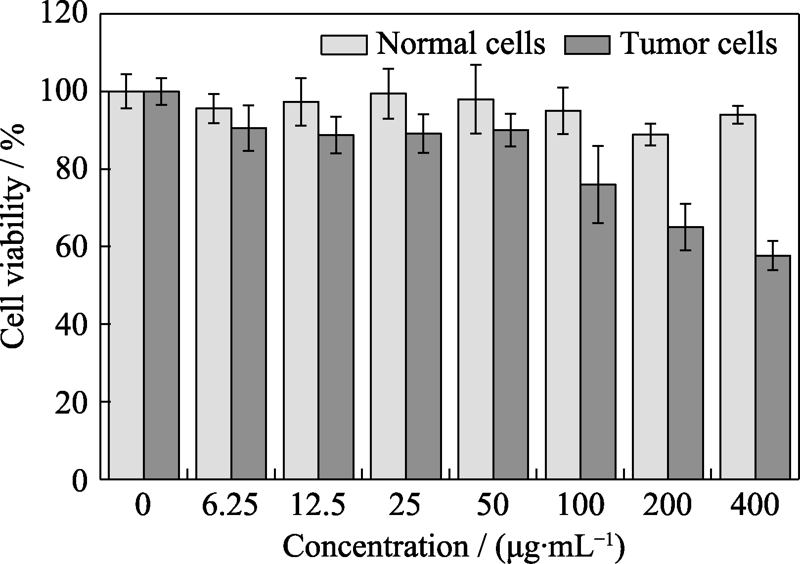

图9 不同浓度Fe(VI)@PCN@BSA纳米颗粒对MDA-MB- 231 细胞和成纤维细胞作用24 h后的细胞存活率
Fig. 9 Cell viabilities of MDA-MB-231 cells and human dermal fibroblasts after 24 h incubation with Fe(VI)@PCN@BSA nanoparticles at different concentrations

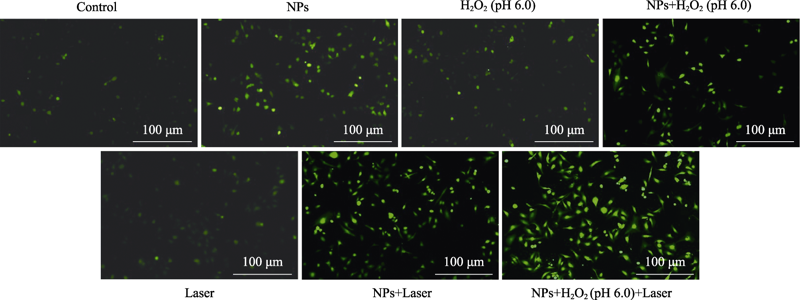

图10 不同条件处理的MDA-MB-231细胞内ROS的荧光显微照片
Fig. 10 Fluorescence images of MDA-MB-231 cells after different treatments for observing intracellular ROS Control: cells were cultured in normal medium; NPs: cells were cultured in normal medium with Fe(VI)@PCN@BSA nanoparticles; H2O2 (pH 6.0): cells were cultured in the medium at pH 6.0 with H2O2 (100 µmol/L); NPs+H2O2 (pH 6.0): cells were cultured in the medium at pH 6.0 with H2O2 (100 µmol/L) and Fe(VI)@PCN@BSA nanoparticles; Laser: 660 nm laser irradiation after cells culture in normal medium; NPs+Laser: 660 nm laser irradiation after cell culture in normal medium with Fe(VI)@PCN@BSA nanoparticles; NPs+H2O2 (pH 6.0)+Laser: 660 nm laser irradiation after cell culture in the medium at pH 6.0 with H2O2 (100 µmol/L) and Fe(VI)@PCN@BSA nanoparticles

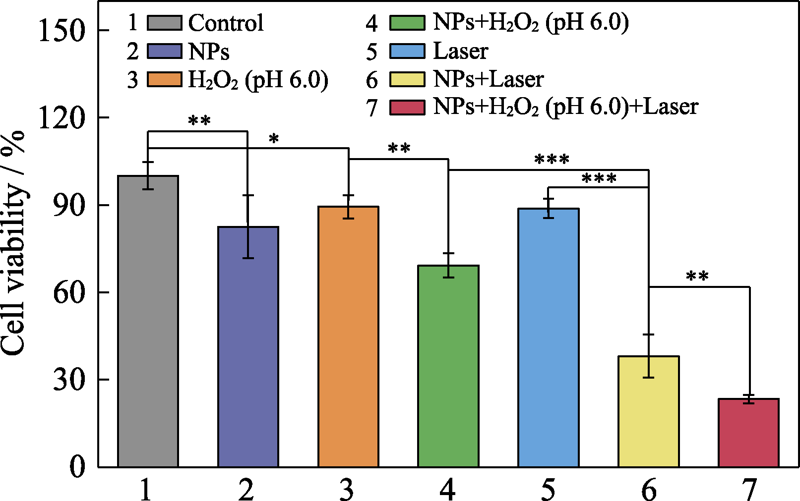

图11 Fe(VI)@PCN@BSA纳米颗粒对MDA-MB-231细胞的联合治疗评估(*P < 0.05, **P < 0.01, ***P < 0.001)
Fig. 11 Synergistic therapeutic effect of Fe(VI)@PCN@BSA nanoparticles on MDA-MB-231 cells (*P < 0.05, **P < 0.01, ***P < 0.001)
