ZnO纳米棒/ZnCo2O4纳米片异质结的制备及其光电探测性能

doi:10.15541/jim20180563

摘要/Abstract

摘要：

ZnO纳米材料异质结是构筑高性能紫外光电探测器的有力候选之一。本工作中, 设计并制备了一种新型ZnO纳米棒/ZnCo₂O₄纳米片异质结, 研究了其电学性能及光电探测性能。使用油水界面自组装, 将ZnCo₂O₄纳米片在ITO玻璃上组装为均匀的薄膜; 通过调控ZnO种子层厚度, 在ZnCo₂O₄纳米片薄膜上水热生长了取向一致、密度适中的ZnO纳米棒阵列, 获得了高质量的ZnO纳米棒/ZnCo₂O₄纳米片异质结。该异质结具有优良的整流特性, 整流比达到673.7; 其工作在反偏状态时, 光暗电流比超过2个量级, 紫外-可见判别比为29.4, 在光电探测中有良好的波长选择特性。研究表明, 该异质结有潜力应用于构筑高性能紫外光电探测器。

关键词: ZnO, 纳米材料, 异质结, 光电探测

Abstract:

Heterojunction-type nanostructures based on ZnO nanomaterials are one of the important candidates for constructing high-performance ultraviolet (UV) photodetectors. In this work, a novel ZnO nanorods/ZnCo₂O₄ nanoplates heterojunction was designed and prepared, and the electrical properties and photodetection properties of the as-prepared heterojunction were investigated. ZnCo₂O₄ nanoplates were constructed into uniform thin film on ITO glass substrate using oil/water interface self-assembly. Next, ZnO nanorod arrays with uniform orientation and proper density were grown on ZnCo₂O₄ nanoplates thin film using hydrothermal method with the help from ZnO seed layer. As a result, high-quality ZnO nanorods/ZnCo₂O₄ nanoplates heterojunction was achieved. This heterojunction has a high rectification ratio of 673.7. Under reverse bias, this heterojunction has a light-dark current ration of more than two orders of magnitude. The UV-visible rejection ratio of this heterojunction is 29.4, which indicates its selective detection of UV light. These results effectively prove the potential of this ZnO nanorods/ZnCo₂O₄ nanoplates heterojunction in constructing high-performance UV photodetectors.

Key words: ZnO, nanomaterials, heterojunction, photodetection

中图分类号:

TN364

张之明,方晓生. ZnO纳米棒/ZnCo₂O₄纳米片异质结的制备及其光电探测性能[J]. 无机材料学报, 2019, 34(9): 991-996.

ZHANG Zhi-Ming,FANG Xiao-Sheng. Preparation and Photodetection Property of ZnO Nanorods/ZnCo₂O₄ Nanoplates Heterojunction[J]. Journal of Inorganic Materials, 2019, 34(9): 991-996.

图/表 6

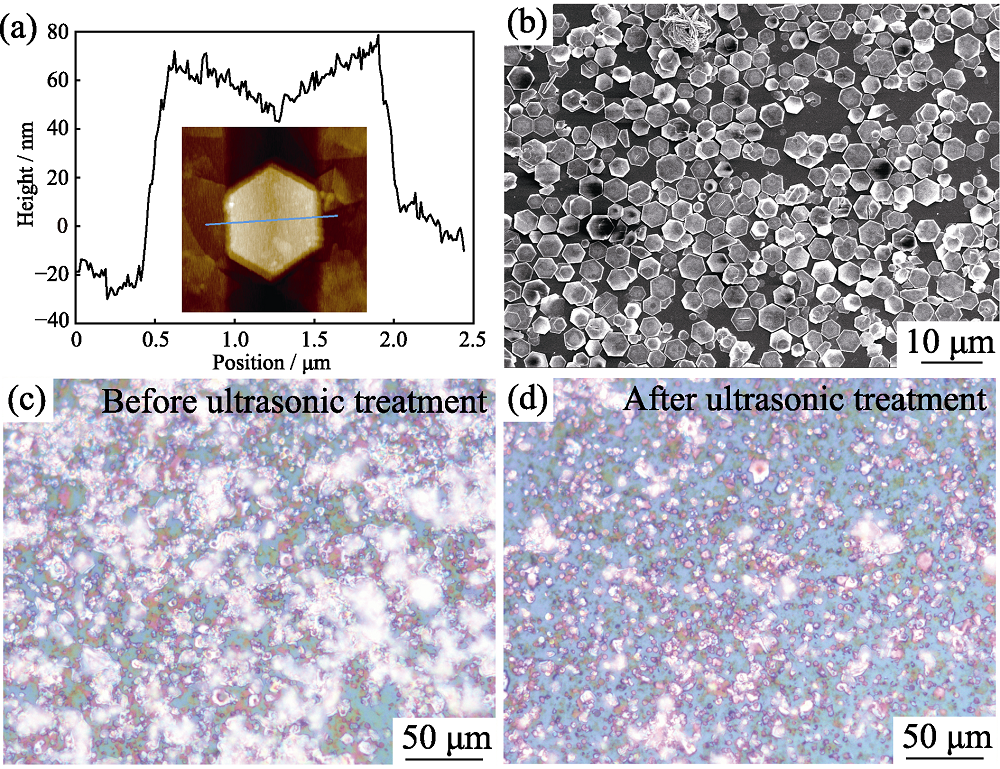

图1 ZnCo2O4纳米片的AFM表征(a)和SEM照片(b), 超声前(c)后(d)的ZnCo2O4纳米片自组装薄膜的光镜照片

Fig. 1 AFM (a) and SEM (b) characterization of ZnCo2O4 nanoplates, optical images of ZnCo2O4 nanoplates thin film before (c) and after (d) ultrasonic treatment

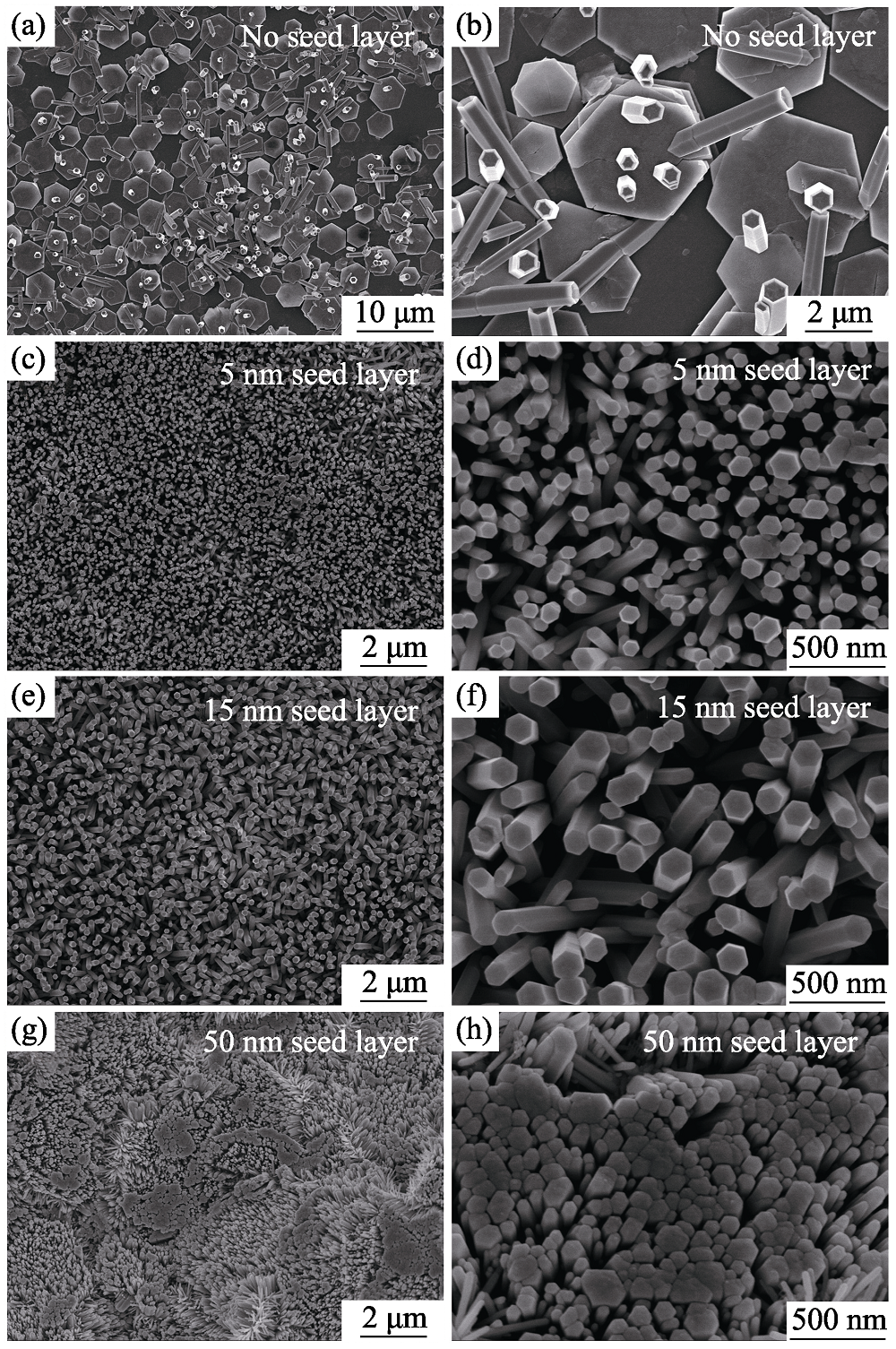

图2 使用不同厚度种子层时水热生长ZnO的SEM照片

Fig. 2 SEM images of ZnO grown with seed layers of different thicknesses (a-b) No seed layer; (c-d) 5 nm seed layer; (e-f) 15 nm seed layer; (g-h) 50 nm seed layer

图3 ZnO纳米棒/ZnCo2O4纳米片异质结器件的结构示意图(a), ZnO纳米棒阵列的I-V特性曲线(b), ZnO纳米棒/ZnCo2O4纳米片异质结的I-V特性曲线(c)及其0~1 V范围内的放大图(d)

Fig. 3 Diagram of ZnO nanorods/ZnCo2O4 nanoplates heterojunction device (a), I-V characteristics of ZnO nanorod arrays (b), I-V characteristics (c) and zoomed in graph (0-1 V) (d) of ZnO nanorods/ZnCo2O4 nanoplates heterojunction

图4 ZnO纳米棒/ZnCo2O4纳米片异质结器件的光电探测性能

Fig. 4 Photodetection properties of ZnO nanorods/ZnCo2O4 nanoplates heterojunction device (a) Band diagram under forward and reverse bias; (b) Photoelectric response to 350 nm (0.753 mW?·cm-2) UV light; (c) Photoelectric response to illumination of different wavelength under reverse bias; (d) Responsivity

图S1 ZnO纳米棒阵列的侧面SEM照片

Fig. S1 Side-view SEM image of ZnO nanorod arrays

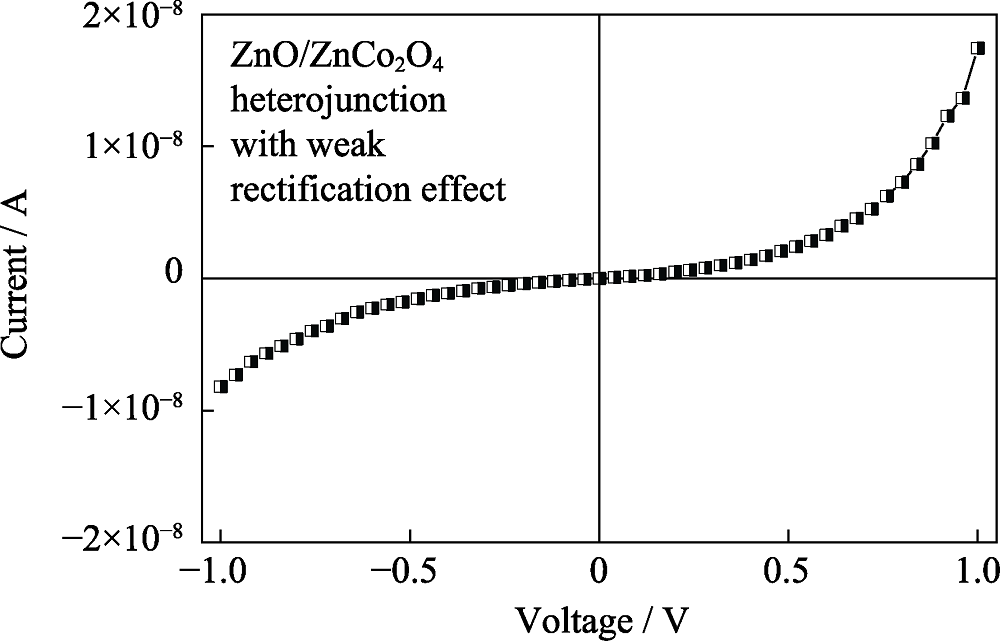

图S2 部分ZnO直接接触ITO的ZnO纳米棒/ZnCo2O4纳米片异质结的整流特性

Fig. S2 Rectification characteristics of ZnO nanorods/ZnCo2O4 nanoplates heterojunction with part of the ZnO contacting ITO directly

参考文献 30

[1]	WANG Z L . ZnO nanowire and nanobelt platform for nano- technology. Mat. Sci. Eng. R, 2009,64(3):33-71.
[2]	MANEKKATHODI A, LU M Y, WANG C W , et al. Direct growth of aligned zinc oxide nanorods on paper substrates for low-cost flexible electronics. Adv. Mater., 2010,22(22):4059-4063.
[3]	VAYSSIERES L . Growth of arrayed nanorods and nanowires of ZnO from aqueous solutions. Adv. Mater., 2003,15(5):464-466.
[4]	LIANG J R, ZHANG Y, YANG R ,et al. Room-temperature NH₃ gas sensing property of VO₂(B)/ZnO hierarchical heterogeneous composite with nanorod structure. J. Inorg. Mater., 2018,33(12):1323-1329.
[5]	NING Y, ZHANG Z M, TENG F , et al. Novel transparent and self-powered UV photodetector based on crossed ZnO nanofiber array homojunction. Small, 2018,14(13):1703754.
[6]	HU K, TENG F, ZHENG L X , et al. Binary response Se/ZnO p-n heterojunction UV photodetector with high on/off ratio and fast speed. Laser Photonics Rev., 2017,11(1):1600257.
[7]	TSAI D S, LIN C A, LIEN W C , et al. Ultra-high-responsivity broadband detection of Si metal-semiconductor-metal Schottky photodetectors improved by ZnO nanorod arrays. ACS Nano, 2011,5(10):7748-7753.
[8]	YIN Z Y, WANG Z, DU Y P , et al. Full solution-processed synthesis of all metal oxide-based tree-like heterostructures on fluorine- doped tin oxide for water splitting. Adv. Mater., 2012,24(39):5374-5378.
[9]	NIE B, HU J G, LUO L B , et al. Monolayer graphene film on ZnO nanorod array for high-performance Schottky junction ultraviolet photodetectors. Small, 2013,9(17):2872-2879.
[10]	HATCH S M, BRISCOE J, DUNN S . A self-powered ZnO nanorod/CuSCN UV photodetector exhibiting rapid response. Adv. Mater., 2013,25(6):867-871.
[11]	LI S B, XU J P, SHI S B , et al. UV photoresponse properties of ZnO nanorods arrays deposited with CuSCN by SILAR method. Chem. Phys. Lett., 2015,620:50-55.
[12]	BIE Y Q, LIAO Z M, ZHANG H Z , et al. Self-powered, ultrafast, visible-blind UV detection and optical logical operation based on ZnO/GaN nanoscale p-n junctions. Adv. Mater., 2011,23(5):649-653.
[13]	LEE T I, LEE S H, KIM Y D , et al. Playing with dimensions: rational design for heteroepitaxial p-n junctions. Nano Lett., 2011,12(1):68-76.
[14]	FORTICAUX A, HACIALIOGLU S, DEGRAVE J P ,et al. Three-dimensional mesoscale heterostructures of ZnO nanowire arrays epitaxially grown on CuGaO₂ nanoplates as individual diodes. ACS Nano, 2013,7(9):8224-8232.
[15]	DEKKERS M, RIJNDERS G, BLANK D H . ZnIr₂O₄, a p-type transparent oxide semiconductor in the class of spinel zinc-d ⁶- transition metal oxide. Appl. Phys. Lett., 2007,90(2):021903.
[16]	KIM S, CIANFRONE J A, SADIK P , et al. Room temperature deposited oxide p-n junction using p-type zinc-cobalt-oxide. J. Appl. Phys., 2010,107(10):103538.
[17]	KIM H J, SONG I C, SIM J H , et al. Structural and transport properties of cubic spinel ZnCo₂O₄ thin films grown by reactive magnetron sputtering. Solid State Commun., 2004,129(10):627-630.
[18]	QIU Y C, YANG S H, DENG H , et al. A novel nanostructured spinel ZnCo₂O₄ electrode material: morphology conserved transformation from a hexagonal shaped nanodisk precursor and application in lithium ion batteries. J. Mater. Chem., 2010,20(21):4439-4444.
[19]	SHARMA Y, SHARMA N, SUBBA RAO G V, , et al. Nanophase ZnCo₂O₄ as a high performance anode material for Li-ion batteries. Adv. Funct. Mater., 2007,17(15):2855-2861.
[20]	WEI X H, CHEN D H, TANG W J . Preparation and characterization of the spinel oxide ZnCo₂O₄ obtained by Sol-Gel method. Mater. Chem. Phys., 2007,103(1):54-58.
[21]	HU L F, MA R Z, OZAWA T C , et al. Oriented films of layered rare-earth hydroxide crystallites self-assembled at the hexane/water interface. Chem. Commun., 2008,40(40):4897-4899.
[22]	HU L F, MA R Z, OZAWA T C ,et al. Oriented monolayer film of Gd₂O₃:0.05Eu crystallites: quasi-topotactic transformation of the hydroxide film and drastic enhancement of photoluminescence properties. Angew. Chem. Int. Ed., 2009,48(21):3846-3849.
[23]	BAE J, SONG M K, PARK Y J , et al. Fiber supercapacitors made of nanowire-fiber hybrid structures for wearable/flexible energy storage. Angew. Chem. Int. Ed., 2011,50(7):1683-1687.
[24]	XU S, ADIGA N, BA S , et al. Optimizing and improving the growth quality of ZnO nanowire arrays guided by statistical design of experiments. ACS Nano, 2009,3(7):1803-1812.
[25]	LADANOV M, ALGARIN-AMARIS P, VILLALBA P ,et al. Effects of the physical properties of atomic layer deposition grown seeding layers on the preparation of ZnO nanowires. J. Phys. Chem. Solids, 2013,74(11):1578-1588.
[26]	SONG J, LIM S . Effect of seed layer on the growth of ZnO nanorods. J. Phys. Chem. C, 2007,111(2):596-600.
[27]	XU S, WANG Z L . One-dimensional ZnO nanostructures: solution growth and functional properties. Nano Res., 2011,4(11):1013-1098.
[28]	BIELINSKI A R, KAZYAK E, SCHLEPÜTZ C M , et al. Hierarchical ZnO nanowire growth with tunable orientations on versatile substrates using atomic layer deposition seeding. Chem. Mater., 2015,27(13):4799-4807.
[29]	XU X J, CHEN J X, CAI S , et al. A real-time wearable UV-radiation monitor based on a high-performance p-CuZnS/n-TiO₂ photodetector. Adv. Mater., 2018,30(43):1803165.
[30]	ZHAO B, WANG F, CHEN H Y , et al. An ultrahigh responsivity (9.7 mA·W^-1) self-powered solar-blind photodetector based on individual ZnO-Ga₂O₃ heterostructures. Adv. Funct. Mater., 2017,27(17):1700264.
