Eu2+/Tb3+掺杂的Sr2Si5N8基荧光粉的制备与发光性能

doi:10.15541/jim20140374

无机材料学报 ›› 2015, Vol. 30 ›› Issue (4): 397-400.DOI: 10.15541/jim20140374 CSTR: 32189.14.10.15541/jim20140374

Eu²⁺/Tb³⁺掺杂的Sr₂Si₅N₈基荧光粉的制备与发光性能

彭霞^{1, 2}, 李淑星^{1, 2}, 刘学建¹, 黄毅华¹, 黄政仁¹, 李会利³

(1. 中国科学院上海硅酸盐研究所, 高性能陶瓷和超微结构国家重点实验室, 上海200050; 2. 中国科学院大学, 北京100049; 3. 华东师范大学物理系, 上海200062)

收稿日期:2014-07-21 修回日期:2014-08-27 出版日期:2015-04-29 网络出版日期:2015-03-26
作者简介:彭霞(1988–), 女, 硕士研究生. E-mail: pengxia@student.sic.ac.cn
基金资助:
国家自然科学基金(51172263, 51472087);上海市自然科学基金(12ZR1451900)

Syntheses and Photoluminescence Properties of Eu²⁺/Tb³⁺ Doped
Sr₂Si₅N₈ Phosphors

PENG Xia^1,2, LI Shu-Xing^1,2, LIU Xue-Jian¹, HUANG Yi-Hua¹, HUANG Zheng-Ren₁, LI Hui-Li³

(1.The State Key Lab of High Performance Ceramics and Superfine Microstructure, Shanghai Institute of Ceramics, Chinese Academy of Science, Shanghai 200050, China; 2. University of Chinese Academy of Sciences, Beijing 100049, China; 3. Department of Physics, East China Normal University, Shanghai 200062, China)

Received:2014-07-21 Revised:2014-08-27 Published:2015-04-29 Online:2015-03-26
About author:PENG Xia. E-mail: pengxia@student.sic.ac.cn
Supported by:
National Natural Science Foundation of China(551172263, 51472087);Shang hai Municipal Natural Science Foundation (12ZR1451900)

摘要/Abstract

摘要：

采用碳热还原氮化法合成了Eu²⁺/Tb³⁺掺杂的Sr₂Si₅N₈基荧光粉, 并重点研究了Tb³⁺-Eu²⁺共掺时Sr₂Si₅N₈基荧光粉的发光性能。研究结果表明: 由于Tb³⁺的f → d间的跃迁是自旋允许的, Sr₂Si₅N₈:Tb³⁺在330 nm激发光下, 在490、543、585和623 nm四处各有一发射峰, 它们分别来源于Tb³⁺的⁵D₄ → ⁷F_j (j = 6、5、4、3)能级跃迁; 掺入Tb³⁺对Sr_1.96Si₅N₈:0.04Eu²⁺的激发谱和发射谱的形状及峰位无明显影响, 当共掺离子Tb³⁺浓度为x = 0.01时, 样品发射强度比未共掺的Sr_1.96Si₅N₈:0.04Eu²⁺提高了约20%, Tb³⁺主要通过电多极能量传递的方式转向Eu²⁺。

关键词: 碱土金属氮硅化物, 碳热还原氮化法, 发光性能, 能量传递

Abstract:

Eu²⁺/Tb³⁺ doped Sr₂Si₅N₈ phosphors were prepared by carbothermal reduction and nitridation method. The luminescence of Tb³⁺/Eu²⁺ co-doped Sr₂Si₅N₈ were investigated. The experimental results indicated that owing to spin-allowed f → d transition rule the four emission lines located at 490, 543, 585, and 623 nm which ascribed to the ⁵D₄→⁷F_j (j = 6, 5, 4, 3) transitions were observed under 330 nm excitation. No obvious changes in spectral line shape were observed for Sr₂Si₅N₈:Eu²⁺ co-doped with Tb³⁺. However, the emission intensity was improved by about 20% with Tb³⁺ doping concentration of x = 0.01 mainly because of the electric multipole energy transfer from Tb³⁺ to Eu²⁺.

Key words: alkaline-earth-silicon-nitrides, carbothermal reduction and nitridation method, luminescence, energy transfer

中图分类号:

O614

彭霞, 李淑星, 刘学建,黄毅华, 黄政仁, 李会利. Eu²⁺/Tb³⁺掺杂的Sr₂Si₅N₈基荧光粉的制备与发光性能[J]. 无机材料学报, 2015, 30(4): 397-400.

PENG Xia, LI Shu-Xing, LIU Xue-Jian, HUANG Yi-Hua, HUANG Zheng-Ren, LI Hui-Li. Syntheses and Photoluminescence Properties of Eu²⁺/Tb³⁺ Doped
Sr₂Si₅N₈ Phosphors[J]. Journal of Inorganic Materials, 2015, 30(4): 397-400.

图/表 3

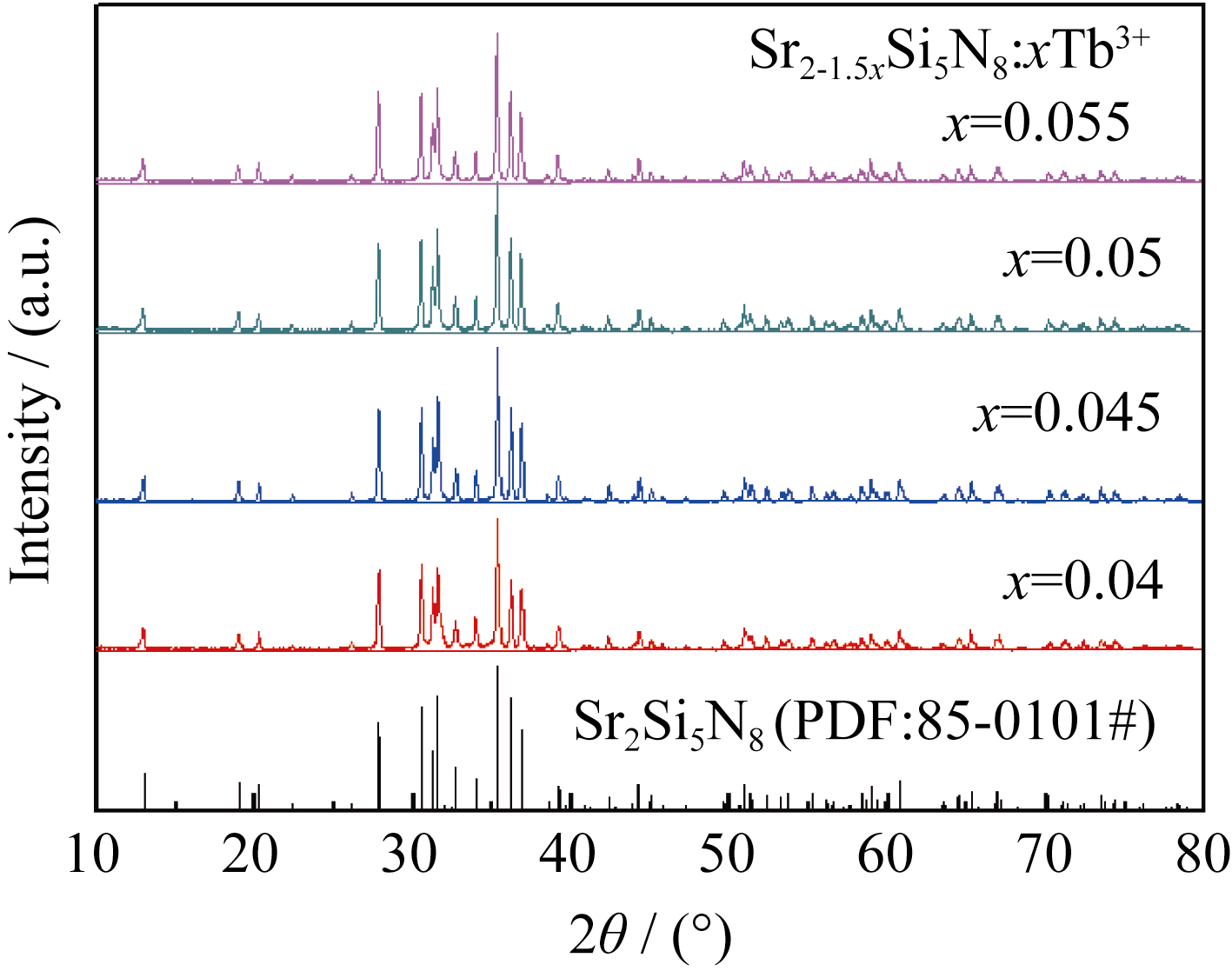

图1 不同Tb3+掺杂浓度的合成产物的XRD图谱

Fig. 1 XRD patterns of samples doped with different concentrations of Tb3+

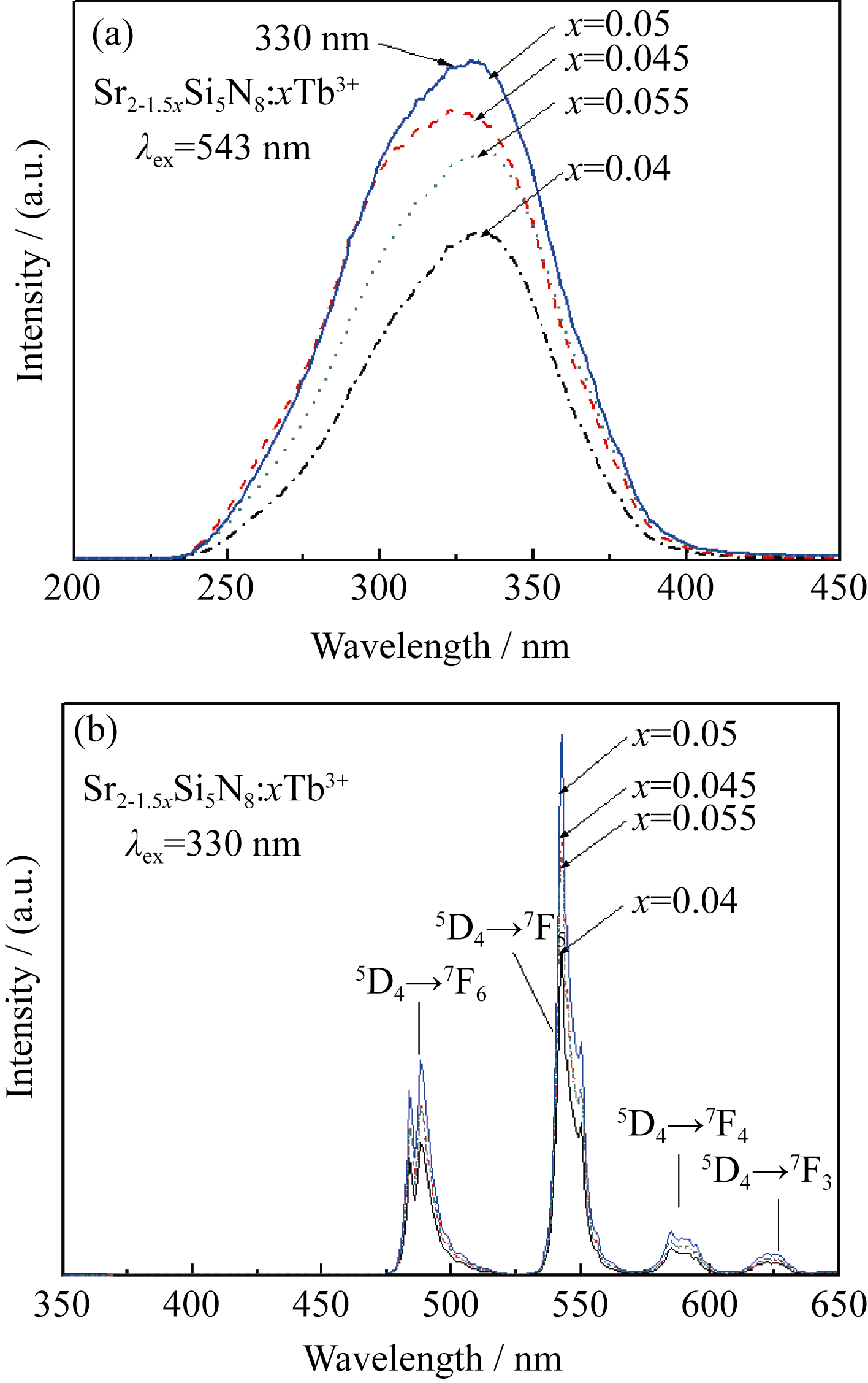

图2 不同浓度Tb3+掺杂样品的激发谱(a)和发射谱(b)

Fig. 2 Excitation and emission spectra of samples doped with different concentrations of Tb3+

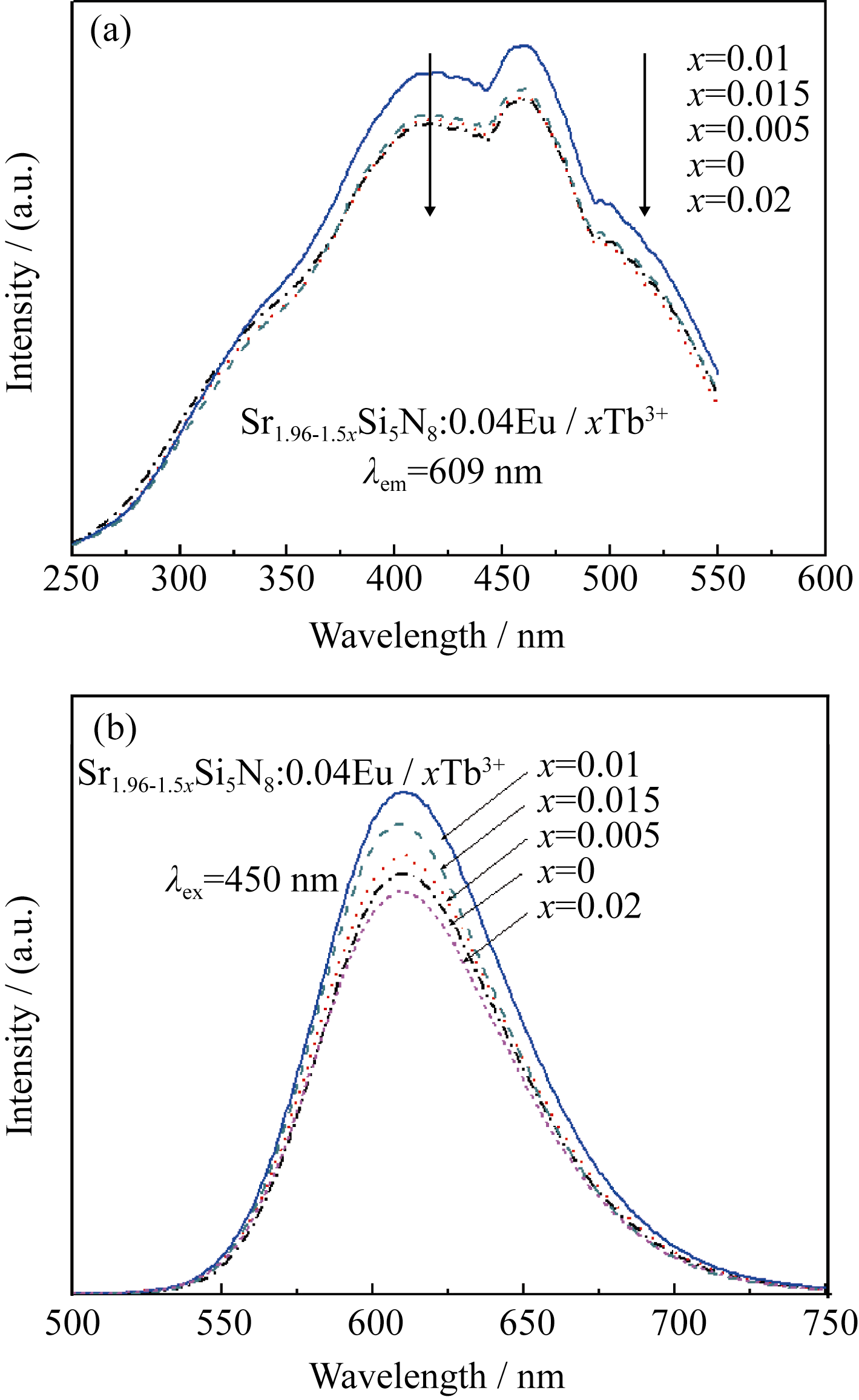

图3 不同Tb3+掺杂浓度下共掺粉体的激发谱(a)和发射谱(b)

Fig. 3 Excitation and emission spectra of samples doped with different concentrations of Tb3+

参考文献 23

[1]	TAKAHASHI K, HIROSAKI N, XIE R J, et al.Luminescence properties of blue LaxCe1-xAl(Si6-zAlz)(N10-zOz)(z~1) oxynitride phosphors and their application in white light-emitting diode.Appl. Phys. Lett., 2007, 91: 091923.
[2]	XIE R J, HIROSAKI N, YAMAMOTO Y, et al.Fluorescence of Eu2+ in strontium oxonitridoaluminosilicates (SiAlONS).J. Ceram. Soc. Jpn., 2005, 11(7): 462-465.
[3]	SUEHIRO T, HIROSAKI N, XIE R J, et al.Blue-emitting LaSi3N5:Ce3+ fine powder phosphor for UV-converting white light-emitting diodes.Appl. Phys. Lett., 2009, 95: 051903.
[4]	HIROSAKI N, XIE R J, INOUE K, et al.Blue-emitting AlN:Eu2+ nitride phosphor for field emission displays.Appl. Phys. Lett., 2007, 91: 061101.
[5]	INOUE K, HIROSAKI N, XIE R J, et al.Highly efficient and thermally stable blue-emitting AlN:Eu2+ phosphor for ultraviolet white light-emitting diodes. J. Phys. Chem. C, 2009, 113: 9392-9397.
[6]	HIROSAKI N, XIE R J, KIMOTO K, et al.Characterization and properties of green-emitting β-SiAlON:Eu2+ powder phosphors for white light-emitting diodes.Appl. Phys. Lett., 2005, 86: 211905.
[7]	YAMADA S, EMOTO H, IBUKIYAMA M, et al.Properties of SiAlON powder phosphors for white LEDs.J. Eur. Ceram. Soc., 2012, 32: 1355-1358.
[8]	LI Y Q, DELSING A C A, WITH G DE, et al. Luminescence properties of Eu2+-activated alkaline-earth silicon-oxynitride MSi2O2-δN2+2/3δ(M=Ca, Sr, Ba): a promising class of novel LED conversion phosphors.Chem. Mater., 2005, 17: 3242-3248.
[9]	XIE R J, HIROSAKI N, SAKUMA K, et al.Eu2+ doped Ca-α-SiAlON: A yellow phosphor for white light-emitting diodes. Appl. Phys. Lett., 2004, 84(26): 5404-5406.
[10]	SUEHIRO T, ONUMA H, HIROSAKI N, et al.Powder synthesis of Y-α-SiAlON and its potential as a phosphor host.J. Phys. Chem. C, 2010, 114: 1337-1342.
[11]	LI Y Q, STEEN J E J VAN, KREVEL J W H VAN, et al. Luminescence properties of red-emitting Sr2Si5N8:Eu2+ (M=Ca, Sr, Ba) LED conversion phosphors.J. Alloys Compd., 2006, 417: 273-279.
[12]	LI Y Q, WITH G DE, HINTZEN H T, et al.The effect of replacement of Sr by Ca on the structural and luminescence properties of the red-emitting Sr2Si5N8:Eu2+ LED conversion phosphor.J. Solid State Chem., 2008, 181: 515-524.
[13]	UHEDA K, HIROSAKI N, YAMAMOTO Y, et al.Luminescence properties of a red phosphor, CaAlSiN3:Eu2+, for white light emitting diodes.Solid State Lett., 2006, 9(4): H22-H25.
[14]	DUAN C J, OTTEN W M, DELSING A C A, et al. Preparation and photoluminescence properties of Mn2+-activated M2Si5N8 (M = Ca, Sr, Ba) phosphors.J. Solid State Chem., 2008, 181(4): 751-757.
[15]	TENG X M, LIU Y H, LIU Y Z, et al.Luminescence properties of Tm3+ co-doped of srzs: Eu2+ red phosphor.J. Lumin., 2010, 130(5): 851-854.
[16]	LI J, LEI B, QIN J, et al.Temperature-dependent emission spectra of Ca2Si5N8:Eu2+, Tm3+ phosphor and its afterglow properties. J. Am. Ceram. Soc., 2013, 96(3): 873-878.
[17]	TEN KATE O M, ZHANG Z, DORENBOS, et al. 4f and 5d energy levels of the divalent and trivalent lanthanide ions in M2Si5N8 (M = Ca, Sr, Ba).J. Solid State Chem., 2013, 197: 209-217.
[18]	XU L L, CHEN Y B, ZENG R J.Spectroscopic properties and energy transfer of Eu2+-Tb3+ co-doped Li2SrSiO4.J. Ceram., 2011, 32(3): 419-424.
[19]	HIRAMATSU R, ISHIDA K, AIGA F, et al.Tb3+ luminescence by energy transfer from Eu2+ in (Sr, Ba)2SiO4 phosphor.J. Appl. Phys., 2009, 106(9): 093513.
[20]	PENG XIA, LI SHU-XING, LIU XUE-JIAN, et al.Syntheses and photoluminescence properties of Sr2Si5N8: Eu2+ phosphors.Journal of Inorganic Materials, 2014, 29(12):1281-1286.
[21]	Shannon R D, Prewitt C T.Effective ionic radii in oxides and fluorides. Acta Cryst., 1969, B25: 925-946.
[22]	孙家跃, 杜海燕, 胡文祥. 固体发光材料. 北京: 化学工业出版社, 2003:152-178.
[23]	BLASSE G.Energy transfer between inequivalent Eu2+ ions.J. Solid State Chem., 1986, 62(2): 207-211.
